Pinpoint Test B: The Engine Overheats

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

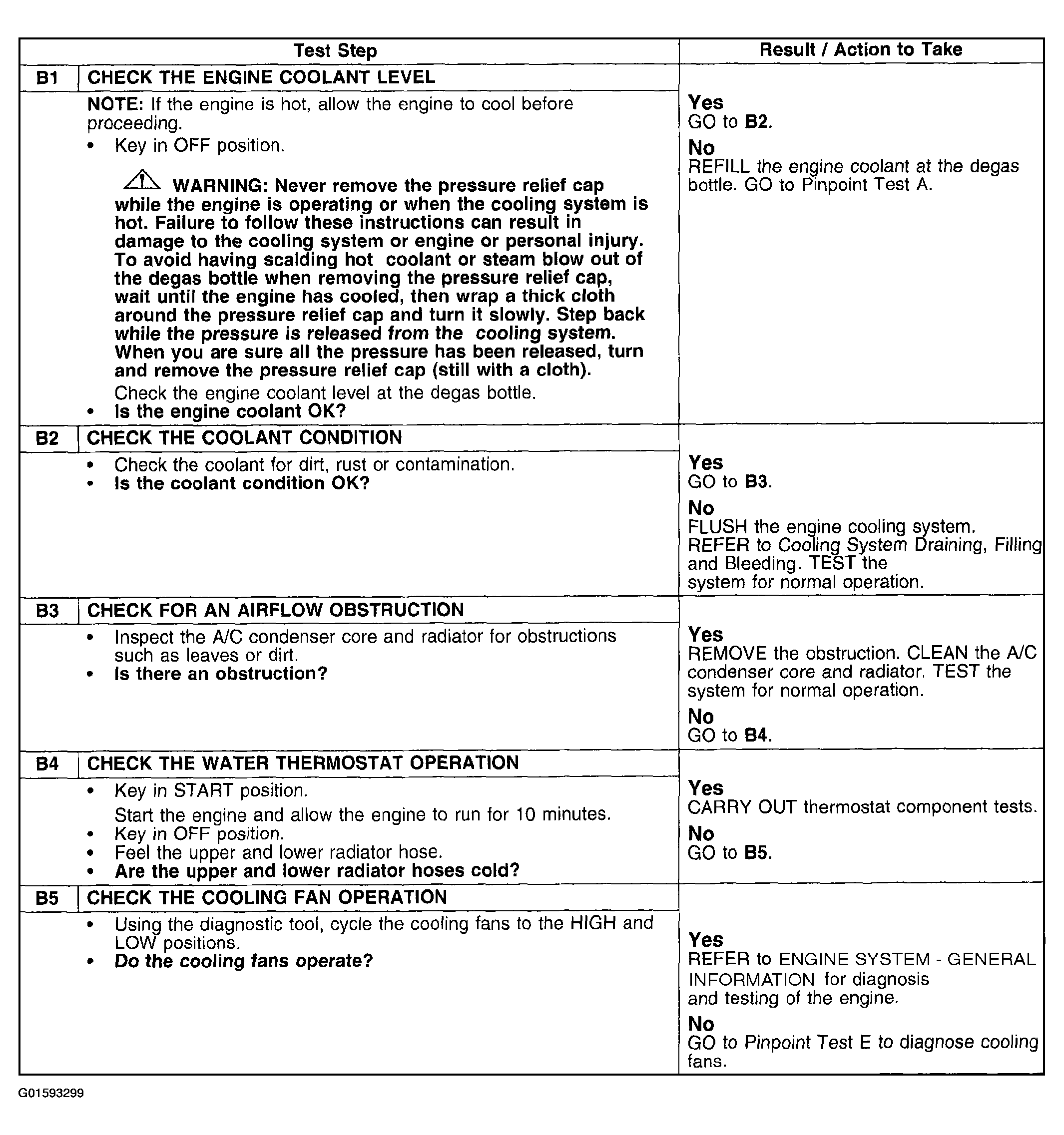

Fig 1: Pinpoint Test B: Engine Overheats (Steps B1-B5)
G01593299Courtesy of FORD MOTOR CO.
