Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hydraulic lash adjusters. For additional information, refer to HYDRAULIC LASH ADJUSTER .
  2. Pressurize the cylinder using compressed air.
  3. Using the special tool, remove the key, retainer, and valve spring.

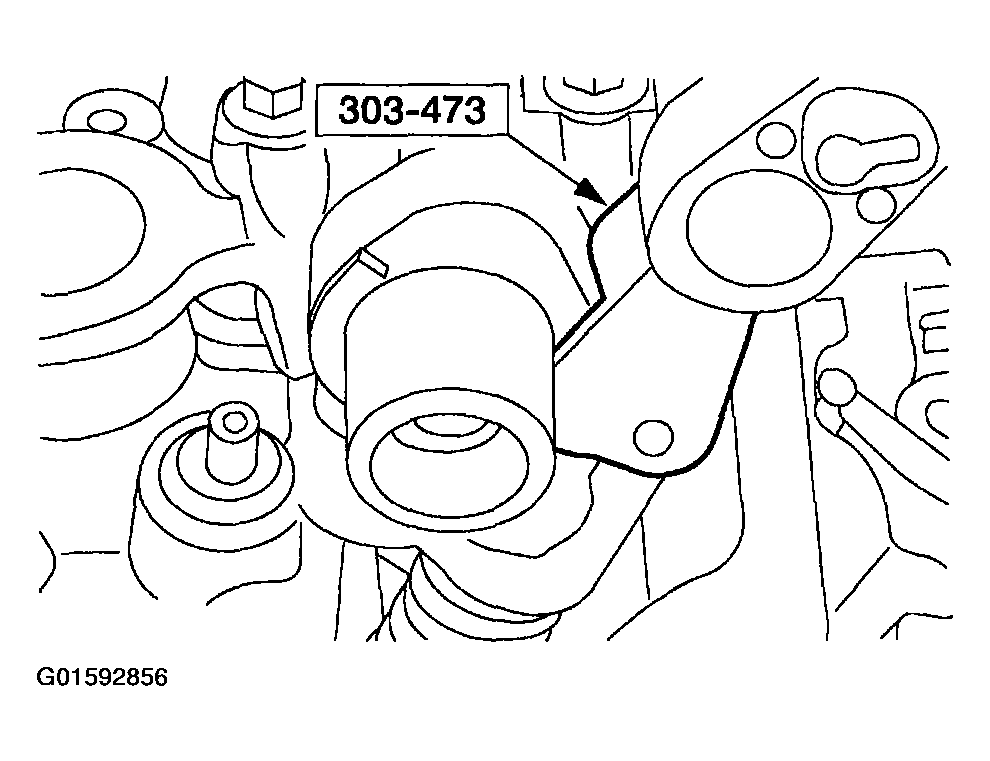

    Fig 1: Removing Key, Retainer And Valve Spring
    G01592856Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
