Valve Seals: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve spring. For additional information, refer to VALVE SPRING .
    2. NOTE: Camshaft removed for clarity.

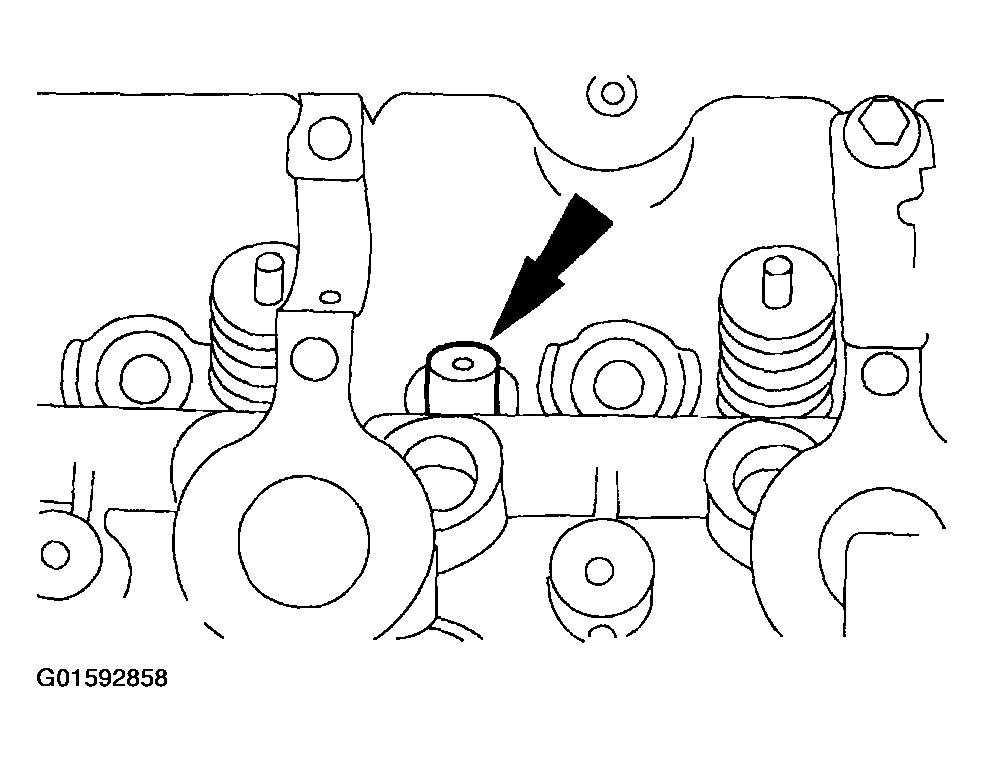

    Fig 1: Removing Valve Seal
    G01592858Courtesy of FORD MOTOR CO.
  2. Remove the valve seal.
