Valve Cover RH: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
Remove the ignition coil and bracket. For additional information, refer to GENERATORS & REGULATORS .

CAUTION: spark plug wires, a slight twisting motion will break the seal and ease removal.

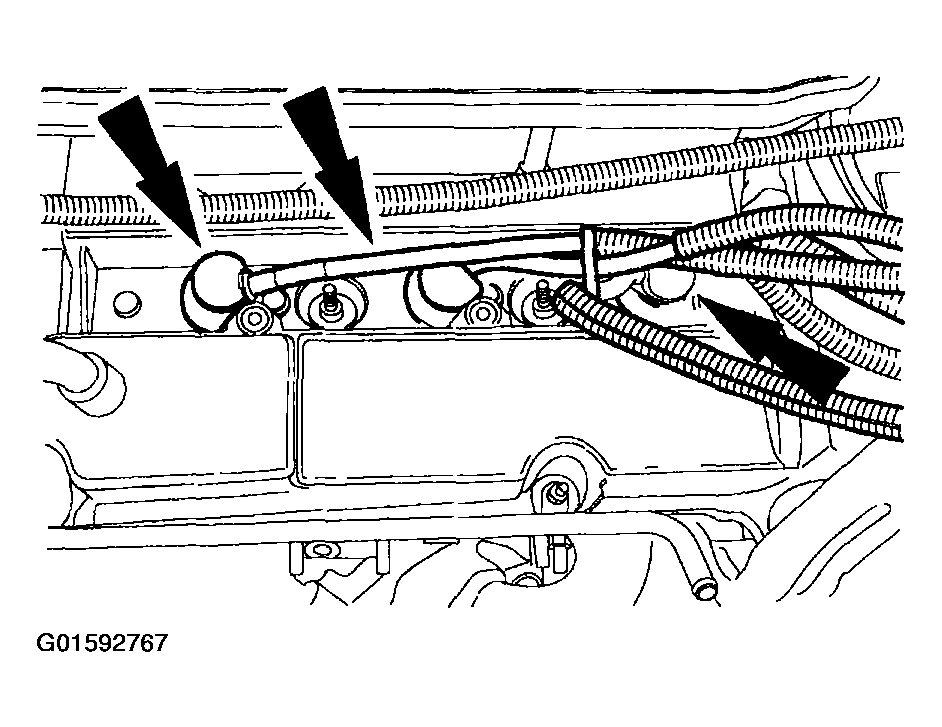

Fig 1: Removing RH Spark Plug Wires

Courtesy of FORD MOTOR CO.

Remove the RH spark plug wires.
Remove the wiring harness nut. Disconnect the wiring retainer and position the wiring aside.

Fig 2: Removing Wiring Harness Nut
Courtesy of FORD MOTOR CO.
Disconnect the crankcase ventilation tube from the valve cover.

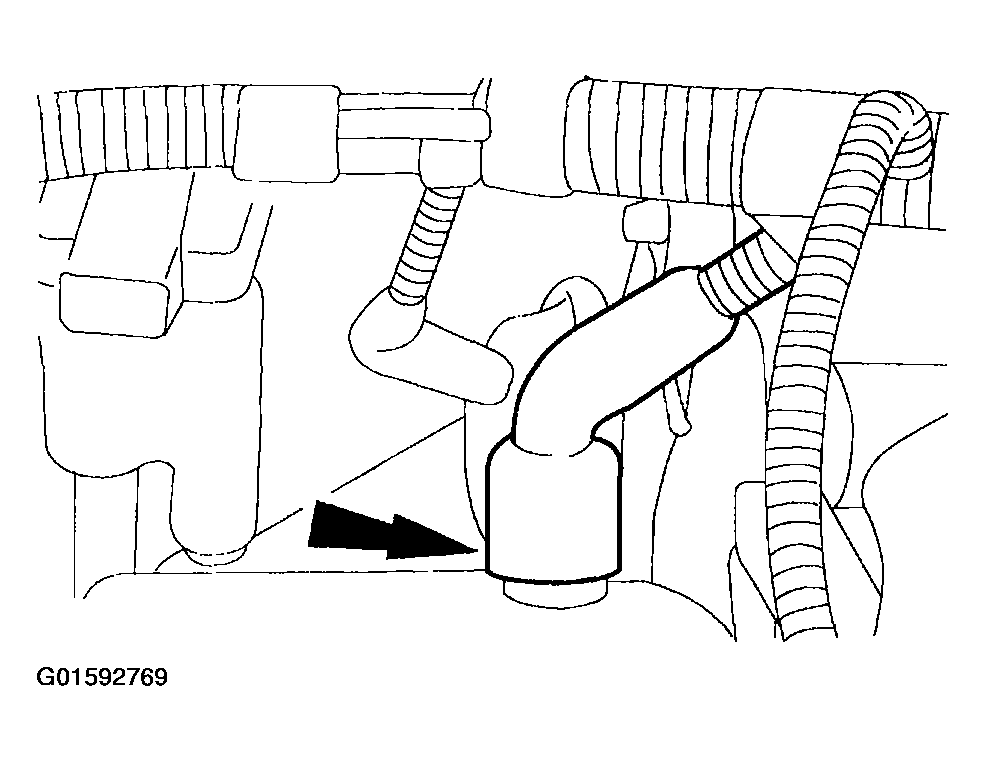

Fig 3: Disconnecting Crankcase Ventilation Tube From Valve Cover
Courtesy of FORD MOTOR CO.

NOTE: Engine removed for clarity.

Fig 4: Removing Nut And Positioning EVAP Tube Aside

Courtesy of FORD MOTOR CO.

Remove the nut and position the EVAP tube aside.
Remove the bolts, studs and the RH valve cover.
- Remove and discard the gasket.

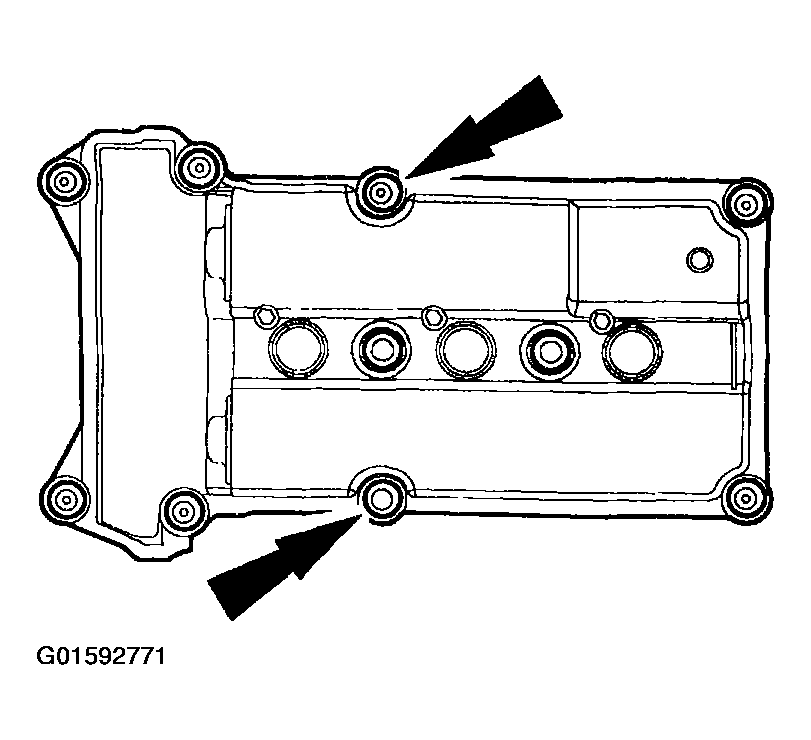

Fig 5: Removing Bolts, Studs And RH Valve Cover
Courtesy of FORD MOTOR CO.
