Valve Cover RH: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Clean the valve cover sealing area before installing a new gasket.

Install a new valve cover gasket on the valve cover.
NOTE: Clean the head and the front cover sealing surfaces using metal surface cleaner before applying silicone gasket and sealant.

NOTE: Apply a 5 mm (0.2 in) dot of gasket and sealant to the front cover to cylinder head joints.

Position the valve cover and install the bolt and the studs in the sequence shown.

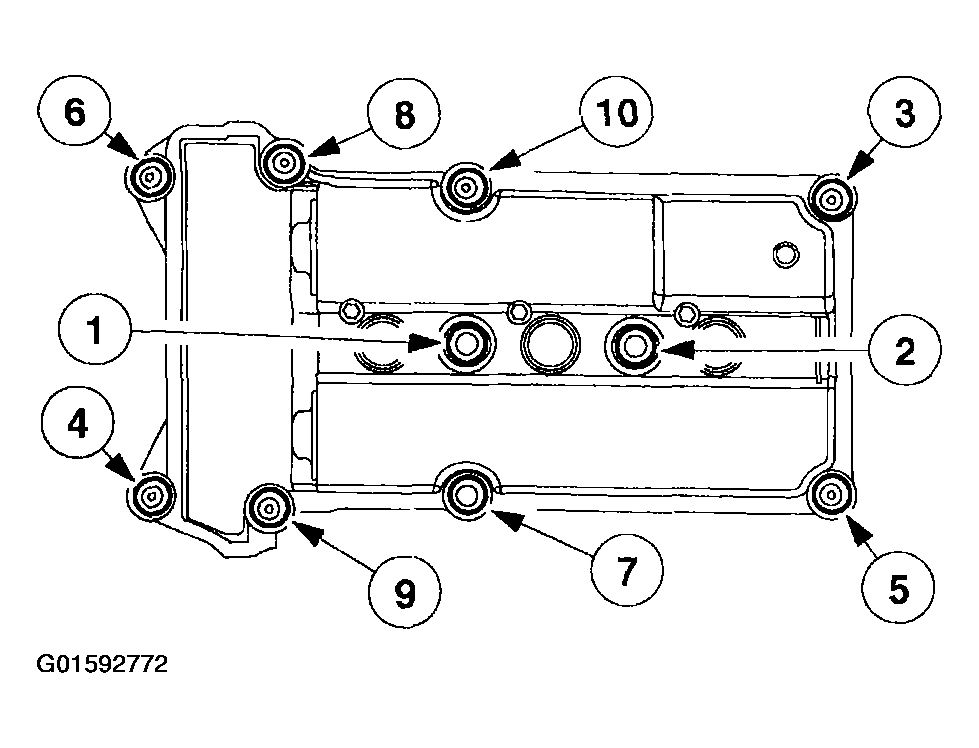

Fig 1: Positioning Valve Cover And Installing Bolt And The Studs
Courtesy of FORD MOTOR CO.

NOTE: Engine removed for clarity.

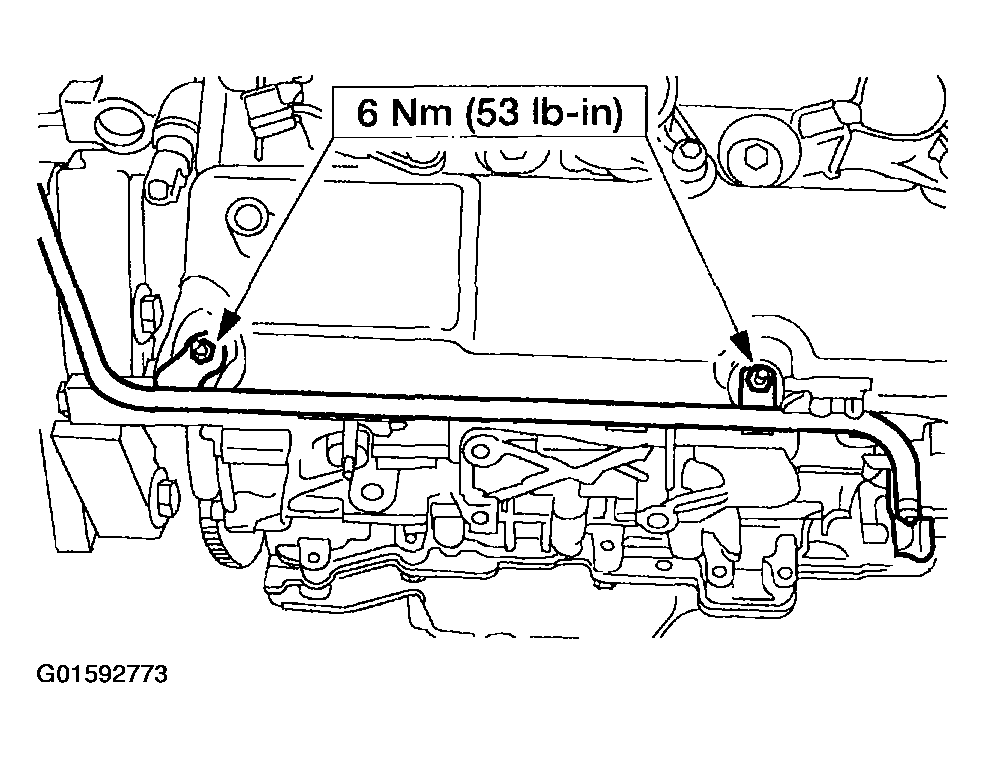

Fig 2: Positioning EVAP Tube And Installing Nuts

Courtesy of FORD MOTOR CO.

Position the EVAP tube and install the nuts.
Connect the crankcase ventilation tube to the valve cover.

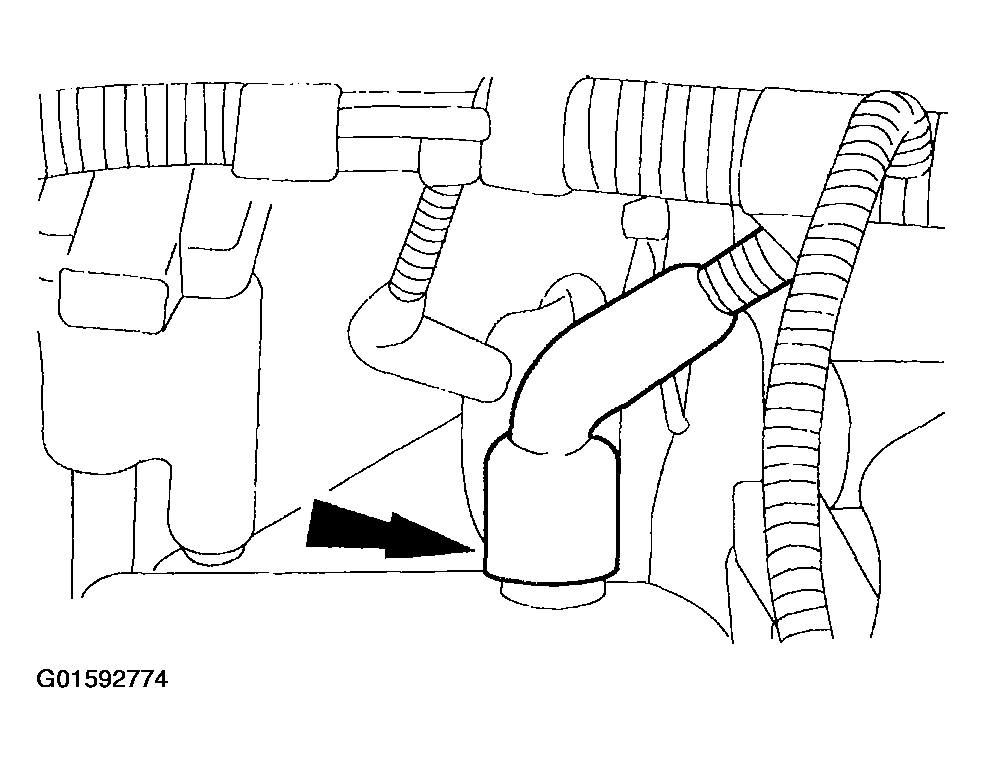

Fig 3: Connecting Crankcase Ventilation Tube To Valve Cover
Courtesy of FORD MOTOR CO.
Position the wiring harness and install the nut.
Connect the wiring retainer.

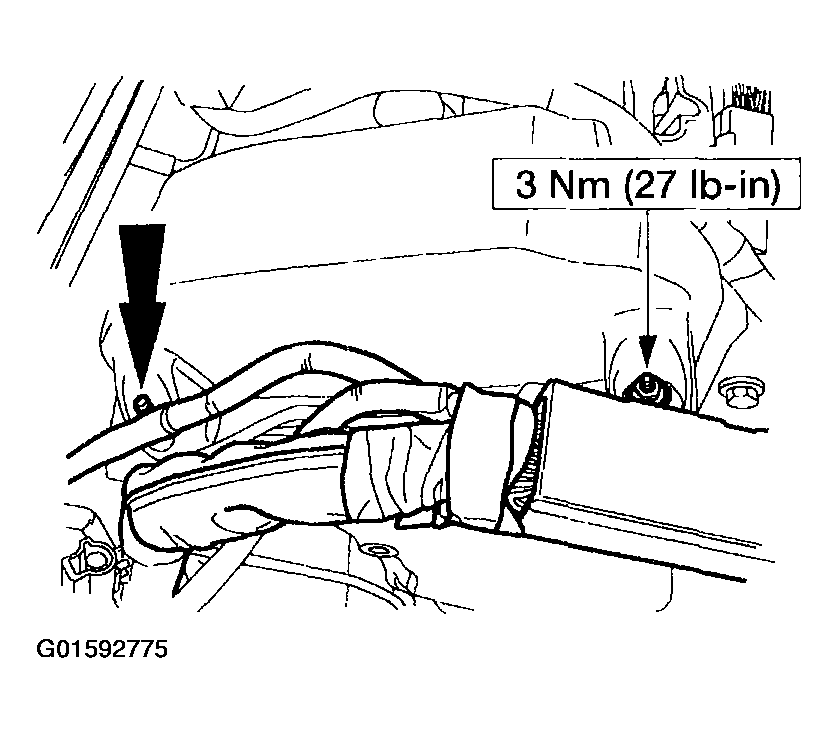

Fig 4: Positioning Wiring Harness And Installing Nut
Courtesy of FORD MOTOR CO.

NOTE: Apply a light film of brake caliper grease and dielectric compound to the interior of the spark plug boot prior to installation.

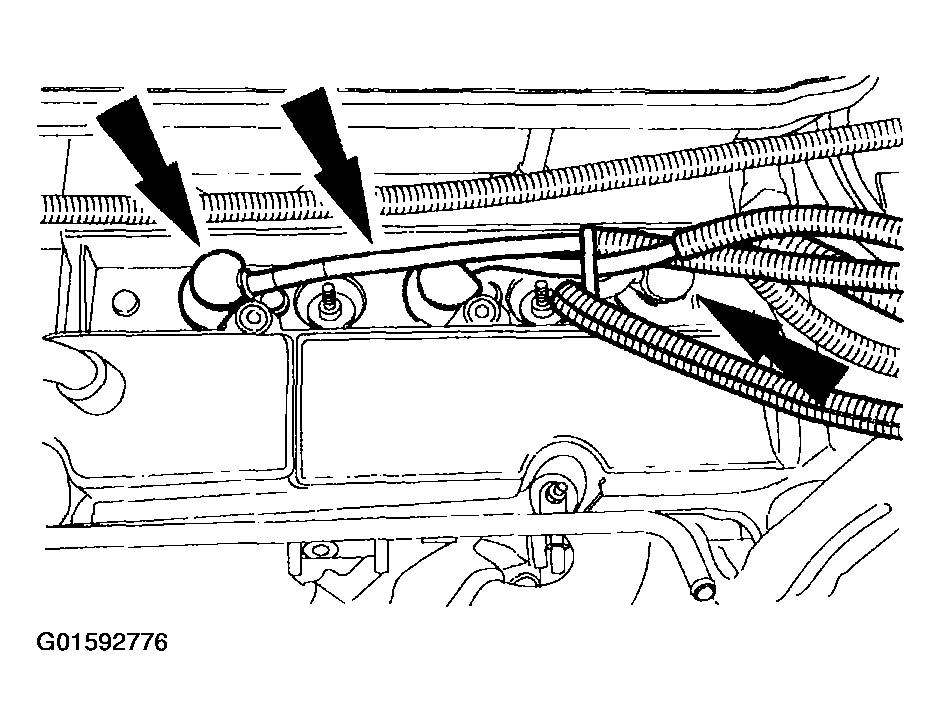

Fig 5: Installing RH Spark Plug Wires

Courtesy of FORD MOTOR CO.

Install the RH spark plug wires.
Install the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
