Valve Cover LH: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the crankcase ventilation tube from the valve cover.
    Fig 1: Disconnecting Crankcase Ventilation Tube From Valve Cover
    G01592756Courtesy of FORD MOTOR CO.
  2. Remove the water pump drive belt cover.

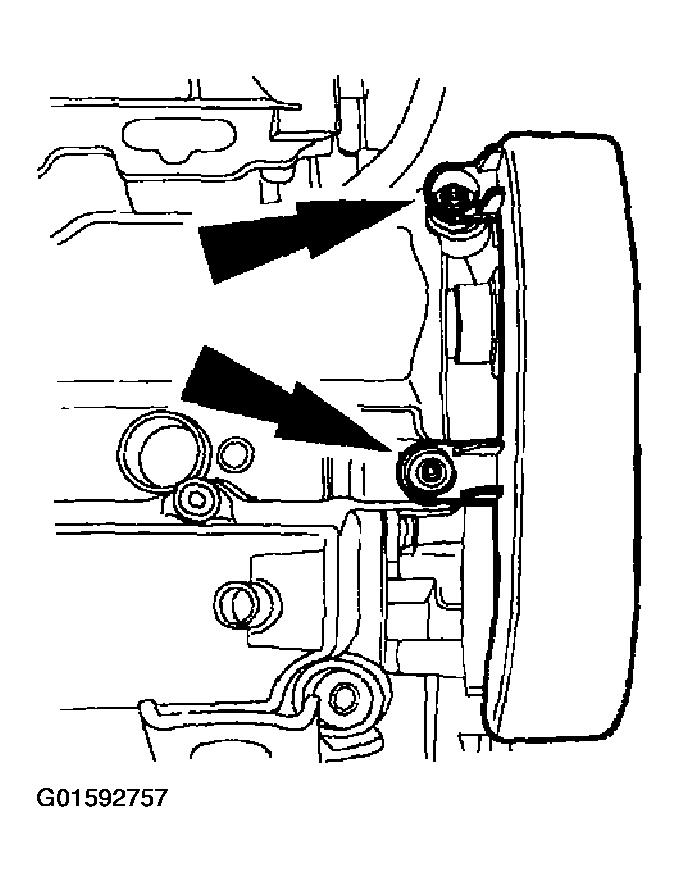

    Fig 2: Removing Water Pump Drive Belt Cover
    G01592757Courtesy of FORD MOTOR CO.
    3. NOTE: When removing the spark plug wires, a slight twisting motion will break the seal and ease removal.

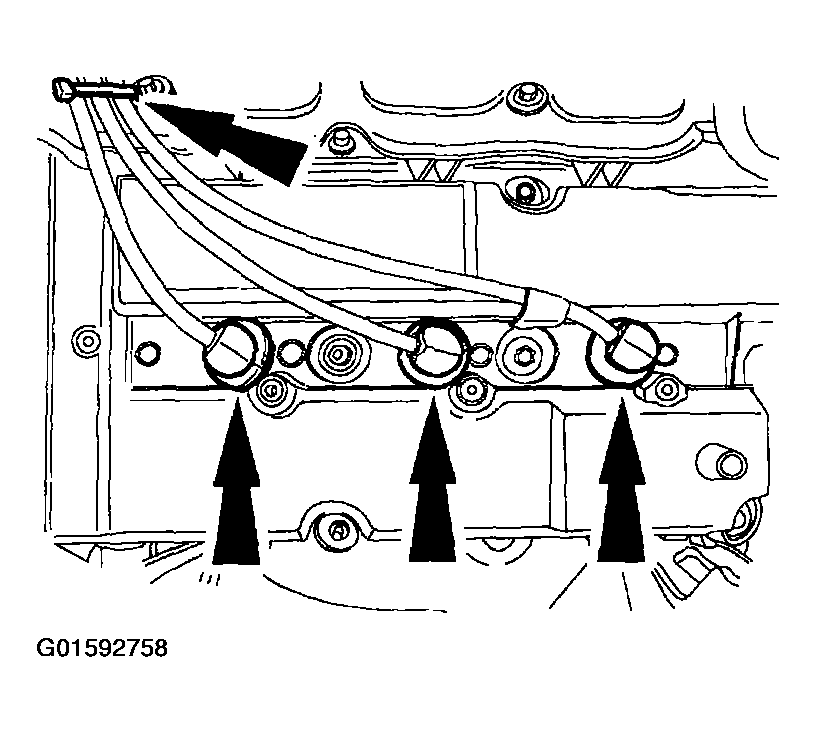

    Fig 3: Disconnecting Spark Plug Wire Holder
    G01592758Courtesy of FORD MOTOR CO.
  3. Remove the three LH spark plug wires.
    • Disconnect the spark plug wire holder and position aside.
  4. Disconnect the wiring harness from the valve cover studs.
    • Position the wiring harness aside.

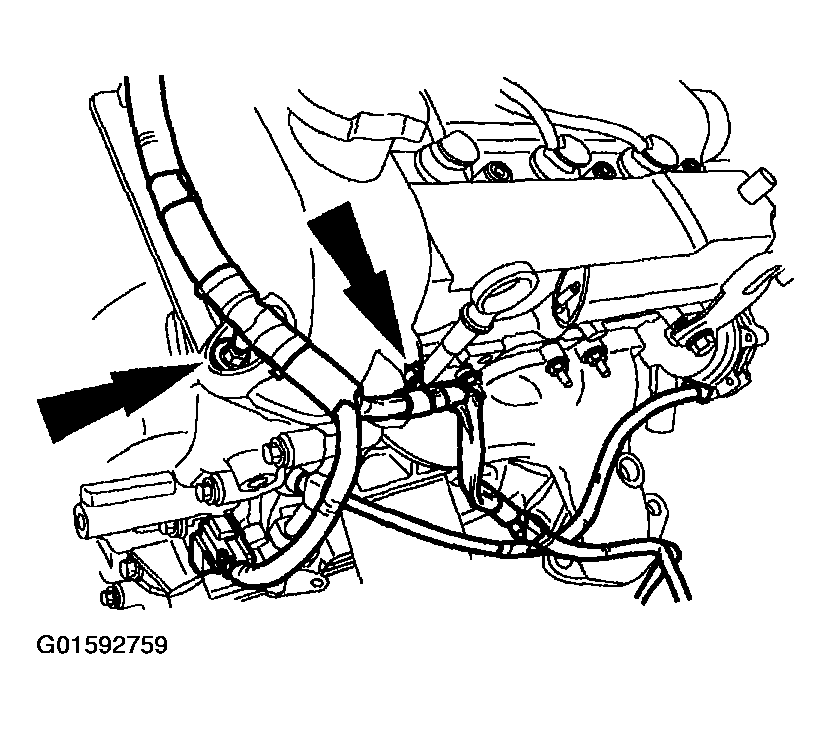

    Fig 4: Disconnecting Wiring Harness From Valve Cover Studs
    G01592759Courtesy of FORD MOTOR CO.
  5. Remove the bolts, studs and the LH valve cover.
    • Remove and discard the gasket.

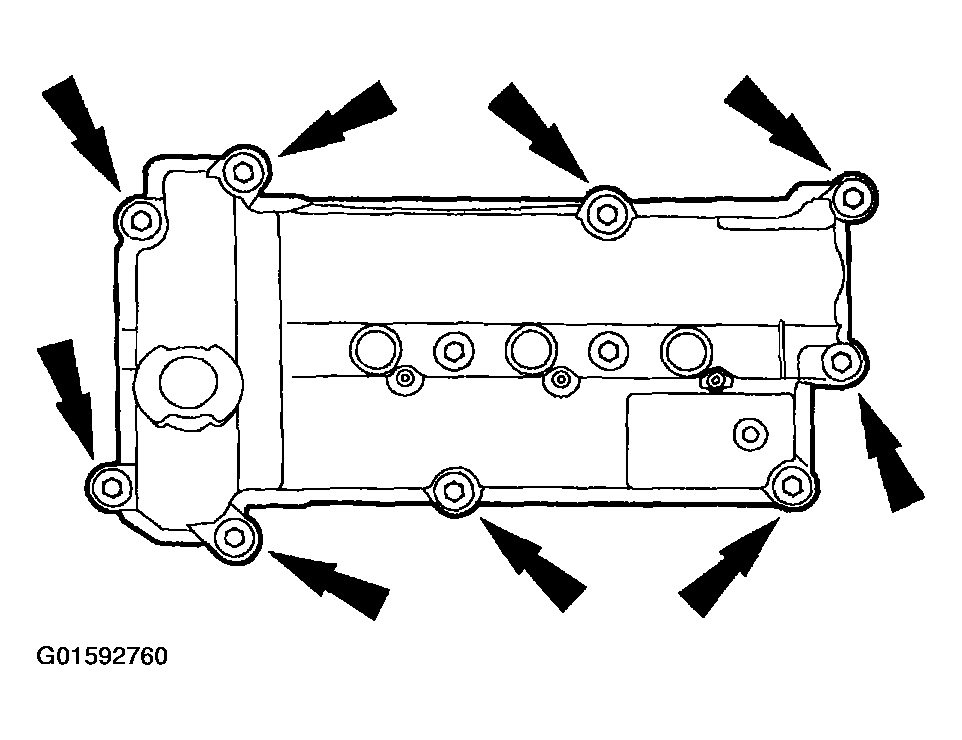

    Fig 5: Removing Bolts, Studs And LH Valve Cover
    G01592760Courtesy of FORD MOTOR CO.
