Oil Pump: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
Remove the dual converter Y-pipe. For additional information, refer to EXHAUST SYSTEM .
Drain the engine oil.
- Install a new drain plug gasket and tighten the drain plug to 27 Nm (20 lb- ft).
Remove the 18 bolts and the oil pan.

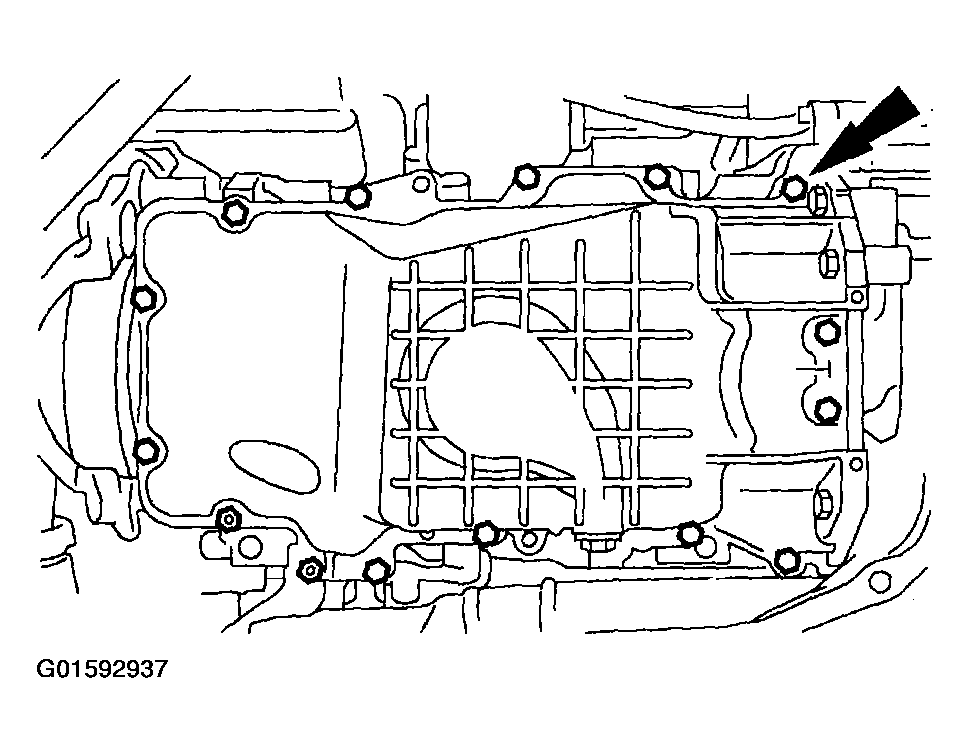

Fig 1: Removing Bolts And Oil Pan
Courtesy of FORD MOTOR CO.
Remove the nut, bolts and the oil pump screen and pick-up tube.

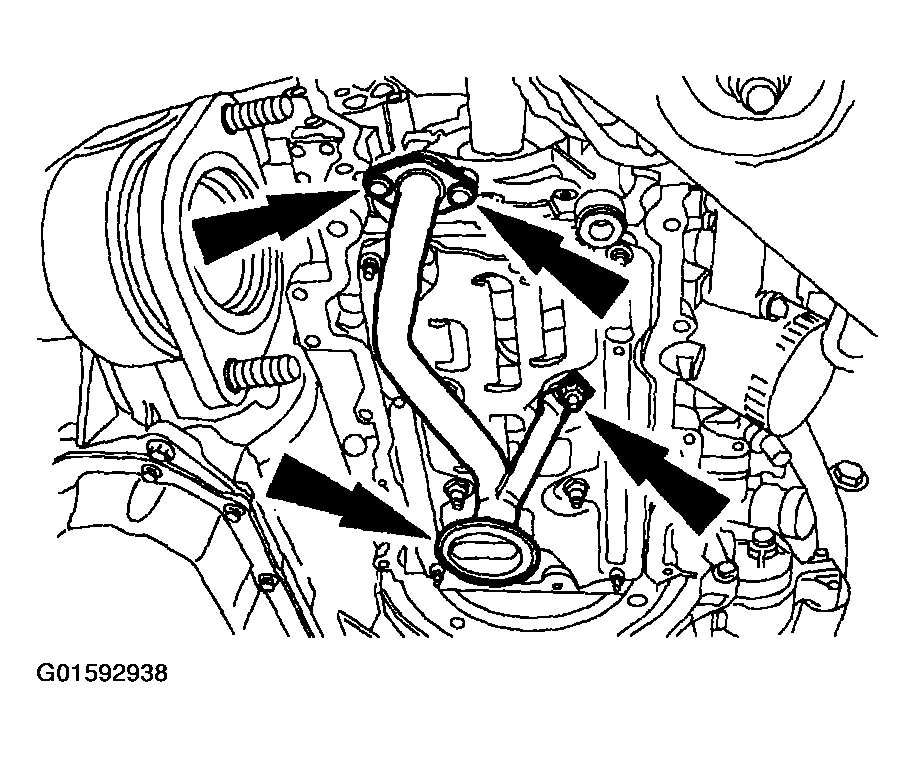

Fig 2: Removing Nut, Bolts And Oil Pump Screen And Pick-Up Tube
Courtesy of FORD MOTOR CO.
Remove and inspect the O-ring seal.

Fig 3: Removing O-Ring Seal
Courtesy of FORD MOTOR CO.
Remove the bolts in the indicated sequence and remove the oil pump.

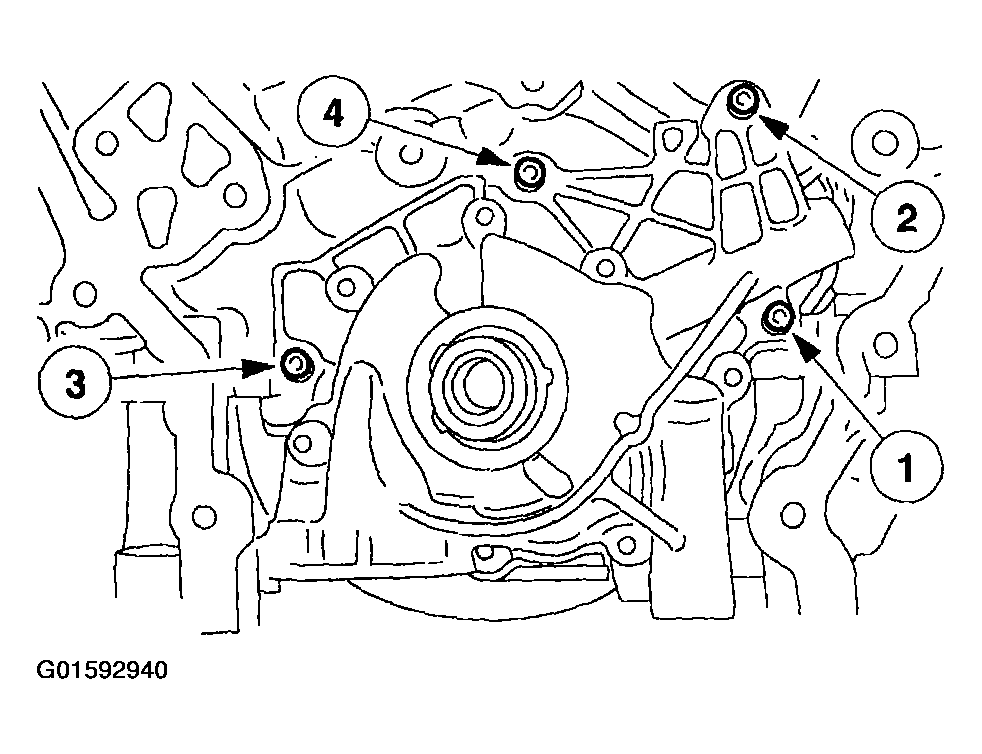

Fig 4: Removing Bolts And Oil Pump

Courtesy of FORD MOTOR CO.
