Oil Pump: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

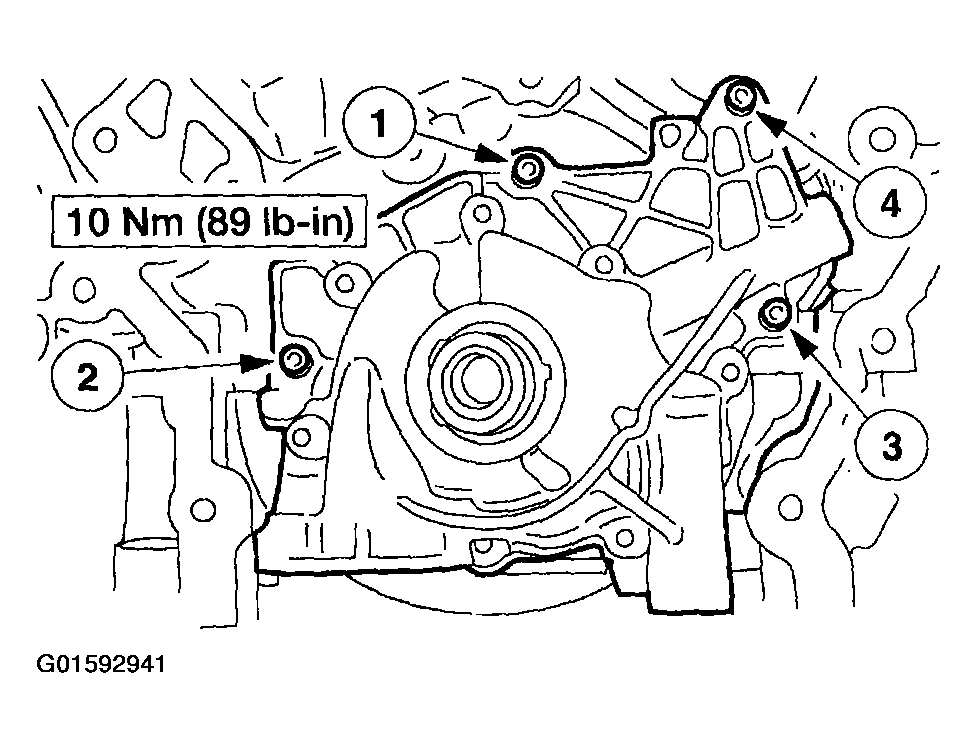

Position the oil pump and install the bolts in the sequence shown.

Fig 1: Positioning Oil Pump And Installing Bolts
Courtesy of FORD MOTOR CO.
Install the O-ring seal.

Fig 2: Installing O-Ring Seal
Courtesy of FORD MOTOR CO.

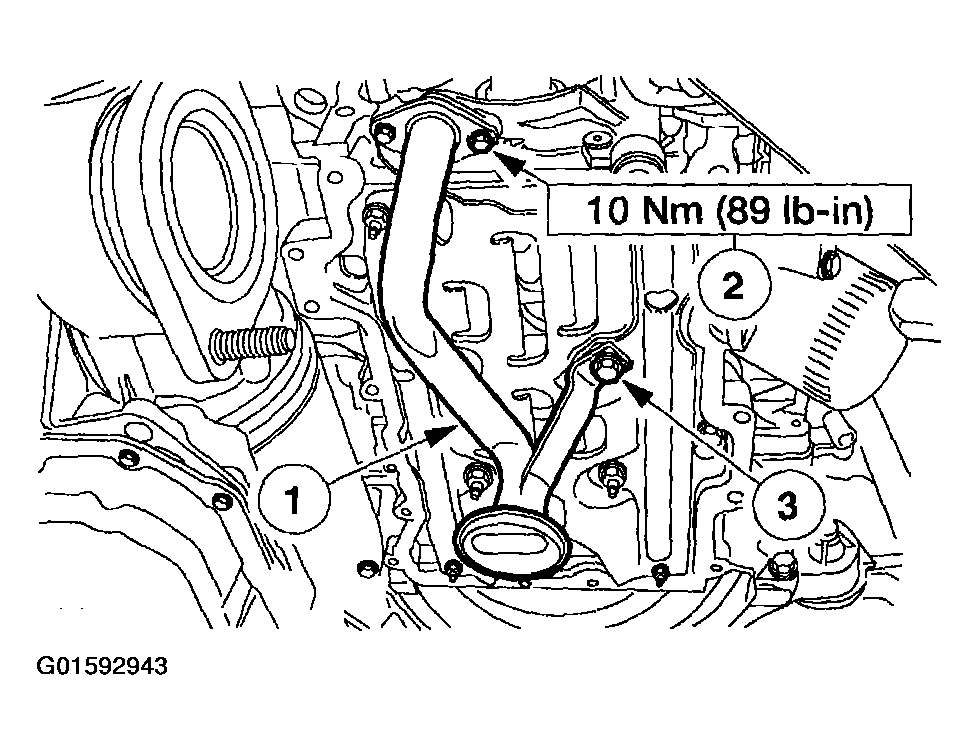

Install the oil pump screen and pick-up tube.
1. Position the oil pump screen and pick-up tube.
2. Install the bolts.
3. Install the nut.
4. Tighten the nut in two stages.
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten an additional 45 degrees.
Fig 3: Installing Oil Pump Screen And Pick-Up Tube
Courtesy of FORD MOTOR CO.
Clean all sealing surfaces on the engine and on the oil pan with metal surface cleaner.
Position a new gasket on the oil pan.

NOTE: The oil pan must be installed and the bolts tightened within six minutes of sealant application.

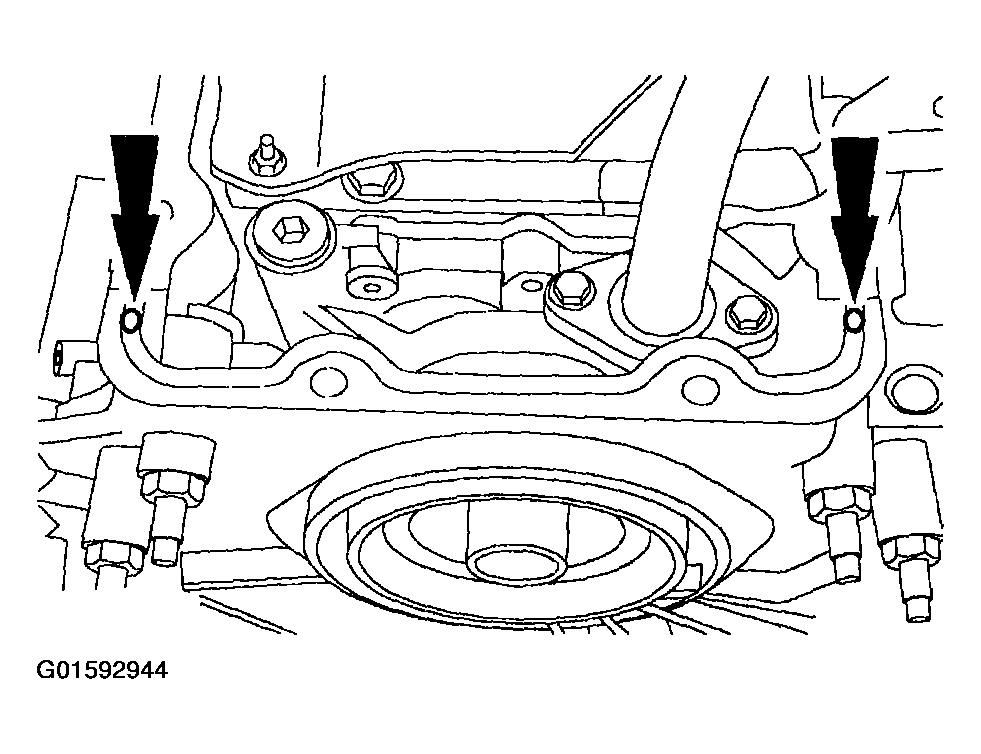

Fig 4: Identifying Locations For Applying Silicone Gasket And Sealer

Courtesy of FORD MOTOR CO.

Apply a 10 mm (0.40 in) diameter dot of silicone gasket and sealer to the areas indicated.

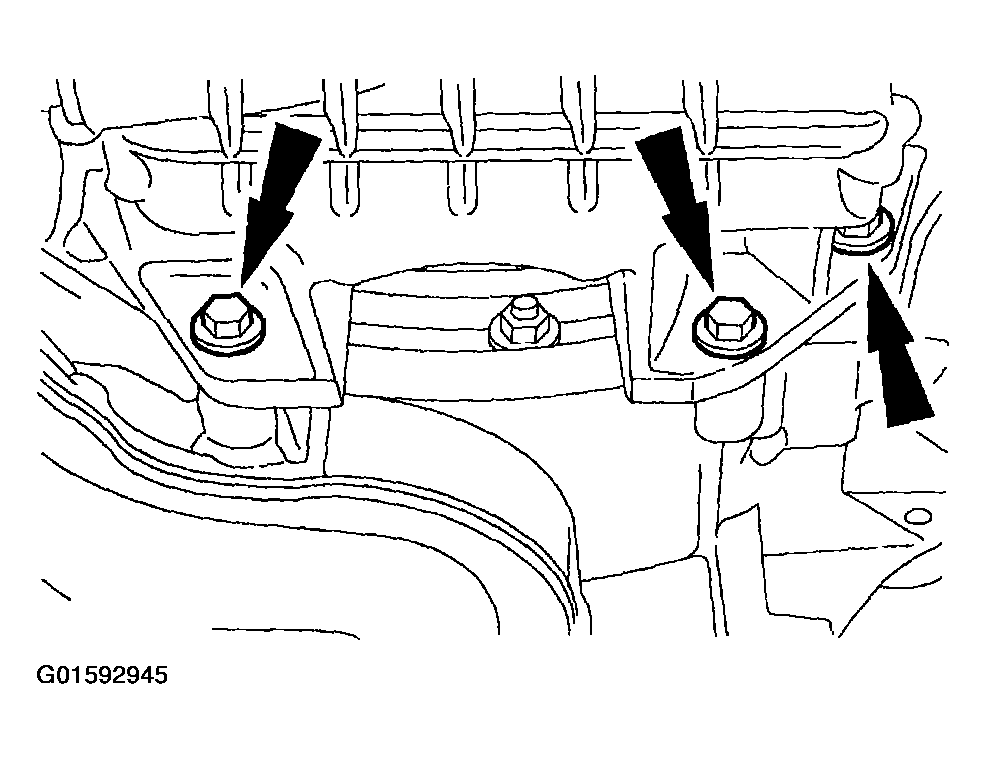

Position the oil pan and hand-tighten the oil pan-to-transaxle bolts.

Fig 5: Positioning Oil Pan And Tightening Oil Pan-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.

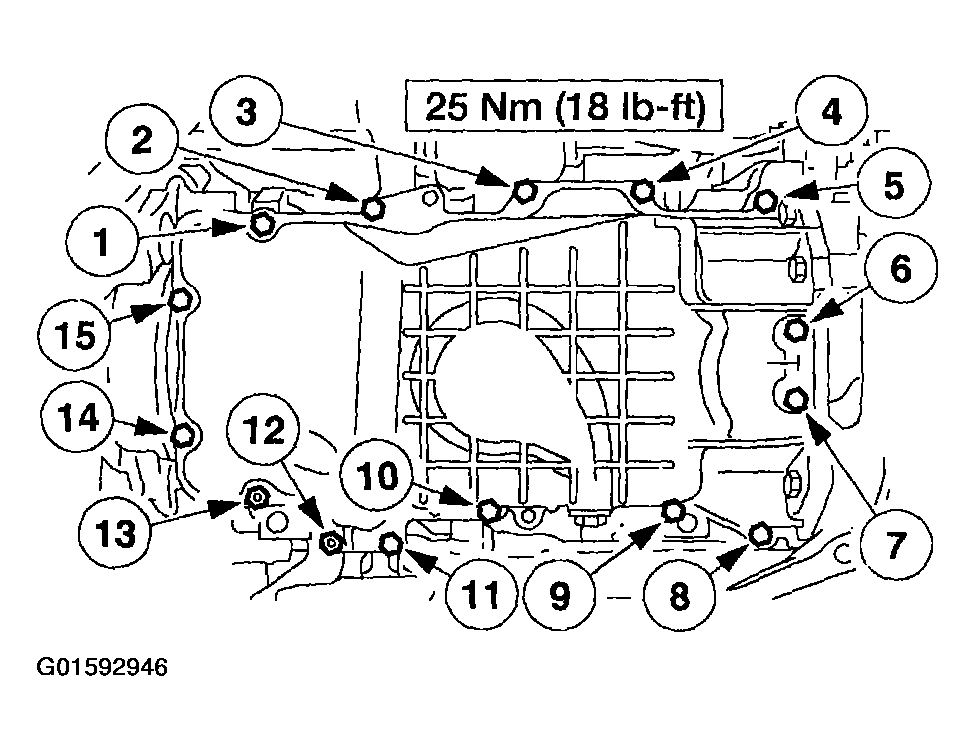

Tighten the oil pan bolts in the sequence shown.

Fig 6: Tightening Sequence Of Oil Pan Bolts
Courtesy of FORD MOTOR CO.

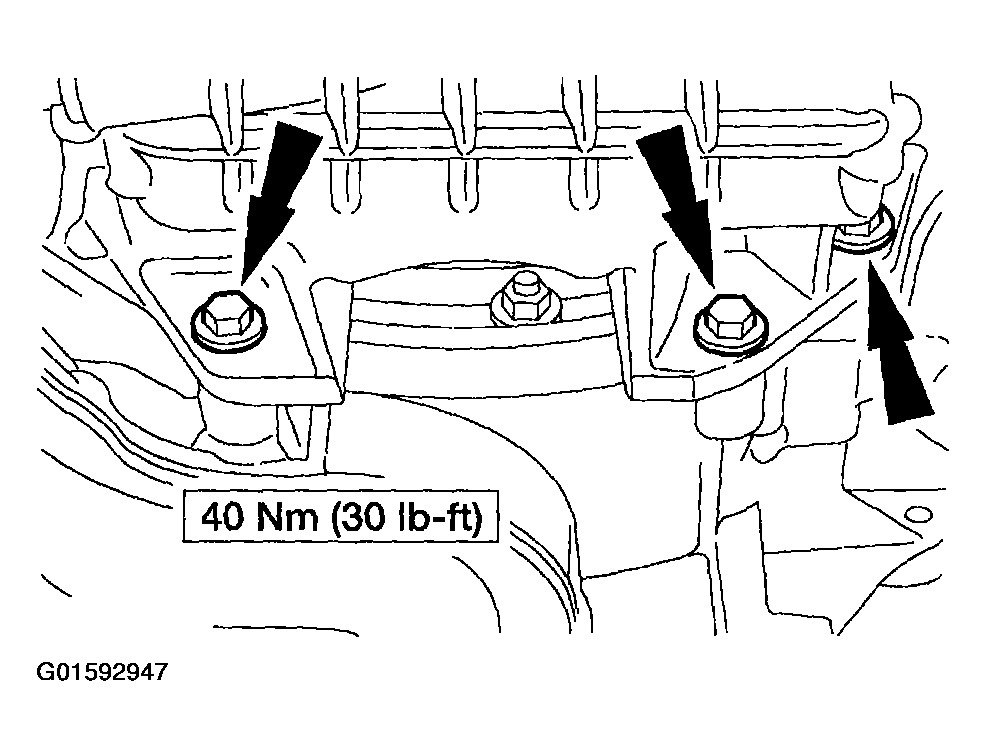

Tighten the oil pan to transaxle bolts.

Fig 7: Tightening Oil Pan To Transaxle Bolts
Courtesy of FORD MOTOR CO.
Install the dual converter Y-pipe. For additional information, refer to EXHAUST SYSTEM .
Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
Fill the crankcase to the correct level with clean motor oil.
