Oil Pump Screen And Pickup Tube: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. For additional information, refer to OIL PAN .
  2. Remove the nut, bolts and the oil pump screen and pick-up tube.

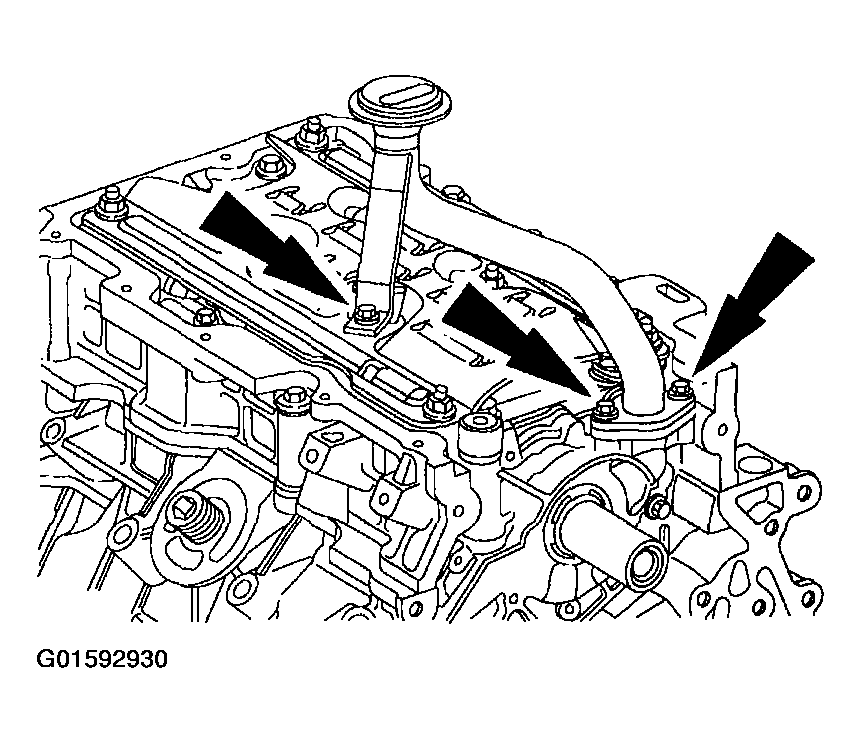

    Fig 1: Removing Nut, Bolts And Oil Pump Screen And Pick-Up Tube
    G01592930Courtesy of FORD MOTOR CO.
  3. Remove and discard the O-ring seal.
    Fig 2: Removing O-Ring Seal
    G01592931Courtesy of FORD MOTOR CO.
