Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Position a drain pan and remove the oil filter.

NOTE: The A/C compressor has been removed for clarity.

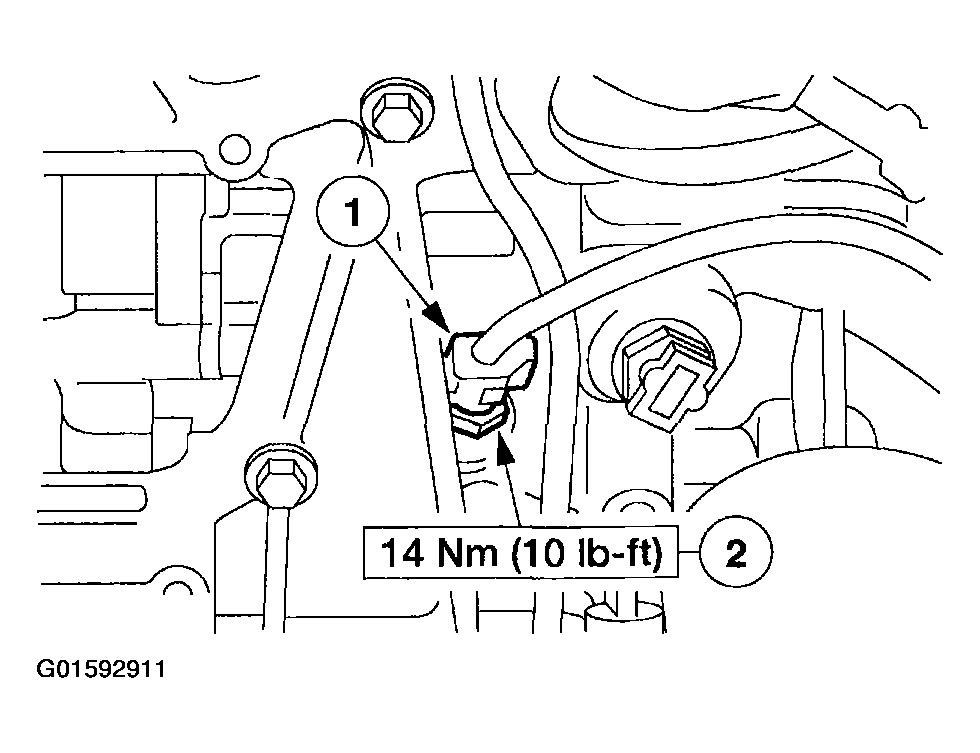

Fig 1: Removing Oil Pressure Sender

Courtesy of FORD MOTOR CO.

Remove the oil pressure sender.
1. Disconnect the electrical connector.
2. Remove the sender.
To install, reverse the removal procedure.
