Oil Pan: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front RH wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
  2. Remove the RH front inner wheel splash shield.
    • Remove the screws and the pin-type retainer.

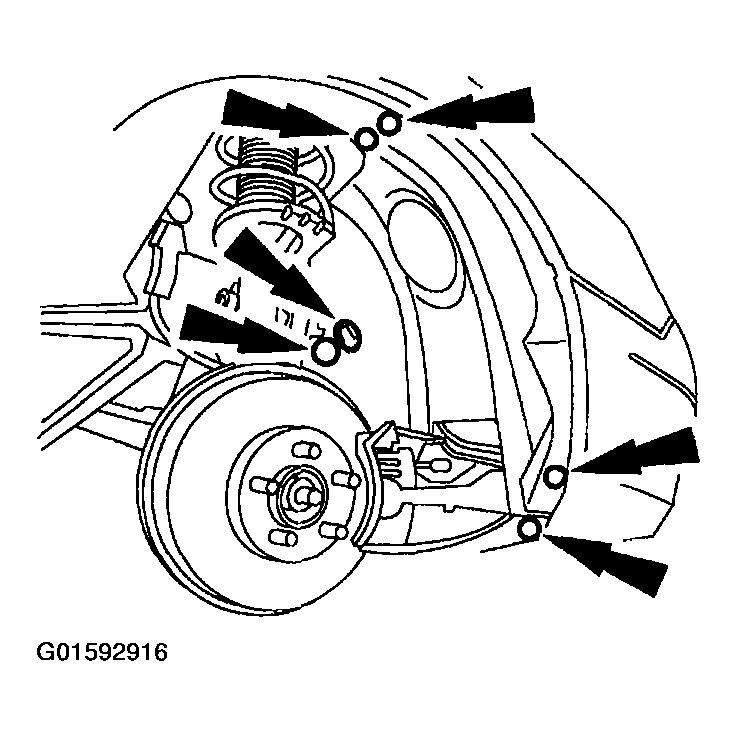

    Fig 1: Removing Screws And Pin-Type Retainer
    G01592916Courtesy of FORD MOTOR CO.
  3. Remove the dual converter Y-pipe. For additional information, refer to EXHAUST SYSTEM .
  4. Secure the exhaust system and remove the jackstand.
  5. Drain the engine oil.
  6. Install and tighten the drain plug to 27 Nm (20 lb-ft).
  7. Remove and discard the oil filter.
  8. Remove the bolts, nuts and the engine-to-transaxle bracket.

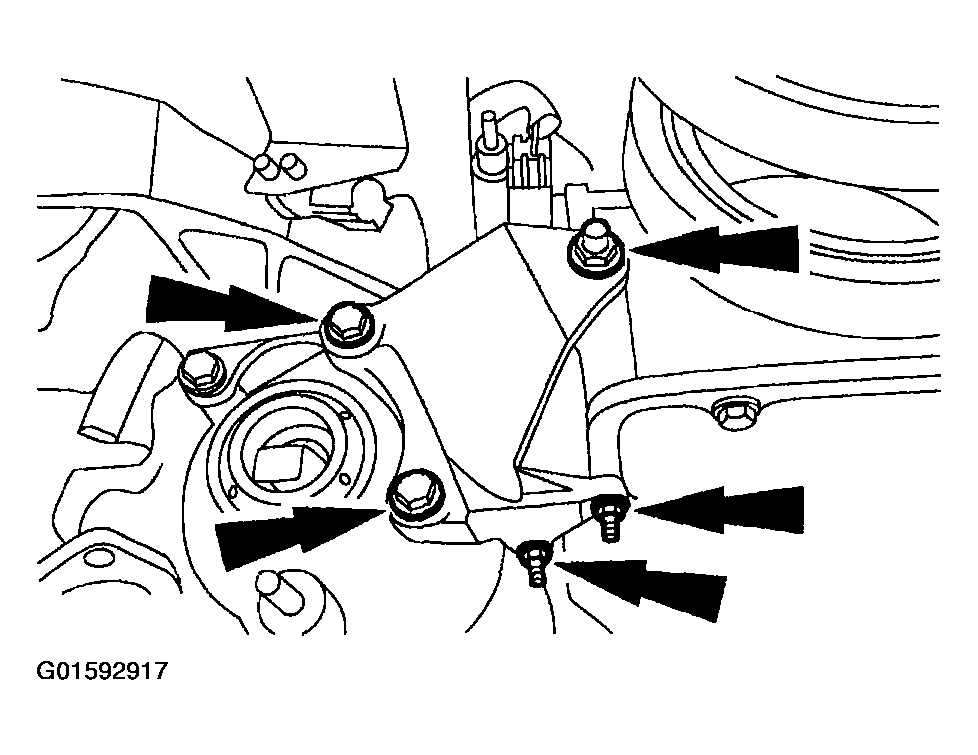

    Fig 2: Removing Bolts, Nuts And Engine-To-Transaxle Bracket
    G01592917Courtesy of FORD MOTOR CO.
  9. Remove the torque convertor inspection cover.

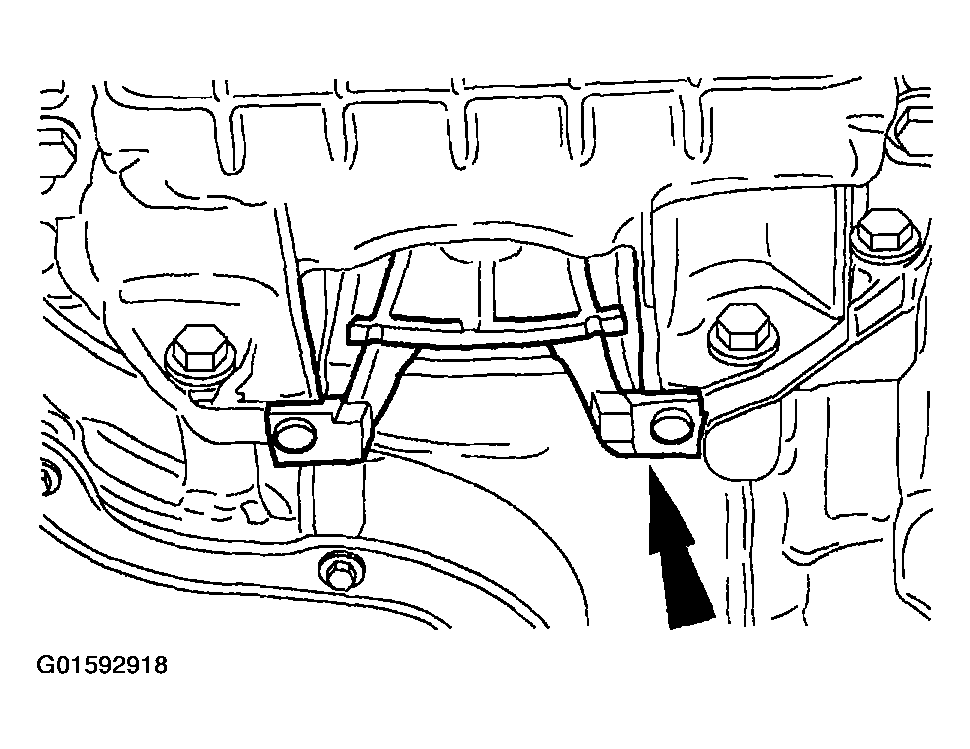

    Fig 3: Removing Torque Convertor Inspection Cover
    G01592918Courtesy of FORD MOTOR CO.
  10. Remove the 18 bolts and the oil pan.

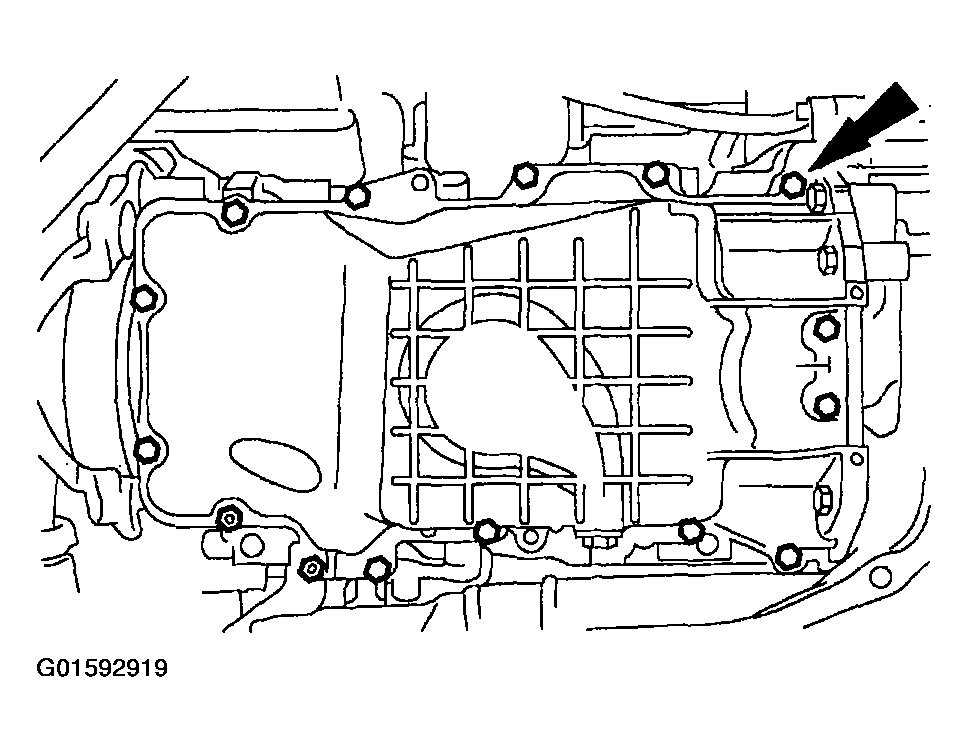

    Fig 4: Removing Bolts And Oil Pan
    G01592919Courtesy of FORD MOTOR CO.
