Oil Pan: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Clean all sealing surfaces on the engine and the oil pan with metal surface cleaner.
Position a new gasket on the oil pan.

NOTE: The oil pan must be installed and the bolts tightened within four minutes of sealant application.

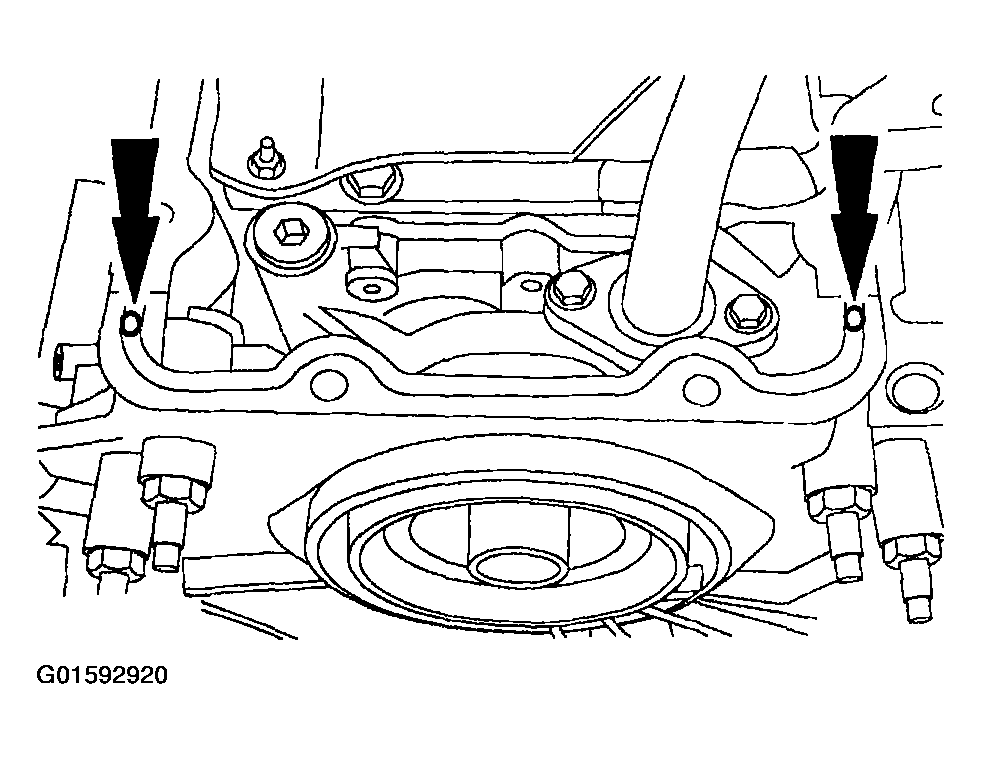

Fig 1: Identifying Locations For Applying Silicone Gasket And Sealant

Courtesy of FORD MOTOR CO.

Apply a 10 mm (0.40 in) diameter dot of silicone gasket and sealant to the areas indicated.
Position the oil pan and hand tighten the oil pan-to-transaxle bolts.

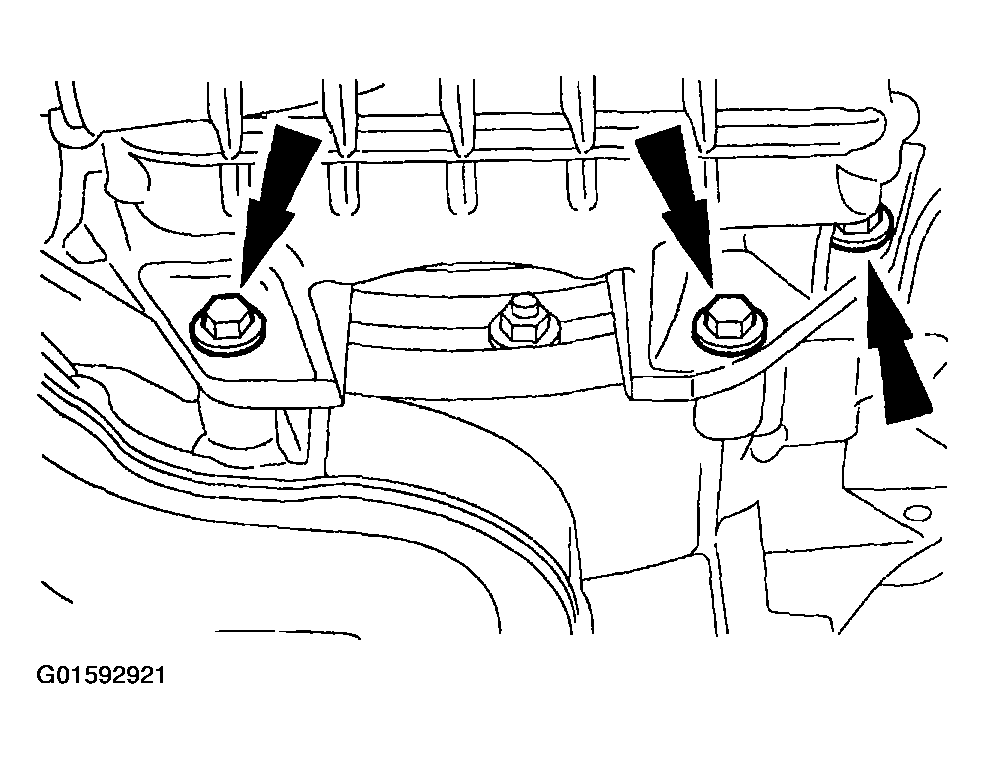

Fig 2: Positioning Oil Pan And Tightening Oil Pan-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.
Tighten the oil pan bolts in the sequence shown.

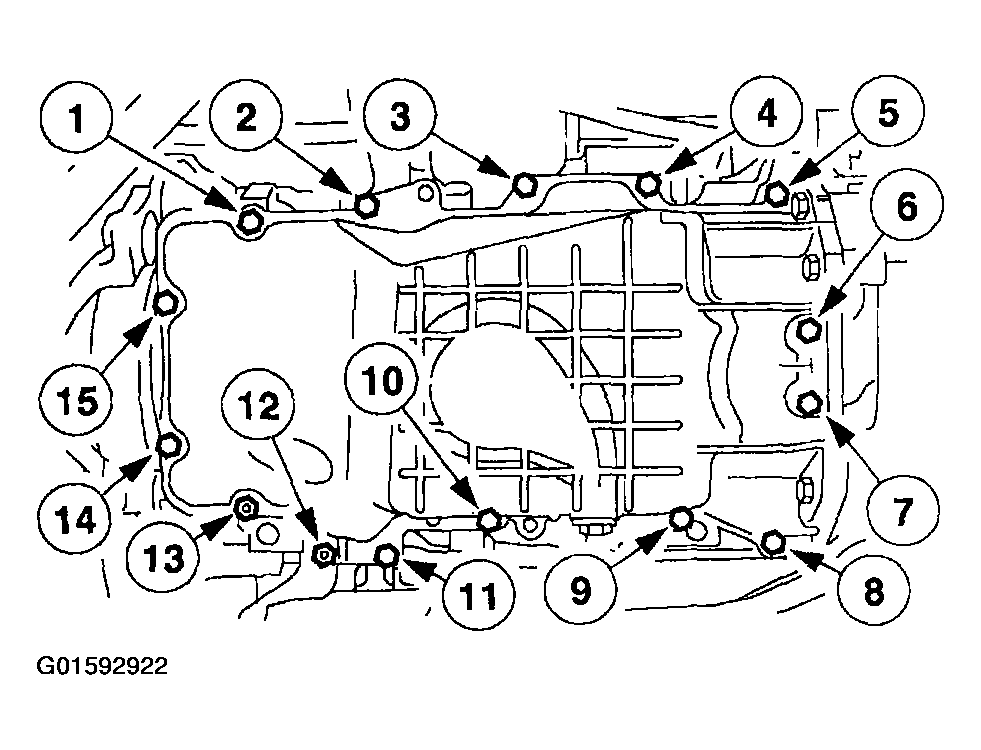

Fig 3: Tightening Sequence Of Oil Pan Bolts
Courtesy of FORD MOTOR CO.
Tighten the oil pan-to-transaxle bolts.

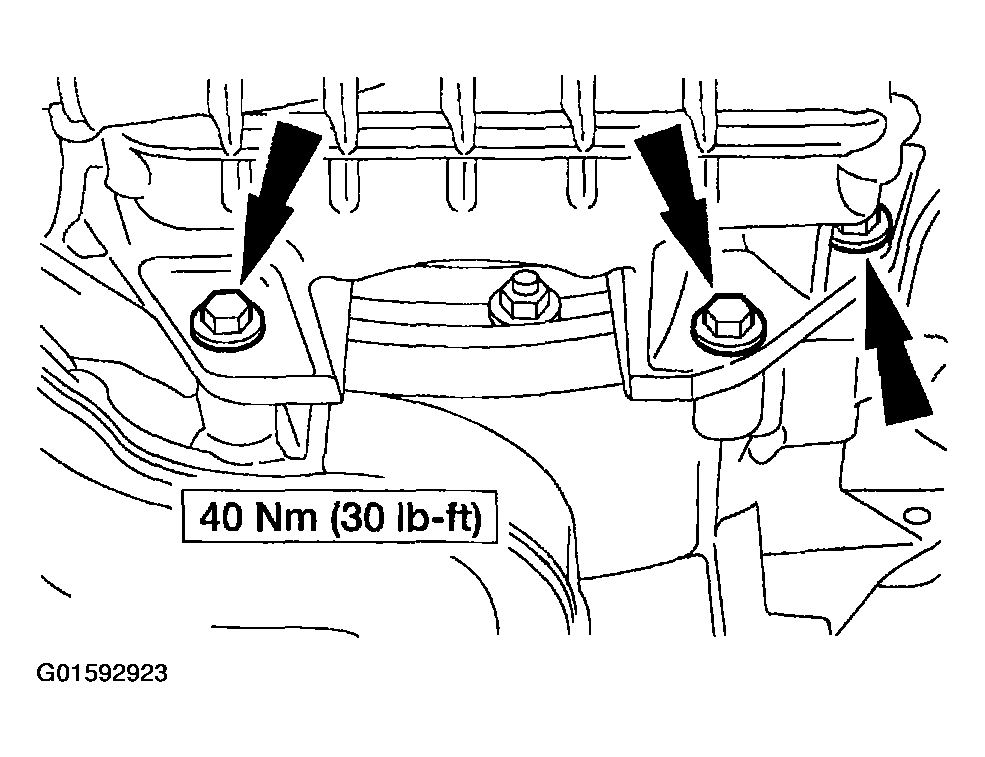

Fig 4: Tightening Oil Pan-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.
Install the torque convertor inspection cover.

Fig 5: Installing Torque Convertor Inspection Cover
Courtesy of FORD MOTOR CO.
Position the engine-to-transaxle bracket and install the nuts and the bolt.

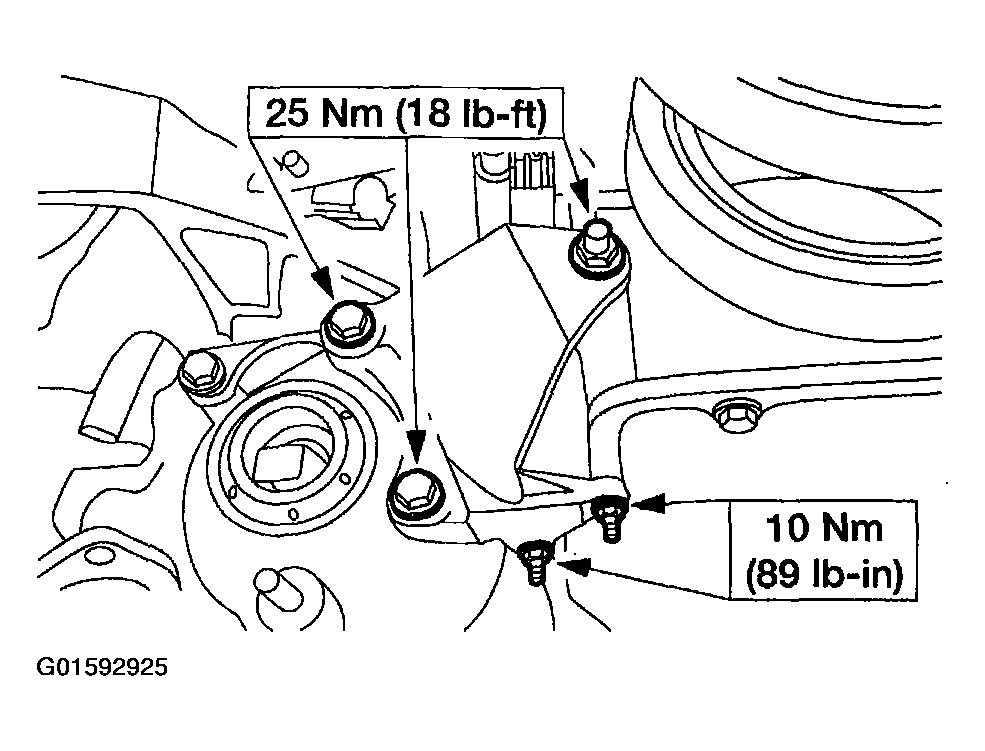

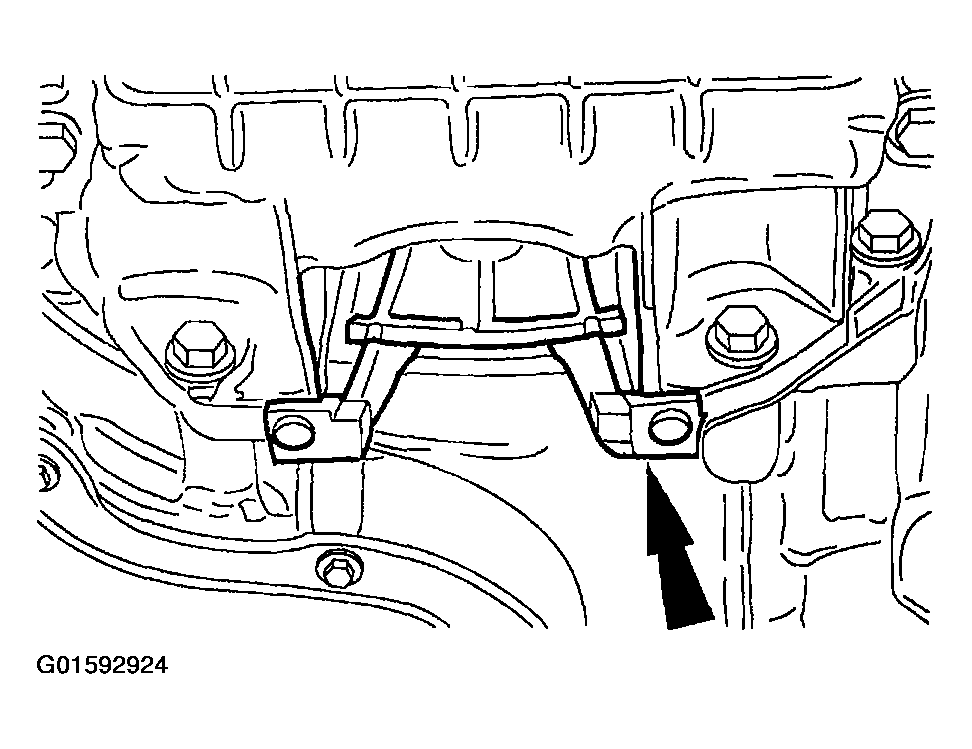

Fig 6: Positioning Engine-To-Transaxle Bracket And Installing Nuts And The Bolt
Courtesy of FORD MOTOR CO.
Lubricate the oil filter O-ring with clean engine oil and install the oil filter.

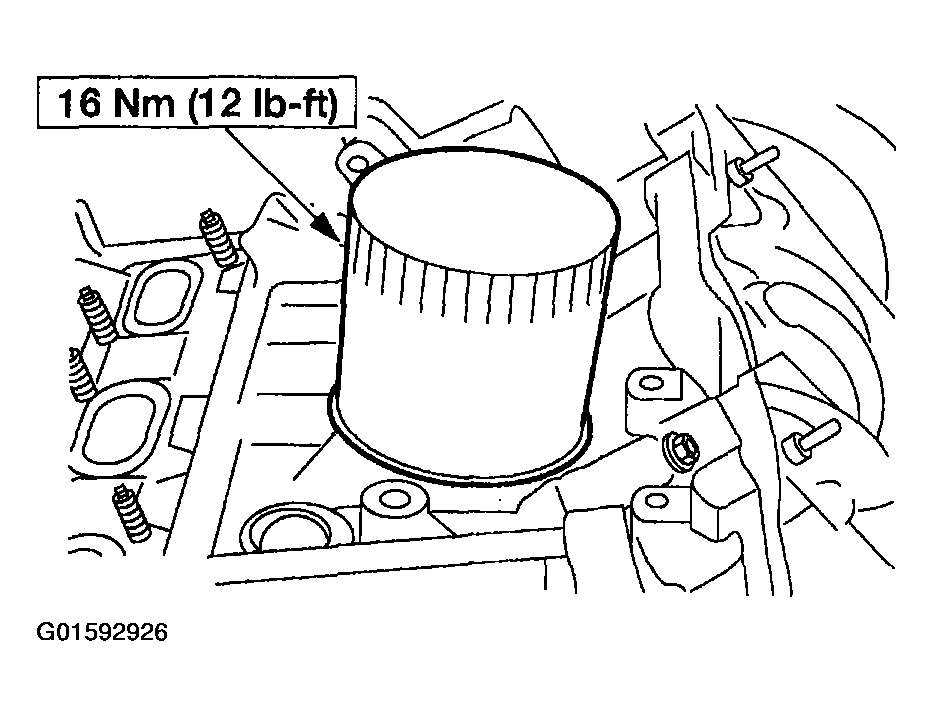

Fig 7: Installing Oil Filter
Courtesy of FORD MOTOR CO.
Position a jackstand and release the exhaust system.
Install the dual converter Y-pipe. For additional information, refer to EXHAUST SYSTEM .
Install the RH front inner wheel splash shield.
- Install the screws and the pin-type retainer.

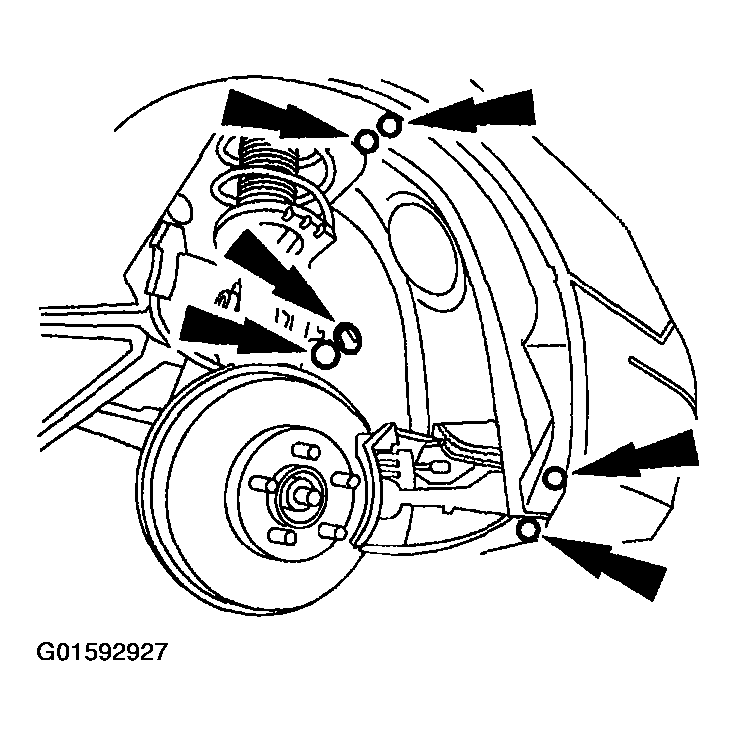

Fig 8: Installing RH Front Inner Wheel Splash Shield
Courtesy of FORD MOTOR CO.
Install the RH wheel. For additional information, refer to WHEELS & TIRES .
Install the LH exhaust manifold-to-pipe nuts.

Fig 9: Installing LH Exhaust Manifold-To-Pipe Nuts
Courtesy of FORD MOTOR CO.
Fill crankcase to correct level with clean engine oil.
