Oil Pan Baffle: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump screen cover and tube. For additional information, refer to OIL PUMP SCREEN AND PICKUP TUBE .
  2. Remove the nuts and the oil pan baffle.

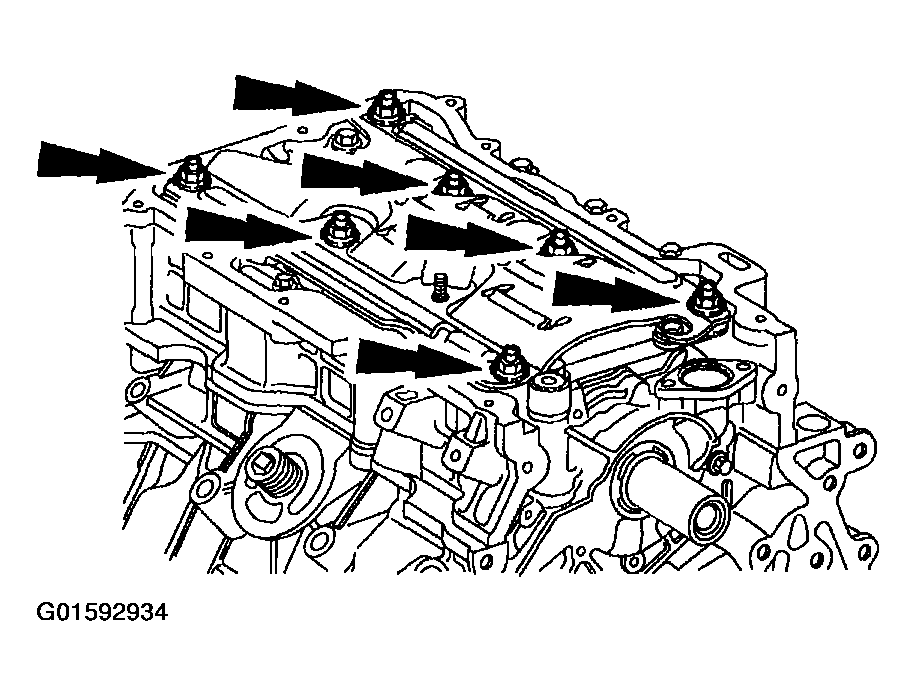

Fig 1: Removing Nuts And Oil Pan Baffle
G01592934Courtesy of FORD MOTOR CO.
