Oil Pan Baffle: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the oil pan baffle and install the nuts.
    • Tighten the nuts in two stages.
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten 45 degrees.

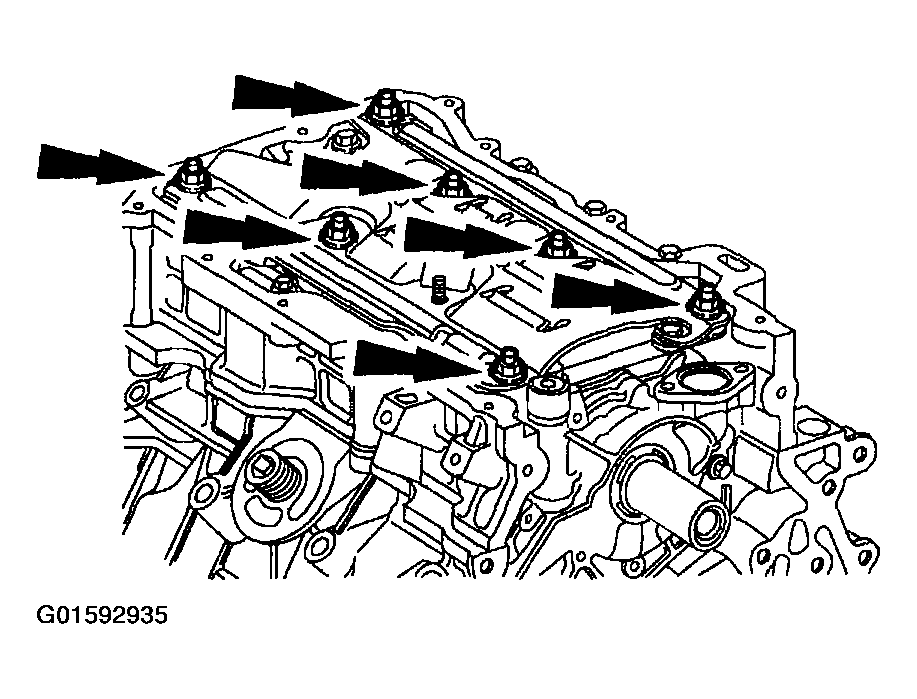

    Fig 1: Positioning Oil Pan Baffle And Installing Nuts
    G01592935Courtesy of FORD MOTOR CO.
  2. Install the oil pump screen cover and tube. For additional information, refer to OIL PUMP SCREEN AND PICKUP TUBE .
