Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Remove the oil level indicator tube.
    1. Remove the stud.
    2. Remove the oil level indicator tube.

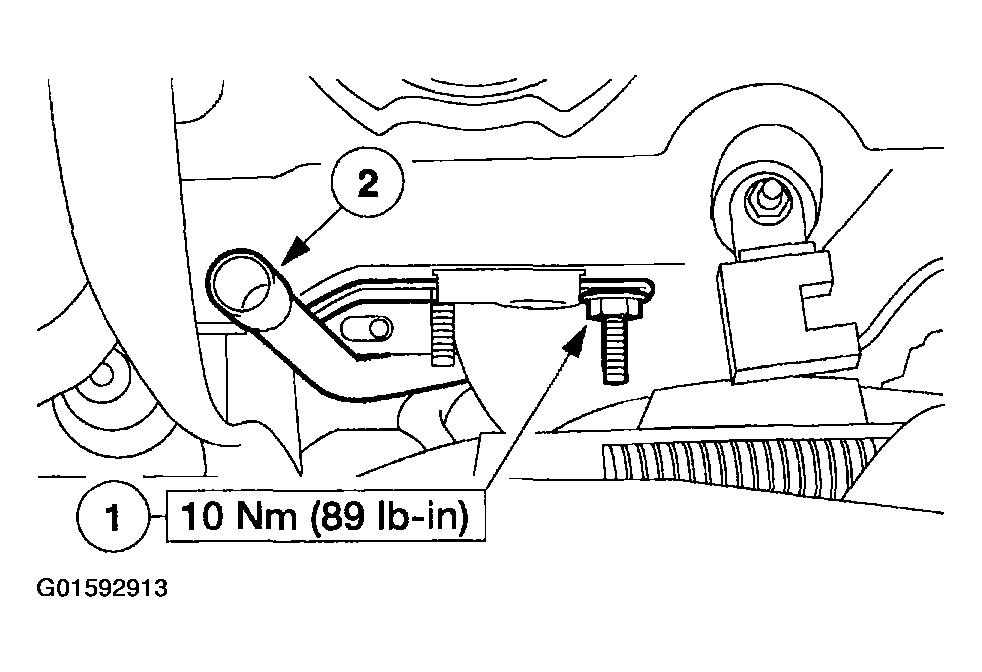

    Fig 1: Removing Oil Level Indicator Tube
    G01592913Courtesy of FORD MOTOR CO.
  3. Inspect the O-ring seal at the end of the oil level indicator tube and install a new O-ring seal if necessary.
    Fig 2: Inspecting O-Ring Seal At End Of Oil Level Indicator Tube
    G01592914Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
    • Lubricate the O-ring seal with clean engine oil.
