Lower Intake Manifold: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
  2. Disconnect the fuel hose spring lock coupling. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
  3. Disconnect the fuel injector electrical connectors.

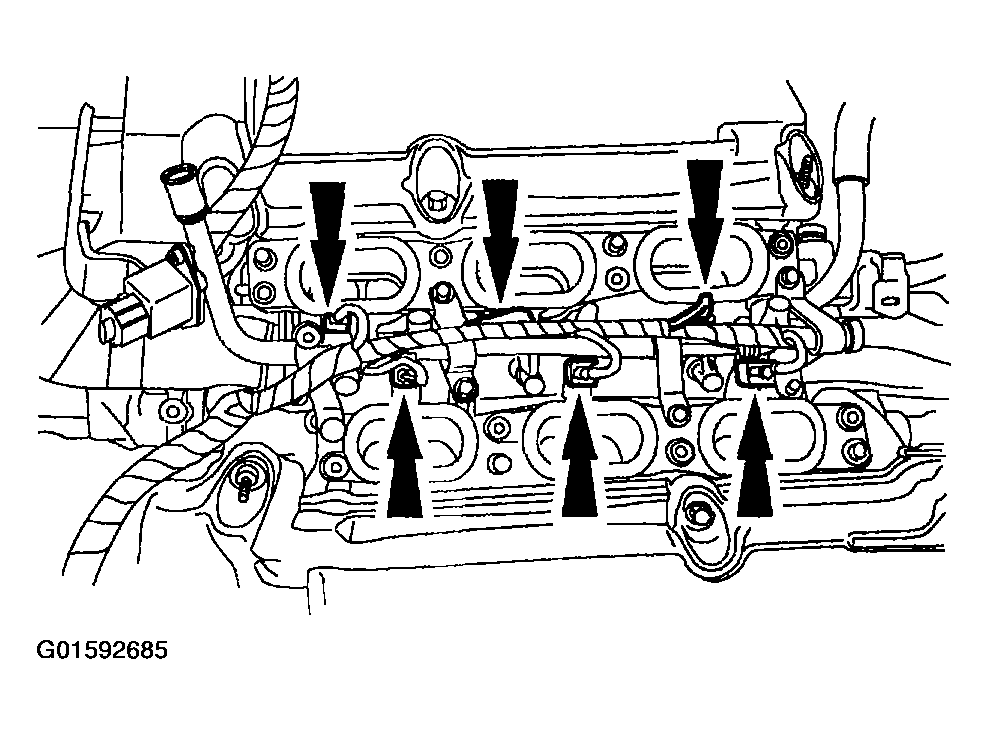

    Fig 1: Disconnecting Fuel Injector Electrical Connectors
    G01592685Courtesy of FORD MOTOR CO.
  4. Remove the bolts in the sequence shown, and remove the lower intake manifold.

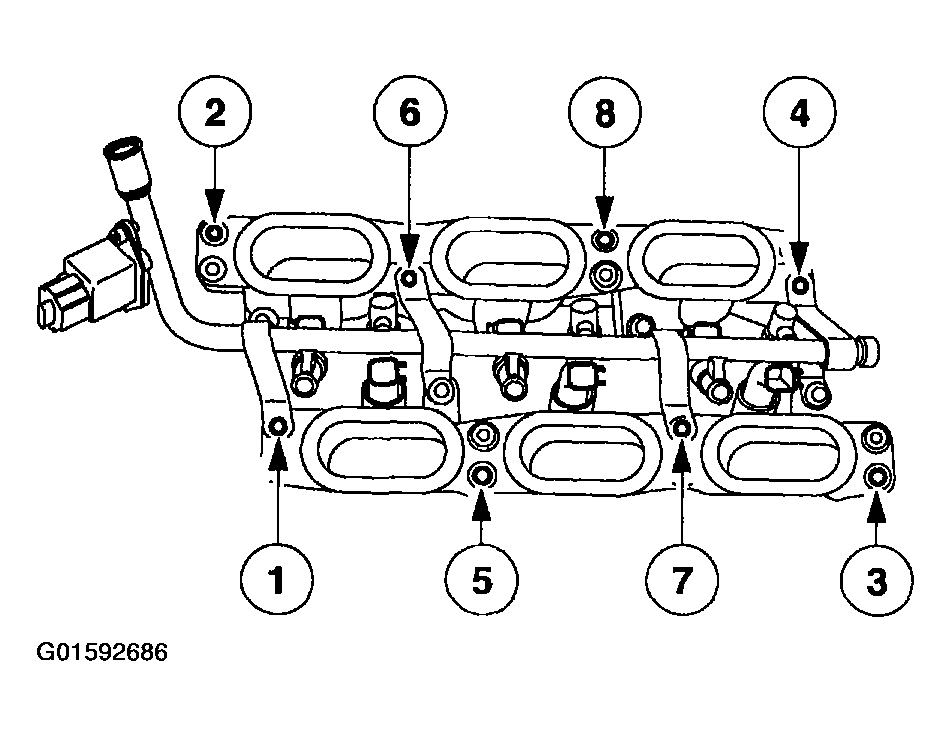

    Fig 2: Removing Sequence Of Lower Intake Manifold Bolts
    G01592686Courtesy of FORD MOTOR CO.
  5. Remove and discard the gaskets from the lower intake manifold.
