Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the camshaft followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .

NOTE: Mark the position of the hydraulic lash adjuster to make sure they are assembled in their original positions.

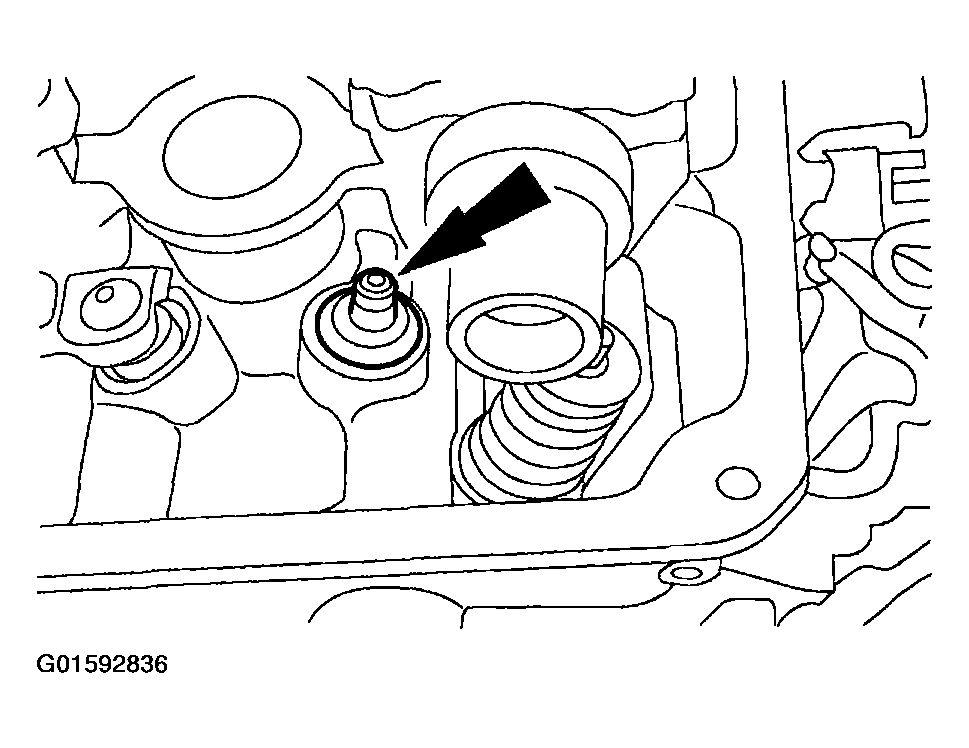

Fig 1: Removing Hydraulic Lash Adjusters

Courtesy of FORD MOTOR CO.

Remove the hydraulic lash adjusters.

NOTE: Inspect the hydraulic lash adjusters and install new lash adjusters as necessary.

To install, reverse the removal procedure.
- Lubricate the hydraulic lash adjusters with clean engine oil.
