Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-AX4S or Section 307-01B.
  2. Remove the bolts and the flexplate.

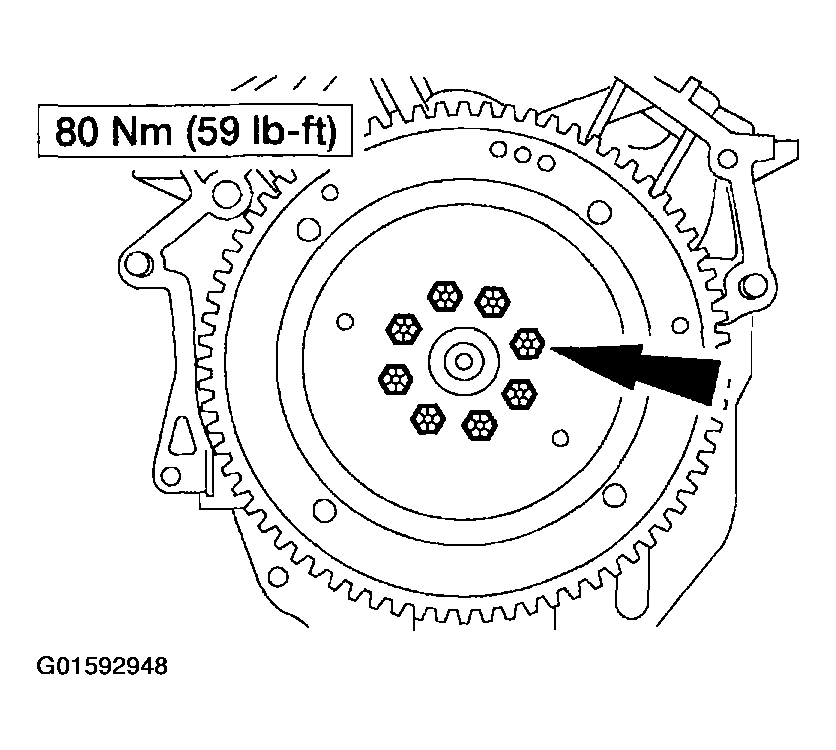

    Fig 1: Removing Bolts And Flexplate
    G01592948Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
