Engine Front Cover: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the LH valve cover. For additional information, refer to VALVE COVER LH .
  3. Remove the RH valve cover. For additional information, refer to VALVE COVER RH .
  4. Remove the power steering pump. For additional information, refer to POWER STEERING .
  5. Remove the retaining nut and position the power steering pressure line and muffler out of the way.
    Fig 1: Removing Retaining Nut And Positioning Power Steering Pressure Line And Muffler
    G01592692Courtesy of FORD MOTOR CO.
  6. Disconnect the alternator electrical connectors.

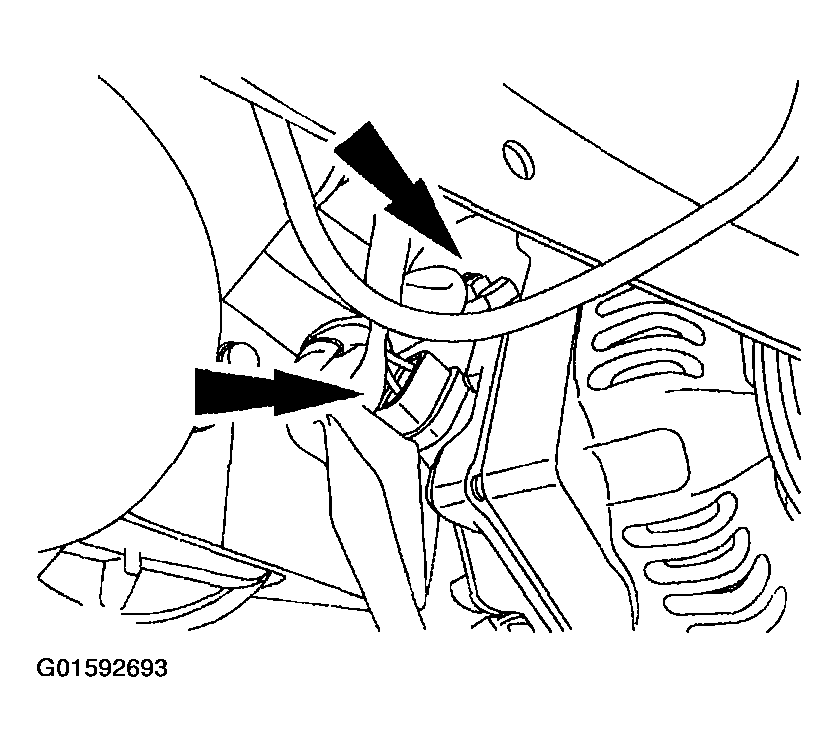

    Fig 2: Disconnecting Alternator Electrical Connectors
    G01592693Courtesy of FORD MOTOR CO.
  7. Remove the upper retaining bolts from the alternator.

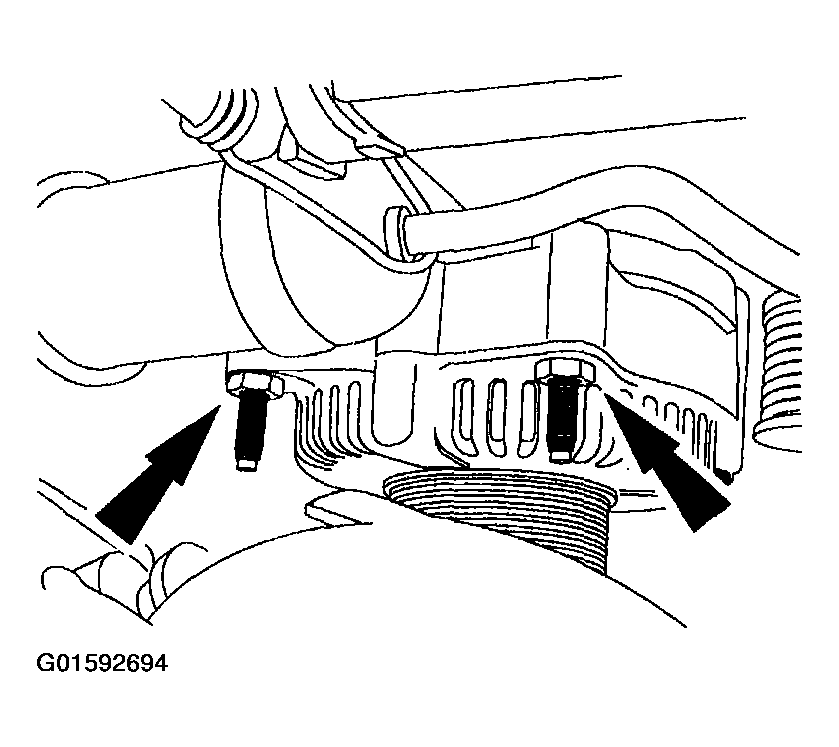

    Fig 3: Removing Upper Retaining Bolts From Alternator
    G01592694Courtesy of FORD MOTOR CO.
  8. Raise and support the vehicle.
  9. Remove the bolts, nuts and the engine-to-transaxle bracket.
    Fig 4: Removing Bolts, Nuts And Engine-To-Transaxle Bracket
    G01592695Courtesy of FORD MOTOR CO.
  10. Remove the torque converter inspection cover.
    Fig 5: Removing Torque Converter Inspection Cover
    G01592696Courtesy of FORD MOTOR CO.
  11. Remove the front pin-type retainers and position the front rocker panel moulding aside.
    Fig 6: Removing Front Pin-Type Retainers And Positioning Front Rocker Panel Moulding Aside
    G01592697Courtesy of FORD MOTOR CO.
  12. Remove the rear portion of the front fender splash shield.
    • Remove the screws and the pin-type retainers.
    Fig 7: Removing Rear Portion Of Front Fender Splash Shield
    G01592698Courtesy of FORD MOTOR CO.
  13. Remove the two screws and the alternator splash shield.
    Fig 8: Removing Screws And Alternator Splash Shield
    G01592699Courtesy of FORD MOTOR CO.
  14. Install the Flywheel Holding Tool.
    Fig 9: Installing Flywheel Holding Tool
    G01592700Courtesy of FORD MOTOR CO.
    15. NOTE: The pulley bolt has a reverse thread.
    Fig 10: Removing Crankshaft Damper Pulley
    G01592701Courtesy of FORD MOTOR CO.
  15. Remove the crankshaft damper pulley.
  16. Remove the crankshaft damper bolt and washer.
    Fig 11: Removing Crankshaft Damper Bolt And Washer
    G01592702Courtesy of FORD MOTOR CO.
  17. Using the special tool, remove the crankshaft damper.
    Fig 12: Removing Crankshaft Damper
    G01592703Courtesy of FORD MOTOR CO.
  18. Remove the Flywheel Holding Tool.
    Fig 13: Removing Flywheel Holding Tool
    G01592704Courtesy of FORD MOTOR CO.
  19. Disconnect the crankshaft position (CKP) sensor electrical connector. Remove the bolt and the CKP sensor.
    Fig 14: Removing Bolt And CKP Sensor
    G01592705Courtesy of FORD MOTOR CO.
  20. Remove the alternator bolt and remove the alternator.
    Fig 15: Removing Alternator Bolt And Removing Alternator
    G01592706Courtesy of FORD MOTOR CO.
  21. Lower the vehicle.
  22. Remove the bolts and the A/C compressor to front cover bracket.
    Fig 16: Removing Bolts And A/C Compressor To Front Cover Bracket
    G01592707Courtesy of FORD MOTOR CO.
  23. Disconnect the camshaft position (CMP) sensor electrical connector. Remove the bolt and remove the CMP sensor.
    Fig 17: Removing Bolt And Removing CMP Sensor
    G01592708Courtesy of FORD MOTOR CO.
  24. Remove the tie strap from the power steering hose.
    Fig 18: Removing Tie Strap From Power Steering Hose
    G01592709Courtesy of FORD MOTOR CO.
  25. Remove the retaining nut and position the A/C low pressure hose out of the way.
    Fig 19: Removing Retaining Nut And Positioning A/C Low Pressure Hose
    G01592710Courtesy of FORD MOTOR CO.
  26. Remove the bolts and position the A/C high pressure hose on top of the belt tensioner.
    Fig 20: Removing Bolts And Positioning A/C High Pressure Hose On Top Of Belt Tensioner
    G01592711Courtesy of FORD MOTOR CO.
  27. Remove the bolt and remove the belt tensioner.
    Fig 21: Removing Bolt And Belt Tensioner
    G01592712Courtesy of FORD MOTOR CO.
  28. Disconnect the engine cooling fan electrical connector and unclip the wiring harness.
    Fig 22: Disconnecting Engine Cooling Fan Electrical Connector
    G01592713Courtesy of FORD MOTOR CO.
  29. Remove the bolt and the engine cooling fan.
    Fig 23: Removing Bolt And Engine Cooling Fan
    G01592714Courtesy of FORD MOTOR CO.
  30. Install the special tools to support the engine.
    Fig 24: Installing Special Tools To Support Engine
    G01592715Courtesy of FORD MOTOR CO.
  31. Remove the two upper A/C compressor bolts.
    Fig 25: Removing Upper A/C Compressor Bolts
    G01592716Courtesy of FORD MOTOR CO.
  32. Raise the vehicle.
  33. Remove the two lower A/C compressor bolts and position the A/C compressor aside.
    Fig 26: Removing Lower A/C Compressor Bolts And Positioning A/C Compressor Aside
    G01592717Courtesy of FORD MOTOR CO.
  34. Remove the bolts from the A/C bracket.
    Fig 27: Removing Bolts From A/C Bracket
    G01592718Courtesy of FORD MOTOR CO.
  35. Remove the two oil pan front cover bolts.
    Fig 28: Removing Oil Pan Front Cover Bolts
    G01592719Courtesy of FORD MOTOR CO.
  36. Lower the vehicle.
  37. Raise the engine away from the A/C bracket using the engine support tool.
    Fig 29: Raising Engine Away From A/C Bracket
    G01592720Courtesy of FORD MOTOR CO.
  38. Remove the bolts, studs and the engine front cover.
    Fig 30: Removing Bolts, Studs And Engine Front Cover
    G01592721Courtesy of FORD MOTOR CO.
