Cylinder Head RH: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the coolant pump bypass tube. For additional information, refer to ENGINE COOLING .
Remove the RH camshafts. For additional information, refer to CAMSHAFTS RH .
Raise and support the vehicle.
Remove the RH exhaust manifold-to-pipe bolts.

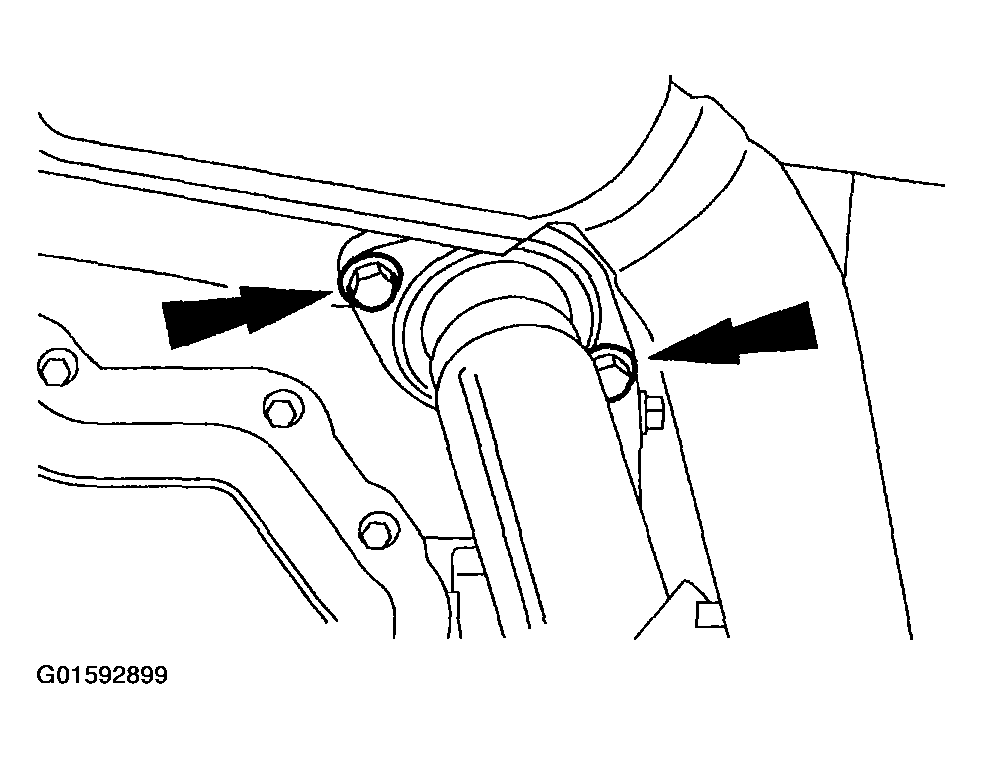

Fig 1: Removing RH Exhaust Manifold-To-Pipe Bolts
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Disconnect the exhaust gas recirculation (EGR) tube from the exhaust manifold.

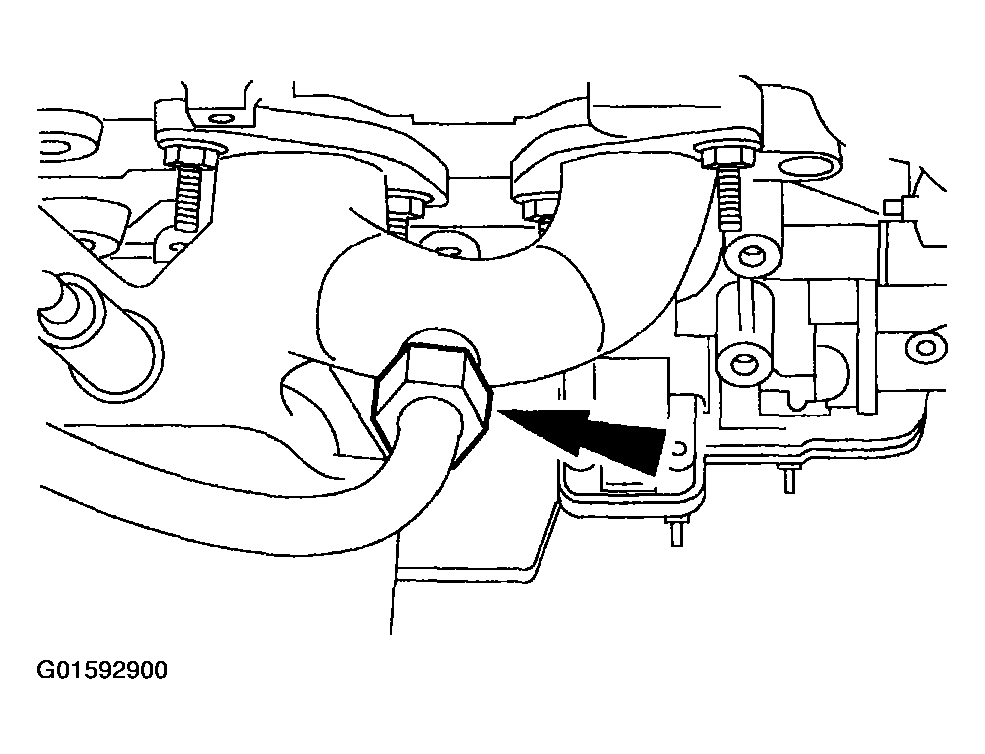

Fig 2: Disconnecting Exhaust Gas Recirculation Tube From Exhaust Manifold
Courtesy of FORD MOTOR CO.
Remove the camshaft followers.

Fig 3: Removing Camshaft Followers
Courtesy of FORD MOTOR CO.
Remove the hydraulic lash adjusters.

Fig 4: Removing Hydraulic Lash Adjusters
Courtesy of FORD MOTOR CO.
Remove the nuts in the sequence shown and remove the exhaust manifold.
- Discard the gasket.

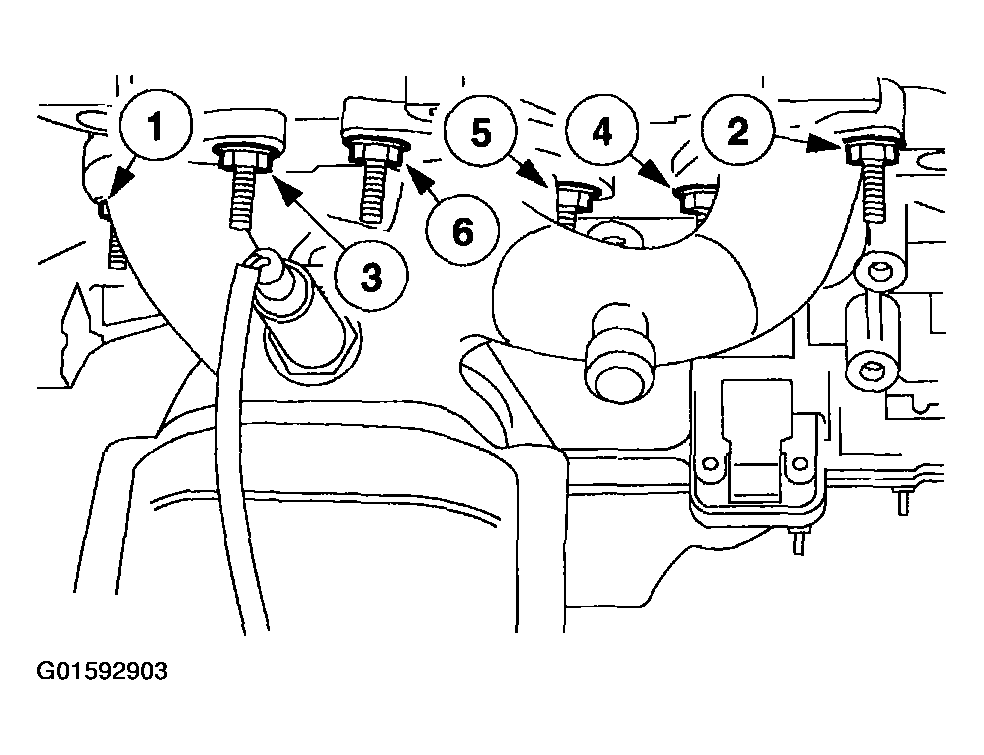

Fig 5: Removing Sequence Of Exhaust Manifold Nuts
Courtesy of FORD MOTOR CO.

NOTE: New cylinder head bolts must be installed. They are torque-to-yield designed and cannot be reused.

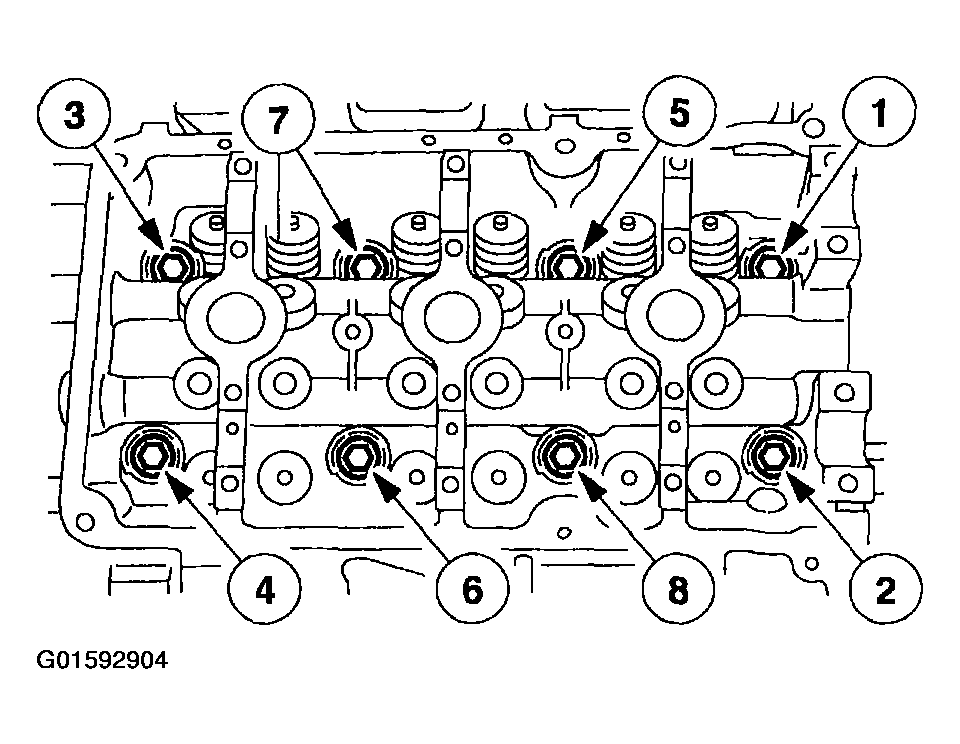

Fig 6: Removing Sequence Of Cylinder Head Bolts

Courtesy of FORD MOTOR CO.

Remove the bolts in the sequence shown and remove the cylinder head.
- Discard the gasket and the bolts.
