Crankshaft Vibration Damper: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
  2. Remove the crankshaft damper bolt and washer.

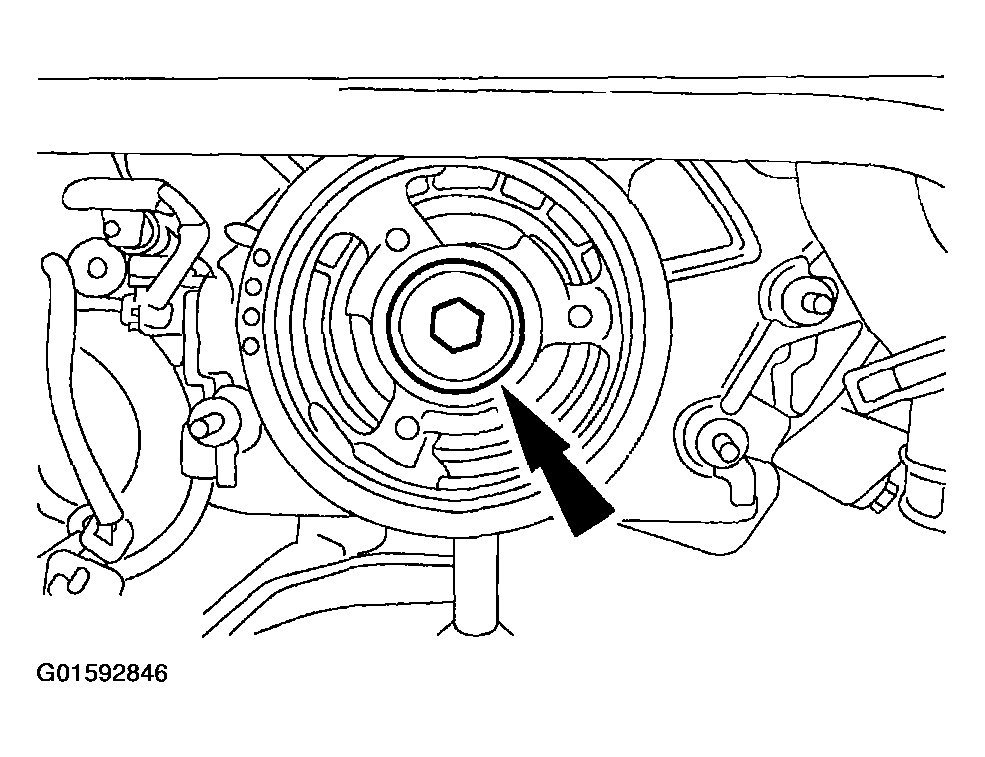

    Fig 1: Removing Crankshaft Damper Bolt And Washer
    G01592846Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the crankshaft damper.

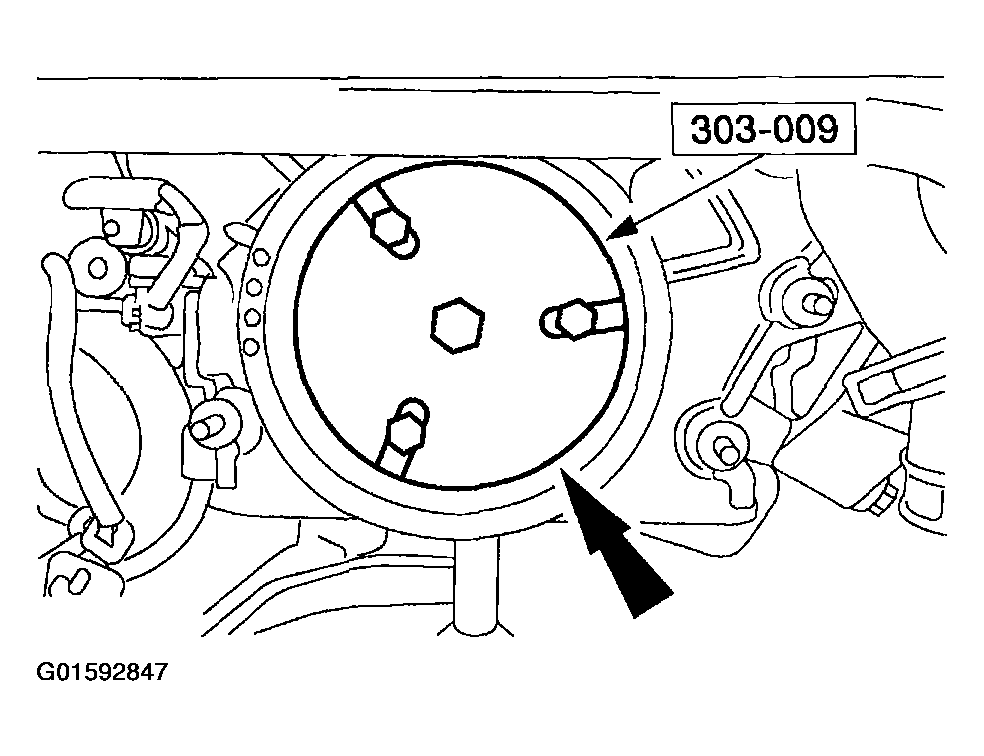

    Fig 2: Removing Crankshaft Damper
    G01592847Courtesy of FORD MOTOR CO.
