Crankshaft Rear Seal: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flexplate. For additional information, refer to FLEXPLATE .
  2. Using the special tools, remove the crankshaft rear oil seal and discard.

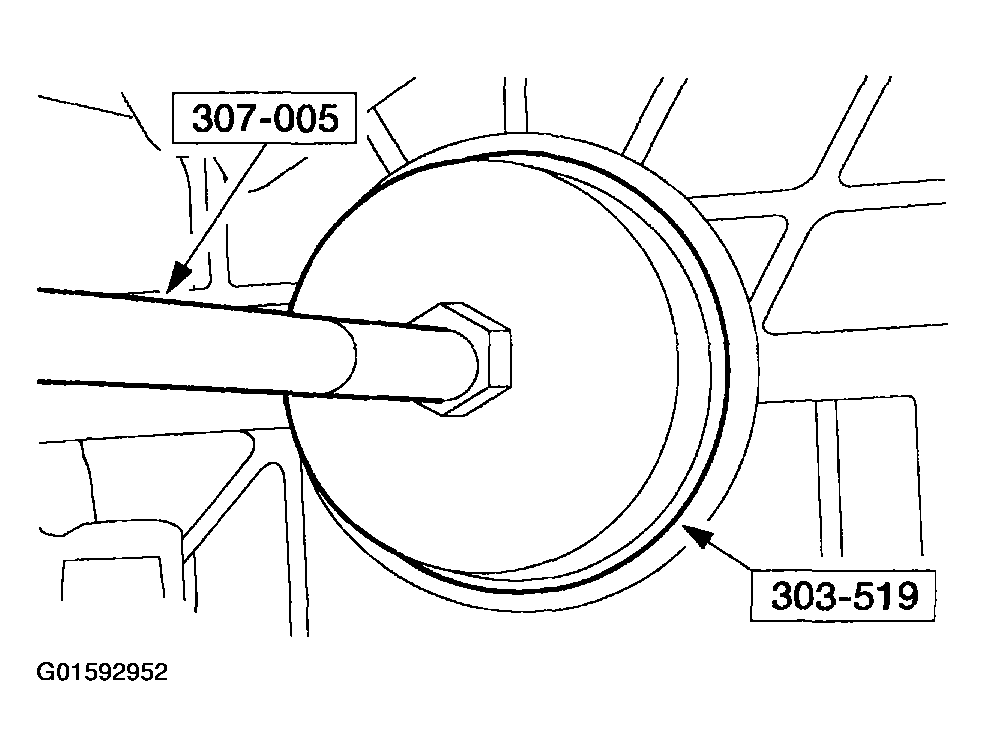

Fig 1: Removing Crankshaft Rear Oil Seal
G01592952Courtesy of FORD MOTOR CO.
