Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Clean all sealing surfaces with metal surface cleaner.
    NOTE: Lubricate the crankshaft rear oil seal lips with clean engine oil.

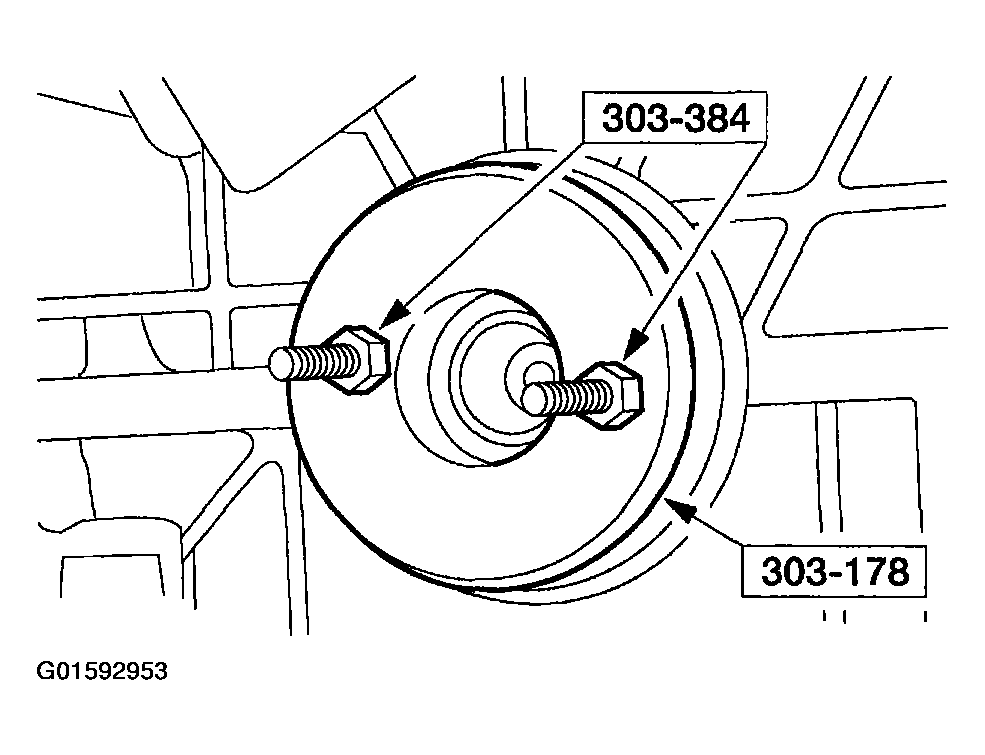

    Fig 1: Installing Crankshaft Rear Oil Seal
    G01592953Courtesy of FORD MOTOR CO.
  1. Using the special tools, install the crankshaft rear oil seal.
  2. Install the flexplate. For additional information, refer to FLEXPLATE .
