Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft vibration damper. For additional information, refer to CRANKSHAFT VIBRATION DAMPER .
  2. Using the special tool, remove the crankshaft front oil seal and discard.

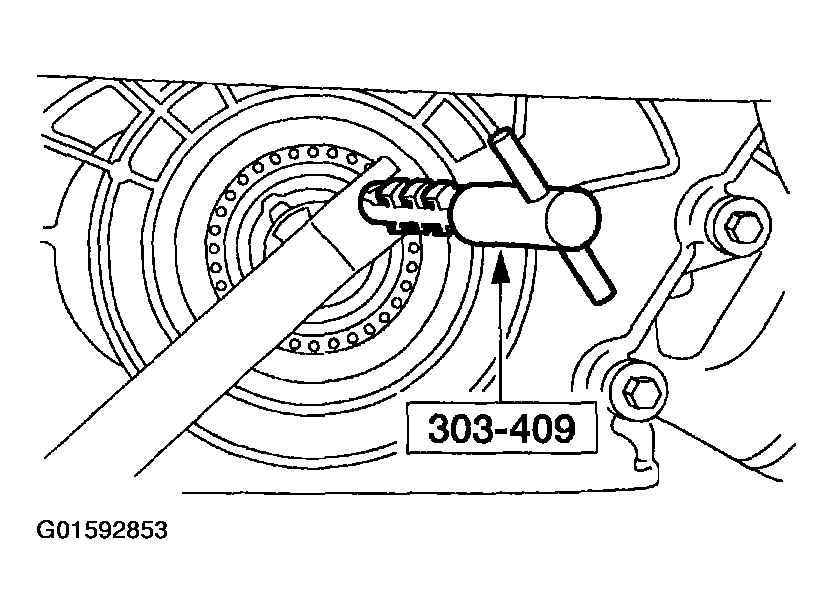

    Fig 1: Removing Crankshaft Front Oil Seal
    G01592853Courtesy of FORD MOTOR CO.
