Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Clean all sealing surfaces with metal surface cleaner.
  1. Apply clean engine oil to the seal before installing the seal.
  2. Using the special tool, install the crankshaft front oil seal.

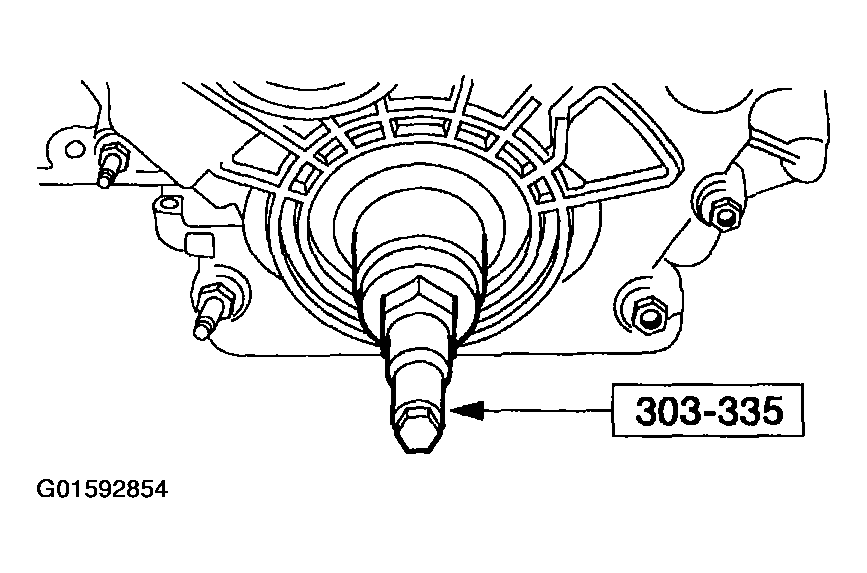

    Fig 1: Installing Crankshaft Front Oil Seal
    G01592854Courtesy of FORD MOTOR CO.
  3. Install the crankshaft vibration damper. For additional information, refer to CRANKSHAFT VIBRATION DAMPER .
