Camshafts RH: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .

CAUTION: Record the camshaft bearing cap location. The camshaft bearing caps are positional and must be installed in their original locations and orientations or engine damage can occur.

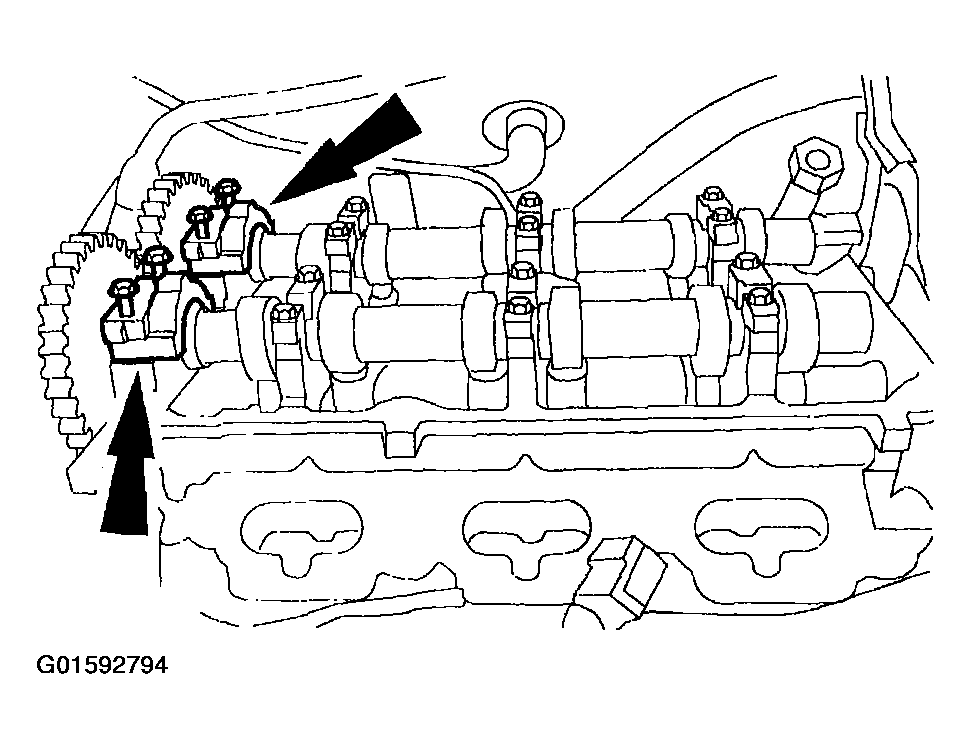

Fig 1: Loosening RH Camshaft Thrust Cap Bolts

Courtesy of FORD MOTOR CO.

Loosen the RH camshaft thrust cap bolts.
Loosen the RH camshaft cap bolts in sequence to allow the camshafts to rise from the cylinder head and remove the caps.

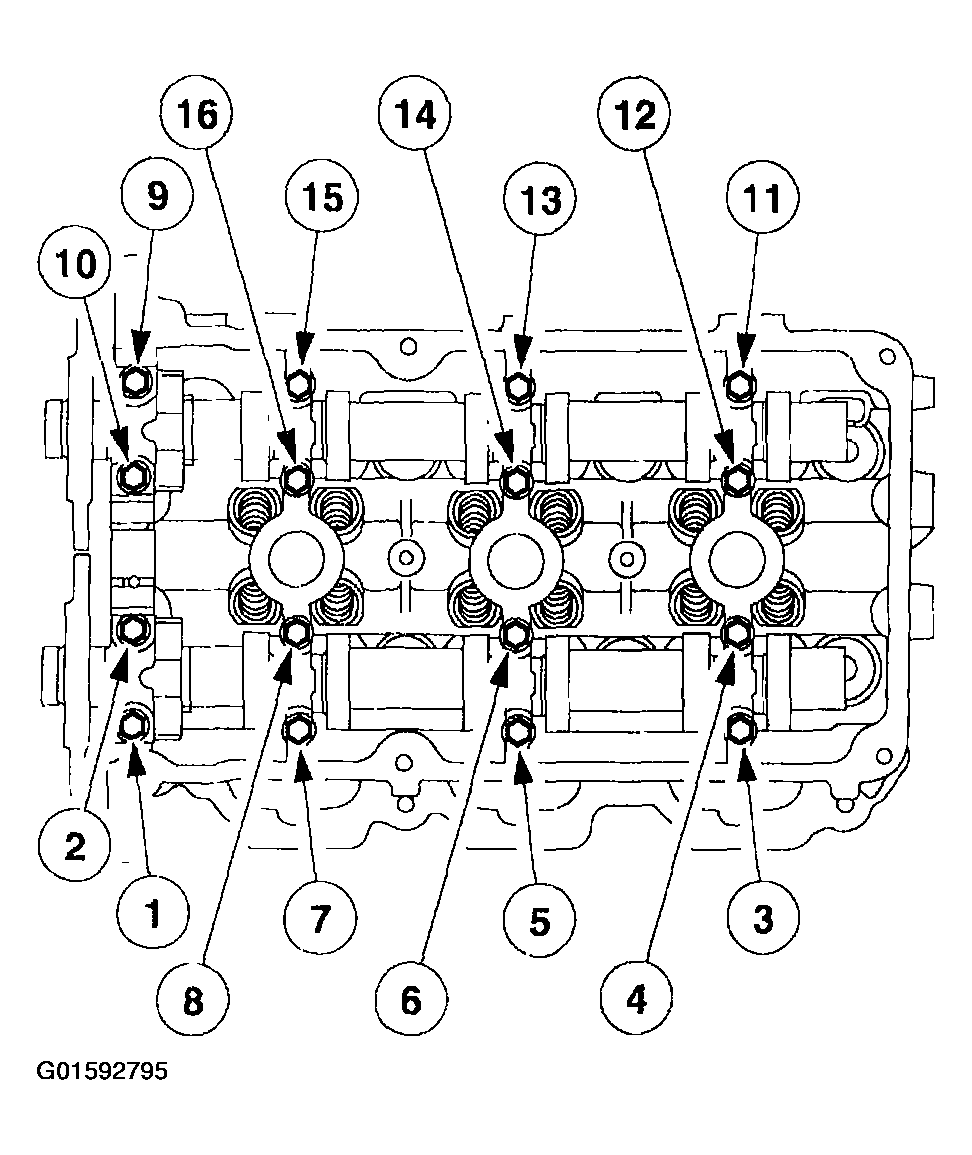

Fig 2: Loosening Sequence Of RH Camshaft Cap Bolts
Courtesy of FORD MOTOR CO.
Remove the camshafts.

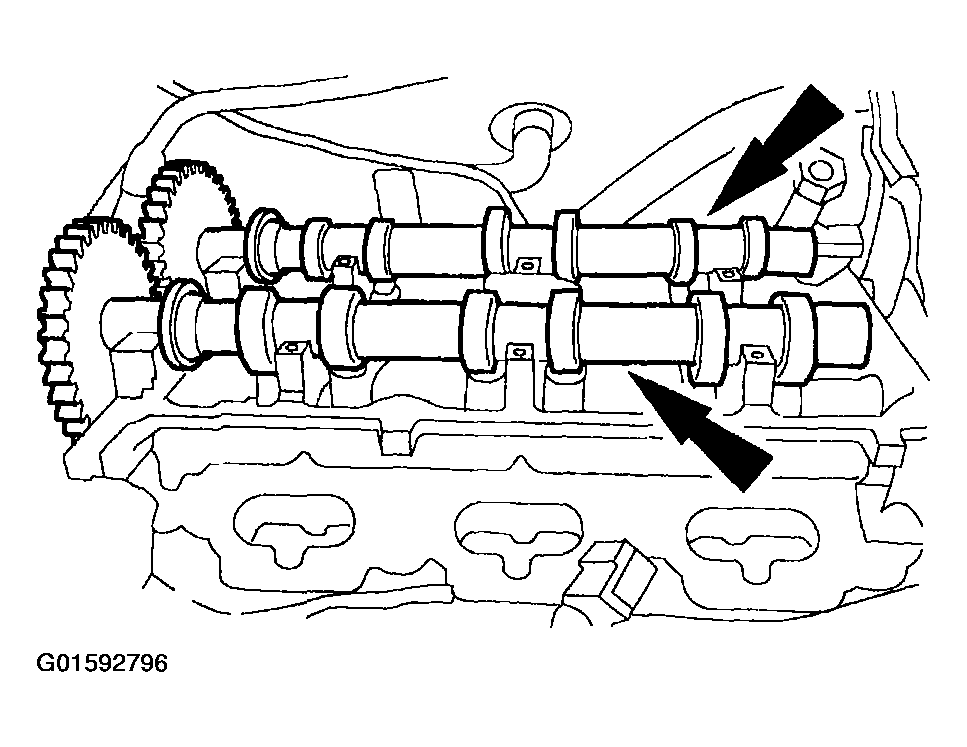

Fig 3: Removing Camshafts
Courtesy of FORD MOTOR CO.
