Camshafts LH: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
Remove the water pump belt. For additional information, refer to ACCESSORY DRIVE .

CAUTION: The OEM pulley is pressed on 4.74 mm (0.18 in) past flush of the camshaft. The service pulley gets pressed on flush to the end of the camshaft.

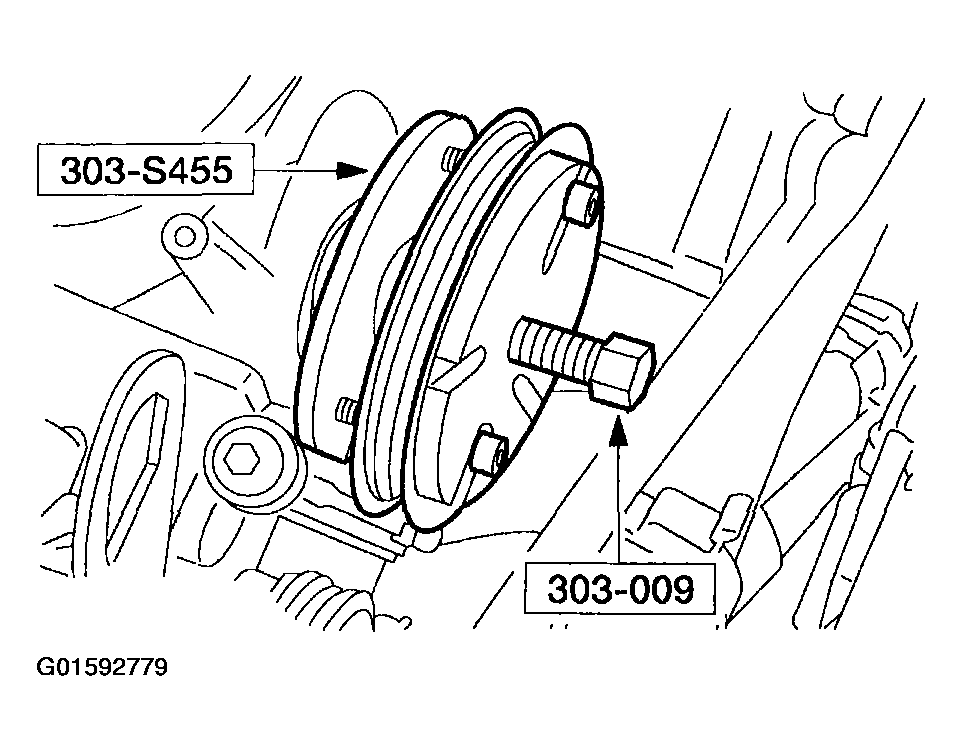

Fig 1: Removing Water Pump Drive Pulley

Courtesy of FORD MOTOR CO.

Using the special tools, remove the water pump drive pulley and discard.

CAUTION: In order to make sure of correct sealing, do not scratch the camshaft.

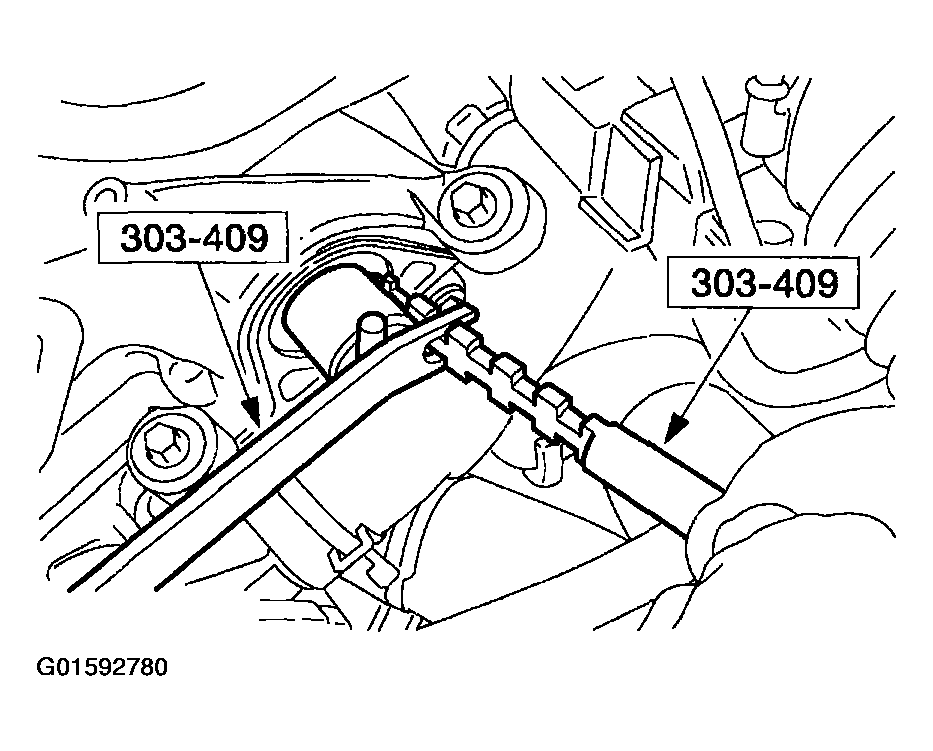

Fig 2: Removing Camshaft Oil Seal

Courtesy of FORD MOTOR CO.

Using the special tools, remove the camshaft oil seal and discard.
Remove the intake camshaft oil seal retainer and discard the press-in-place gasket.

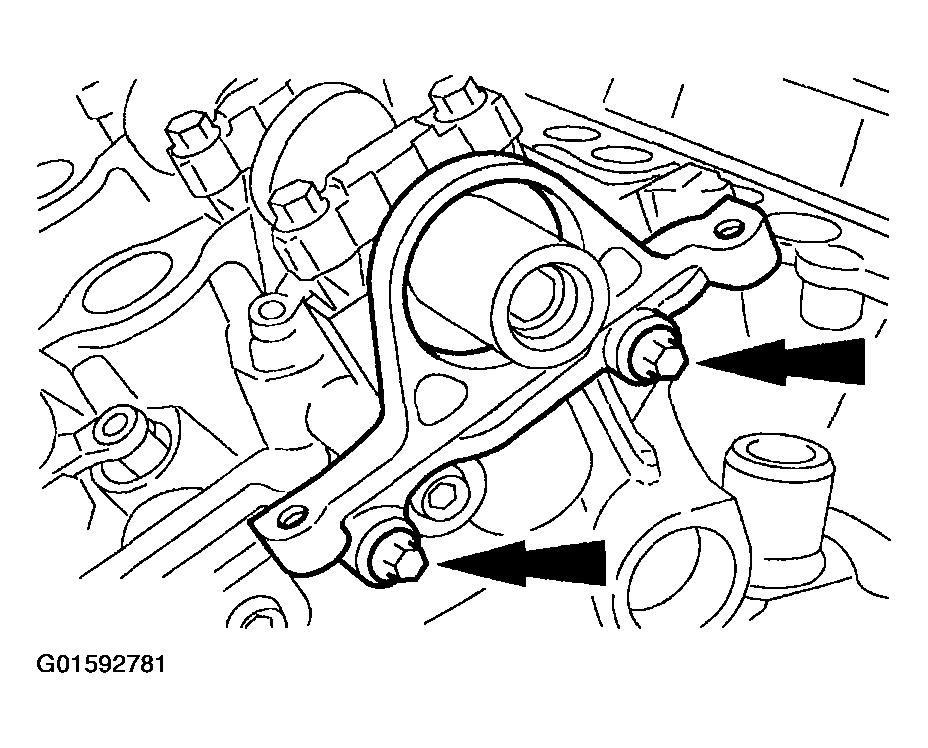

Fig 3: Removing Intake Camshaft Oil Seal Retainer
Courtesy of FORD MOTOR CO.

CAUTION: Record the camshaft bearing cap locations. The camshaft bearing caps are positional and must be installed in their original locations and orientations or engine damage can occur.

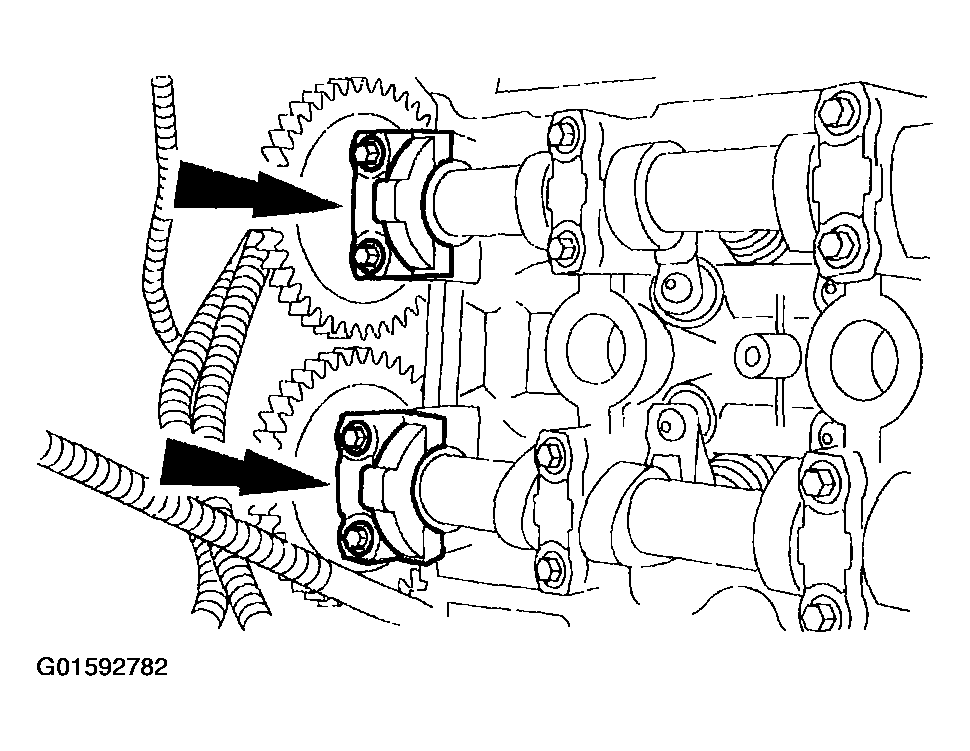

Fig 4: Loosening Bolts For LH Camshaft Thrust Caps

Courtesy of FORD MOTOR CO.

Loosen the bolts for the LH camshaft thrust caps.
Loosen the LH camshaft cap bolts in sequence to allow the camshafts to rise from the cylinder head and remove the caps.

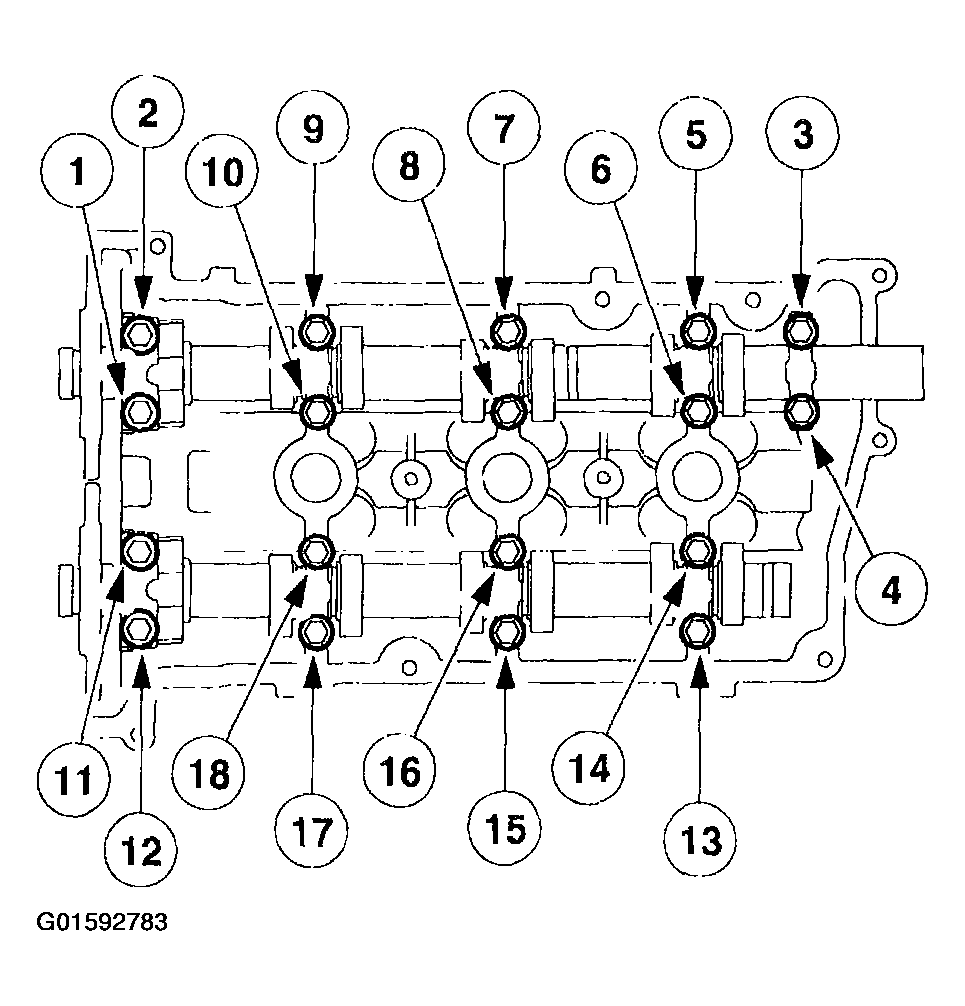

Fig 5: Loosening Sequence Of LH Camshaft Cap Bolts
Courtesy of FORD MOTOR CO.
Remove the camshafts.

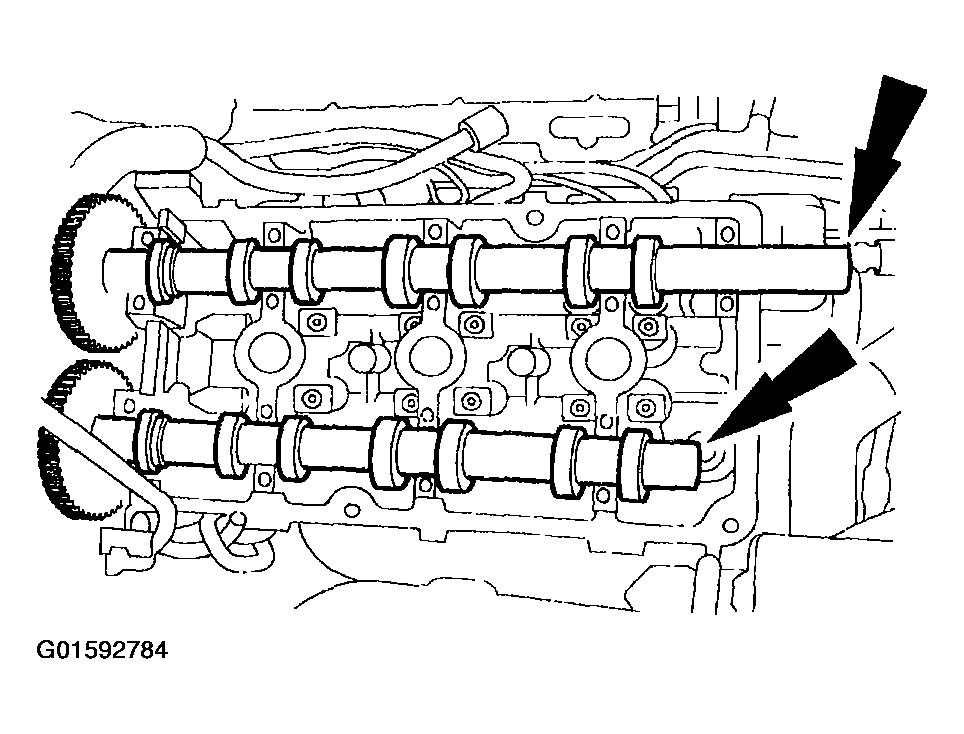

Fig 6: Removing Camshafts
Courtesy of FORD MOTOR CO.
