Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If the components are to be reinstalled, they must be installed in the same position. Mark the components removed for location.

Remove the hydraulic lash adjusters.

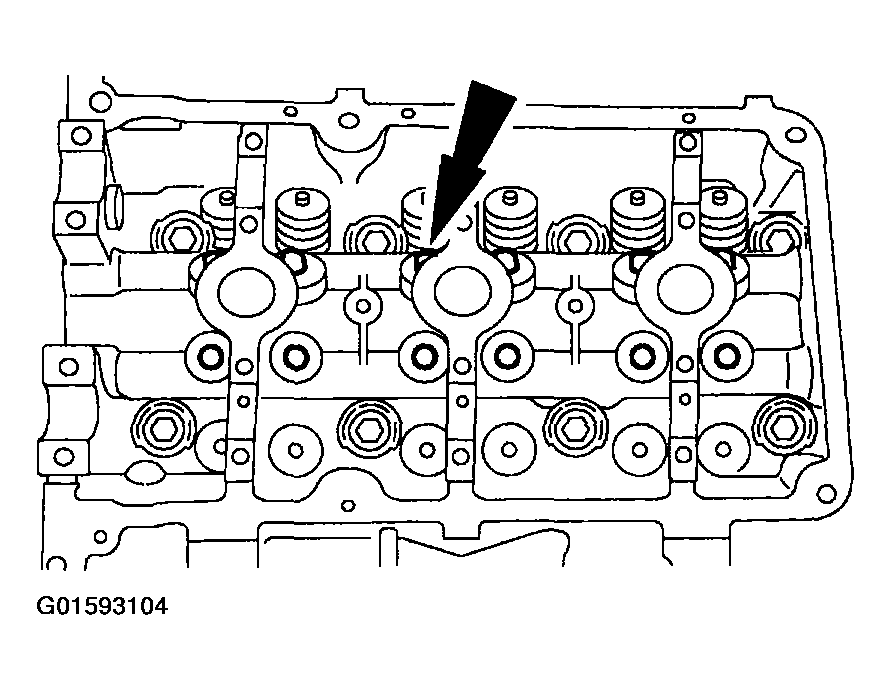

Fig 1: Removing Hydraulic Lash Adjusters
Courtesy of FORD MOTOR CO.
Using the special tools, remove the keys, retainer, and spring.

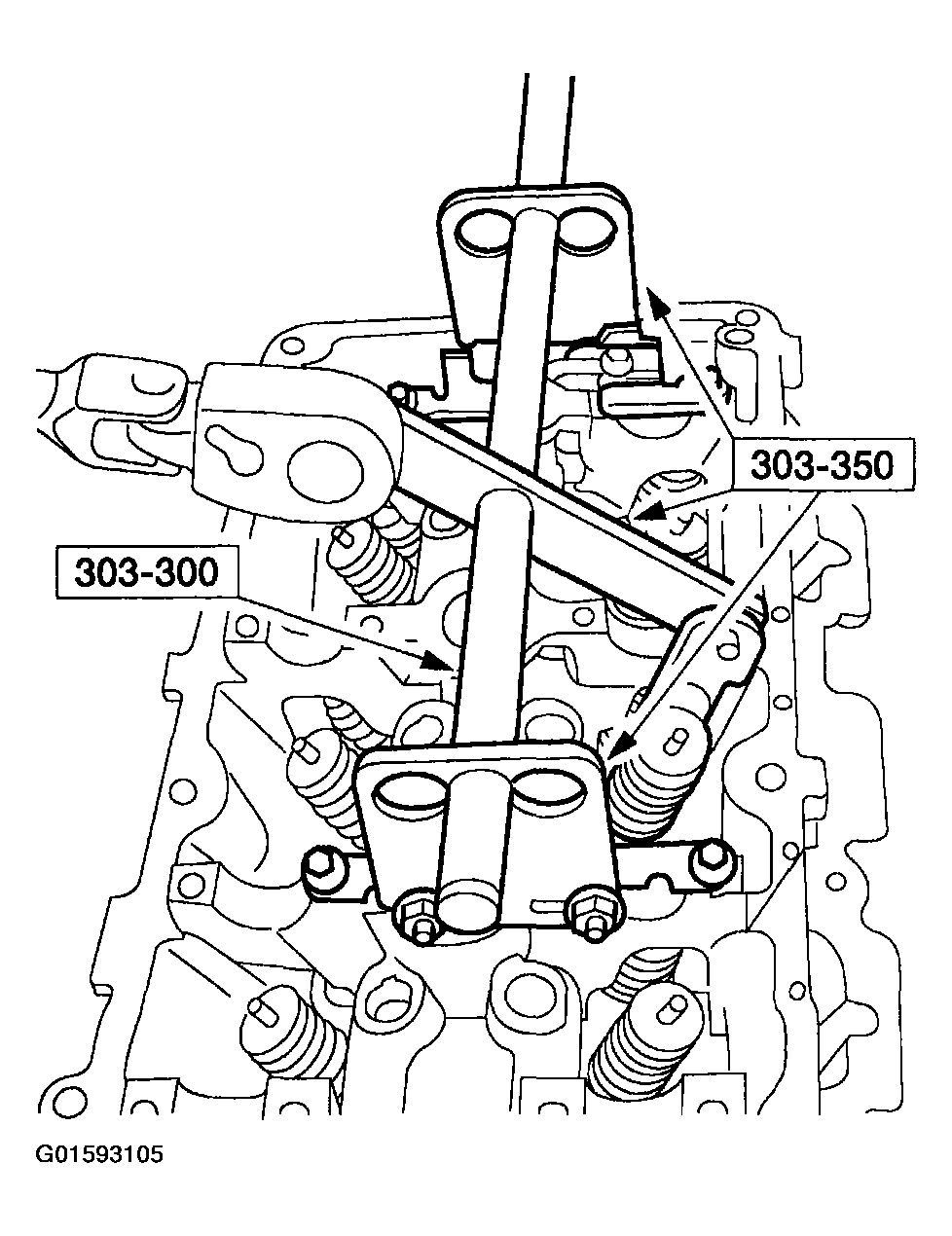

Fig 2: Removing Keys, Retainer, And Spring
Courtesy of FORD MOTOR CO.
Remove the valve from the cylinder head.
Remove the valve stem seal.

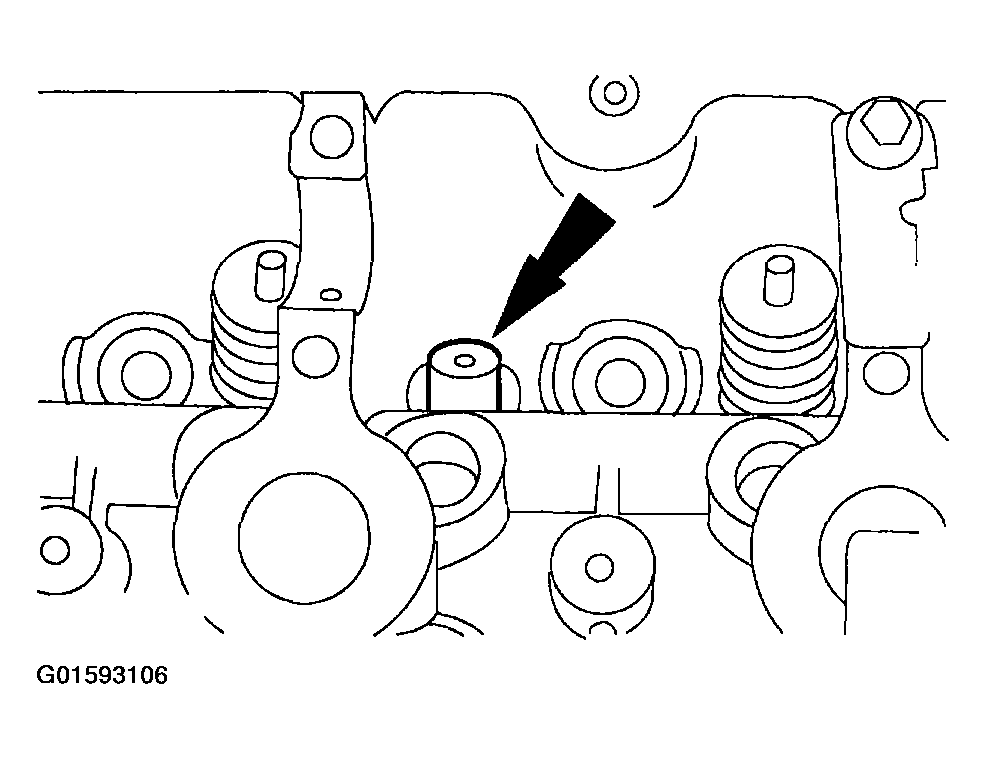

Fig 3: Removing Valve Stem Seal
Courtesy of FORD MOTOR CO.
