Cylinder Head: Assembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the valve stem seal.

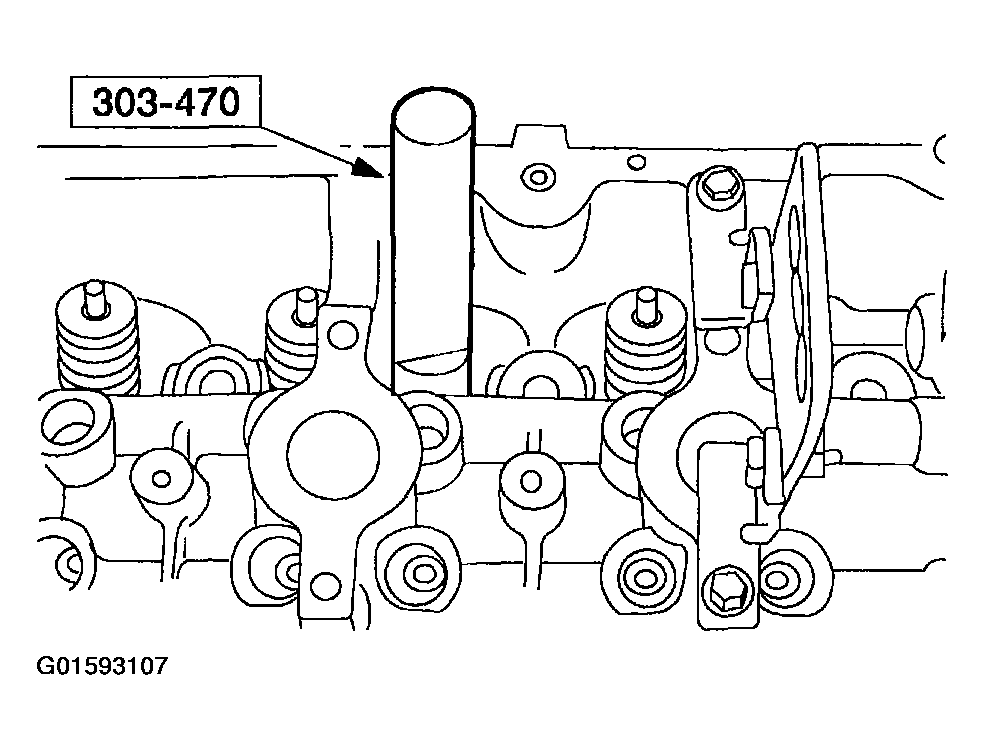

    Fig 1: Installing Valve Stem Seal
    G01593107Courtesy of FORD MOTOR CO.
  2. Install the valve.
  3. Using the special tools, install the valve spring, retainer and key.

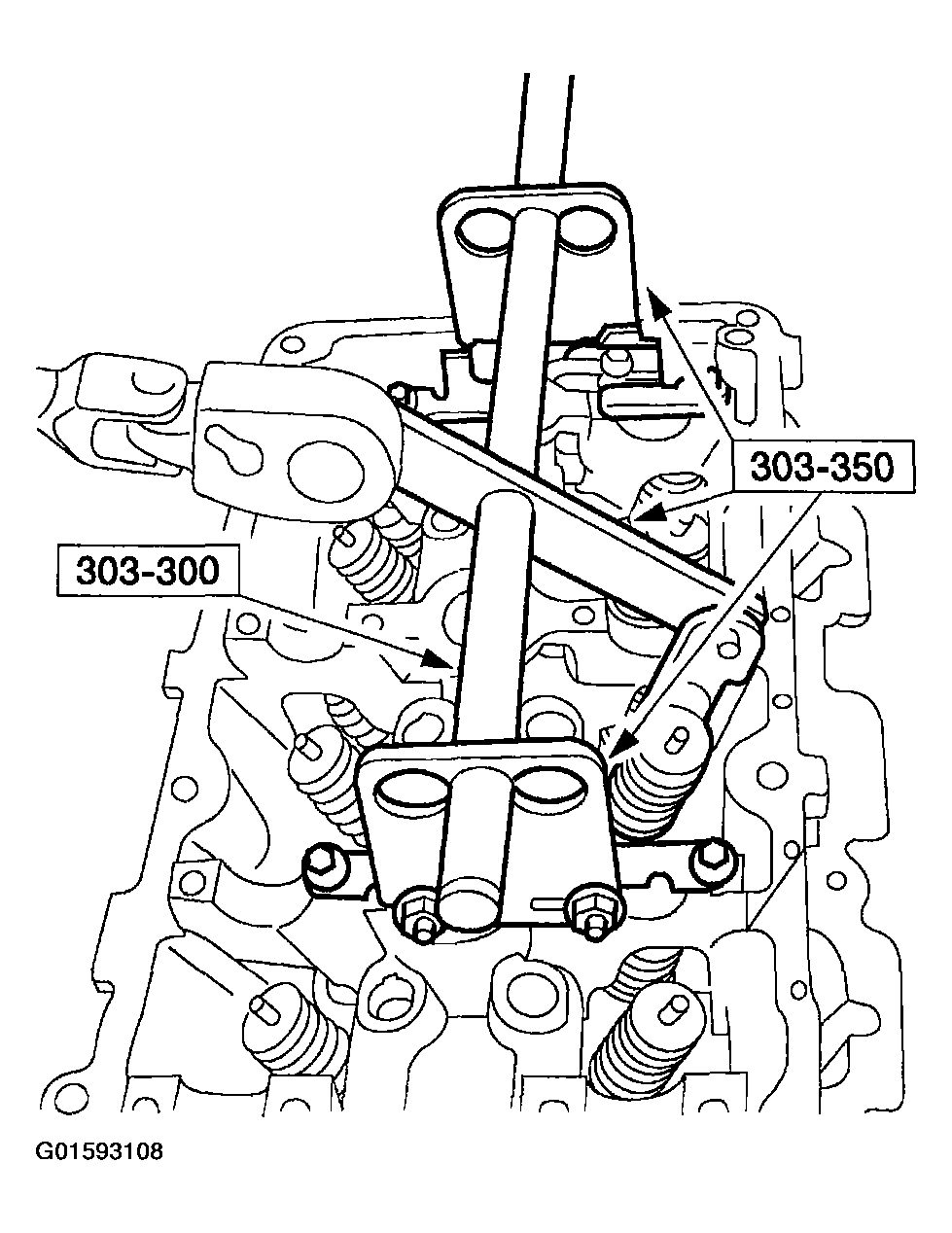

    Fig 2: Installing Valve Spring, Retainer And Key
    G01593108Courtesy of FORD MOTOR CO.
  4. Install the hydraulic lash adjuster.

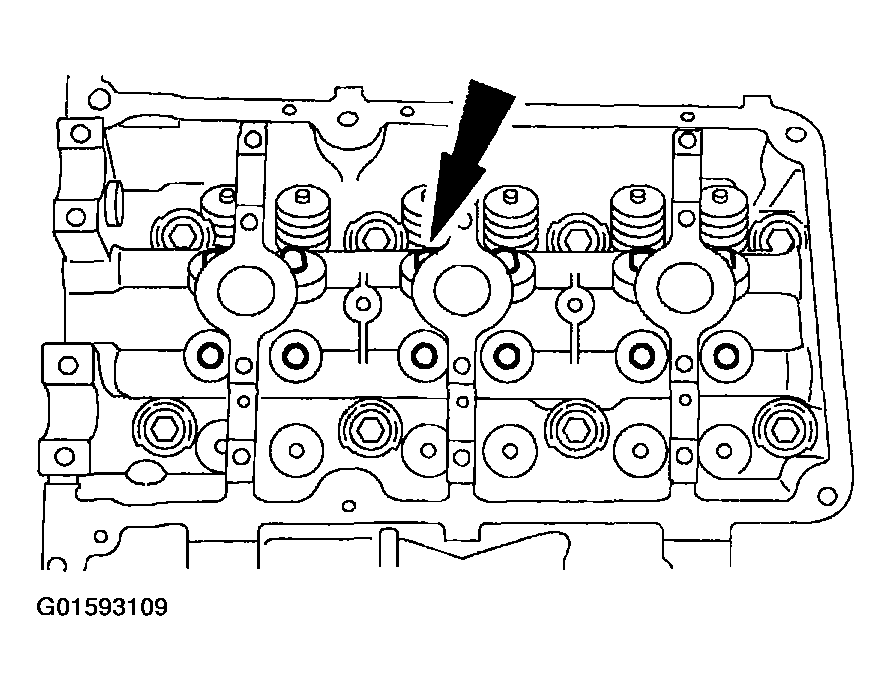

    Fig 3: Installing Hydraulic Lash Adjuster
    G01593109Courtesy of FORD MOTOR CO.
