Valve Cover RH: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
Lift the degas bottle hose off the valve cover studs and position the hose aside.

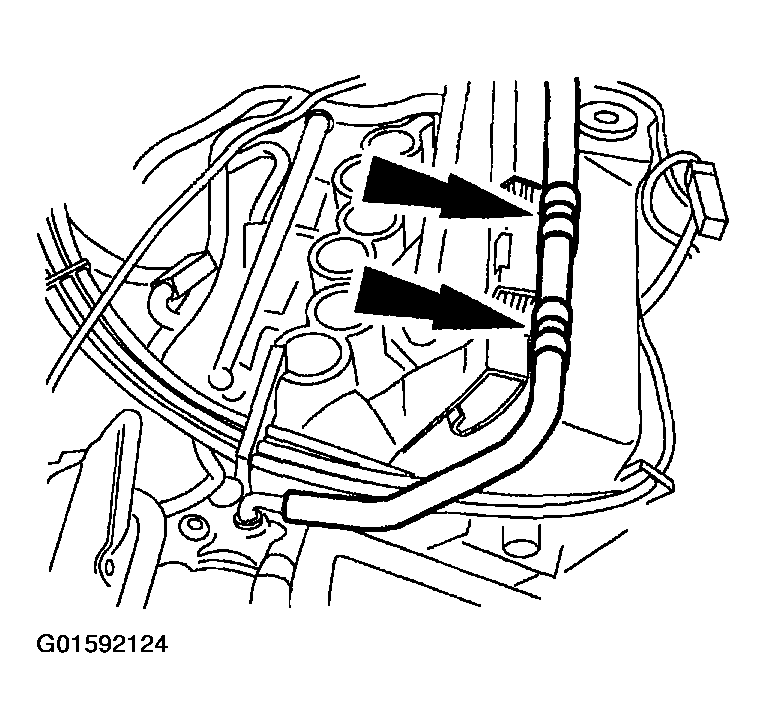

Fig 1: Identifying Degas Bottle Hose
Courtesy of FORD MOTOR CO.
Lift the fuel charging wiring harness off the valve cover studs and position the wiring harness aside.

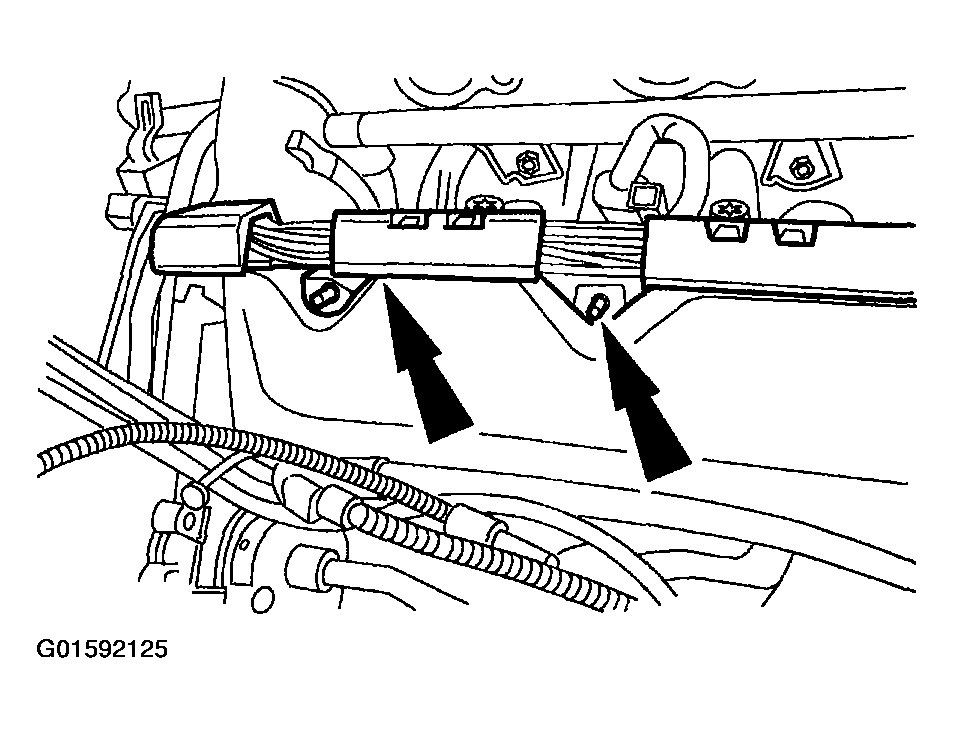

Fig 2: Identifying Fuel Charging Wiring Harness
Courtesy of FORD MOTOR CO.
Position the spark plug wires aside.

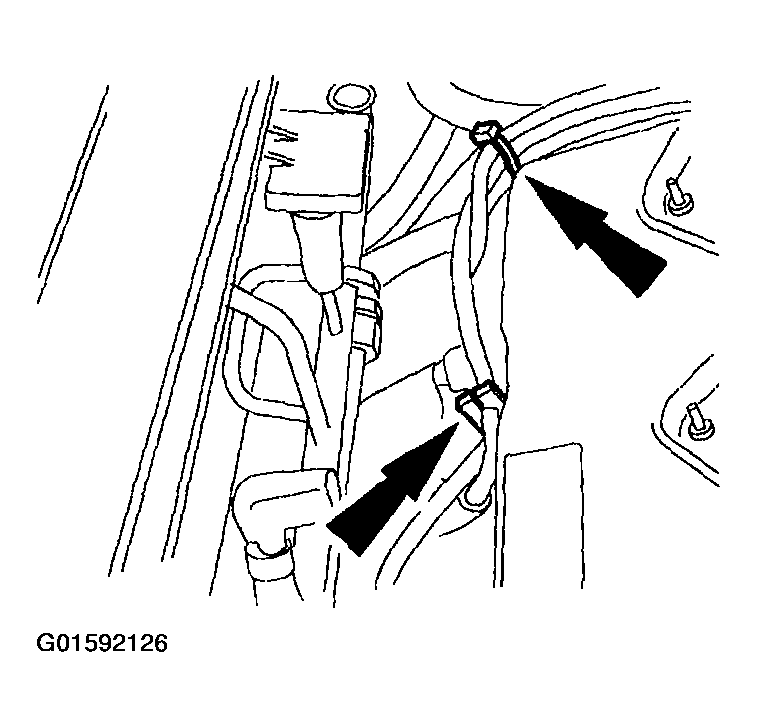

Fig 3: Identifying Spark Plug Wires Aside
Courtesy of FORD MOTOR CO.
Remove the RH valve cover.

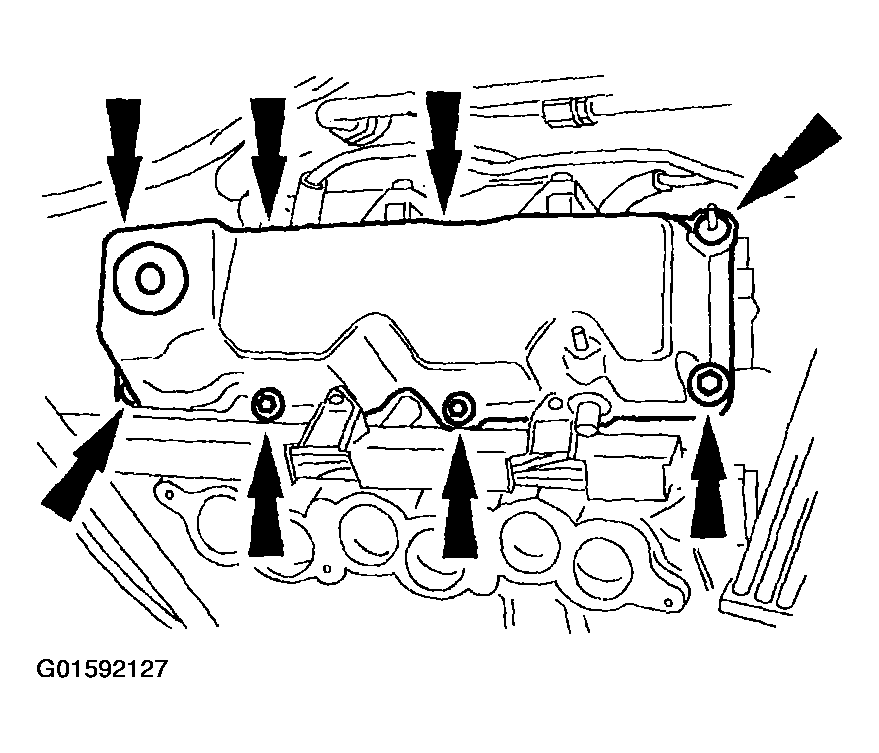

Fig 4: Identifying RH Valve Cover
Courtesy of FORD MOTOR CO.
