Valve Cover RH: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not clean the valve cover gasket with solvent. Damage to the valve cover gasket may occur.

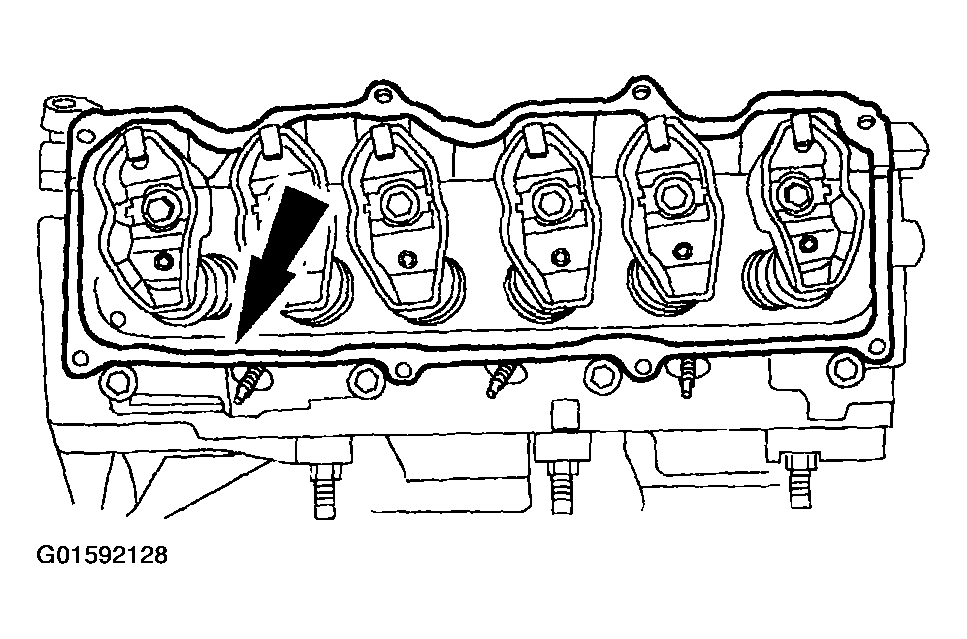

Fig 1: Identifying Cylinder Head Mating Surfaces

Courtesy of FORD MOTOR CO.

Using metal surface cleaner, clean the cylinder head mating surfaces.

NOTE: If the RH valve cover is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

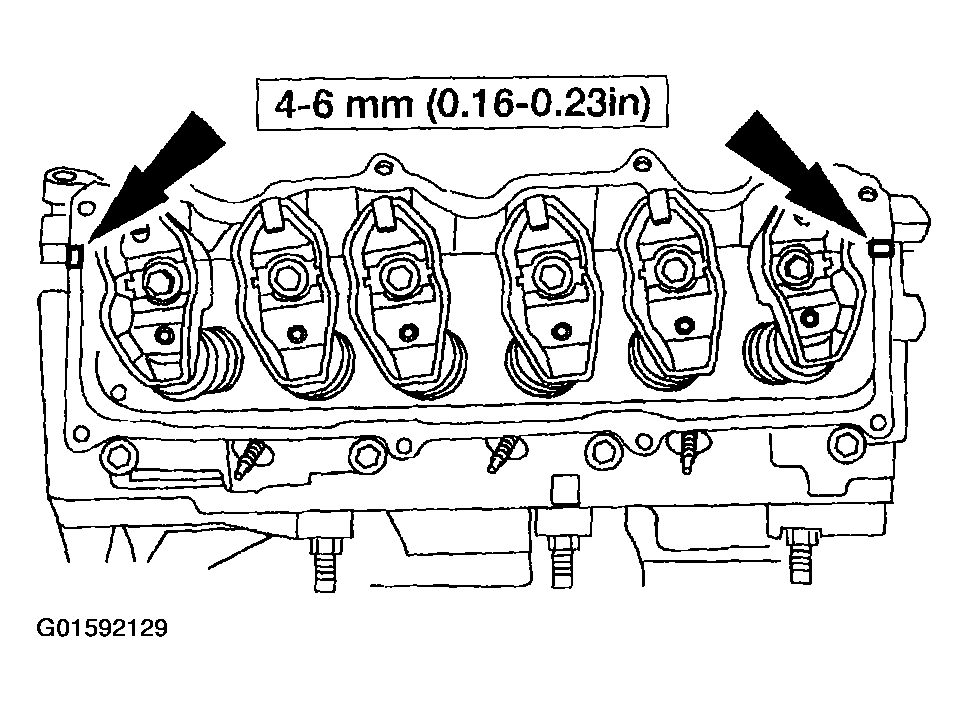

Fig 2: Identifying Silicone Gasket

Courtesy of FORD MOTOR CO.

Apply a bead of silicone gasket and sealant in two places where the cylinder head and intake manifold meet.
Install the valve cover gasket, if removed.

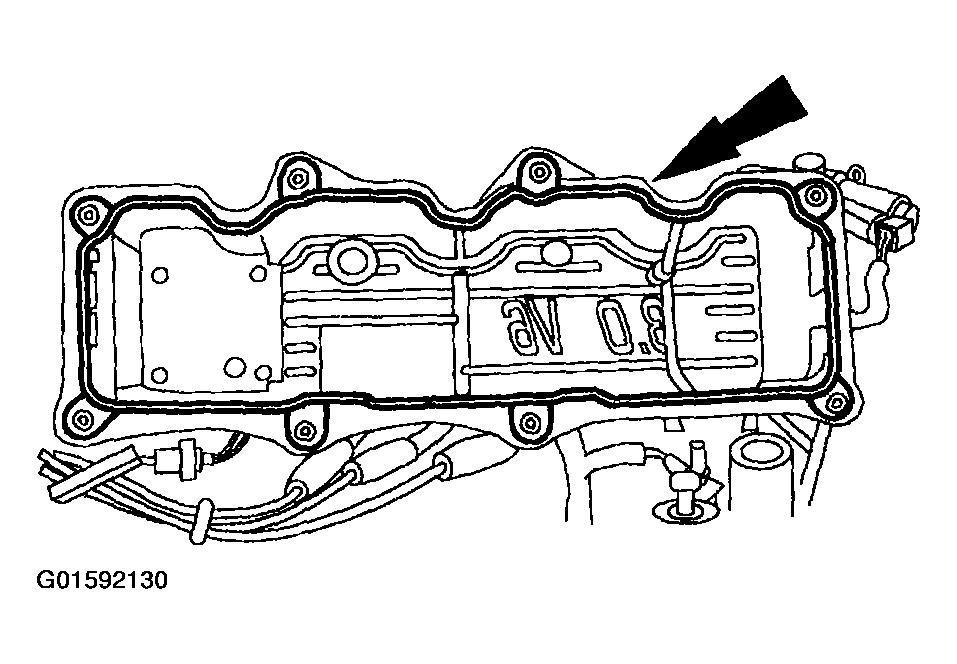

Fig 3: Identifying Valve Cover Gasket
Courtesy of FORD MOTOR CO.
Install the RH valve cover.

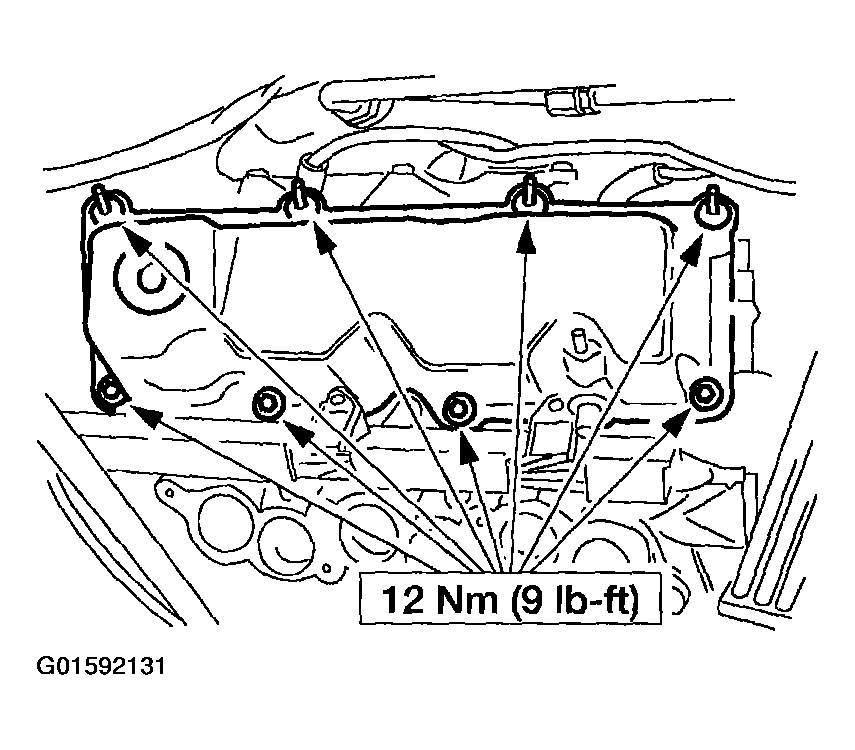

Fig 4: Identifying RH Valve Cover
Courtesy of FORD MOTOR CO.
Route the spark plug wires.

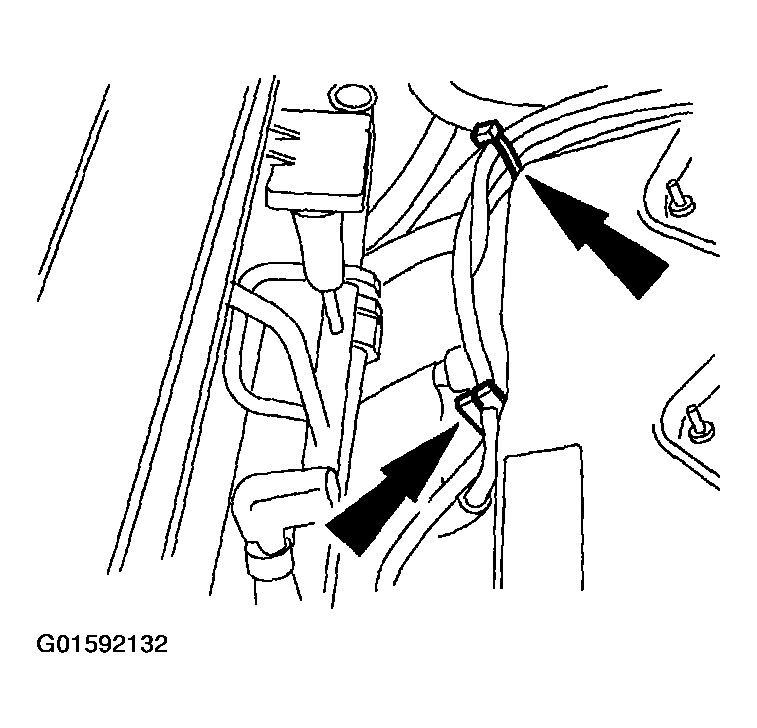

Fig 5: Identifying Spark Plug Wires
Courtesy of FORD MOTOR CO.
Install the fuel charging wiring harness.

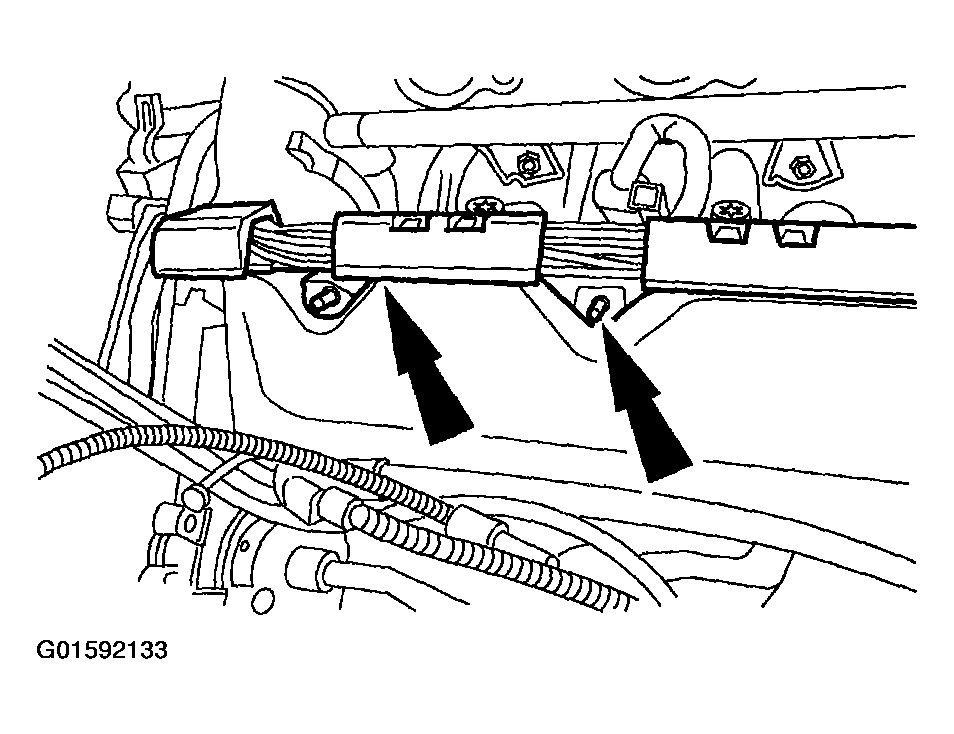

Fig 6: Identifying Fuel Charging Wiring Harness
Courtesy of FORD MOTOR CO.
Install the degas bottle hose.

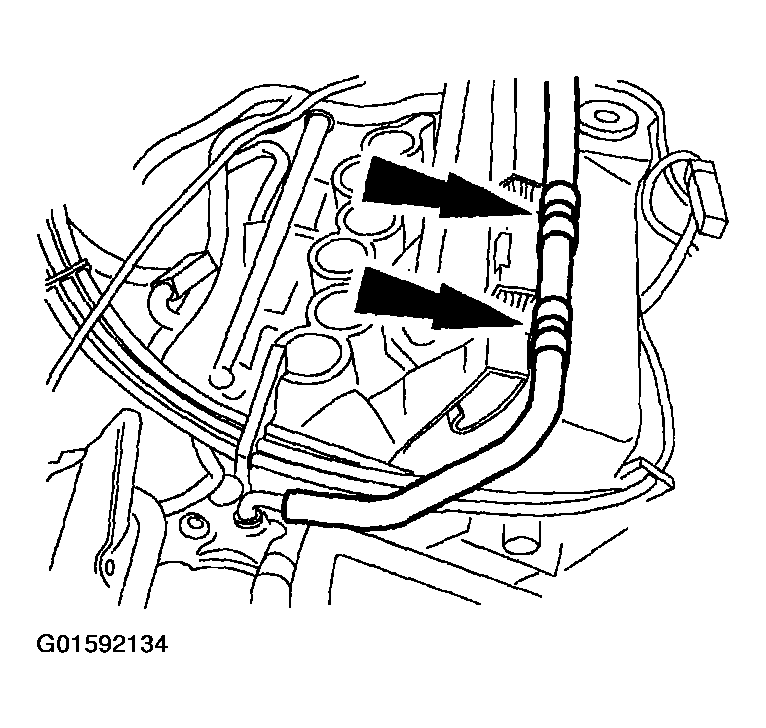

Fig 7: Identifying Degas Bottle Hose
Courtesy of FORD MOTOR CO.
Install the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
