Valve Cover LH: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the ignition coil. .
  3. Disconnect the crankcase ventilation hose.

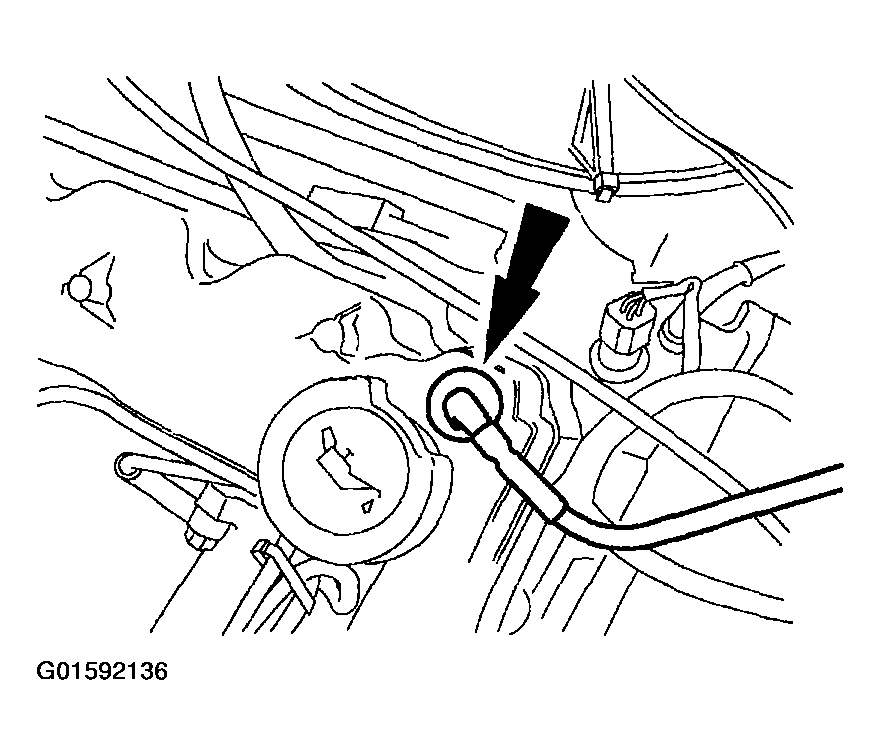

    Fig 1: Identifying Crankcase Ventilation Hose
    G01592136Courtesy of FORD MOTOR CO.
  4. Release the wiring harness from the valve cover studs and position aside.

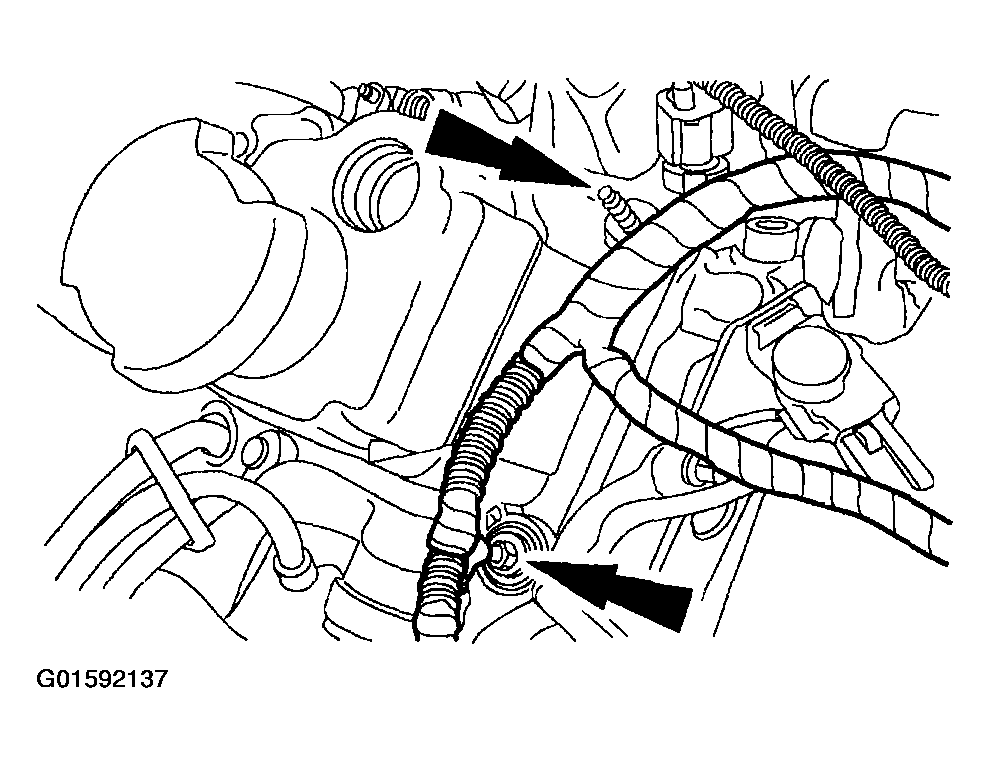

    Fig 2: Identifying Wiring Harness Of Valve Cover Studs
    G01592137Courtesy of FORD MOTOR CO.
  5. Release the wiring harness from the valve cover studs and position aside.

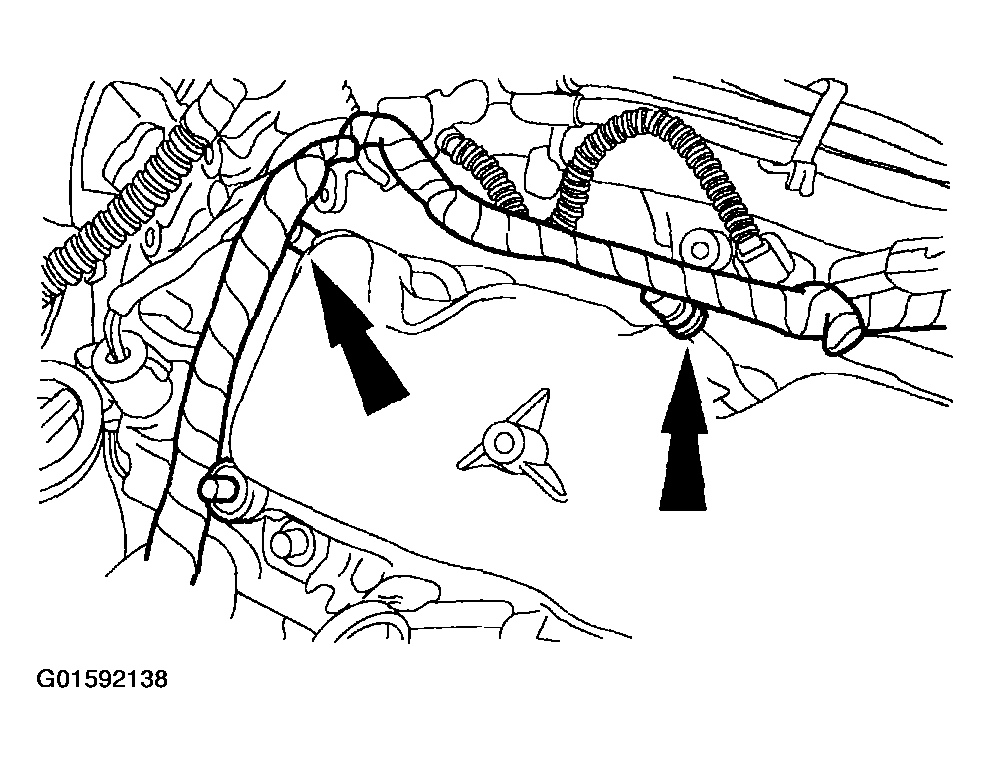

    Fig 3: Identifying Wiring Harness Of Valve Cover Studs
    G01592138Courtesy of FORD MOTOR CO.
  6. Position the spark plug wires aside.

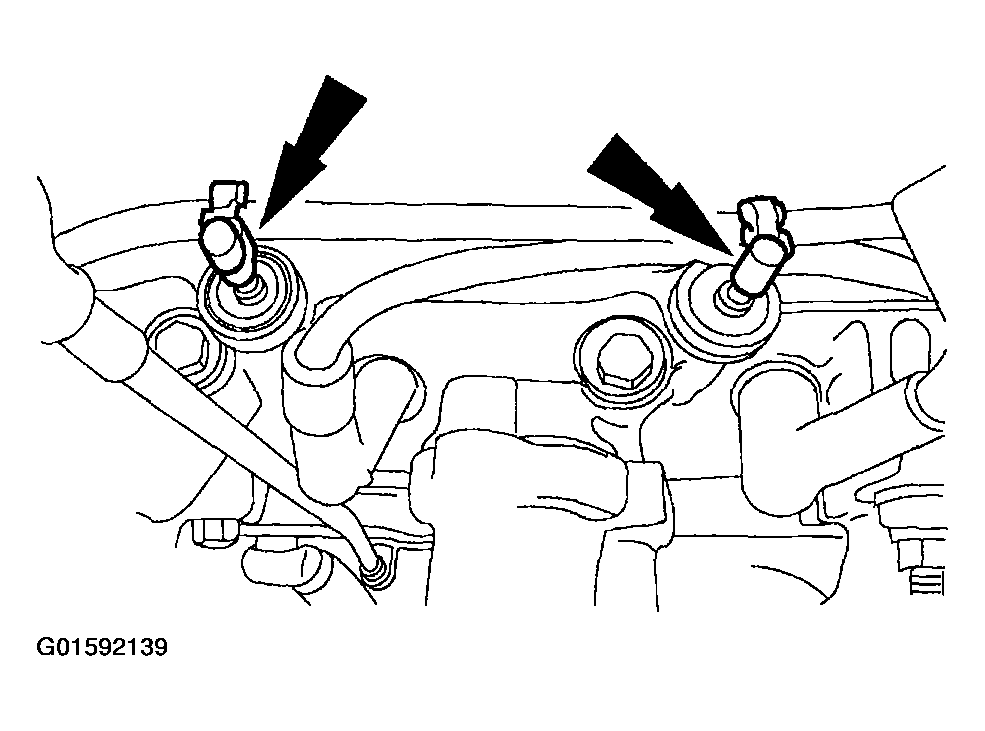

    Fig 4: Identifying Position Spark Plug Wires Aside
    G01592139Courtesy of FORD MOTOR CO.
  7. Remove the LH valve cover.

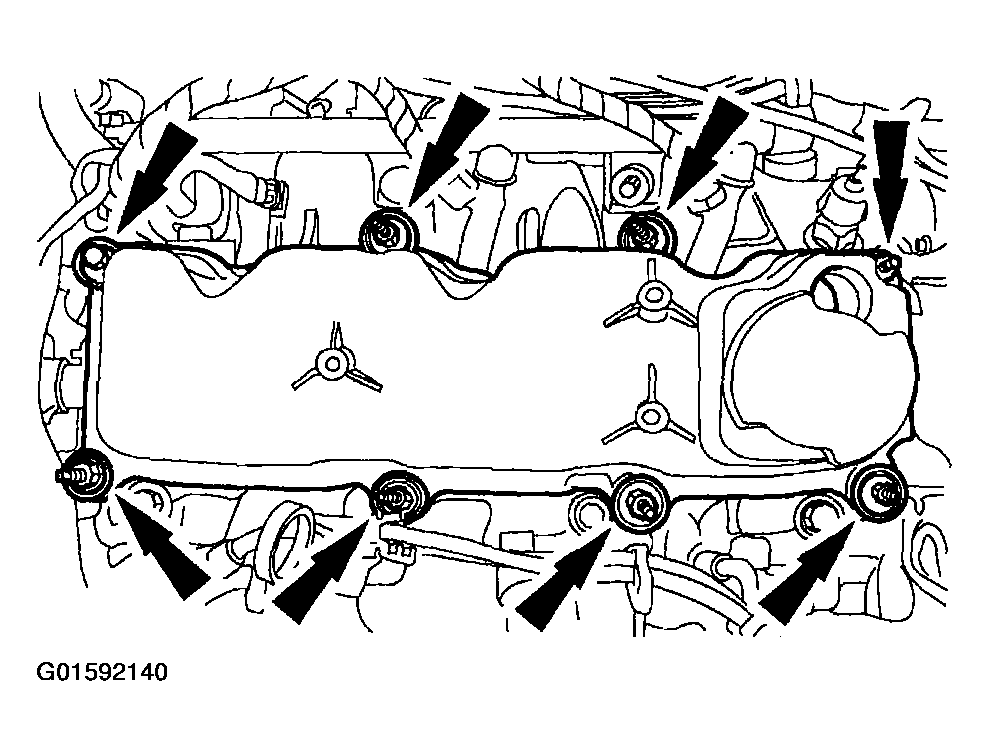

    Fig 5: Identifying LH Valve Cover
    G01592140Courtesy of FORD MOTOR CO.
