Valve Cover LH: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not clean the valve cover gasket with solvent. Damage to the valve cover gasket may occur.

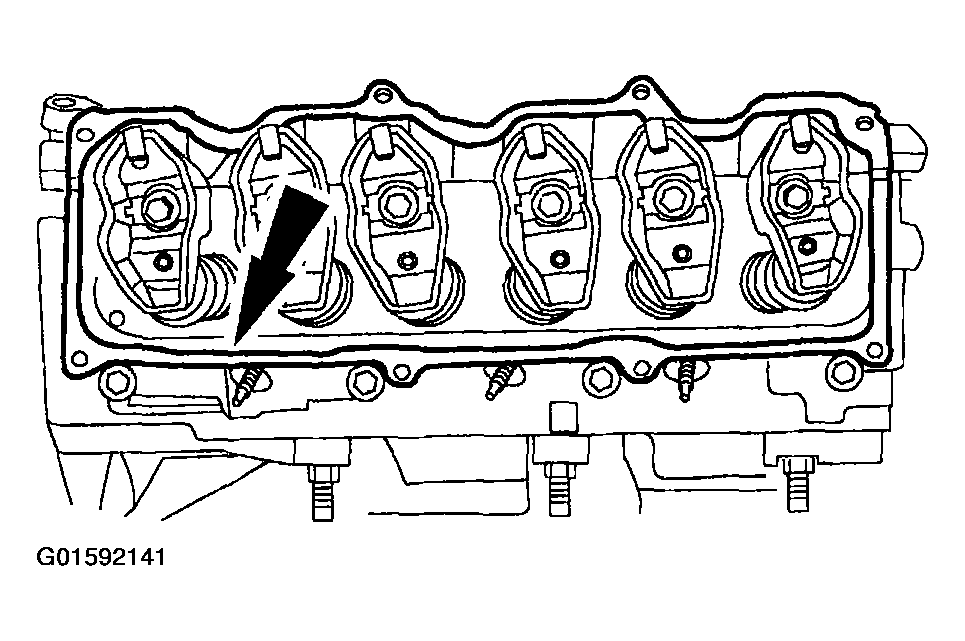

Fig 1: Identifying Cylinder Head Mating Surfaces

Courtesy of FORD MOTOR CO.

Using metal surface cleaner, clean the cylinder head mating surfaces.

NOTE: If the LH valve cover is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

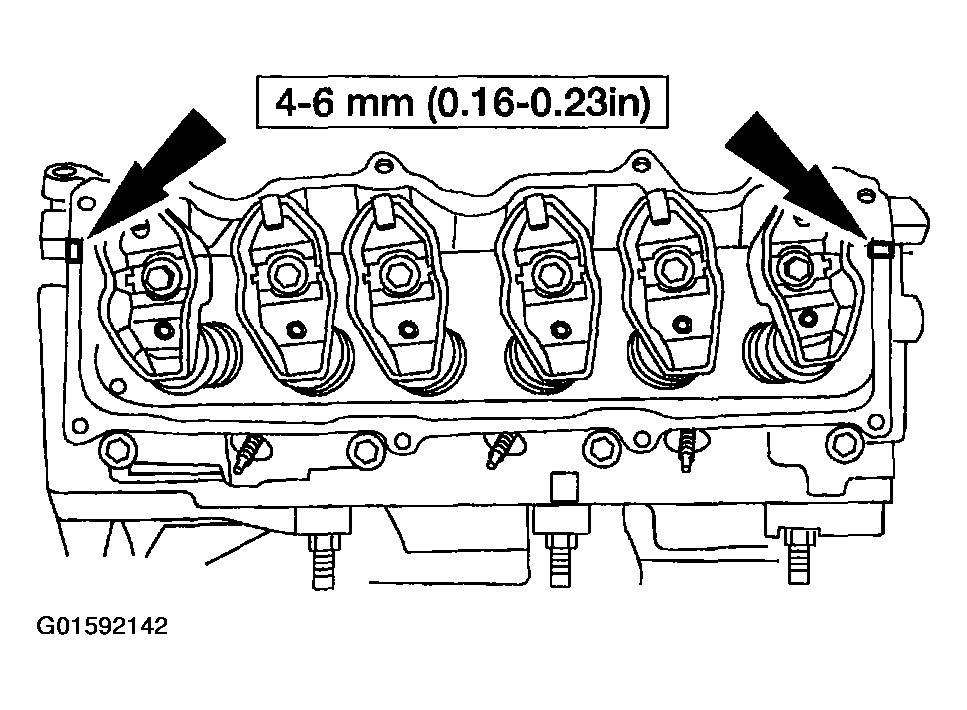

Fig 2: Identifying Silicone Gasket

Courtesy of FORD MOTOR CO.

Apply a bead of silicone gasket and sealant in two places where the cylinder head and intake manifold meet.
Install the valve cover gasket, if removed.

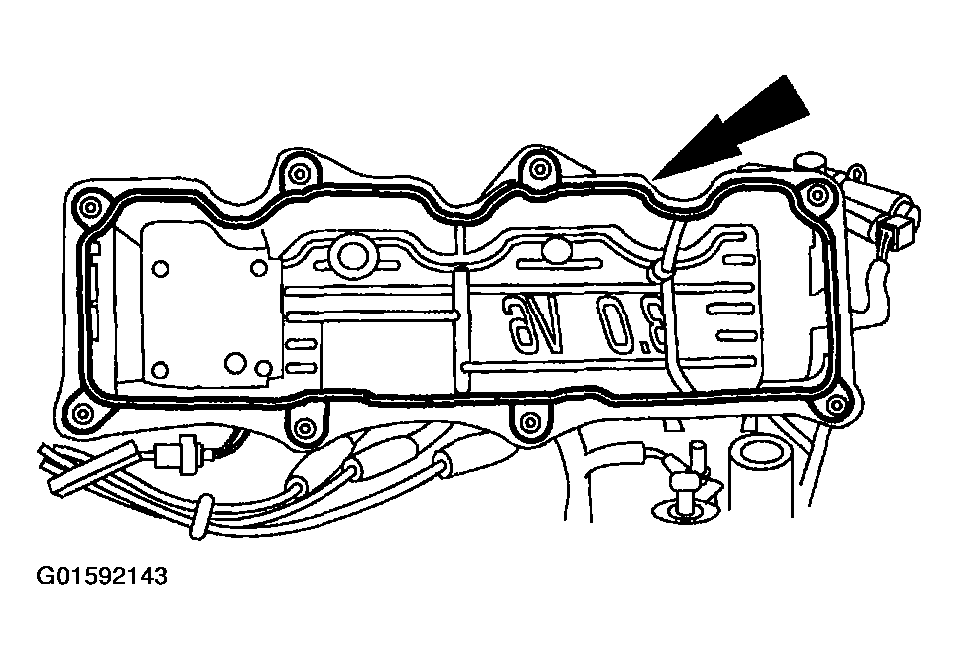

Fig 3: Identifying Valve Cover Gasket
Courtesy of FORD MOTOR CO.
Install the valve cover.

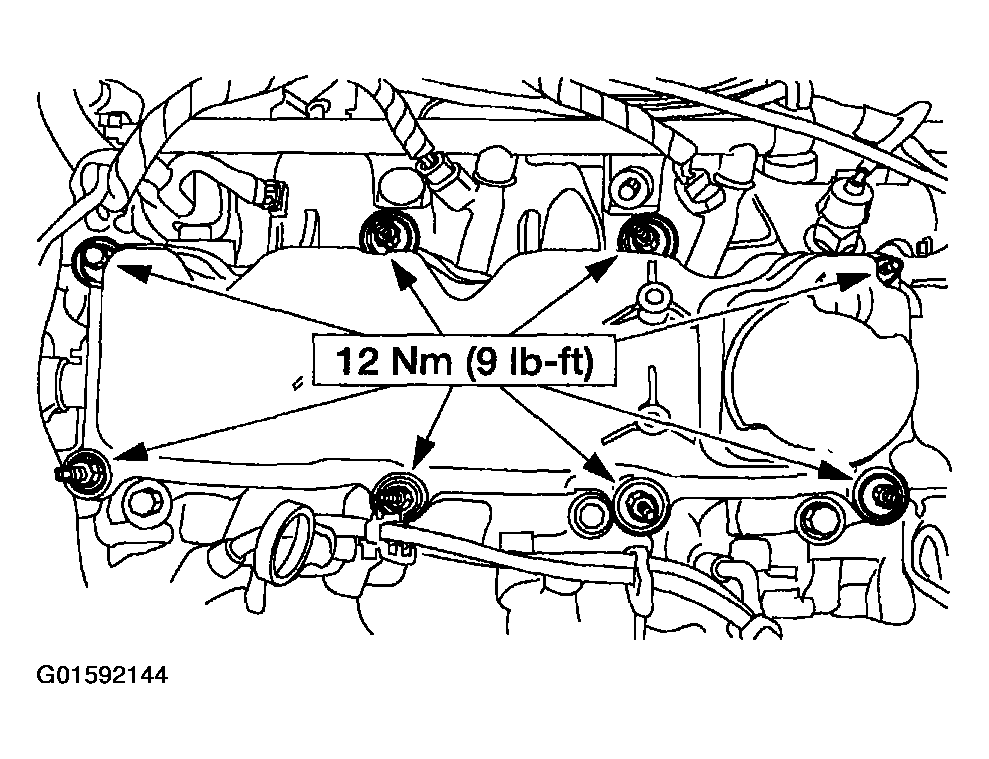

Fig 4: Identifying Bolt Of Valve Cover
Courtesy of FORD MOTOR CO.
Route the spark plug wires.

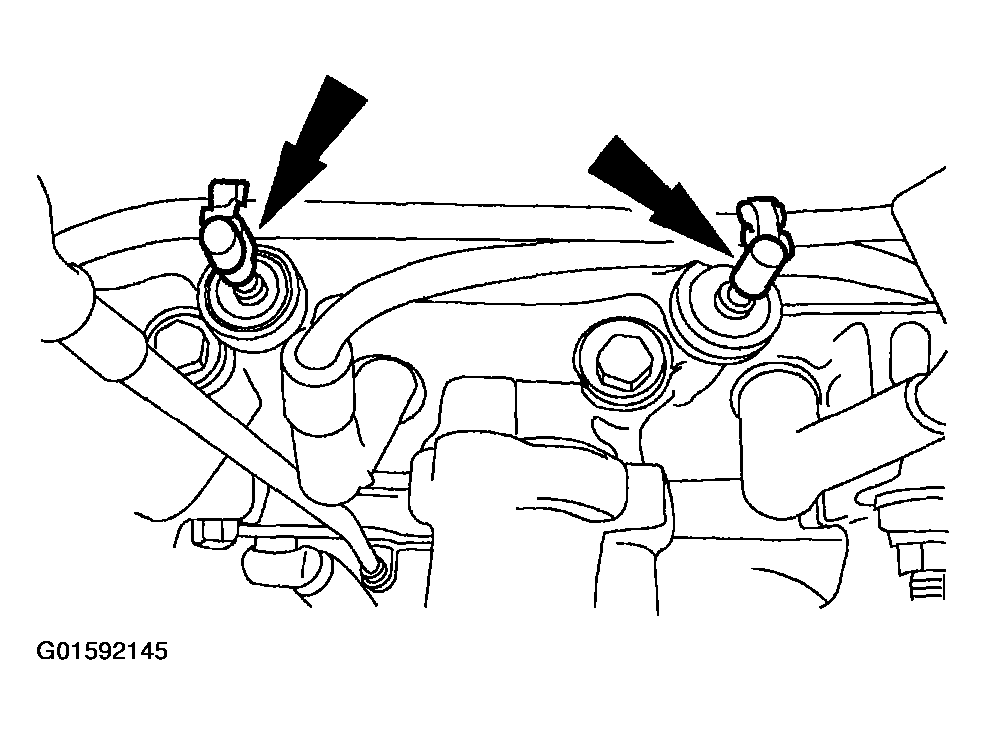

Fig 5: Identifying Spark Plug Wires
Courtesy of FORD MOTOR CO.
Install the engine wiring harness.

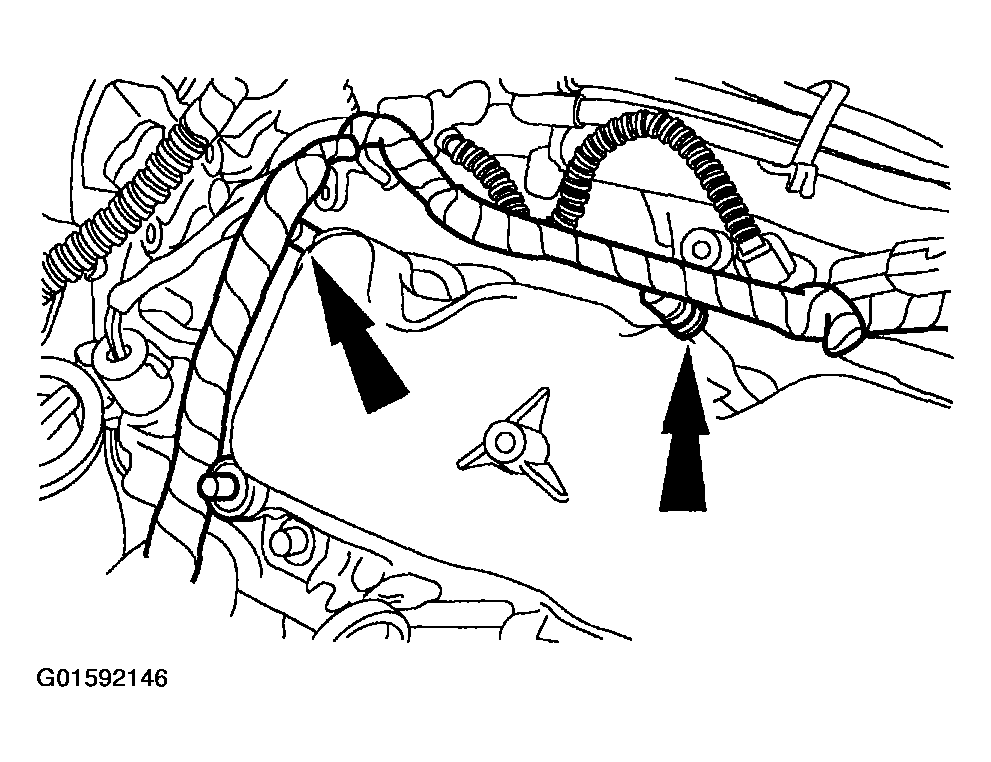

Fig 6: Identifying Engine Wiring Harness
Courtesy of FORD MOTOR CO.
Install the engine wiring harness.

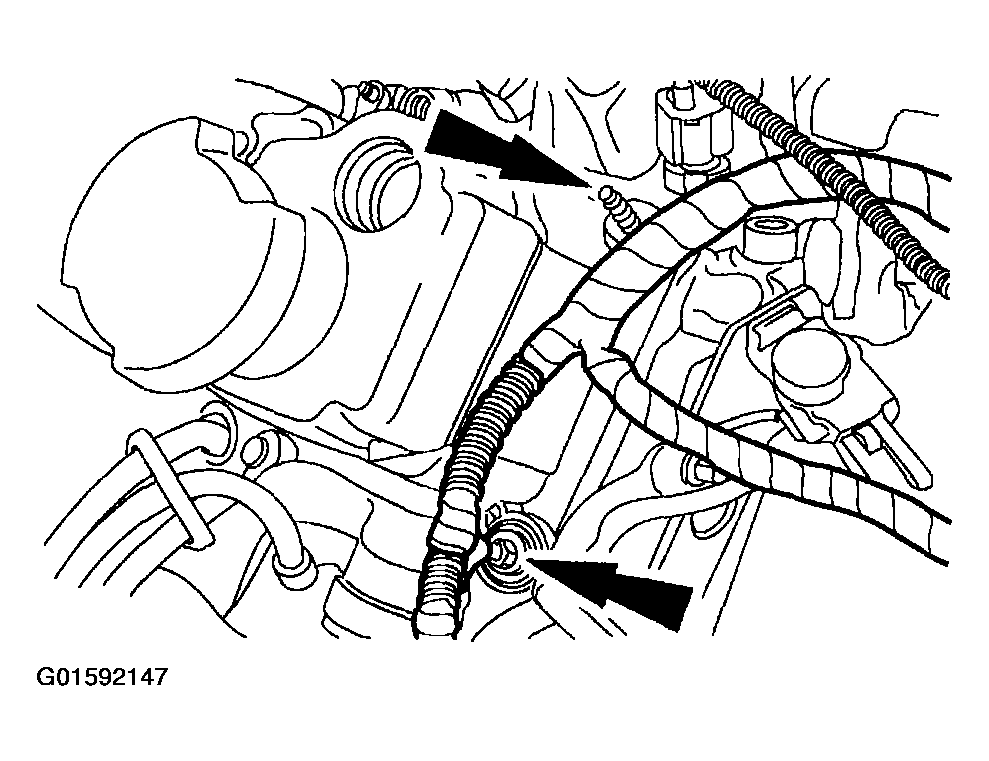

Fig 7: Identifying Engine Wiring Harness
Courtesy of FORD MOTOR CO.
Connect the crankcase vent tube.

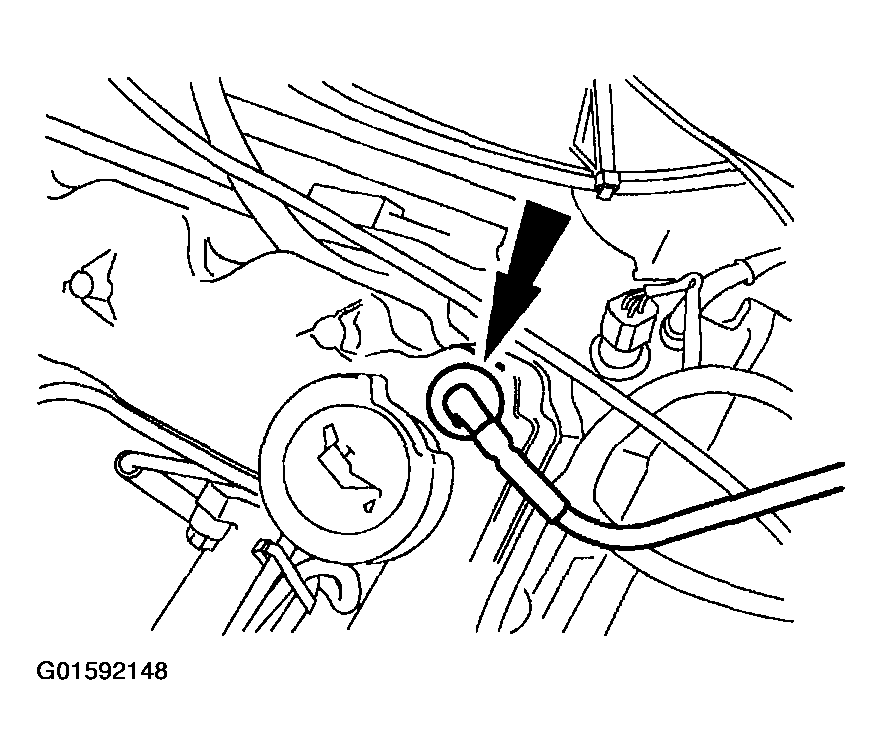

Fig 8: Identifying Crankcase Vent Tube
Courtesy of FORD MOTOR CO.
Install the ignition coil. .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
