Timing Chain: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
  2. Rotate the crankshaft and align the timing marks.

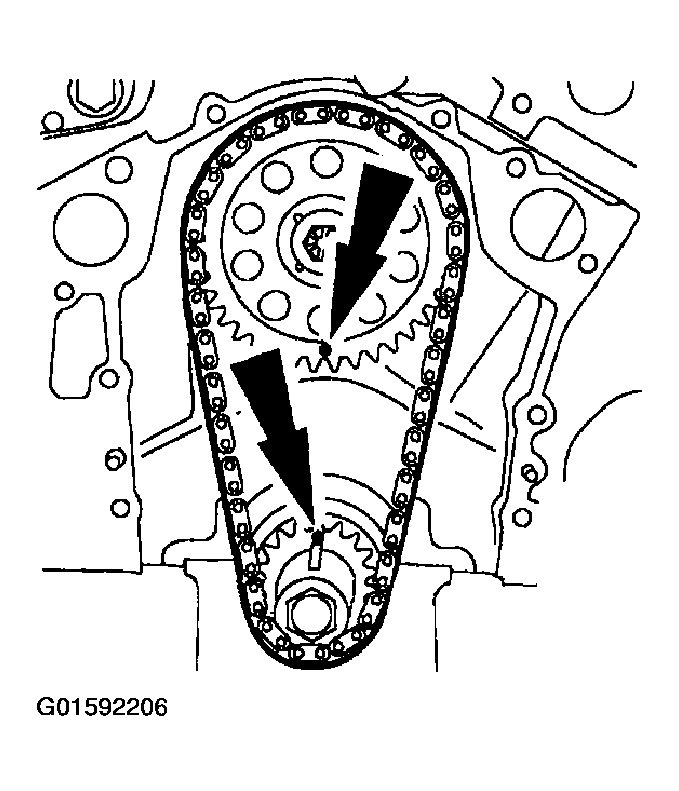

    Fig 1: Identifying Timing Marks
    G01592206Courtesy of FORD MOTOR CO.
  3. Remove the camshaft sprocket bolt.

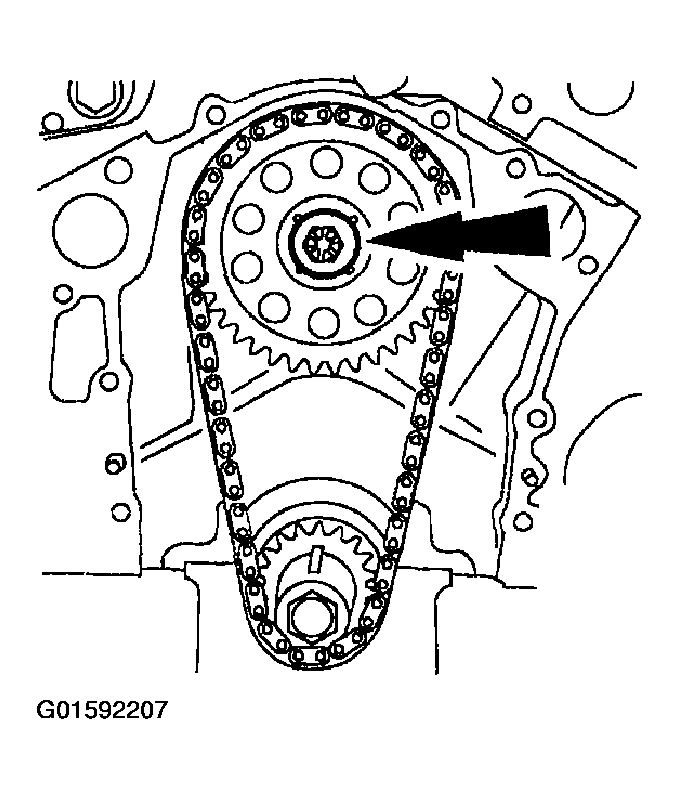

    Fig 2: Identifying Camshaft Sprocket Bolt
    G01592207Courtesy of FORD MOTOR CO.
  4. Remove the timing chain, the camshaft sprocket and the crankshaft sprocket as an assembly.

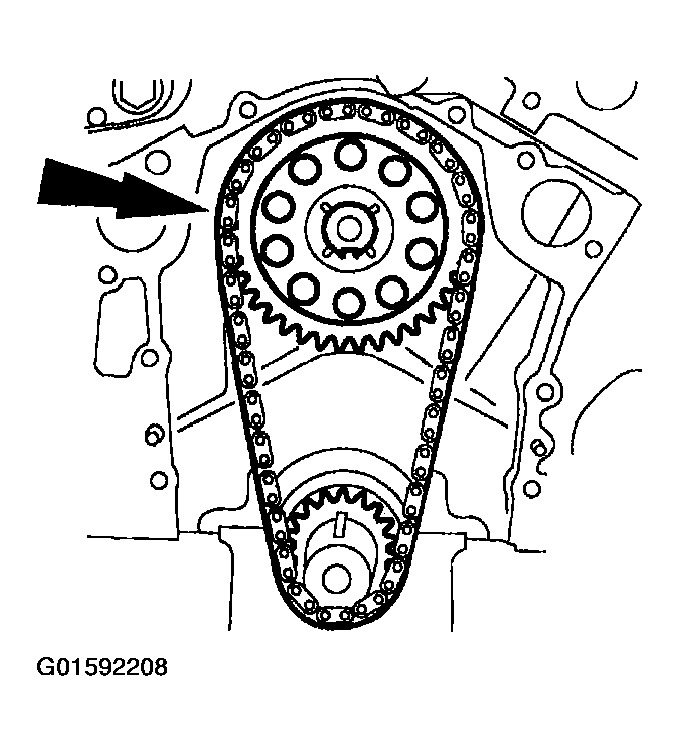

    Fig 3: Identifying Timing Chains
    G01592208Courtesy of FORD MOTOR CO.
