Timing Chain: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the timing marks.

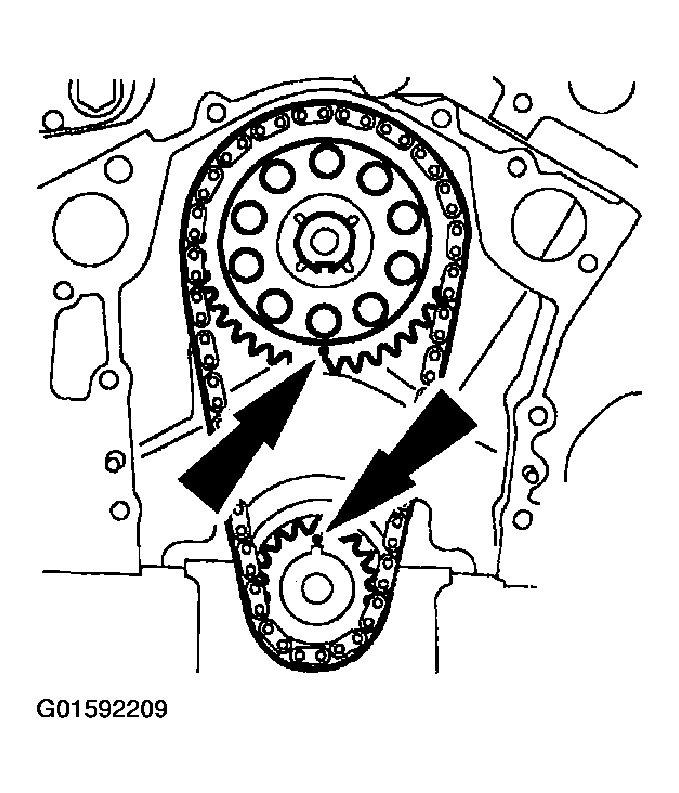

    Fig 1: Identifying Timing Marks
    G01592209Courtesy of FORD MOTOR CO.
  2. Install the timing chain, the camshaft sprocket and the crankshaft sprocket as an assembly.

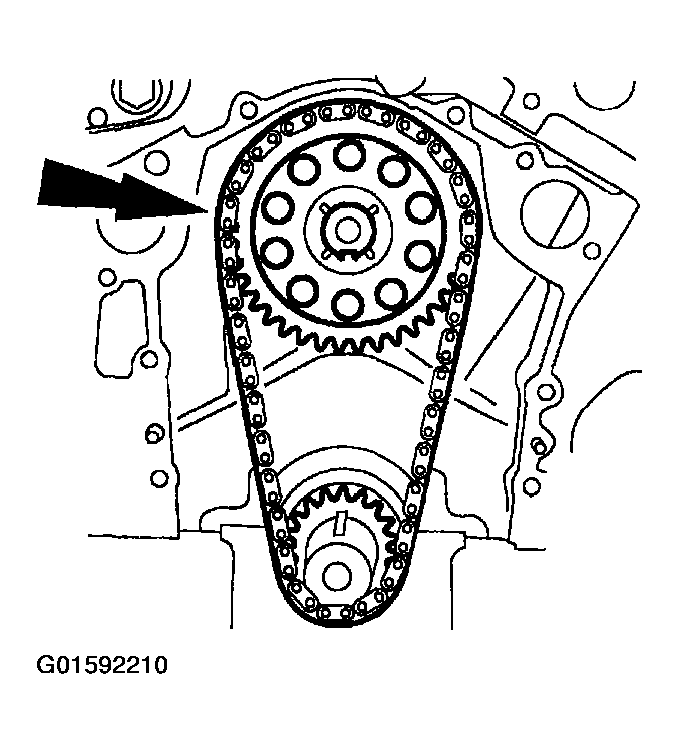

    Fig 2: Identifying Timing Chain And Camshaft Sprocket
    G01592210Courtesy of FORD MOTOR CO.
  3. Install the camshaft sprocket bolt.

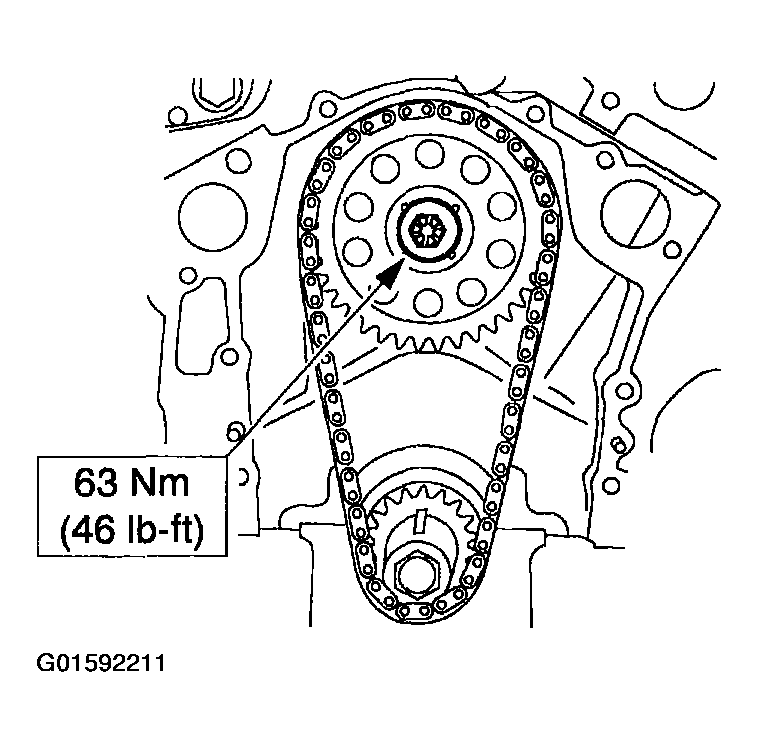

    Fig 3: Identifying Camshaft Sprocket Bolt
    G01592211Courtesy of FORD MOTOR CO.
  4. Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
