Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the LH and the RH valve covers. For additional information, refer to VALVE COVER LH and VALVE COVER RH .

NOTE: Identify the location of each rocker arm. Each rocker arm must be installed in the original location.

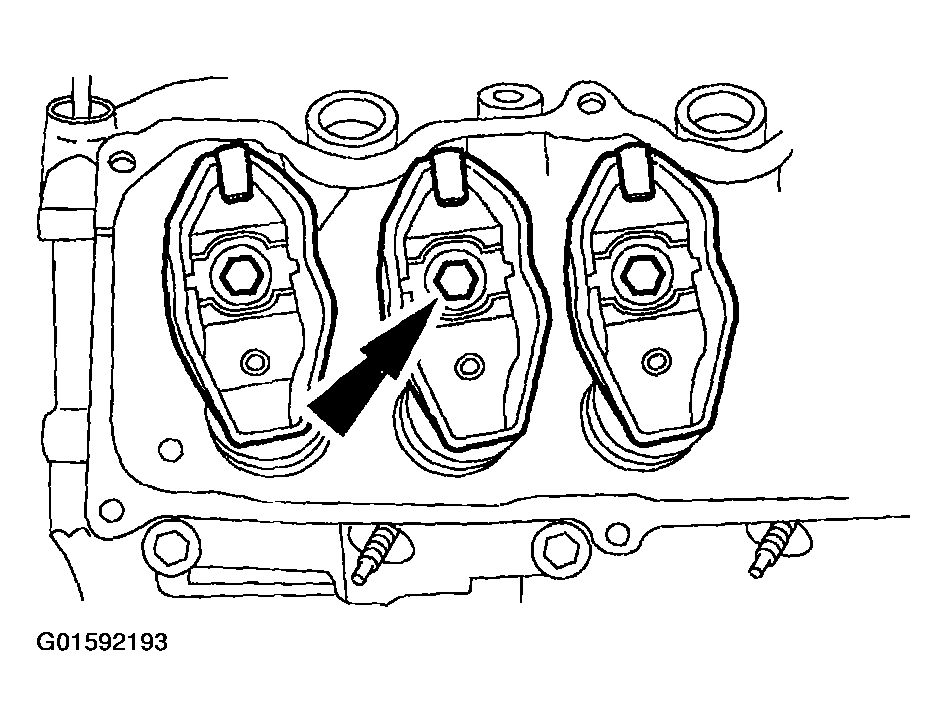

Fig 1: Identifying Bolts Of Rocker Arms

Courtesy of FORD MOTOR CO.

Remove the bolts and the rocker arms.
To install, reverse the removal procedure.
Tighten the rocker arm bolts in two stages.
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten to 32 Nm (24 lb-ft).

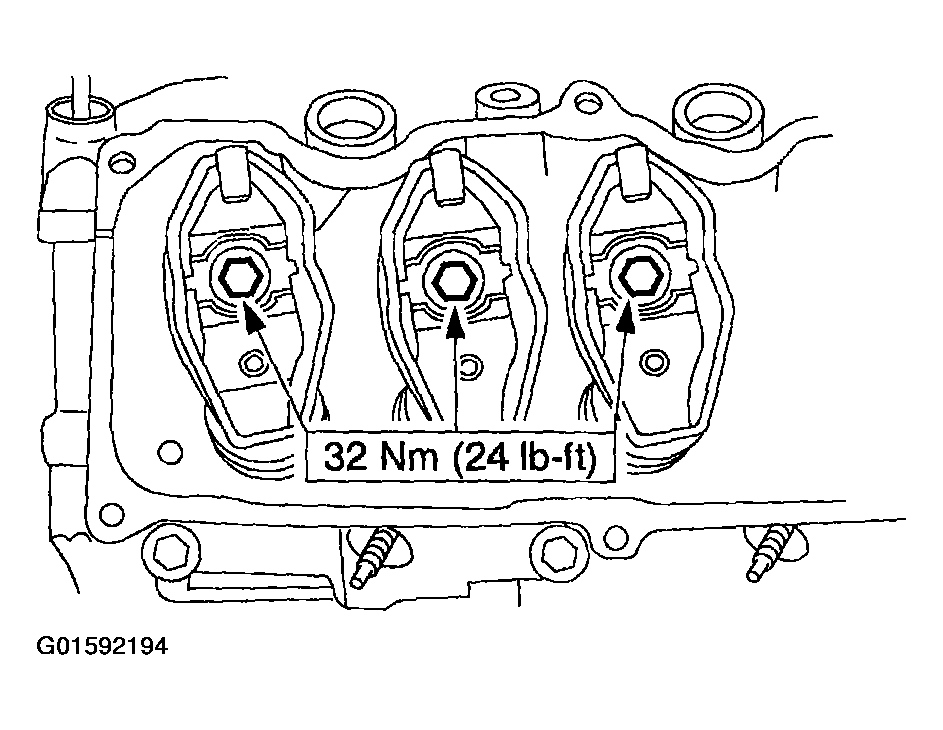

Fig 2: Identifying Rocker Arm Bolts
Courtesy of FORD MOTOR CO.
