Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan (6675). For additional information, refer to OIL PAN  in this article.
  2. Remove the oil pump (6600).
    • Remove the bolt.

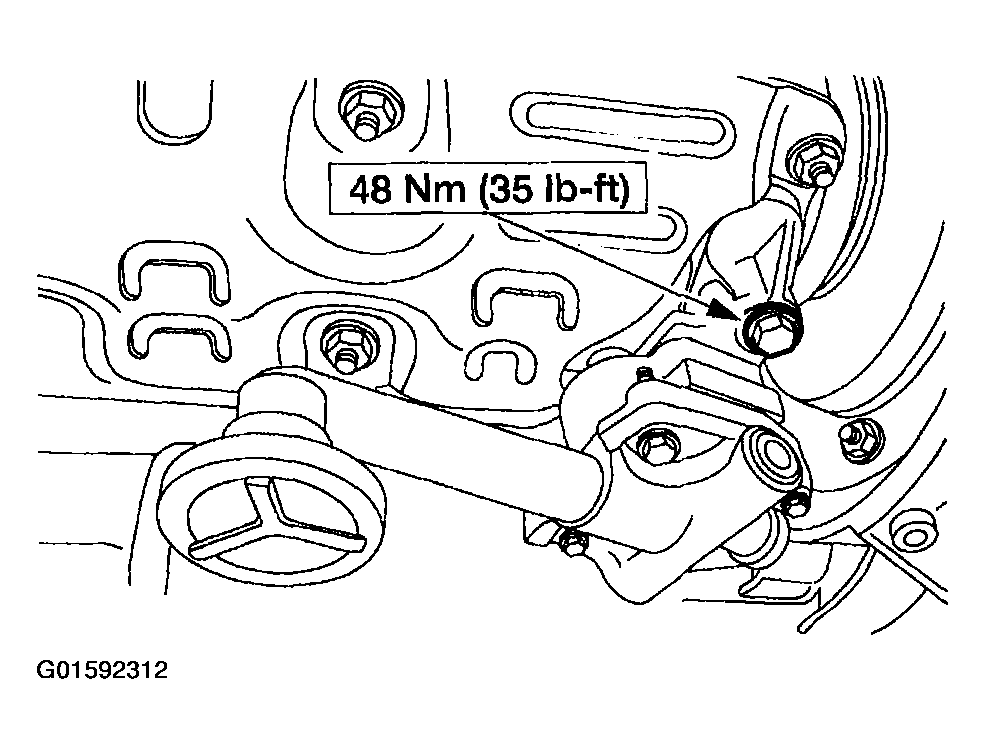

    Fig 1: Removing Oil Pump
    G01592312Courtesy of FORD MOTOR CO.
  3. Clean all the sealing surfaces.

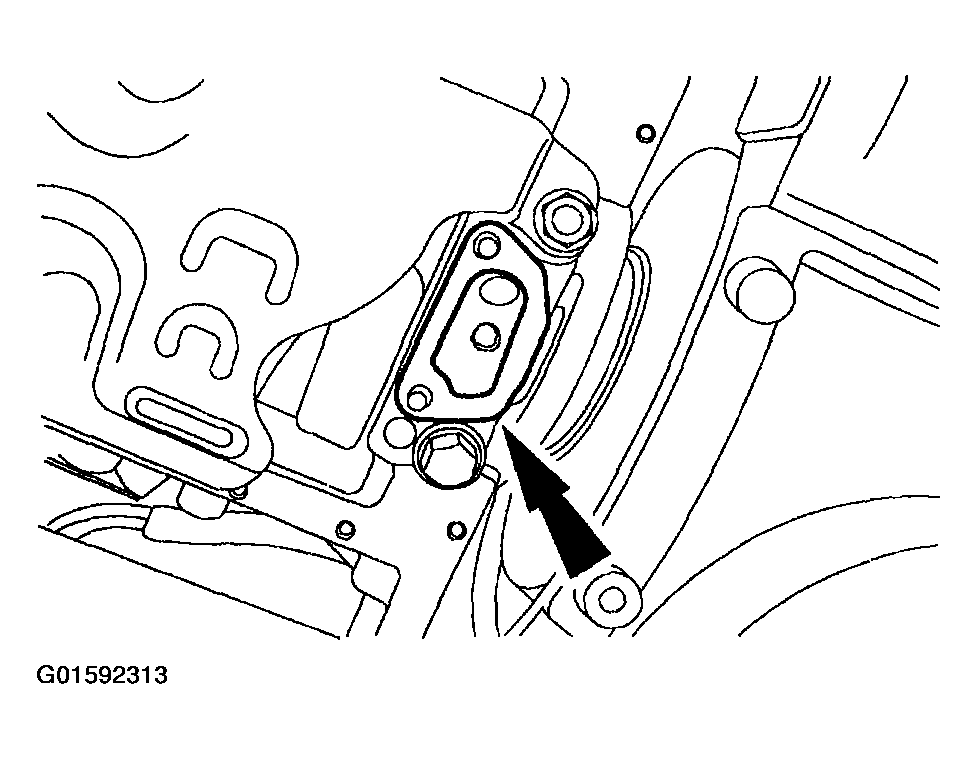

    Fig 2: Cleaning Sealing Surfaces
    G01592313Courtesy of FORD MOTOR CO.
  4. If an internal inspection is required, remove the oil pump cover. Refer to ENGINE SYSTEM-GENERAL INFORMATION for component testing.
  5. To install, reverse the removal procedure.
