Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Engine removed for clarity.

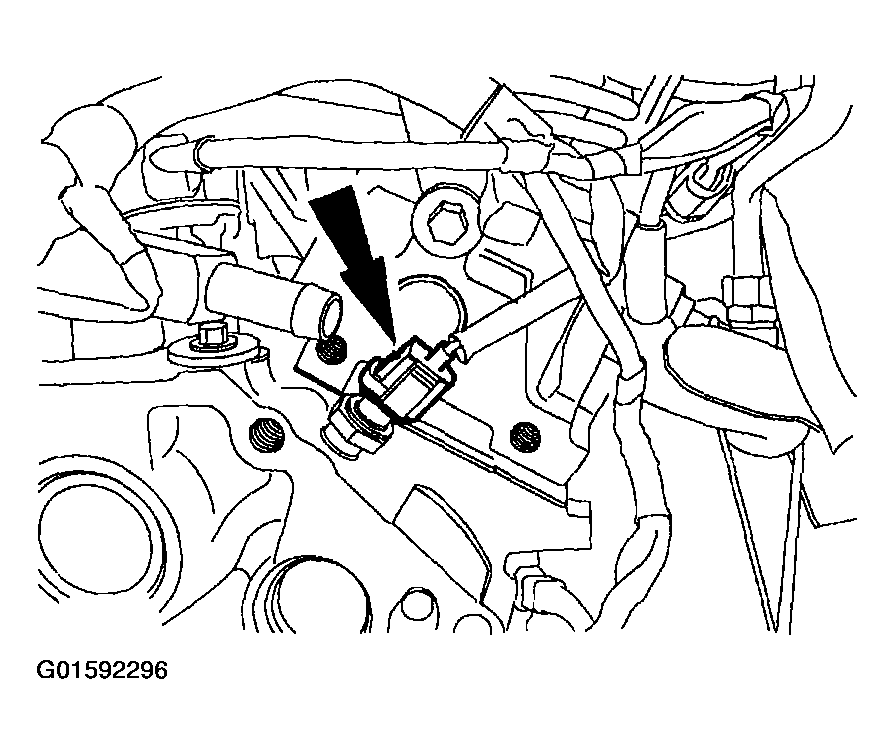

Fig 1: Disconnecting Oil Pressure Switch Electrical Connector

Courtesy of FORD MOTOR CO.

Disconnect the oil pressure switch electrical connector.
Remove the oil pressure switch.

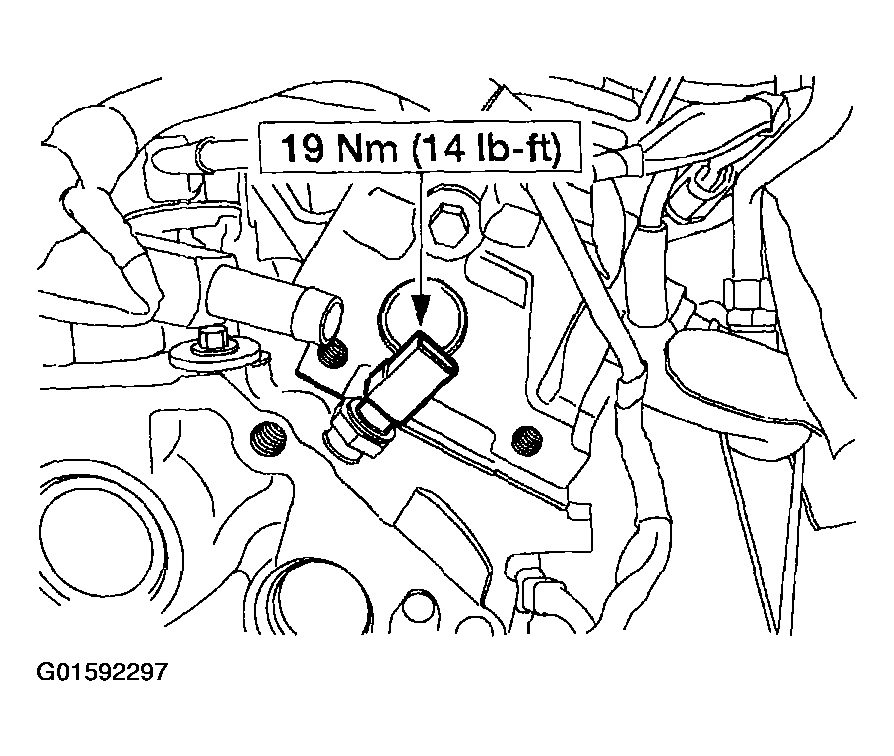

Fig 2: Removing Oil Pressure Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
