Oil Pan Baffle

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. For additional information, refer to OIL PAN .
  2. Remove the seven nuts and remove the oil pan baffle.

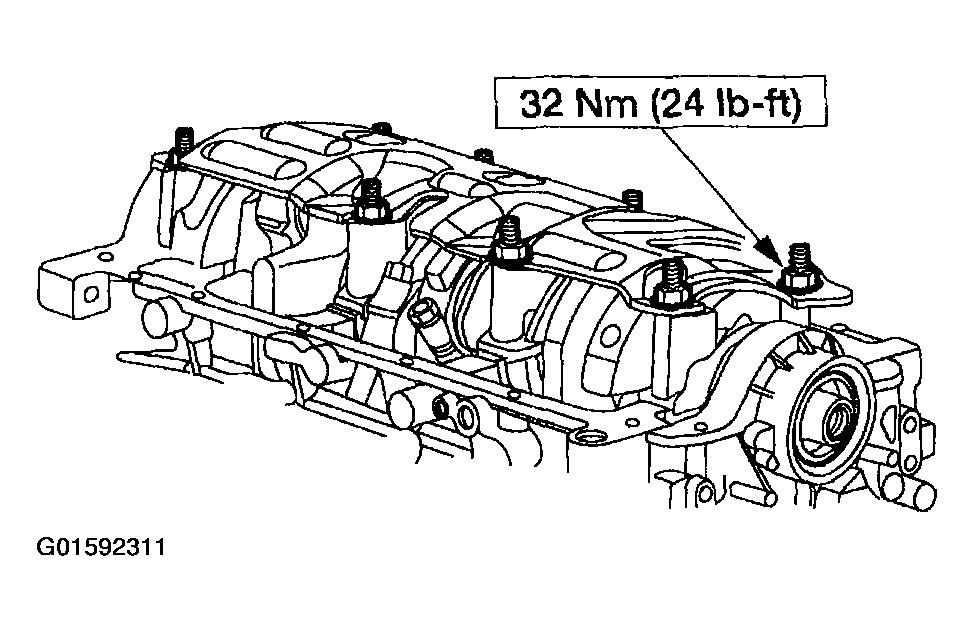

    Fig 1: Removing Oil Pan Baffle
    G01592311Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
