Oil Level Indicator And Tube: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator and tube (6754).
    • Remove the nut.
    • Remove the tube.

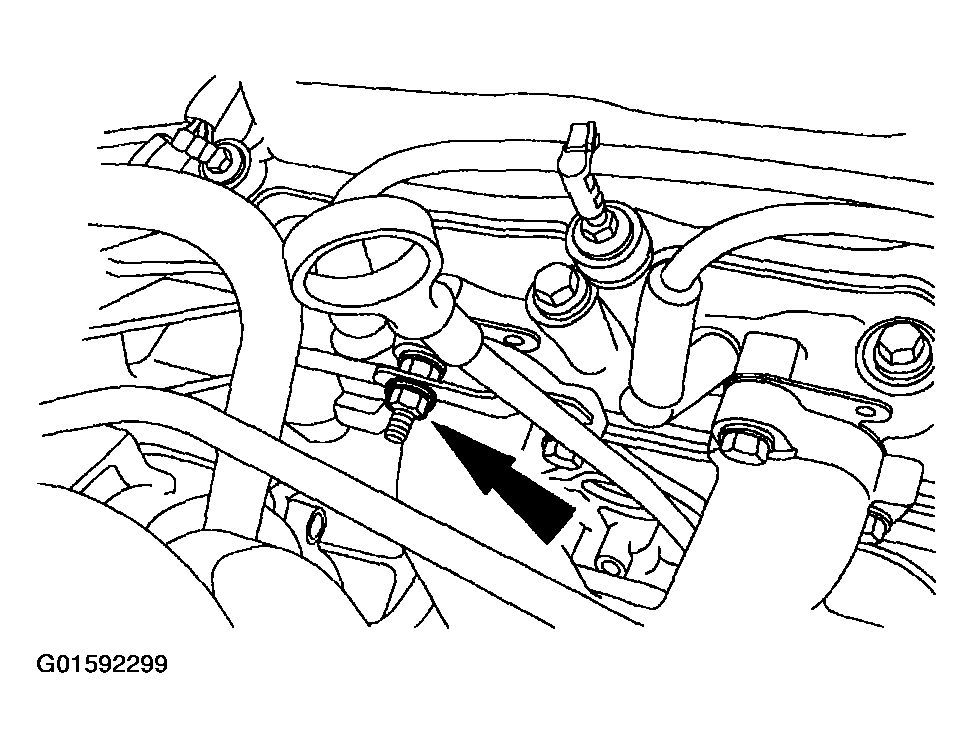

    Fig 1: Removing Oil Level Indicator And Tube
    G01592299Courtesy of FORD MOTOR CO.
