Oil Level Indicator And Tube: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the sealing surface of the oil level indicator tube with silicone gasket and sealant.
    Fig 1: Coating Sealing Surface Of Oil Level Indicator Tube With Silicone Gasket And Sealant
    G01592300Courtesy of FORD MOTOR CO.
  2. Install the oil level indicator tube.
    • Install the tube.
    • Install the nut.

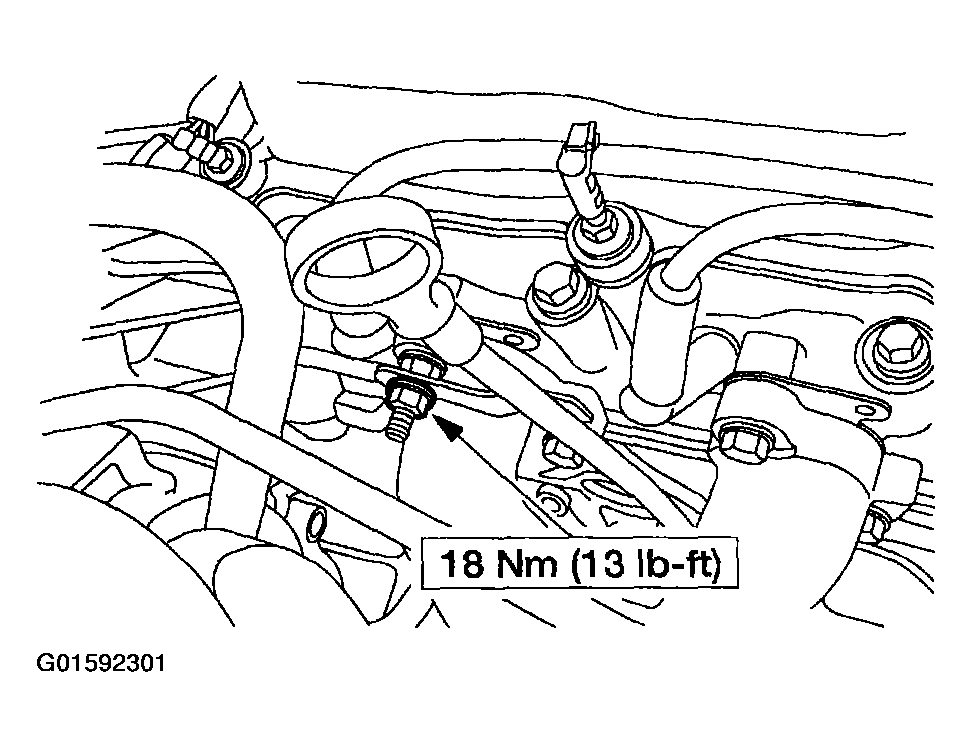

    Fig 2: Installing Oil Level Indicator Tube
    G01592301Courtesy of FORD MOTOR CO.
