Hydraulic Lash Adjuster: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For a valve train noise concern, inspect the valve-to-rocker arm clearance, rocker arms and push rods for wear. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .

Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
Remove the pushrods. For additional information, refer to PUSH ROD .
Remove the tappet guide plate retainer.

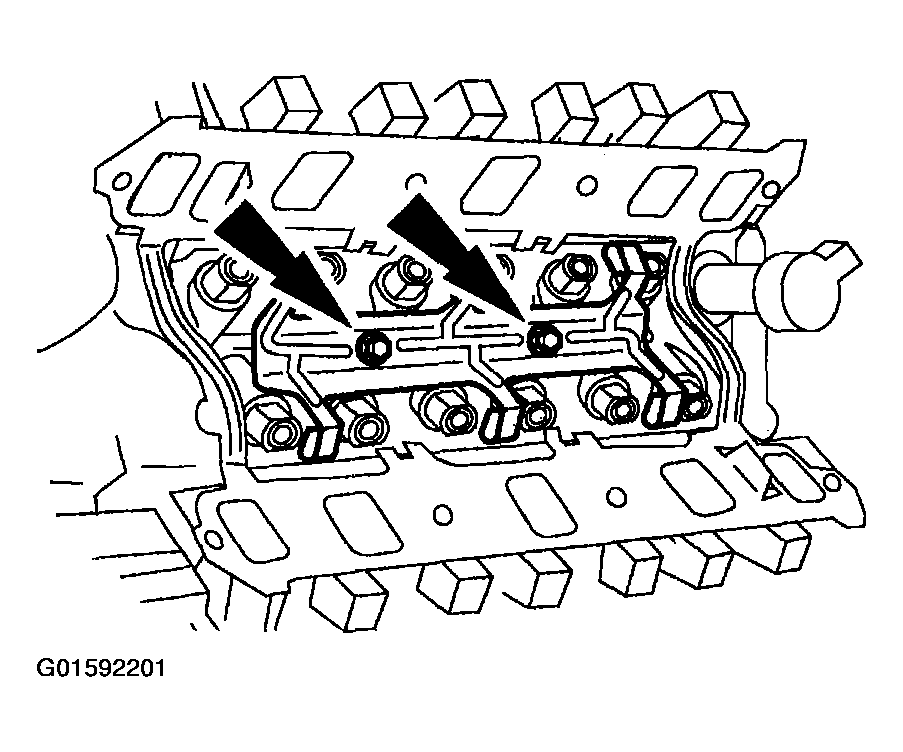

Fig 1: Identifying Tappet Guide Plate Retainer
Courtesy of FORD MOTOR CO.
Remove the valve tappet guide plates.

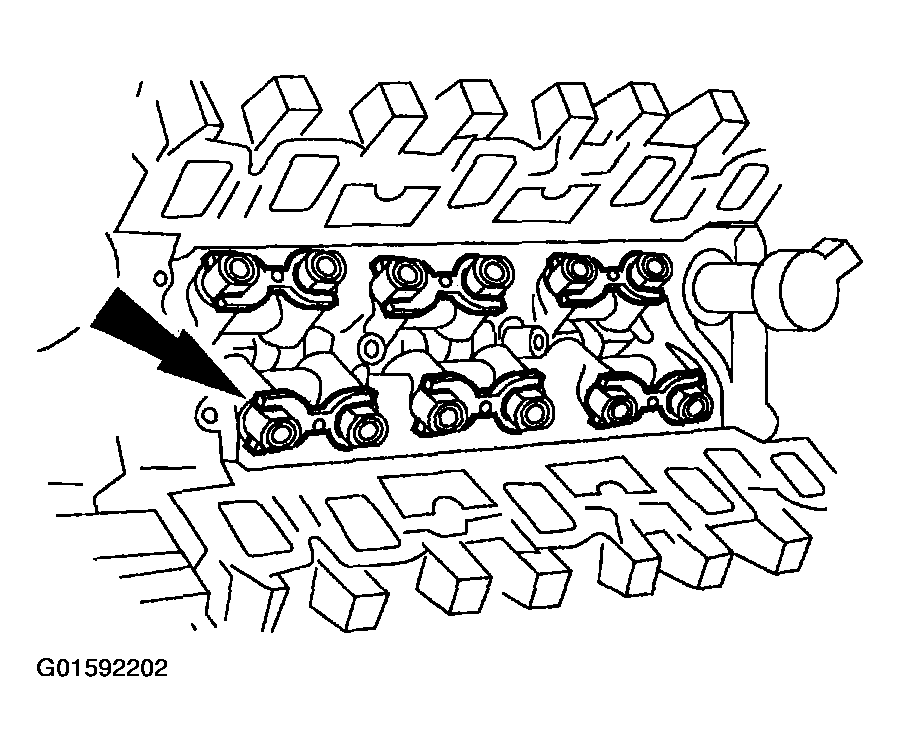

Fig 2: Identifying Valve Tappet Guide Plates
Courtesy of FORD MOTOR CO.
Remove the valve tappets.

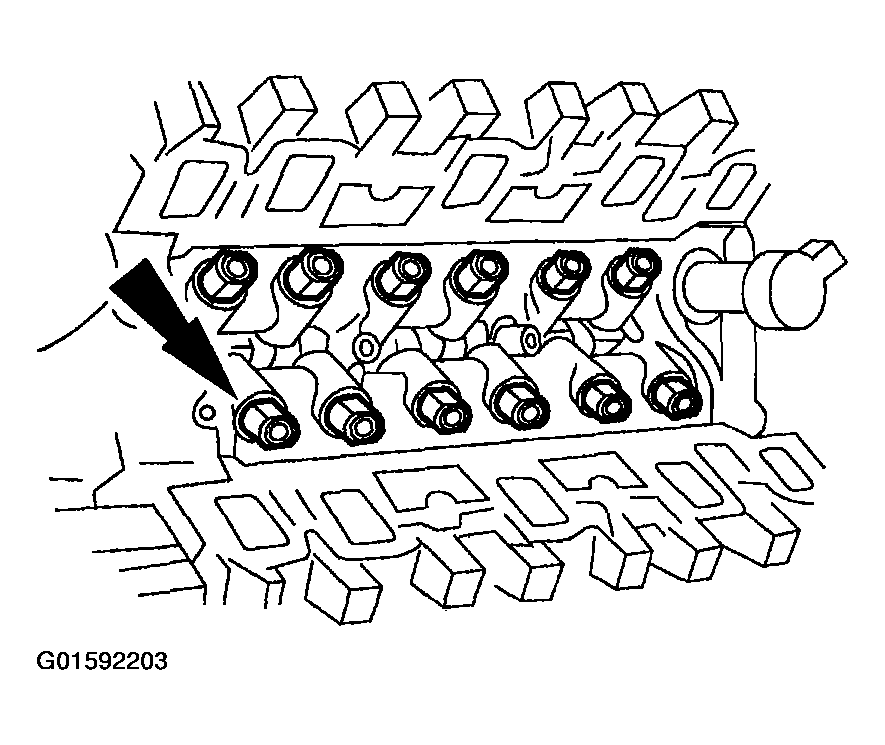

Fig 3: Identifying Valve Tappets
Courtesy of FORD MOTOR CO.
