Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-AX4S or AUTOMATIC TRANSAXLE/TRANSMISSION-4F50N .
  2. Remove the flexplate.
    • Remove the bolts.

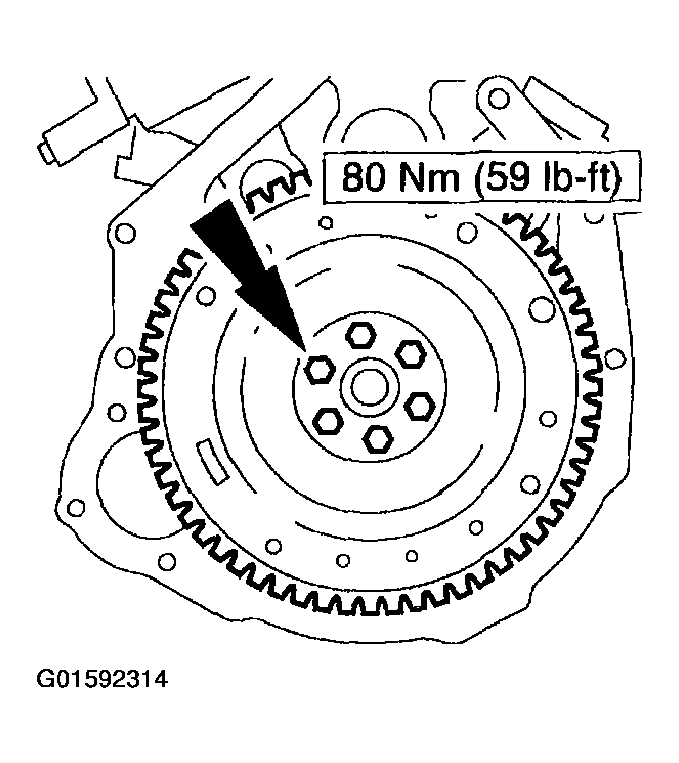

    Fig 1: Removing Flexplate
    G01592314Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
