Exhaust Manifold LH: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

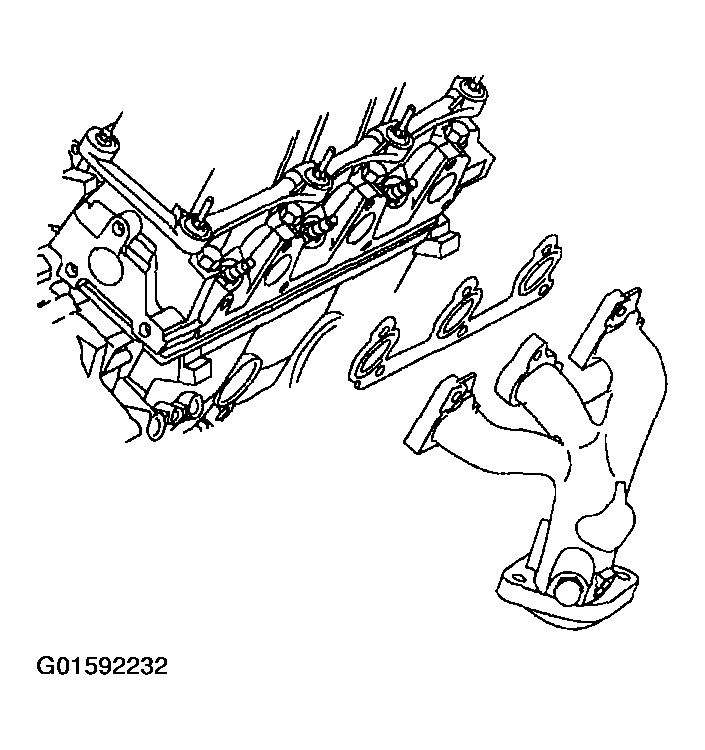

Position a new exhaust manifold gasket (9448) and install the exhaust manifold.

Fig 1: Identifying Exhaust Manifold Gasket
Courtesy of FORD MOTOR CO.
Install the bolts.
- Tighten the bolts in sequence in two stages:
  1. Tighten to 10 Nm (8 lb-ft).
  2. Tighten to 22 Nm (16 lb-ft).

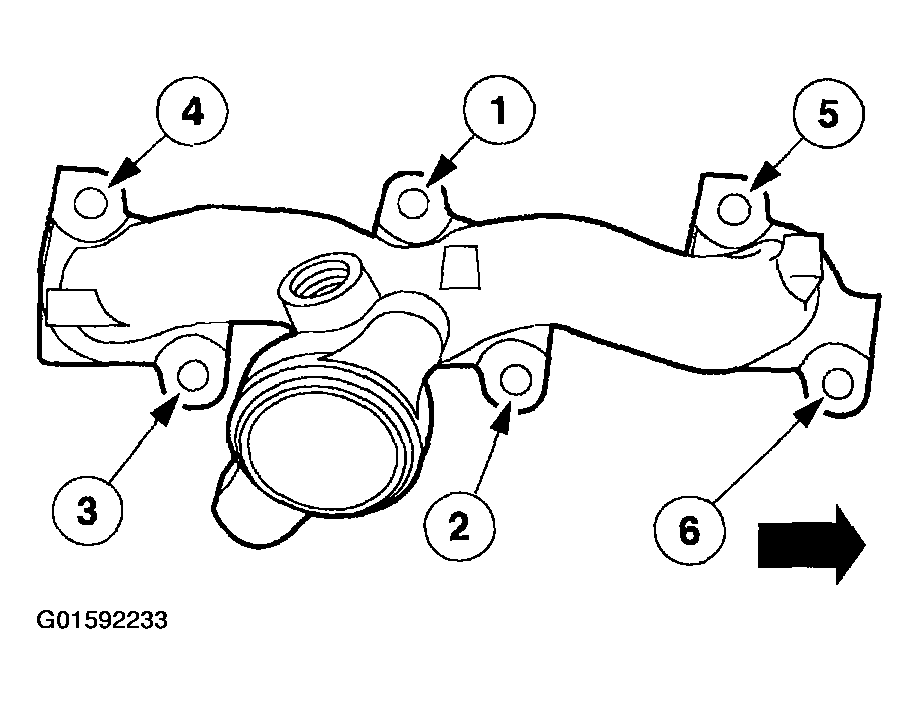

Fig 2: Identifying Bolts
Courtesy of FORD MOTOR CO.
Connect the dual converter Y-pipe to the exhaust manifold.
- Install the nuts.

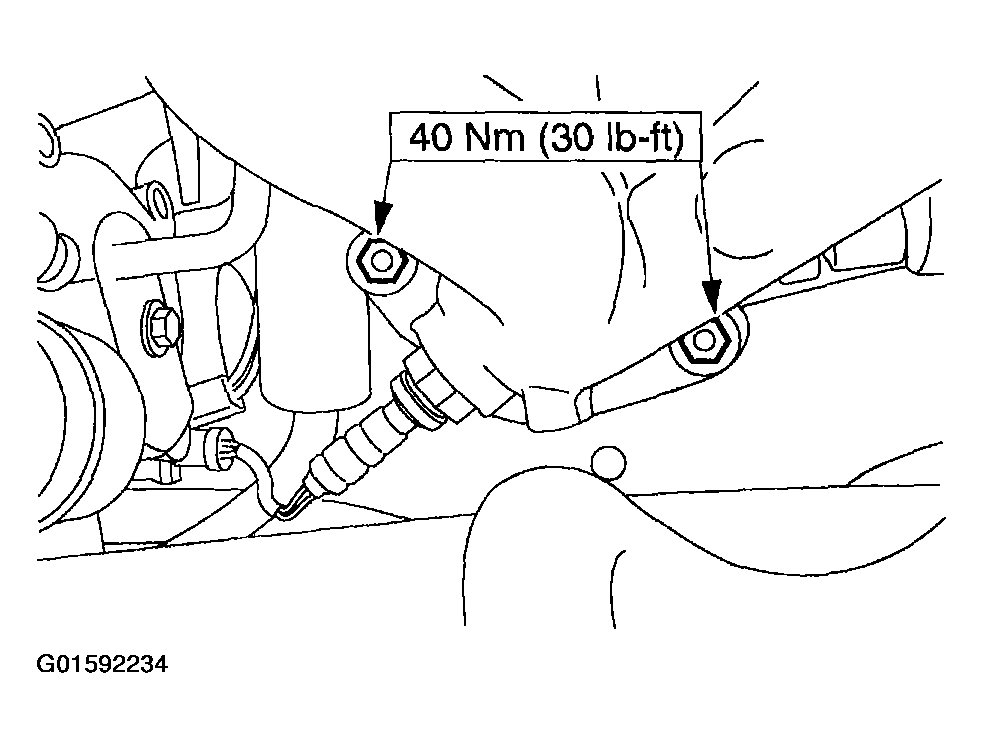

Fig 3: Identifying Dual Converter Y-Pipe
Courtesy of FORD MOTOR CO.
If equipped, connect the secondary air injection tube to the exhaust manifold.

Fig 4: Identifying Nut Of Secondary Air Injection Tube
Courtesy of FORD MOTOR CO.
Reposition the power steering pressure line and install the nut.

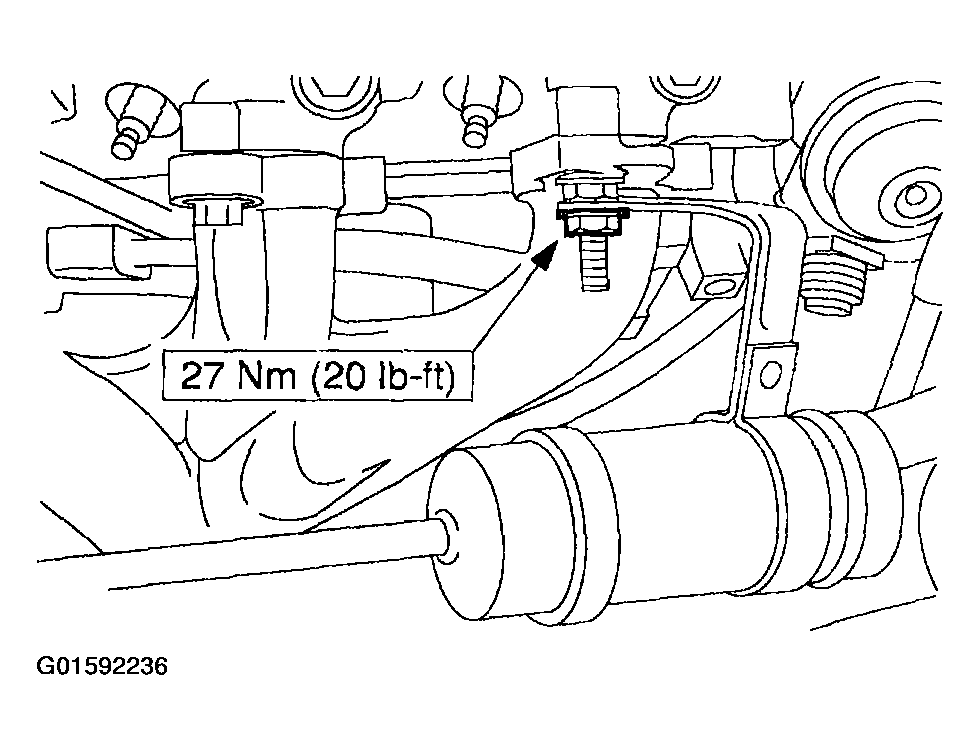

Fig 5: Identifying Power Steering Pressure Line
Courtesy of FORD MOTOR CO.
Using the special tool, install a new seal on the power steering pressure line.

Fig 6: Installing A New Seal On Power Steering Pressure Line By Using Special Tool
Courtesy of FORD MOTOR CO.
Connect the power steering pressure line to the power steering pump.

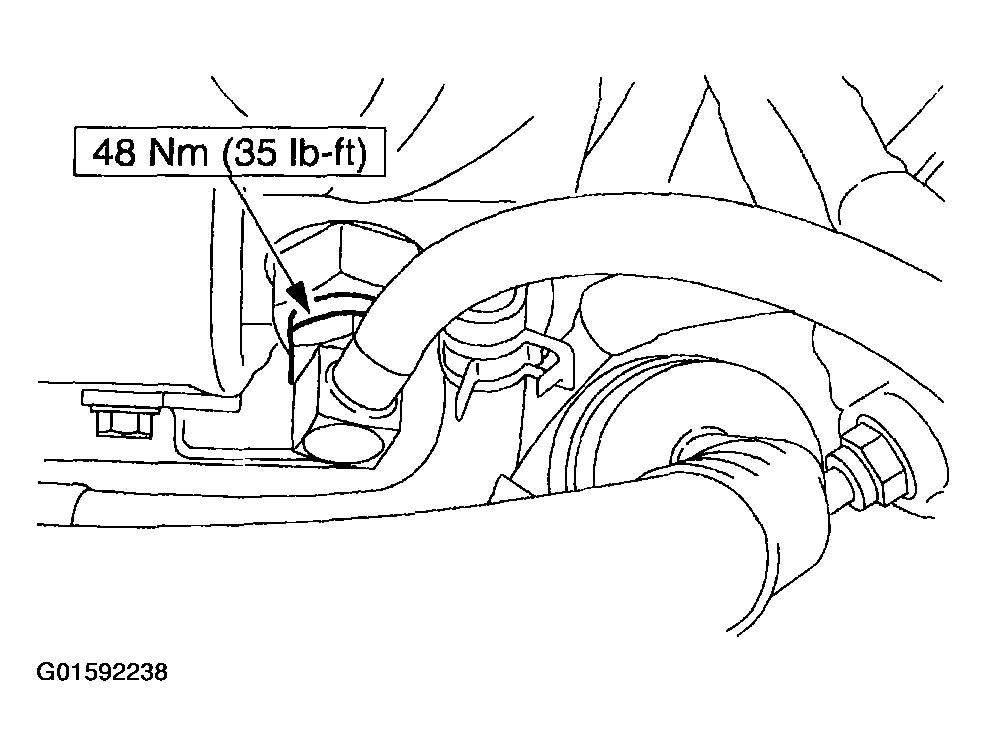

Fig 7: Identifying Nut Of Power Steering Pressure Line
Courtesy of FORD MOTOR CO.
Coat the sealing surface of the oil level indicator tube with silicone gasket and sealant.

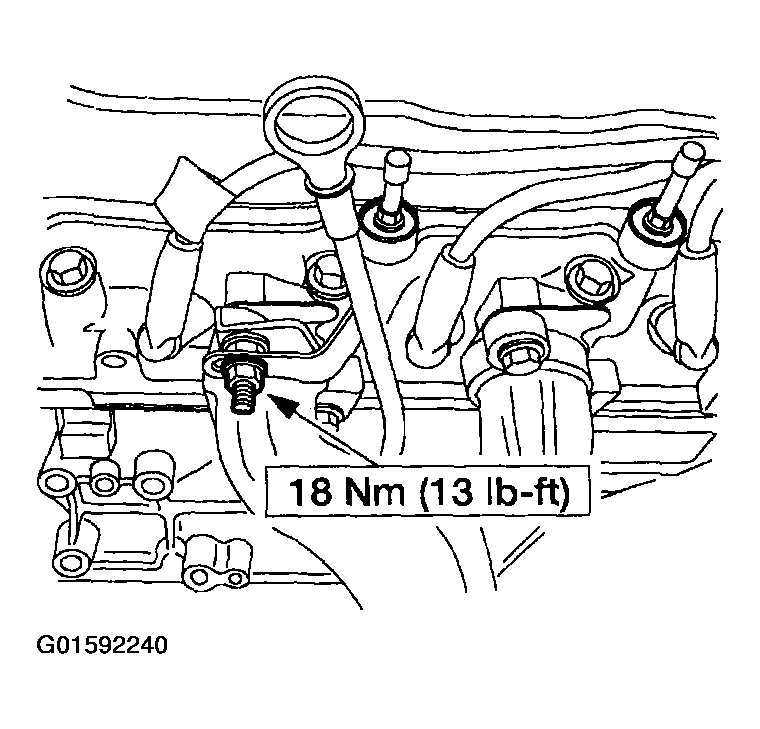

Fig 8: Identifying Coat Sealing Surface Of Oil Level Indicator Tube
Courtesy of FORD MOTOR CO.
Install the oil level indicator tube.

Fig 9: Identifying Oil Level Indicator Tube
Courtesy of FORD MOTOR CO.
Connect the HO2S electrical connector.

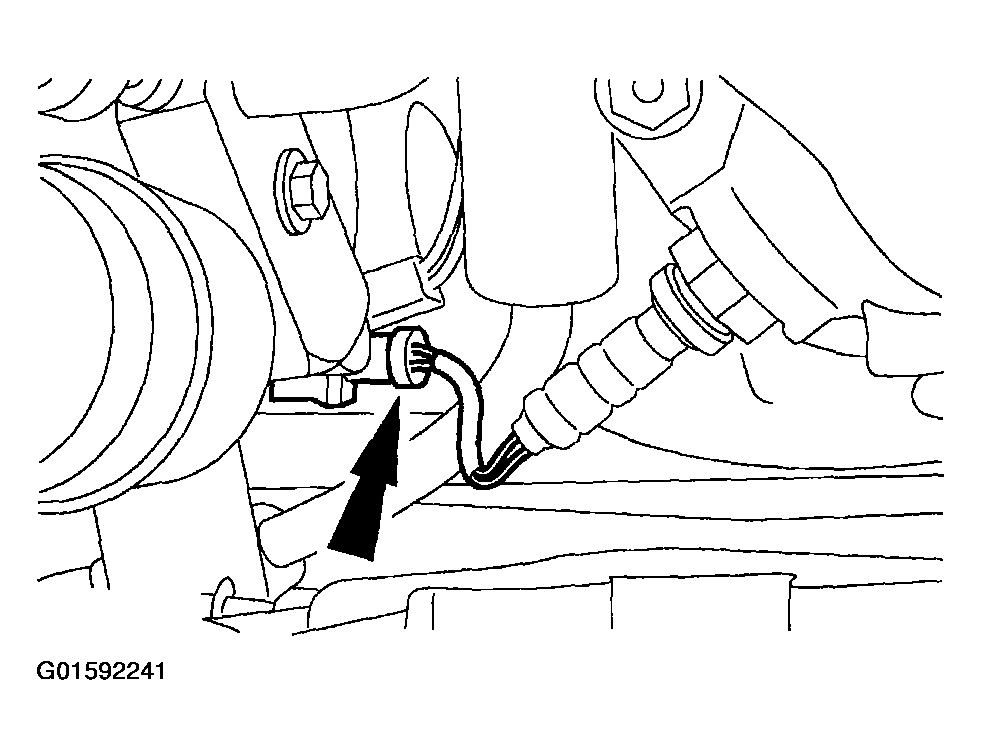

Fig 10: Identifying HO2S Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the battery.
