Engine Front Cover: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant. For additional information, refer to ENGINE COOLING .
  2. Disconnect the battery ground cable (14301). For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the engine anti-roll strut brace.
    • Remove the nuts.
    • Remove the brace.

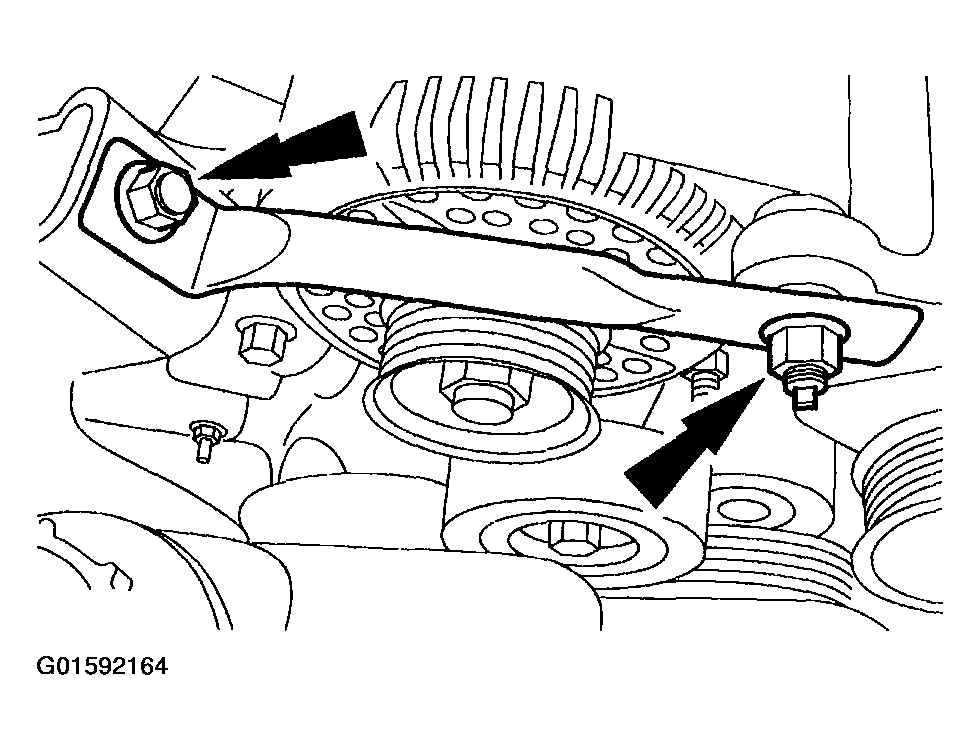

    Fig 1: Identifying Engine Anti-Roll Strut Brace
    G01592164Courtesy of FORD MOTOR CO.
  4. Remove the engine anti-roll strut.
    • Remove the bolts.

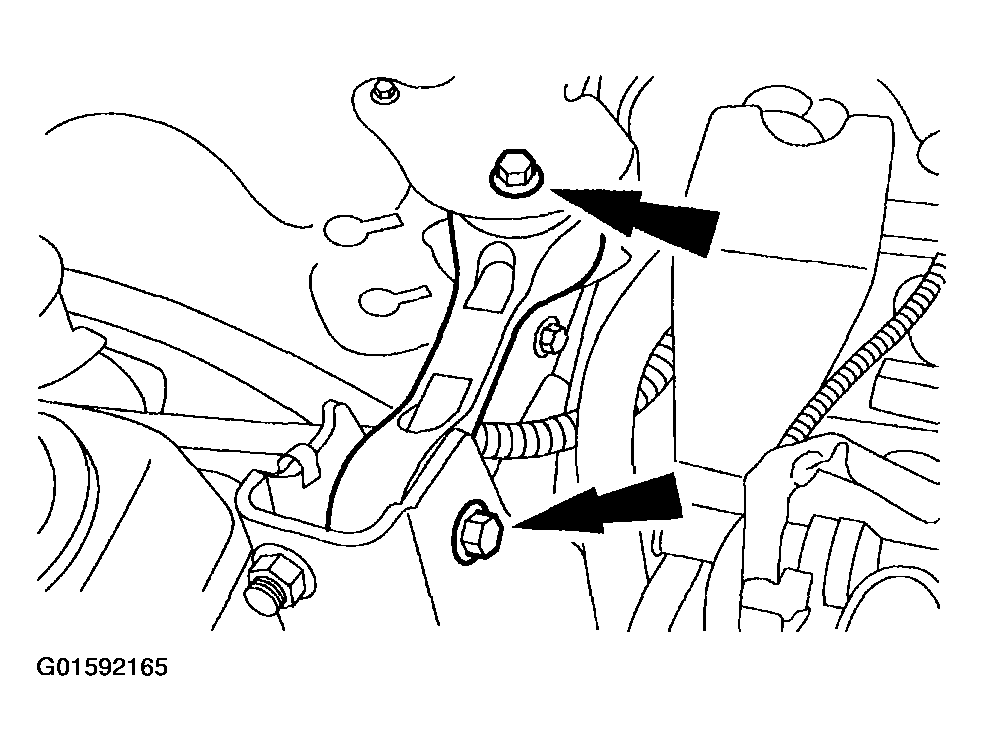

    Fig 2: Identifying Engine Anti-Roll Strut Brace
    G01592165Courtesy of FORD MOTOR CO.
  5. Remove the coolant expansion tank (8A080). For additional information, refer to ENGINE COOLING .
  6. Loosen the four water pump pulley bolts.
    Fig 3: Identifying Four Water Pump Pulley Bolts
    G01592166Courtesy of FORD MOTOR CO.
  7. Remove the crankshaft damper (6316). For additional information, refer to CRANKSHAFT PULLEY .
  8. Disconnect the lower radiator hose.
    • Reposition the clamp.
    • Disconnect the hose.

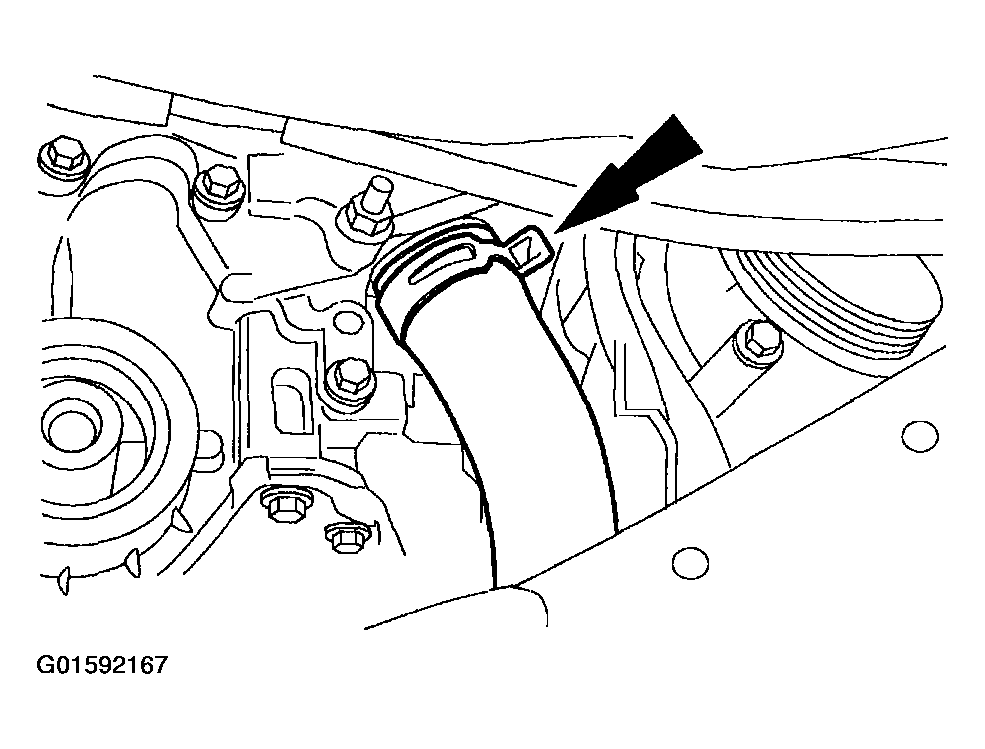

    Fig 4: Identifying Lower Radiator Hose
    G01592167Courtesy of FORD MOTOR CO.
  9. Remove the crankshaft position (CKP) sensor (6C315).
    • Disconnect the sensor.
    • Remove the bolts.
    • Remove the sensor.

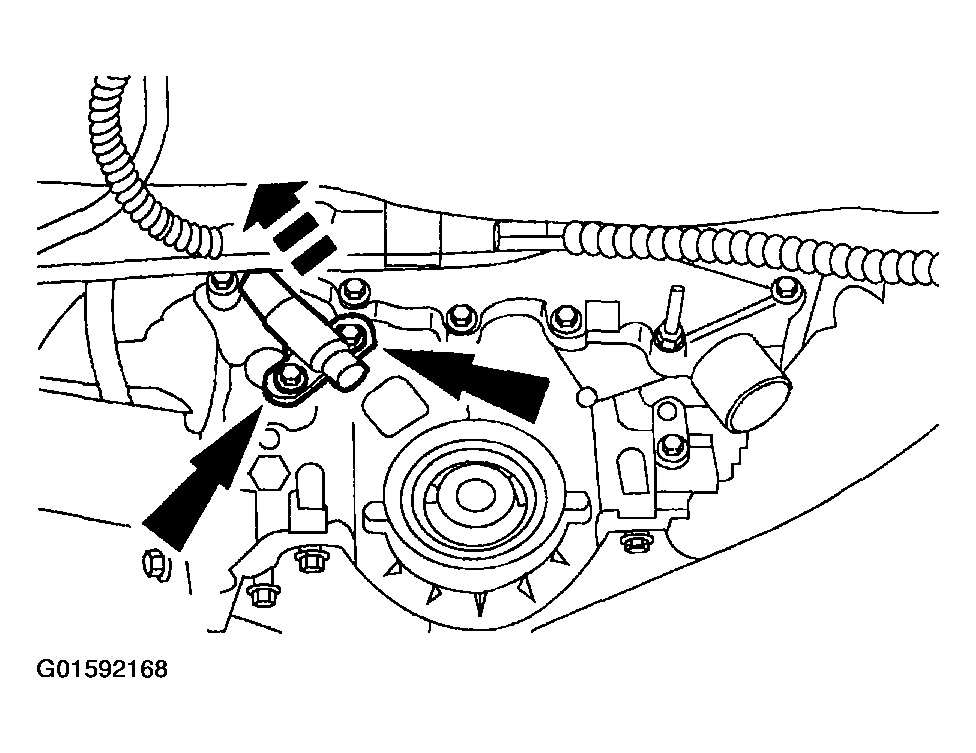

    Fig 5: Identifying Crankshaft Position (CKP) Sensor (6C315)
    G01592168Courtesy of FORD MOTOR CO.
  10. Remove the oil pan. For additional information, refer to OIL PAN .
  11. Lower the vehicle.
  12. Disconnect the generator (10346).

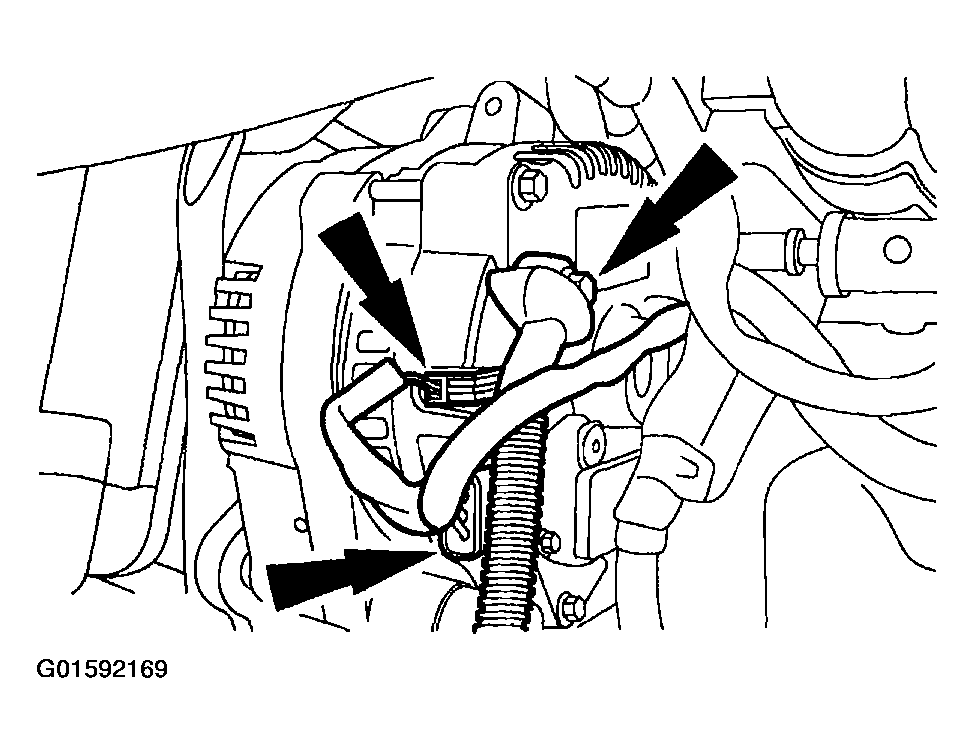

    Fig 6: Identifying Clamp Of Generator
    G01592169Courtesy of FORD MOTOR CO.
  13. Remove the generator support bracket.
    • Remove the nut.
    • Remove the bolt.

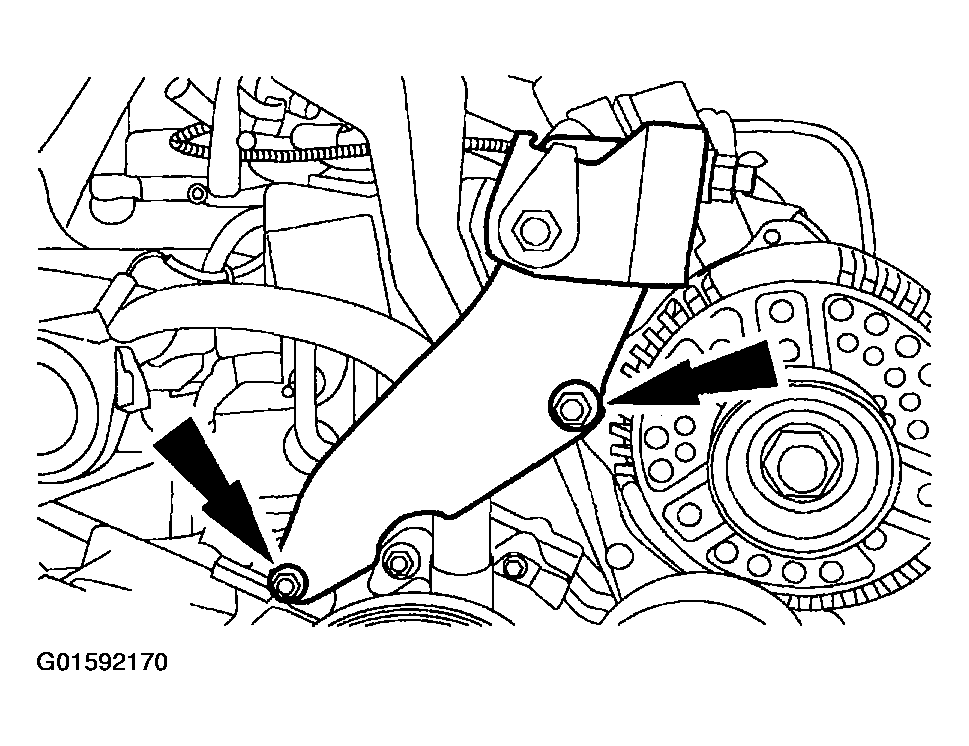

    Fig 7: Identifying Generator Support Bracket
    G01592170Courtesy of FORD MOTOR CO.
  14. Remove the generator.
    • Remove the stud bolt.

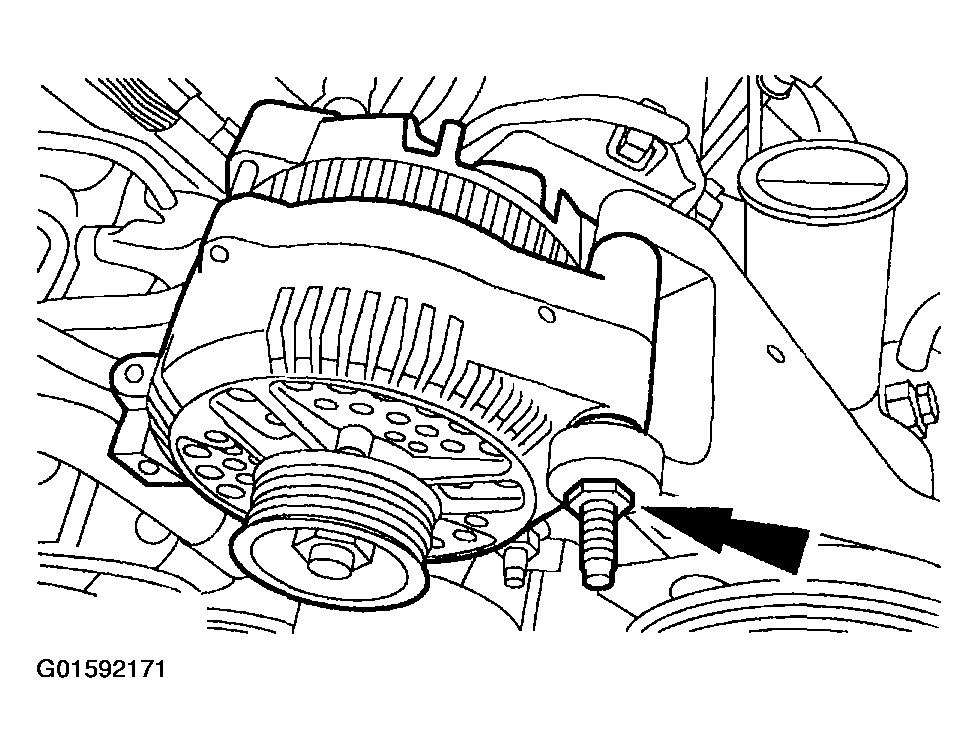

    Fig 8: Identifying Stud Bolt
    G01592171Courtesy of FORD MOTOR CO.
  15. Remove the accessory drive belt idler pulley.
    • Remove the bolt.

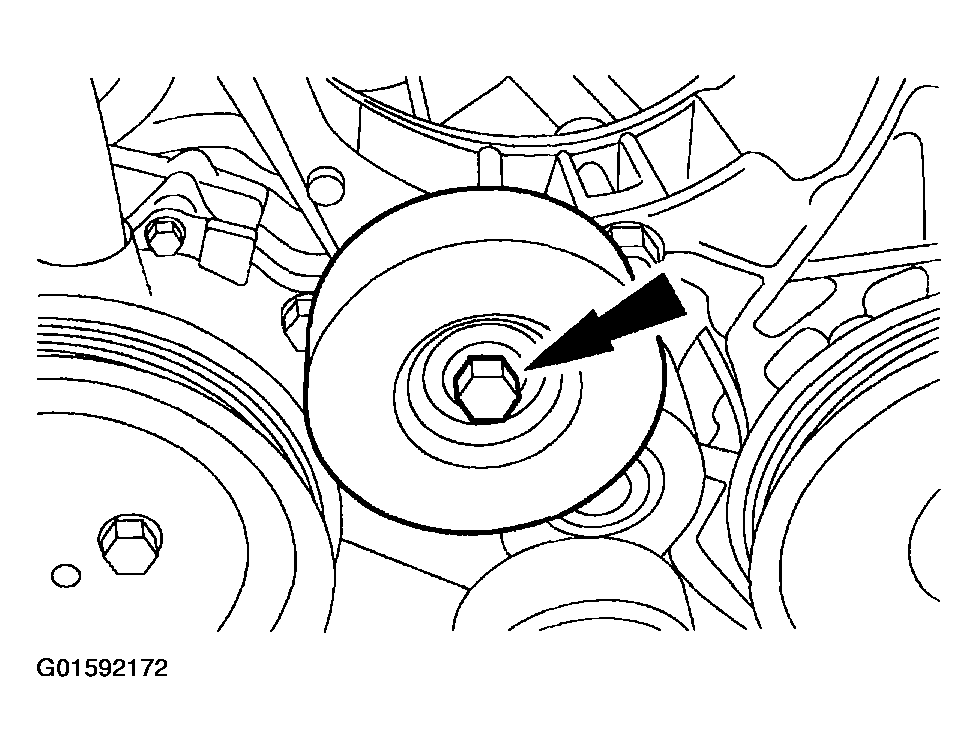

    Fig 9: Identifying Accessory Drive Belt Idler Pulley
    G01592172Courtesy of FORD MOTOR CO.
  16. Remove the accessory drive belt tensioner (6B209).
    • Remove the bolt.

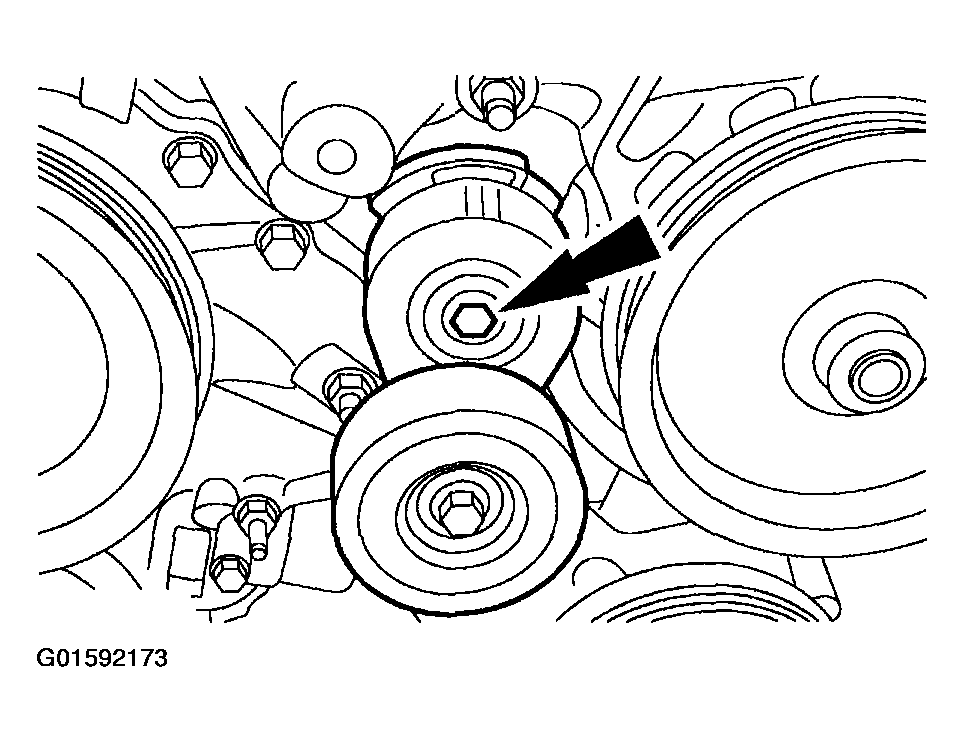

    Fig 10: Identifying Accessory Drive Belt Tensioner
    G01592173Courtesy of FORD MOTOR CO.
  17. Remove the A/C compressor bracket.
    • Remove the nut.
    • Remove the bolt.

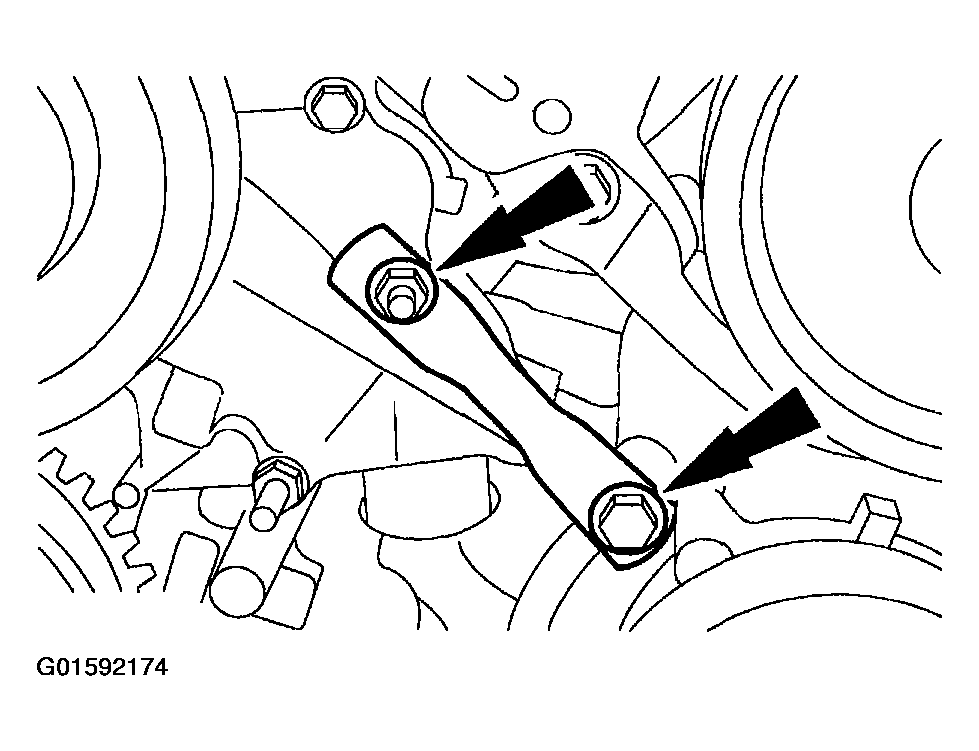

    Fig 11: Identifying A/C Compressor Bracket
    G01592174Courtesy of FORD MOTOR CO.
  18. Disconnect the heater hose (18472).
    • Reposition the clamp.
    • Disconnect the hose.

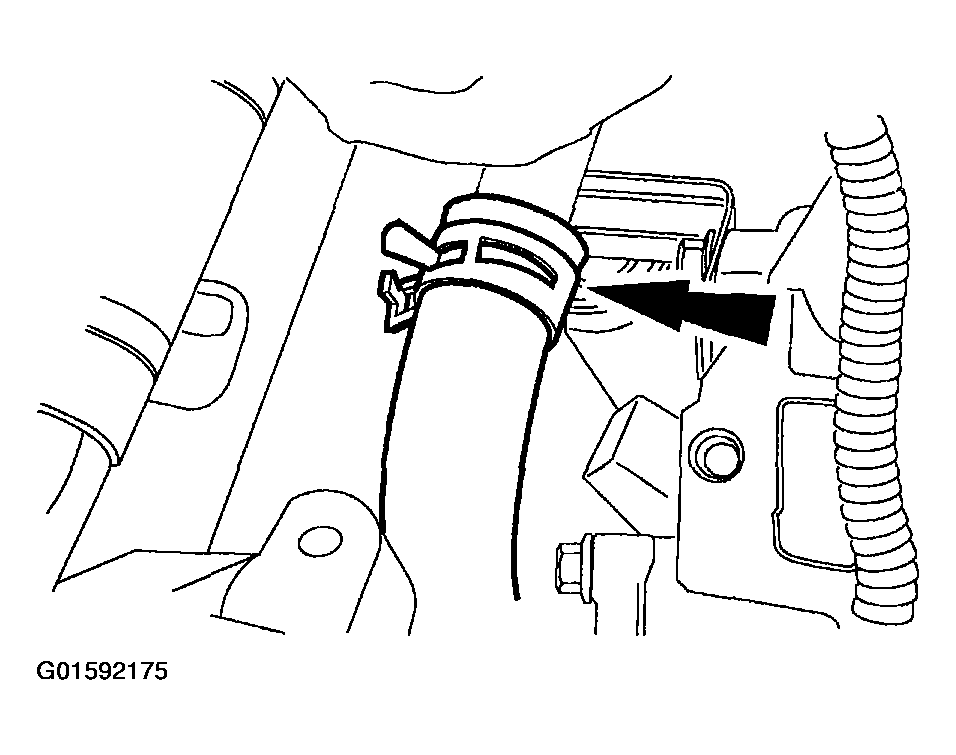

    Fig 12: Identifying Clamp Of Heater Hose
    G01592175Courtesy of FORD MOTOR CO.
  19. Remove the water pump pulley (8509).
    • Remove the bolts.
    • Remove the pulley.

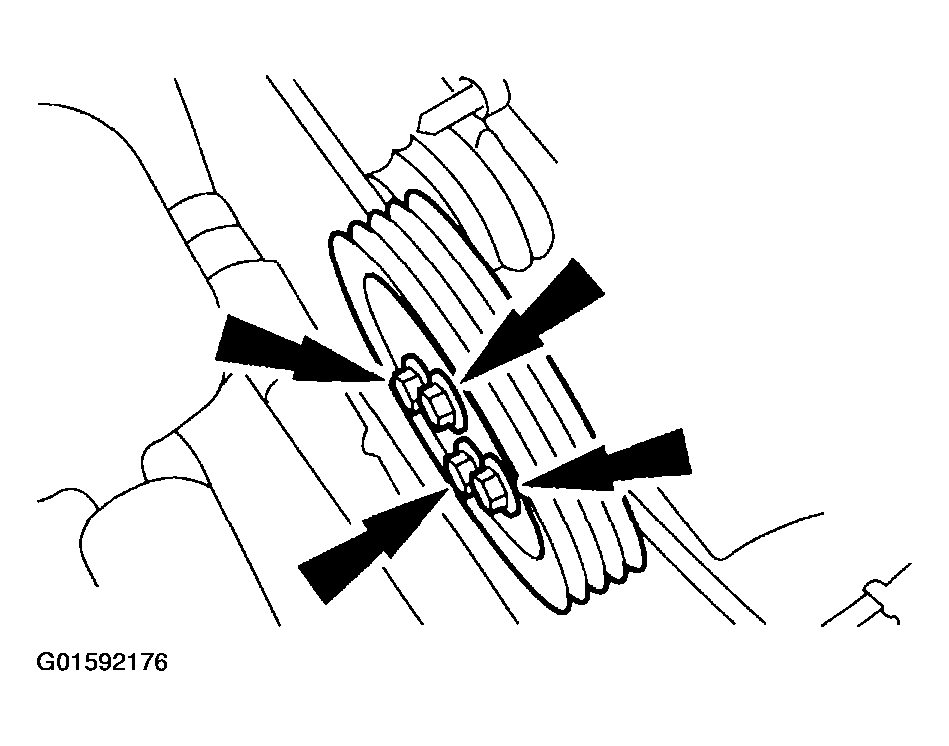

    Fig 13: Identifying Water Pump Pulley
    G01592176Courtesy of FORD MOTOR CO.
  20. Remove the engine front cover (6059) and water pump (8501) as an assembly.
    • Remove the bolts.
    • Remove the front cover.

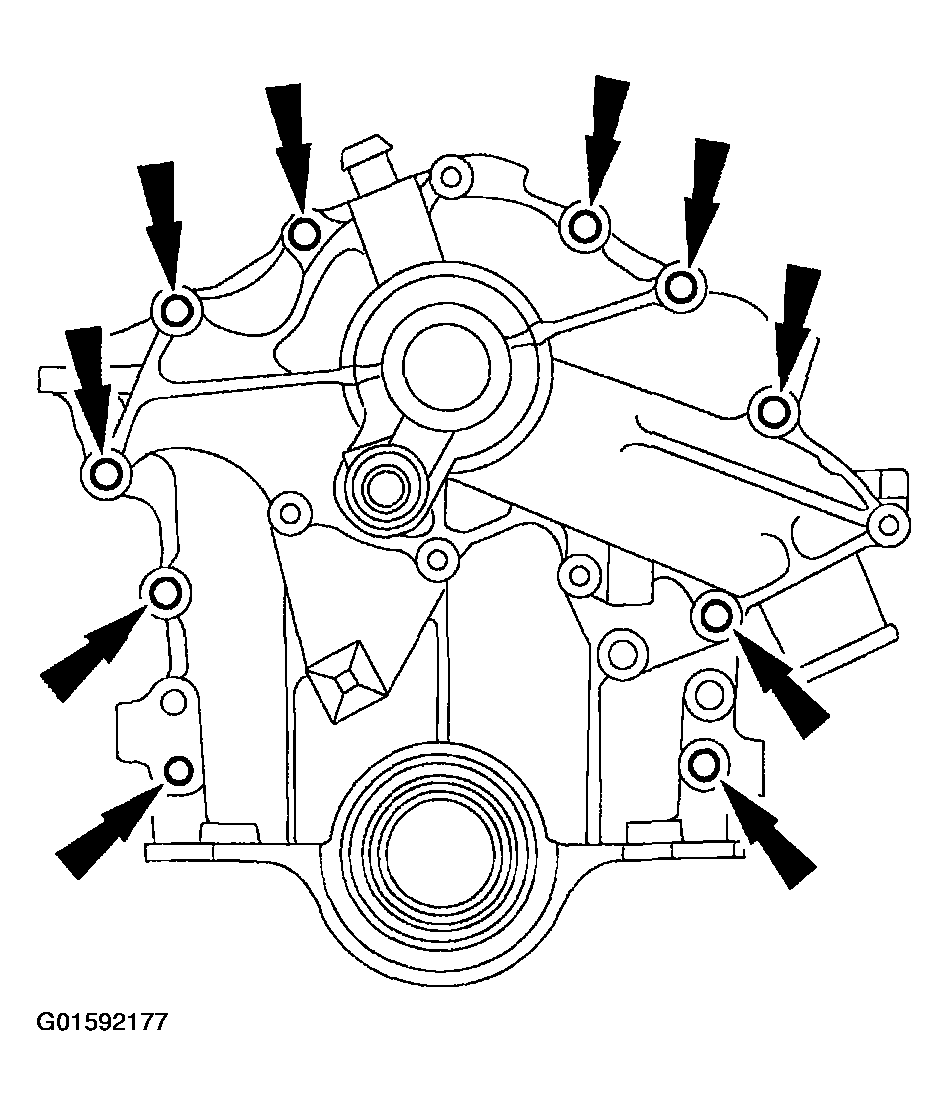

    Fig 14: Identifying Bolts Of Engine Front Cover (6059) And Water Pump (8501)
    G01592177Courtesy of FORD MOTOR CO.
  21. Remove and discard the front cover gasket (6020).

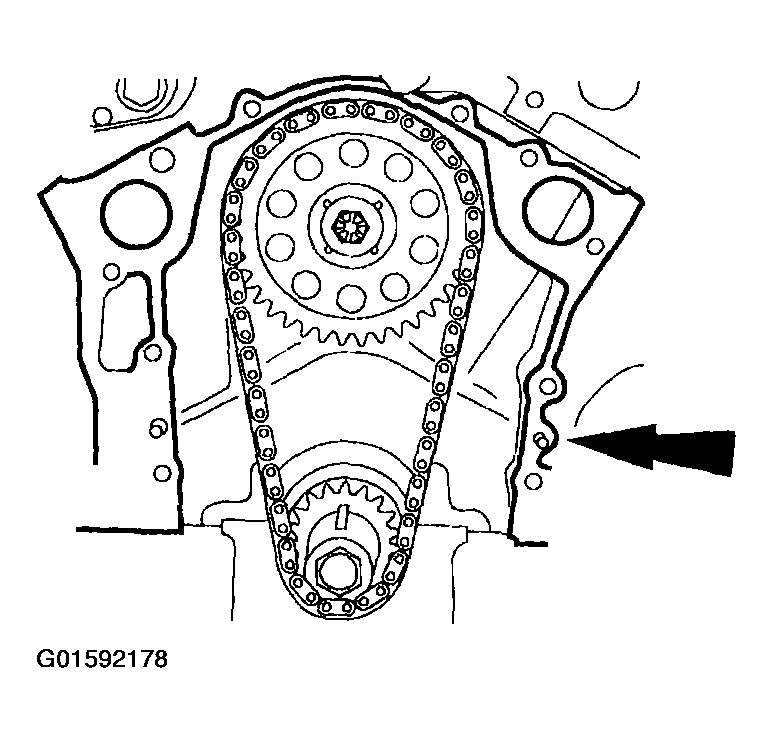

    Fig 15: Identifying Front Cover Gasket
