Engine Front Cover: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all sealing surfaces and position a new front cover gasket.

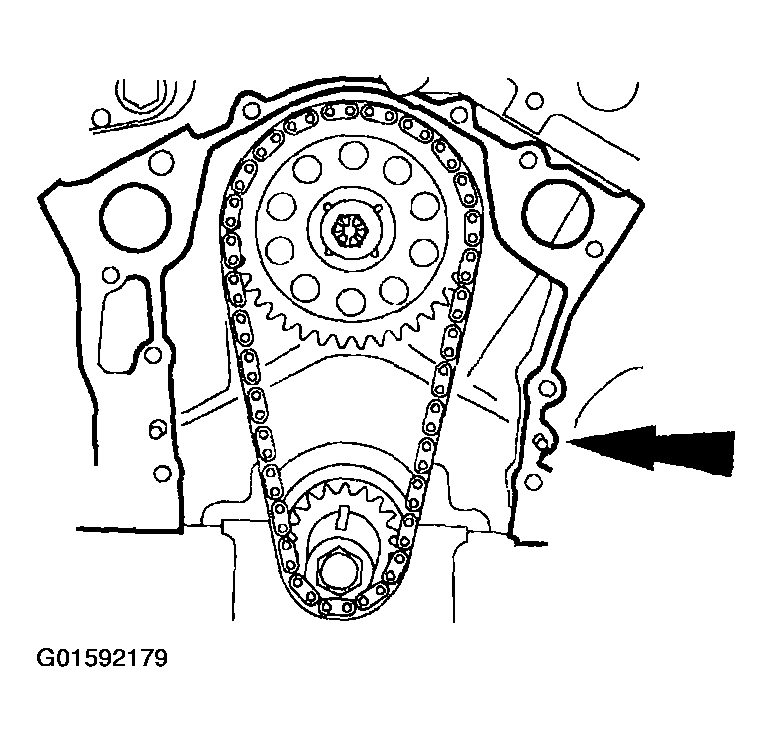

    Fig 1: Identifying Front Cover Gasket
    G01592179Courtesy of FORD MOTOR CO.
  2. Install the engine front cover and water pump assembly.
    1. Apply Pipe Sealant with Teflon® to the bolts indicated.
    2. Install the bolts.

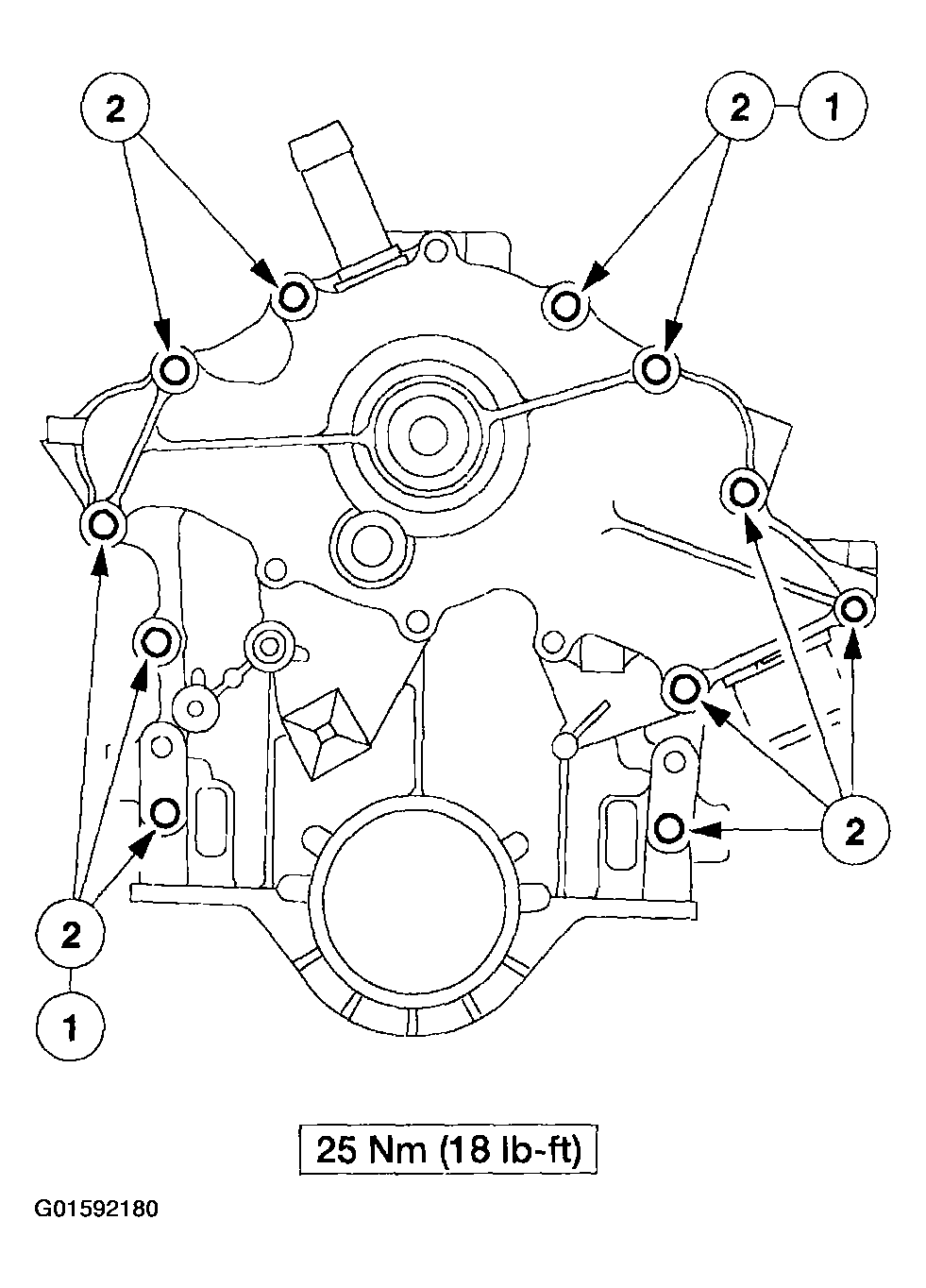

    Fig 2: Identifying Engine Front Cover And Water Pump Assembly
    G01592180Courtesy of FORD MOTOR CO.
  3. Install the water pump pulley.

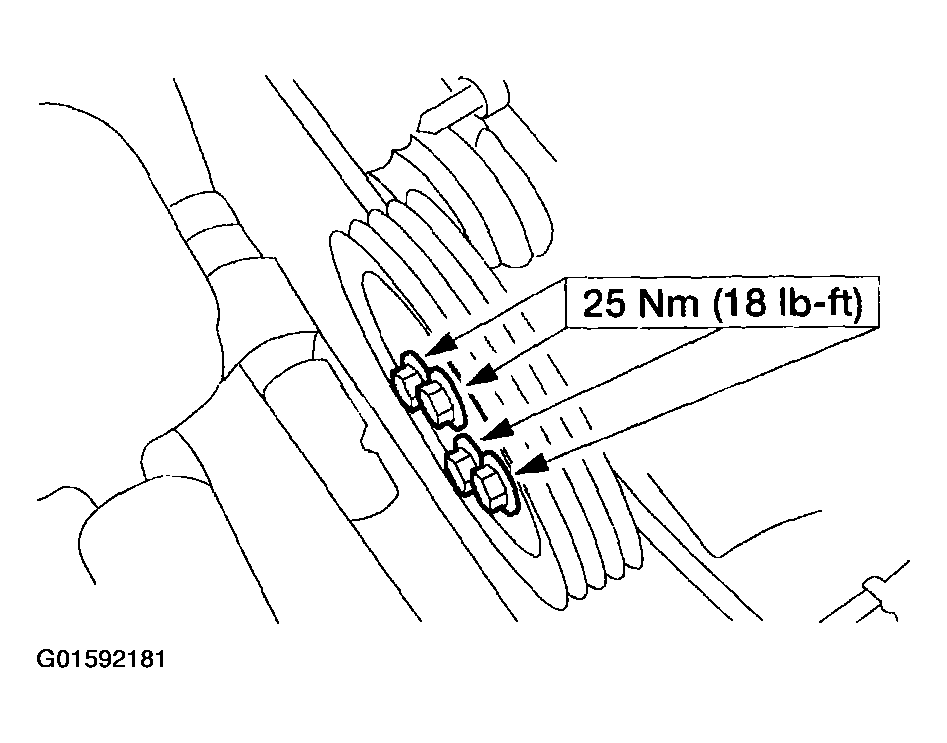

    Fig 3: Identifying Water Pump Pulley
    G01592181Courtesy of FORD MOTOR CO.
  4. Connect the heater hose.
    • Connect the hose.
    • Position the clamp.

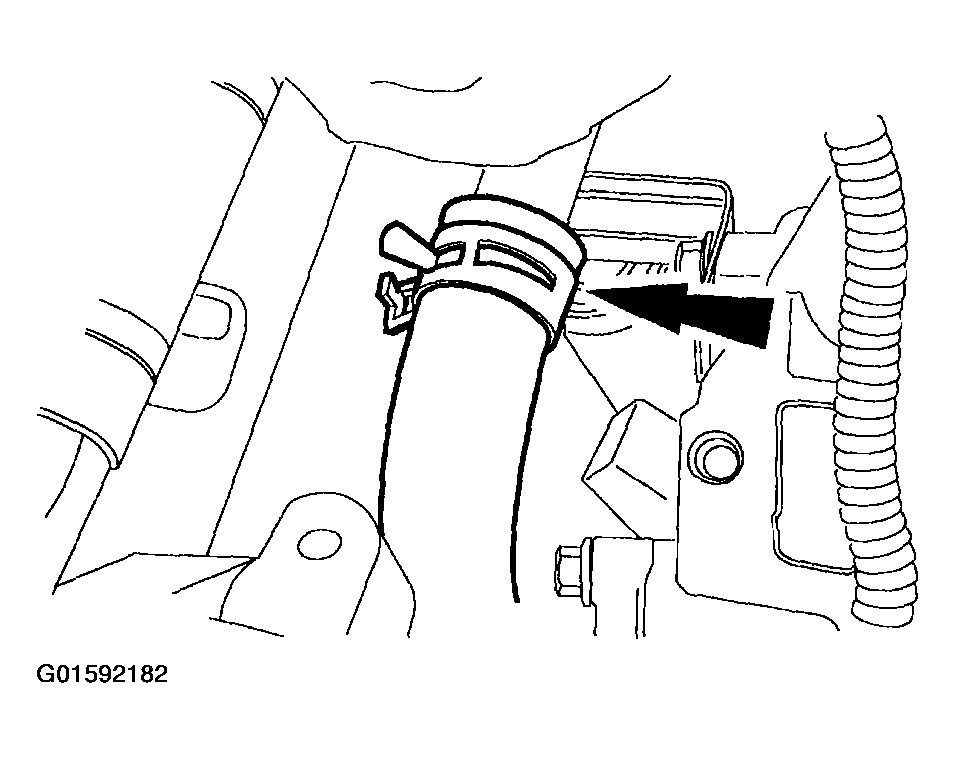

    Fig 4: Identifying Clamp Of Heater Hose
    G01592182Courtesy of FORD MOTOR CO.
  5. Install the A/C compressor bracket.
    • Position the bracket.
    • Install the bolt.
    • Install the nut.

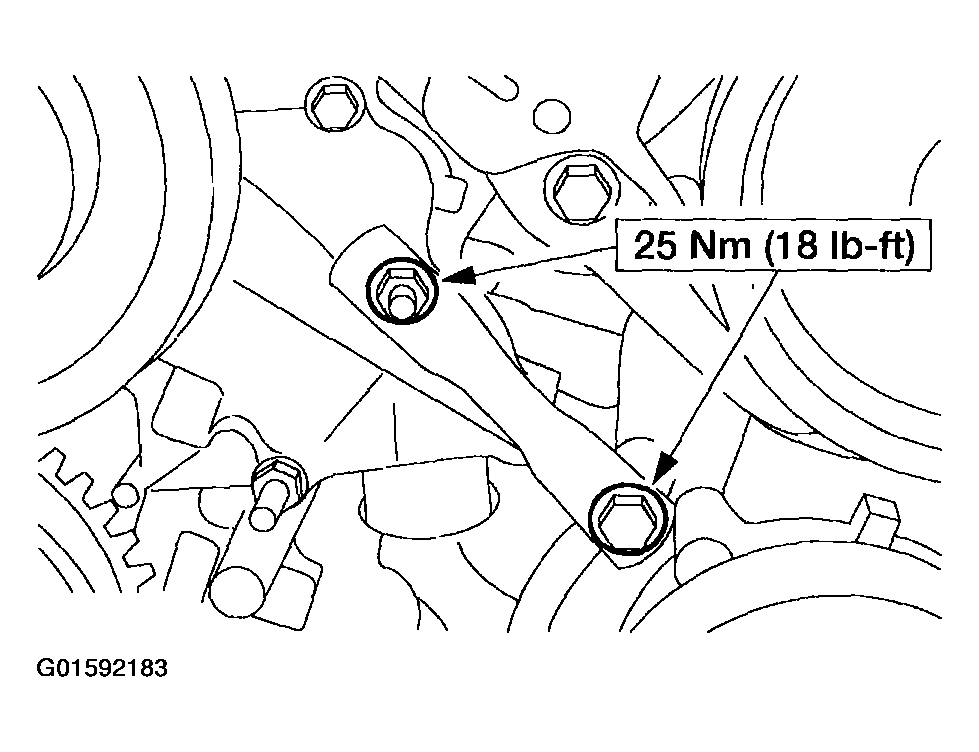

    Fig 5: Identifying A/C Compressor Bracket
    G01592183Courtesy of FORD MOTOR CO.
  6. Install the accessory drive belt tensioner.

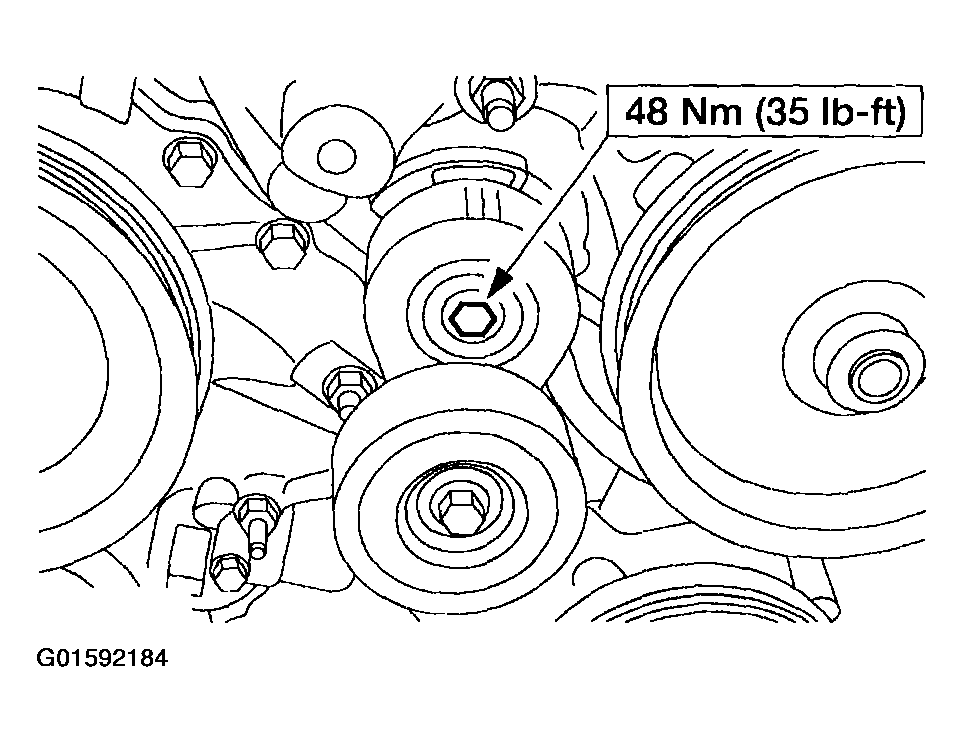

    Fig 6: Identifying Accessory Drive Belt Tensioner
    G01592184Courtesy of FORD MOTOR CO.
  7. Install the accessory drive belt idler pulley.

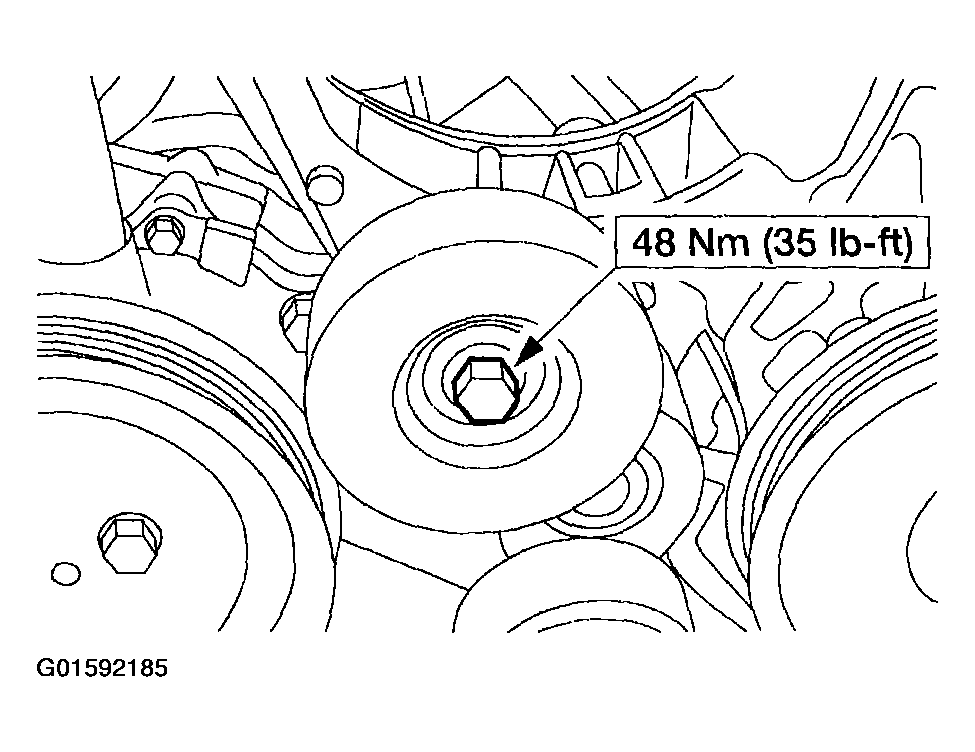

    Fig 7: Identifying Accessory Drive Belt Idler Pulley
    G01592185Courtesy of FORD MOTOR CO.
  8. Install the generator.
    • Install the stud bolt.

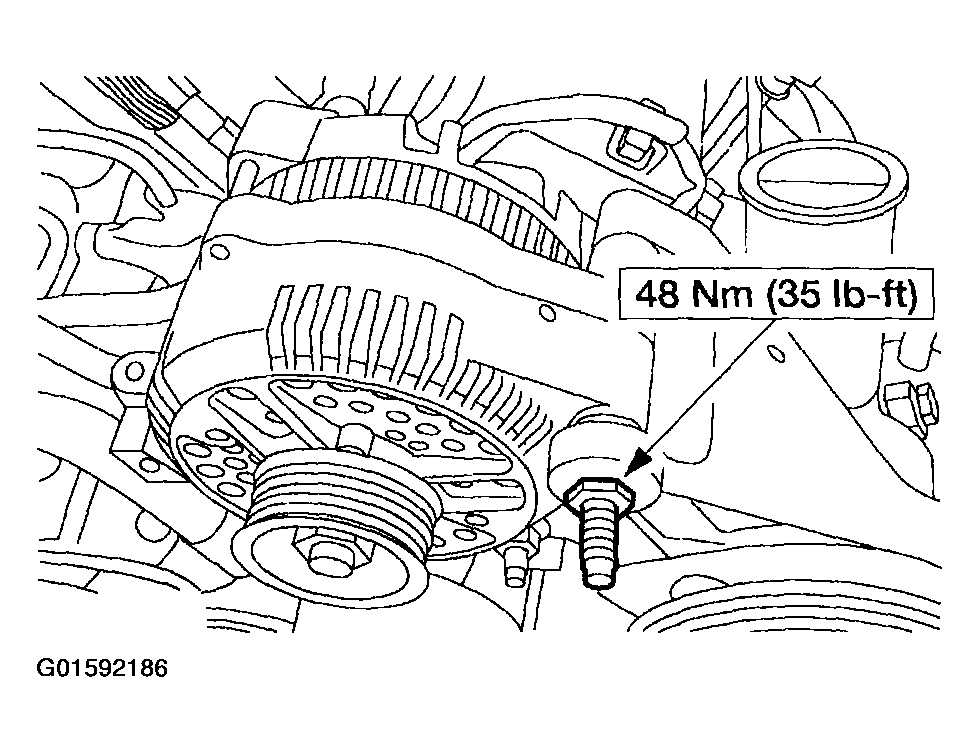

    Fig 8: Identifying Stud Bolt Of Generator
    G01592186Courtesy of FORD MOTOR CO.
  9. Install the generator support bracket.
    • Position the bracket.
    • Install the bolt.
    • Install the nut.

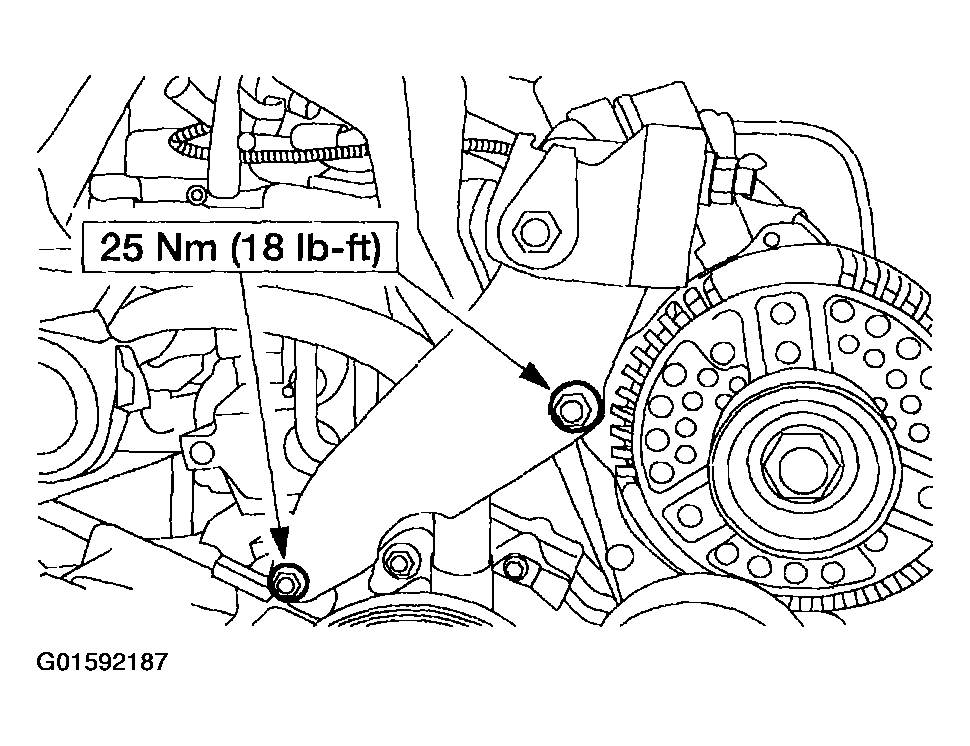

    Fig 9: Identifying Generator Support Bracket
    G01592187Courtesy of FORD MOTOR CO.
  10. Connect the generator.

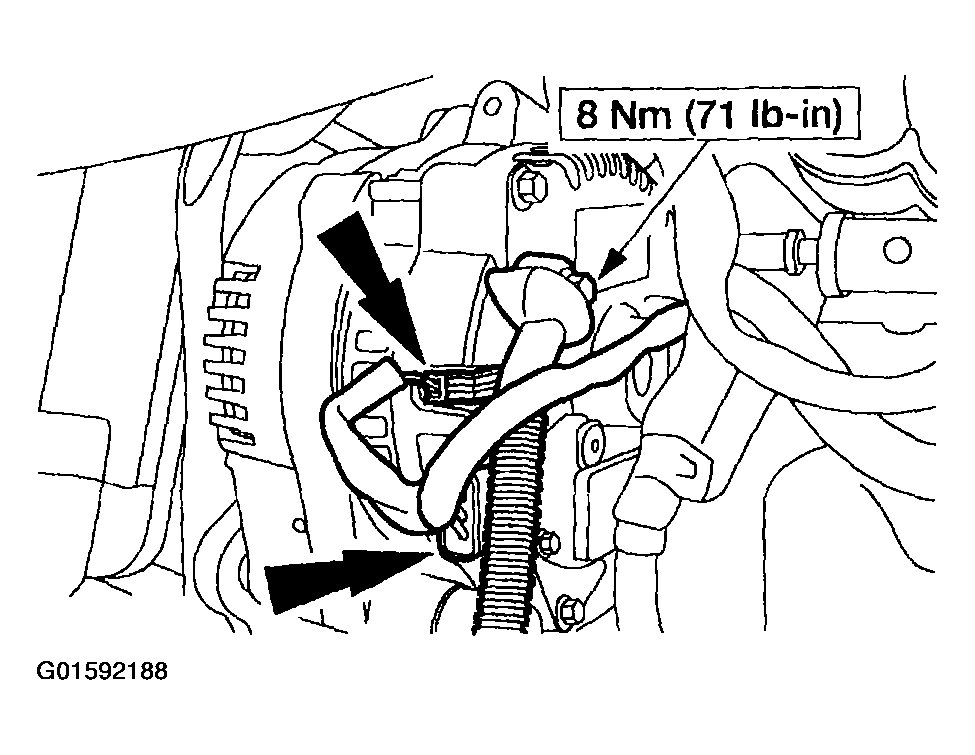

    Fig 10: Identifying Generator Clamp
    G01592188Courtesy of FORD MOTOR CO.
  11. Raise the vehicle on a hoist.
  12. Install the crankshaft position (CKP) sensor.
    • Position the sensor.
    • Install the bolts.
    • Connect the connector.

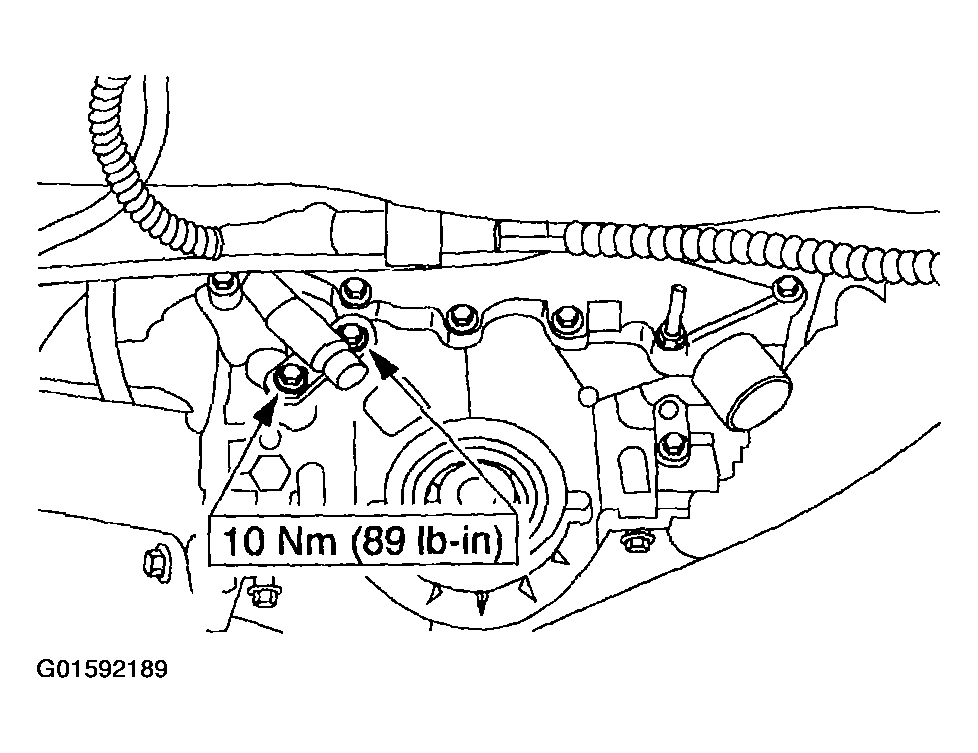

    Fig 11: Identifying Crankshaft Position (CKP) Sensor
    G01592189Courtesy of FORD MOTOR CO.
  13. Connect the lower radiator hose.
    • Connect the hose.
    • Reposition the clamp.

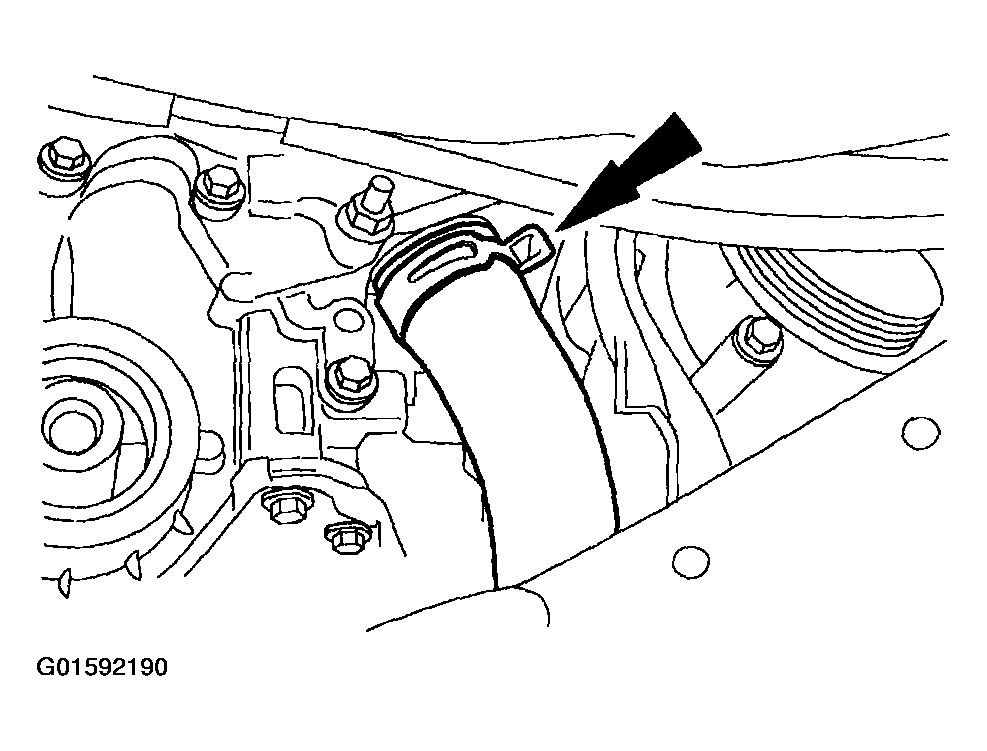

    Fig 12: Identifying Clamp Of Lower Radiator Hose
    G01592190Courtesy of FORD MOTOR CO.
  14. Install the oil pan. For additional information, refer to OIL PAN .
  15. Install the crankshaft damper. For additional information, refer to CRANKSHAFT PULLEY .
  16. Install the coolant expansion tank. For additional information, refer to ENGINE COOLING .
  17. Install the engine anti-roll strut.

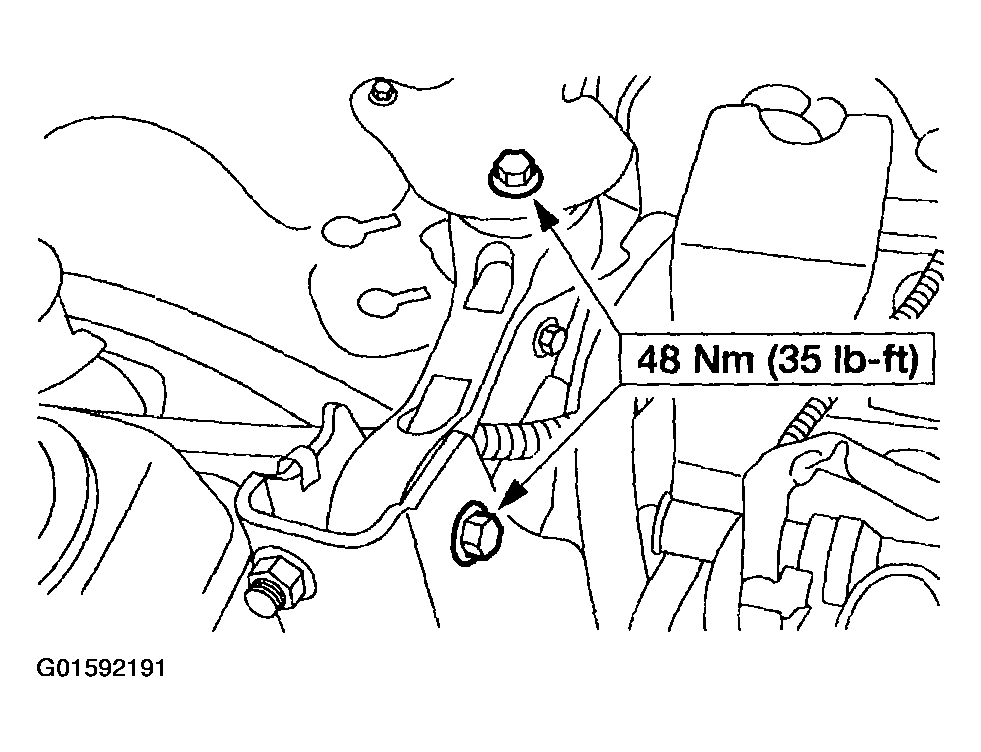

    Fig 13: Identifying Engine Anti-Roll Strut
    G01592191Courtesy of FORD MOTOR CO.
  18. Install the engine anti-roll strut brace.

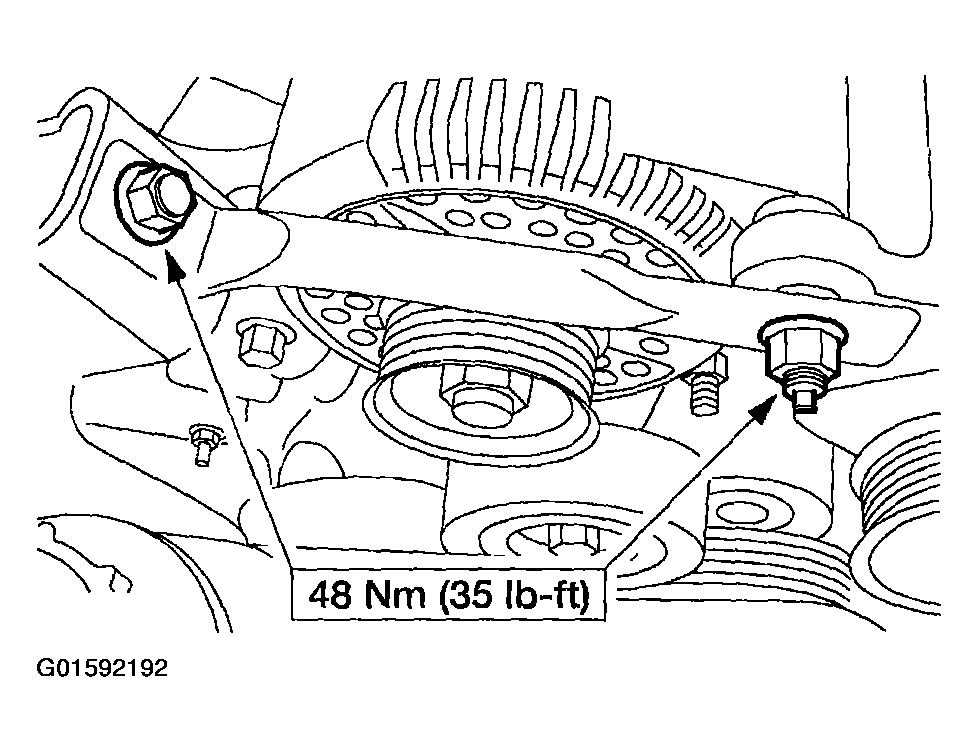

    Fig 14: Identifying Engine Anti-Roll Strut Brace
    G01592192Courtesy of FORD MOTOR CO.
  19. Connect the battery.
  20. Fill and bleed the cooling system. For additional information, refer to ENGINE COOLING .
