Cylinder Head RH: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
Disconnect the crankshaft position (CKP) sensor electrical connector.

Fig 1: Identifying Crankshaft Position (CKP) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the oxygen sensor (HO2S) electrical connector.

Fig 2: Identifying Oxygen Sensor (HO2S) Electrical Connector
Courtesy of FORD MOTOR CO.

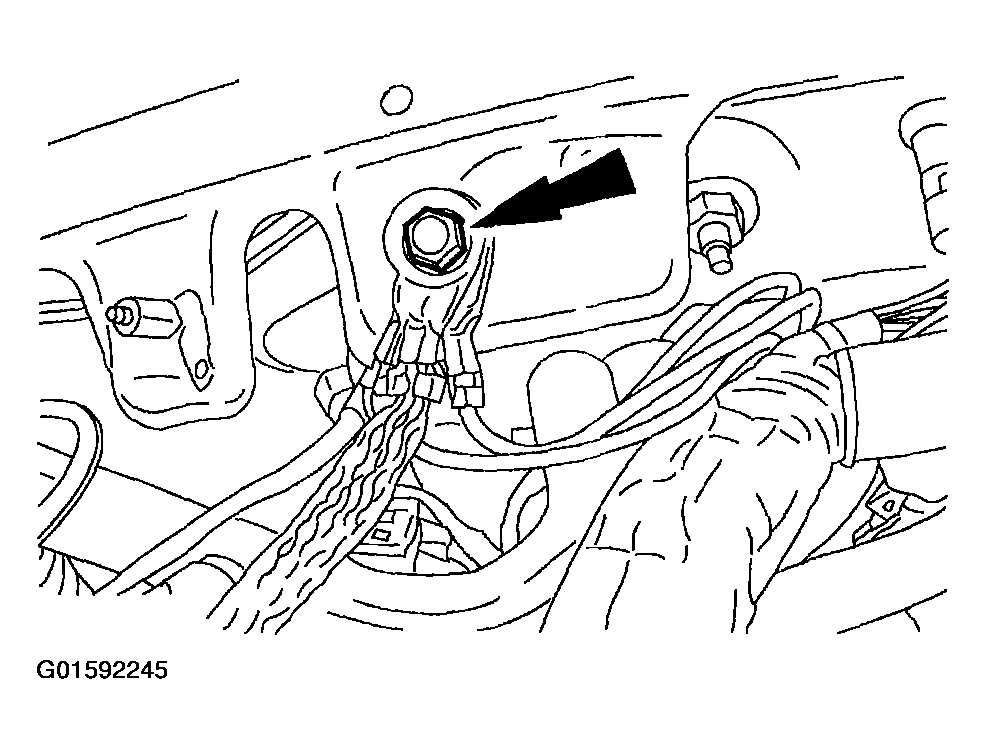

Remove the nut and disconnect the wiring harness ground connections.

Fig 3: Disconnecting Wiring Harness Ground Connections
Courtesy of FORD MOTOR CO.

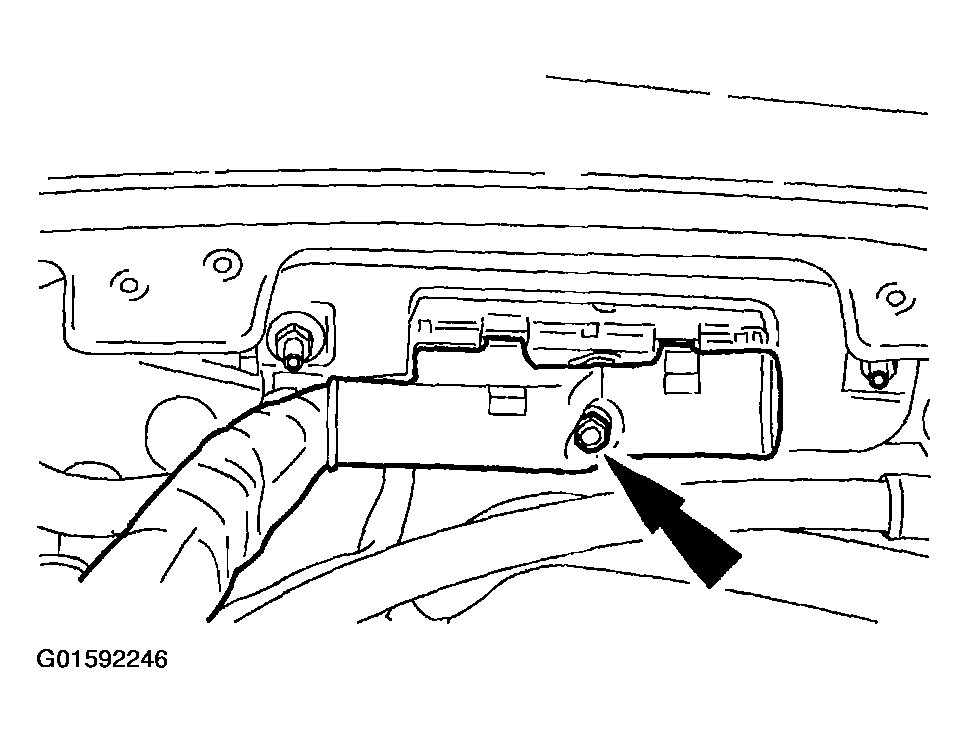

Loosen the bolt and disconnect the powertrain control module (PCM) electrical connector.

Fig 4: Disconnecting Powertrain Control Module Electrical Connector
Courtesy of FORD MOTOR CO.

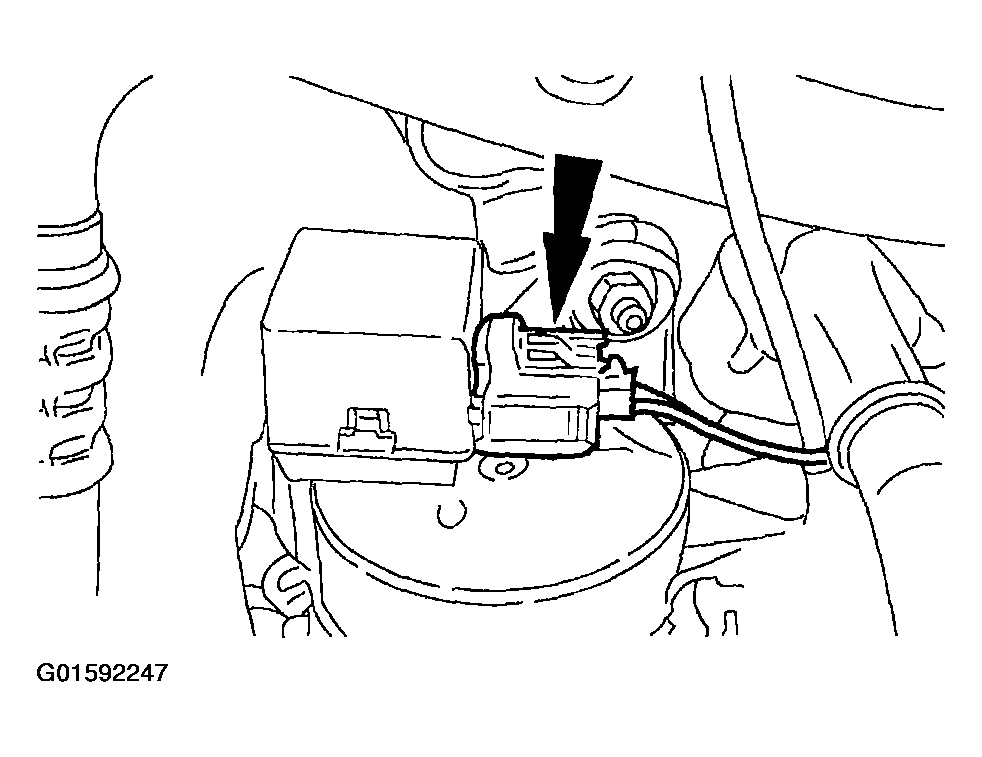

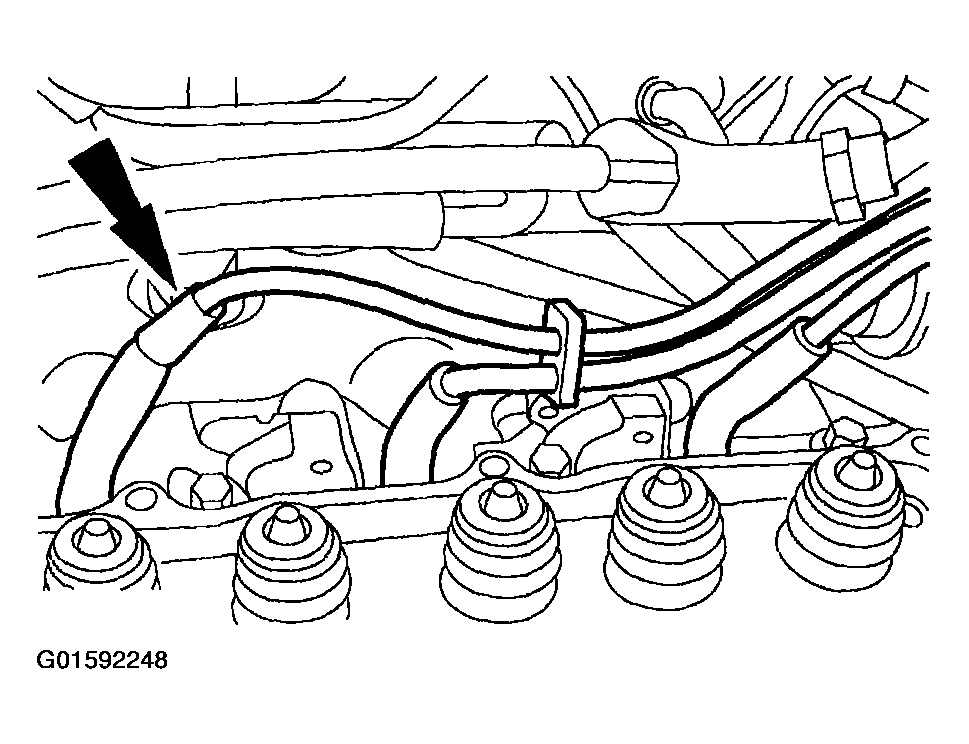

Disconnect the evaporative emissions (EVAP) canister purge valve electrical connector.

Fig 5: Disconnecting Evaporative Emissions Canister Purge Valve Electrical Connector
Courtesy of FORD MOTOR CO.

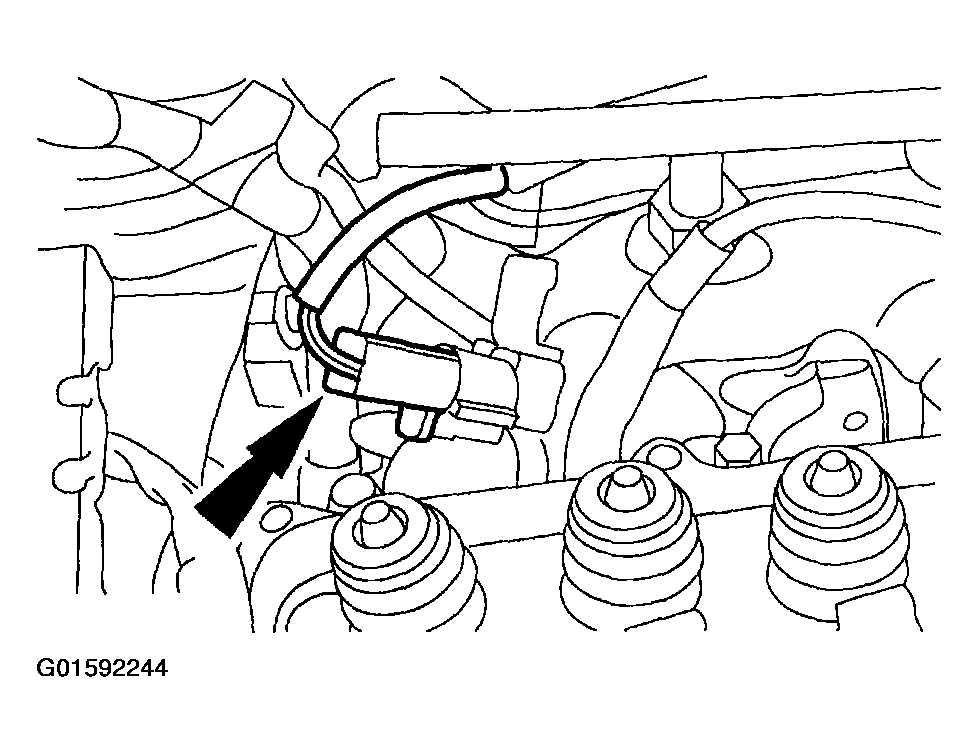

Disconnect the spark plug wires and position the wires aside.

Fig 6: Disconnecting Spark Plug Wires
Courtesy of FORD MOTOR CO.

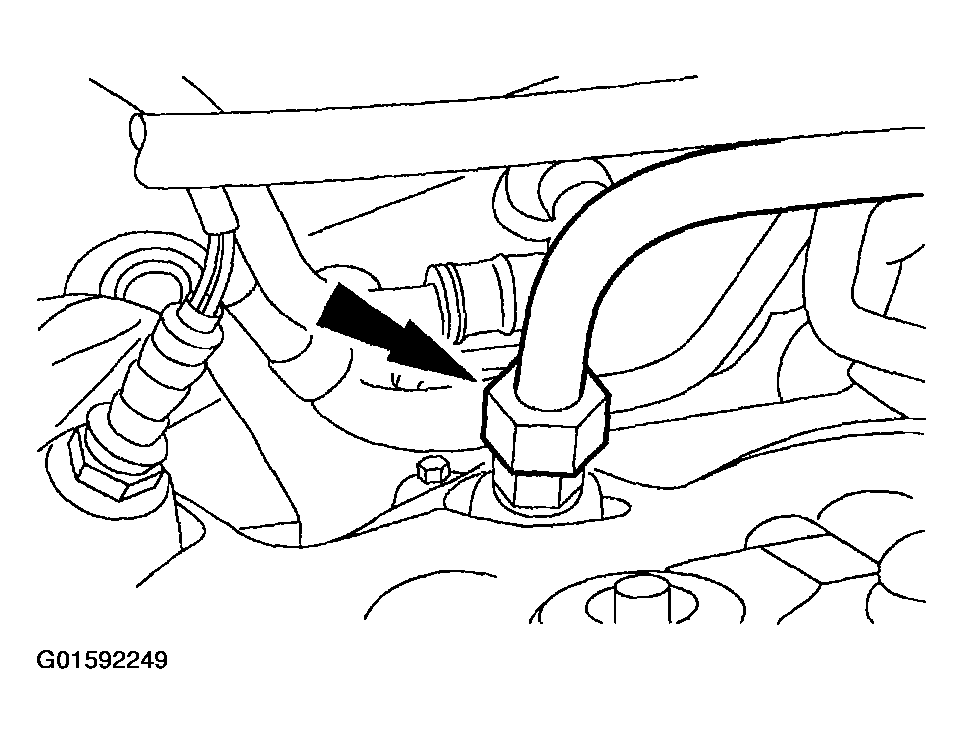

Loosen the nut and disconnect the exhaust gas recirculation (EGR) tube.

Fig 7: Disconnecting Exhaust Gas Recirculation Tube
Courtesy of FORD MOTOR CO.

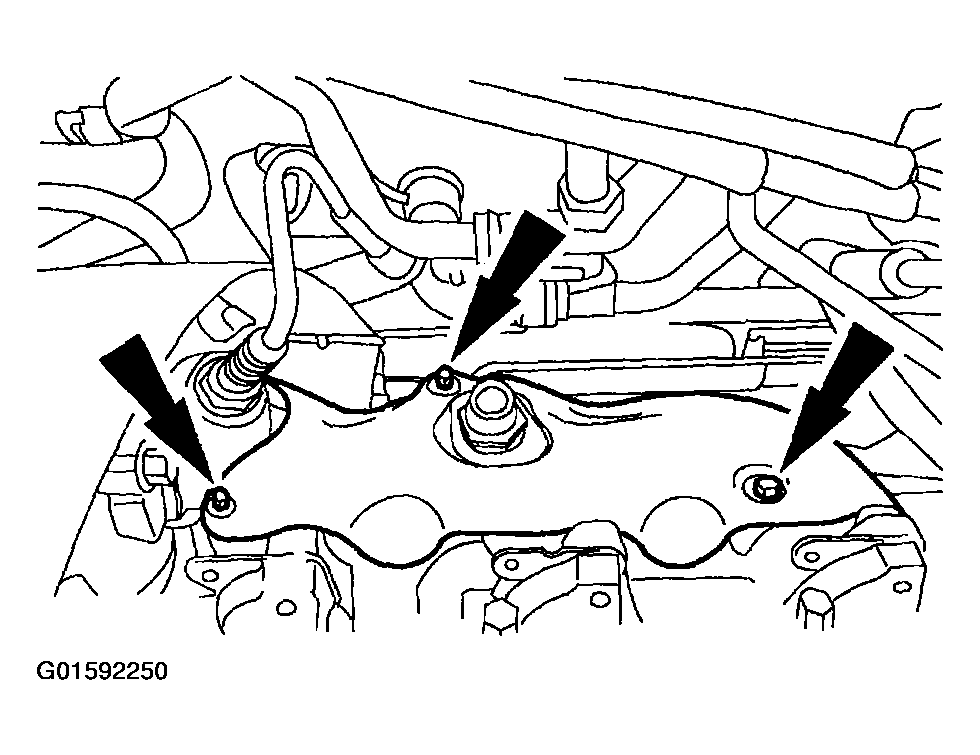

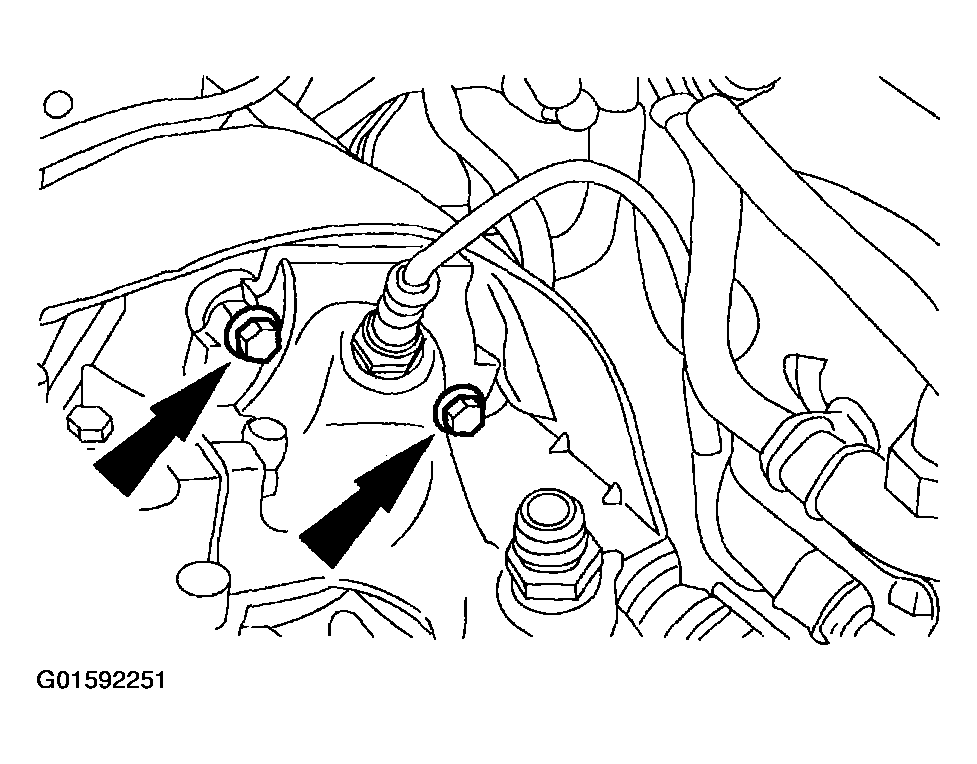

Remove the three bolts and the exhaust manifold heat shield.

Fig 8: Removing Exhaust Manifold Heat Shield
Courtesy of FORD MOTOR CO.
Loosen the exhaust manifold-to-catalytic converter bolts.

Fig 9: Loosening Exhaust Manifold-To-Catalytic Converter Bolts
Courtesy of FORD MOTOR CO.

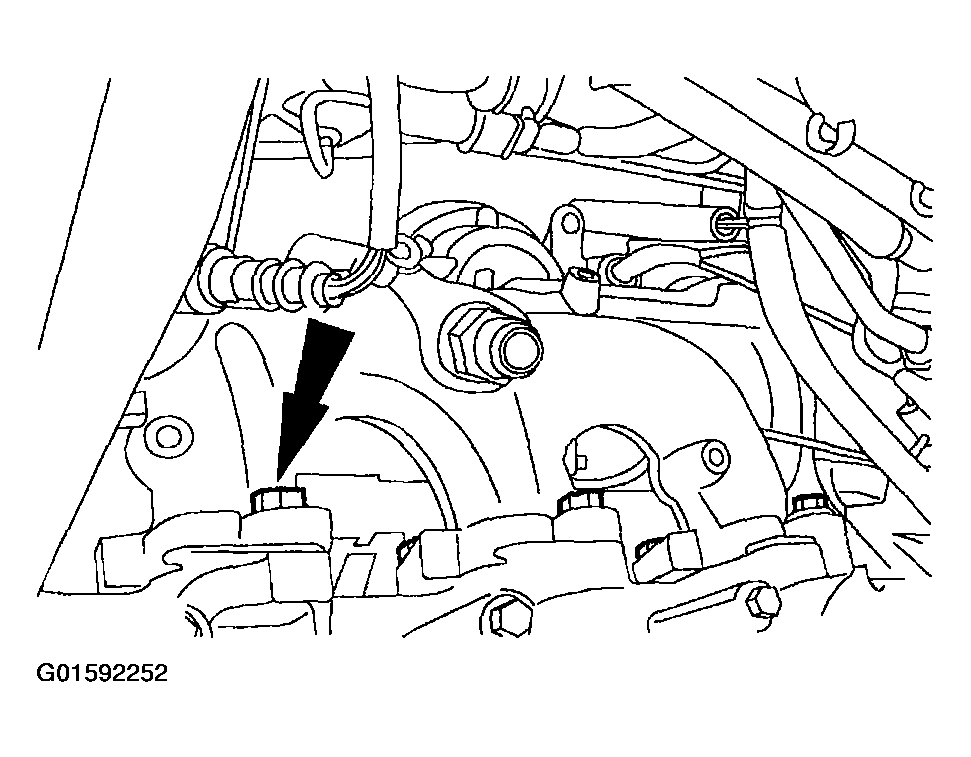

Remove the six exhaust manifold-to-cylinder head bolts.

Fig 10: Removing Exhaust Manifold-To-Cylinder Head Bolts
Courtesy of FORD MOTOR CO.

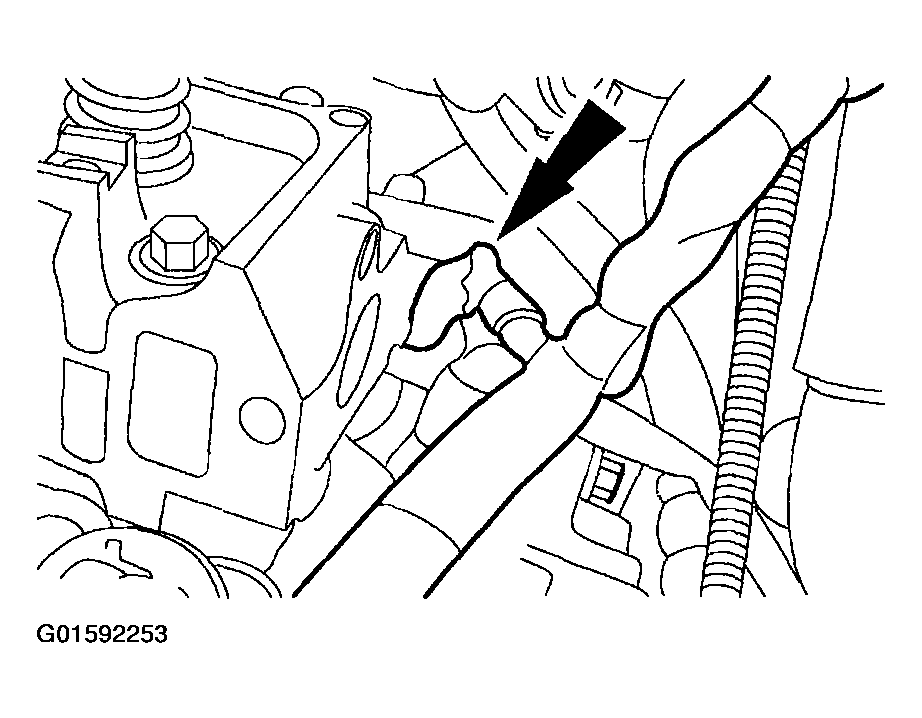

Disconnect the engine wire harness locator.

Fig 11: Disconnecting Engine Wire Harness Locator
Courtesy of FORD MOTOR CO.

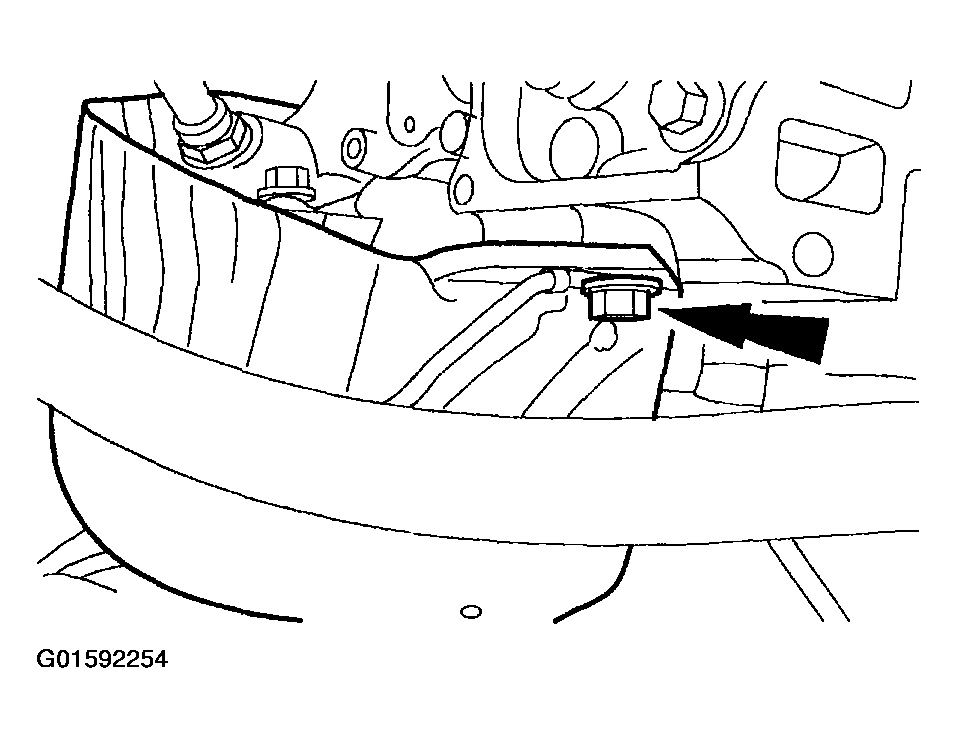

Remove the bolt and separate the catalytic converter heat shield from the cylinder head.

Fig 12: Separating Catalytic Converter Heat Shield From Cylinder Head
Courtesy of FORD MOTOR CO.

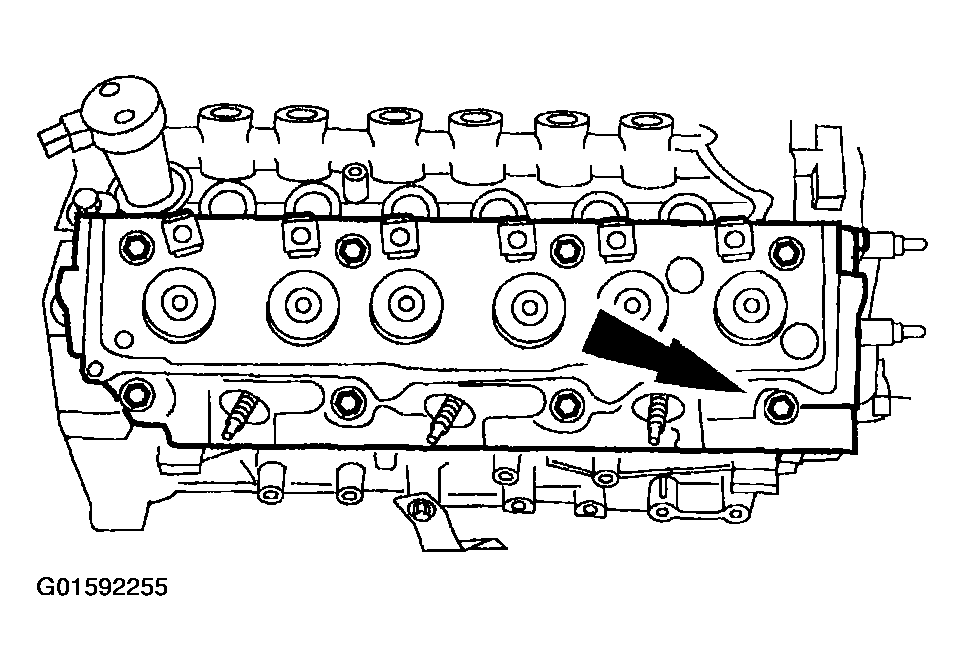

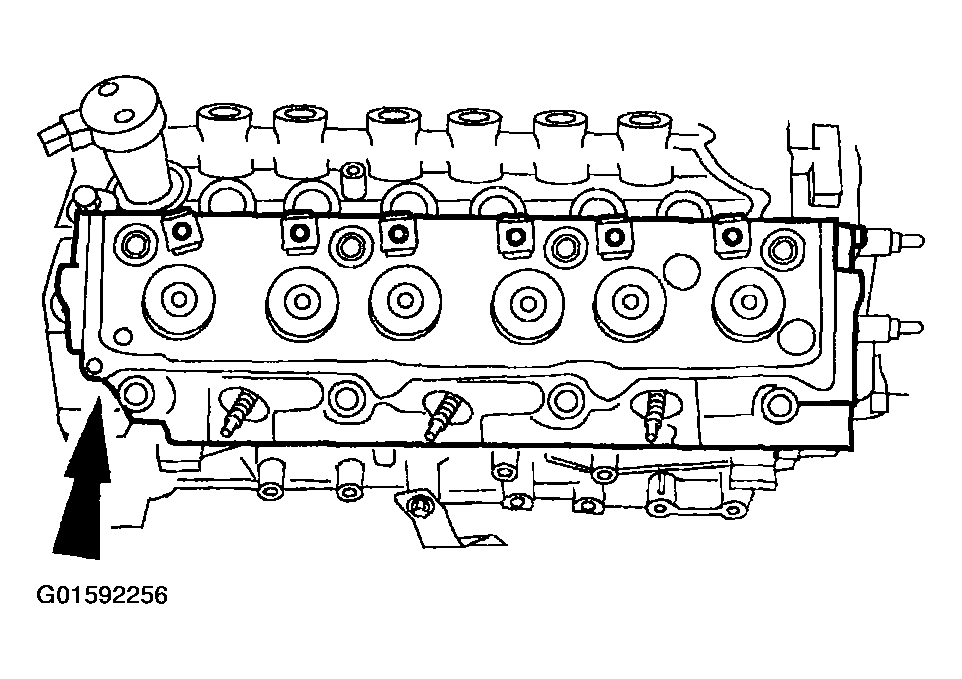

Remove the eight cylinder head bolts.

Fig 13: Removing Cylinder Head Bolts
Courtesy of FORD MOTOR CO.
Remove the cylinder head.

Fig 14: Removing Cylinder Head
Courtesy of FORD MOTOR CO.

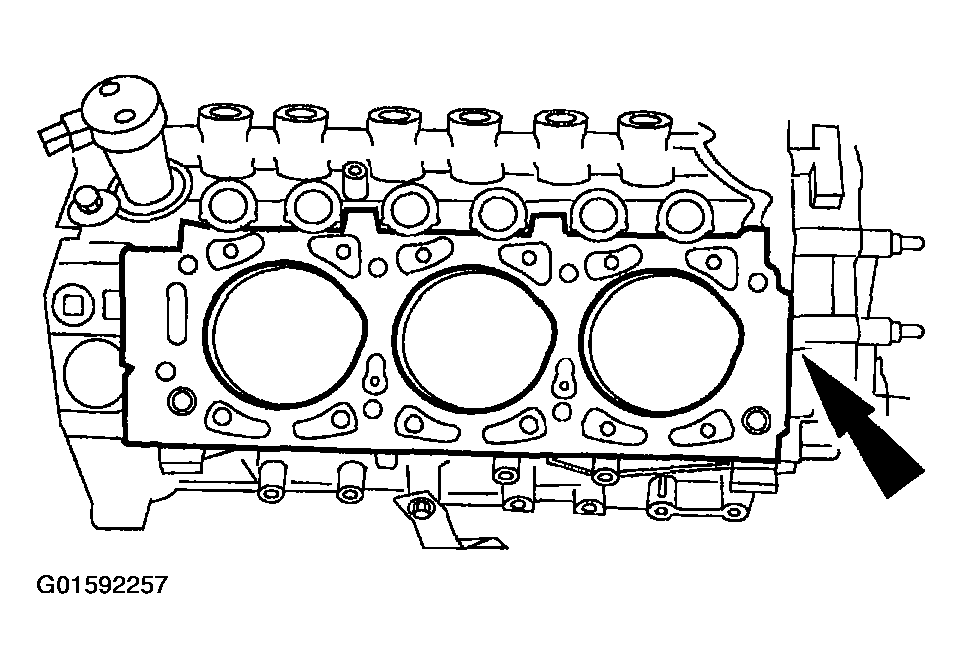

Remove and discard the head gasket.

Fig 15: Removing Head Gasket
Courtesy of FORD MOTOR CO.
