Cylinder Head LH: Removal

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
Remove the retainers and the engine anti-roll strut brace.

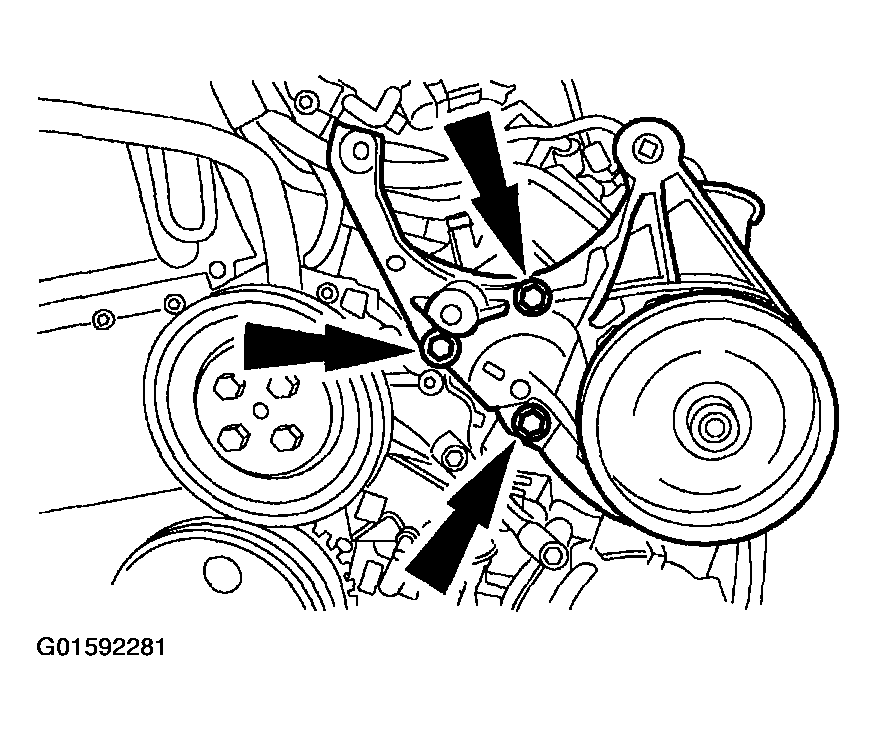

Fig 1: Removing Retainers And Engine Anti-Roll Strut Brace
Courtesy of FORD MOTOR CO.
Disconnect the generator electrical connections.

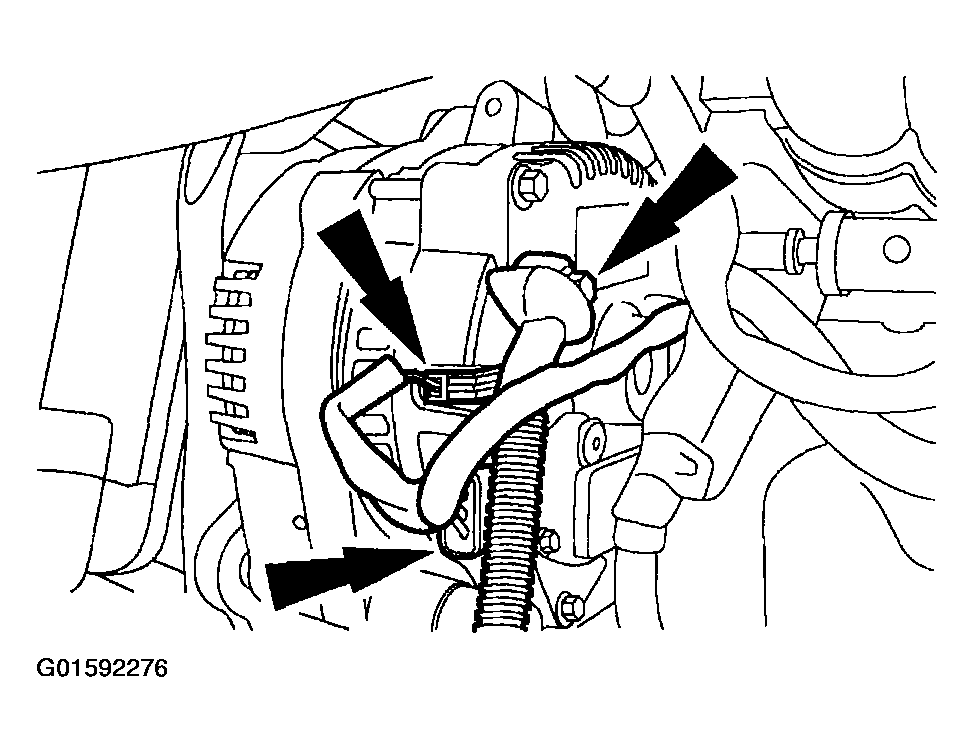

Fig 2: Disconnecting Generator Electrical Connections
Courtesy of FORD MOTOR CO.
Remove the retainers and the generator.

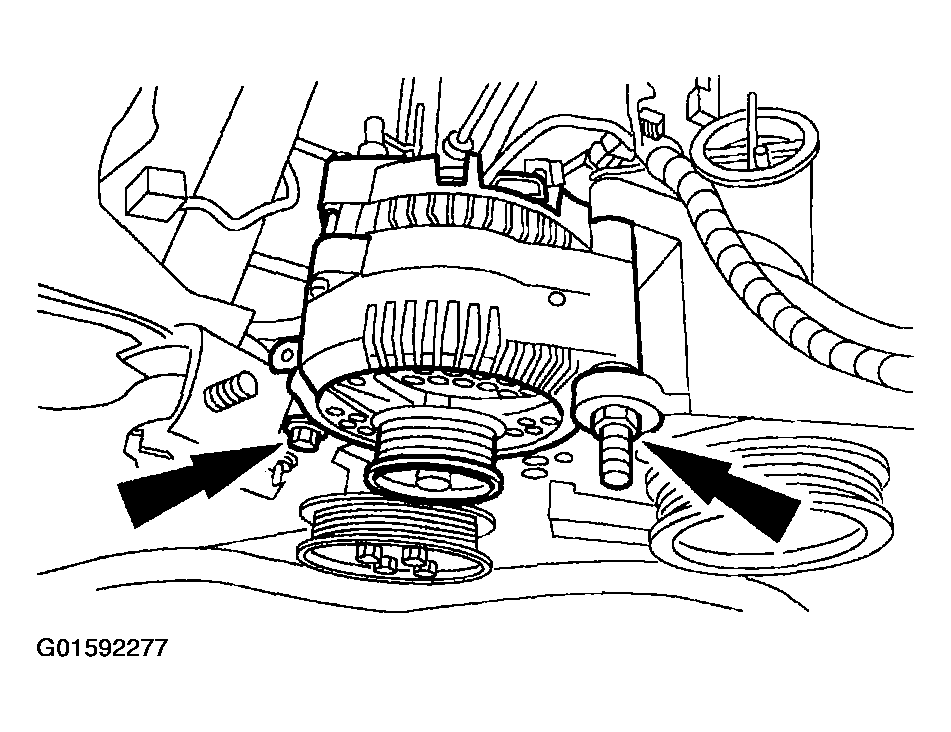

Fig 3: Removing Retainers And Generator
Courtesy of FORD MOTOR CO.
Remove the bolt and the drive belt idler pulley.

Fig 4: Removing Bolt And Drive Belt Idler Pulley
Courtesy of FORD MOTOR CO.
Remove the bolt and the drive belt tensioner pulley.

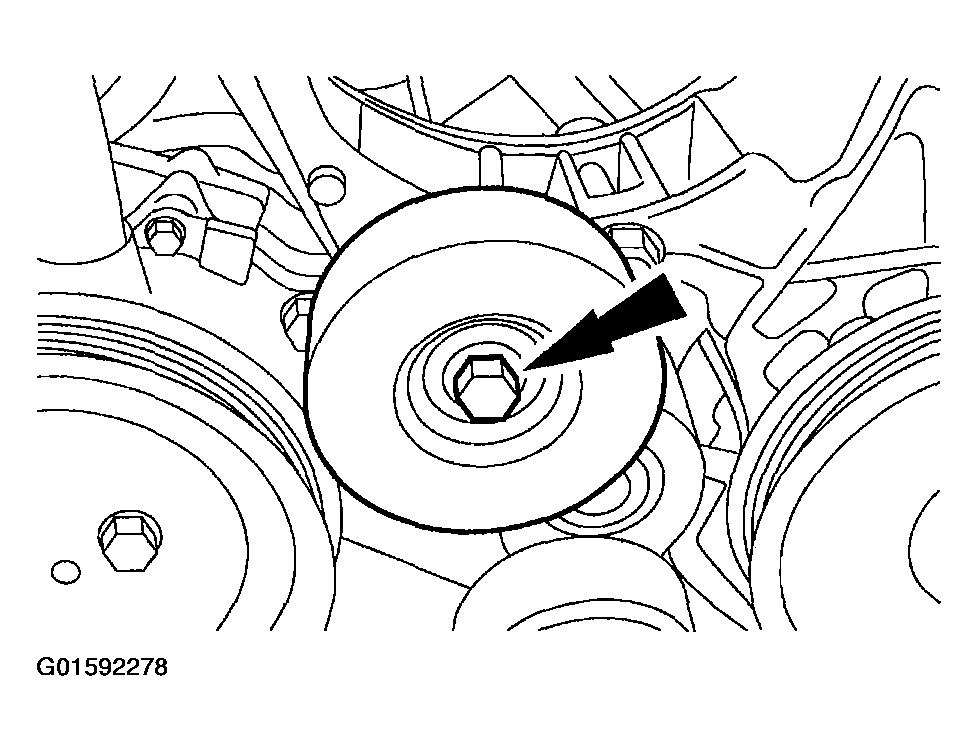

Fig 5: Removing Bolt And Drive Belt Tensioner Pulley
Courtesy of FORD MOTOR CO.
Remove the spark plug wires.

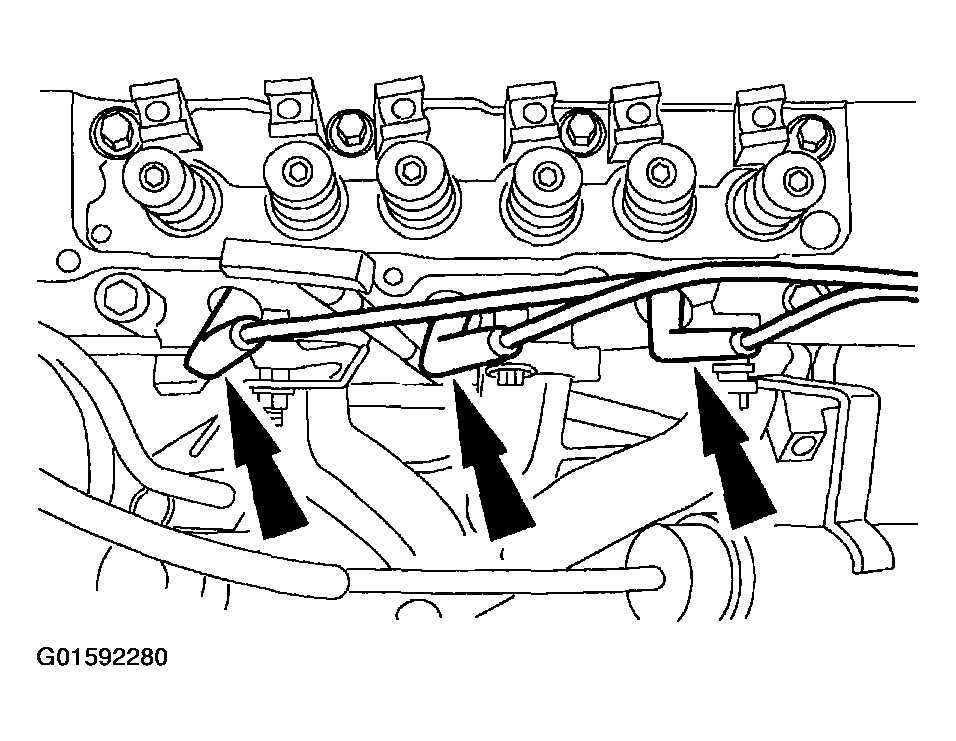

Fig 6: Removing Spark Plug Wires
Courtesy of FORD MOTOR CO.
Remove the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD LH .
Remove the power steering pump and bracket assembly.
- Disconnect the power steering return hose.
- Remove the bolt.
- Remove the two nuts.

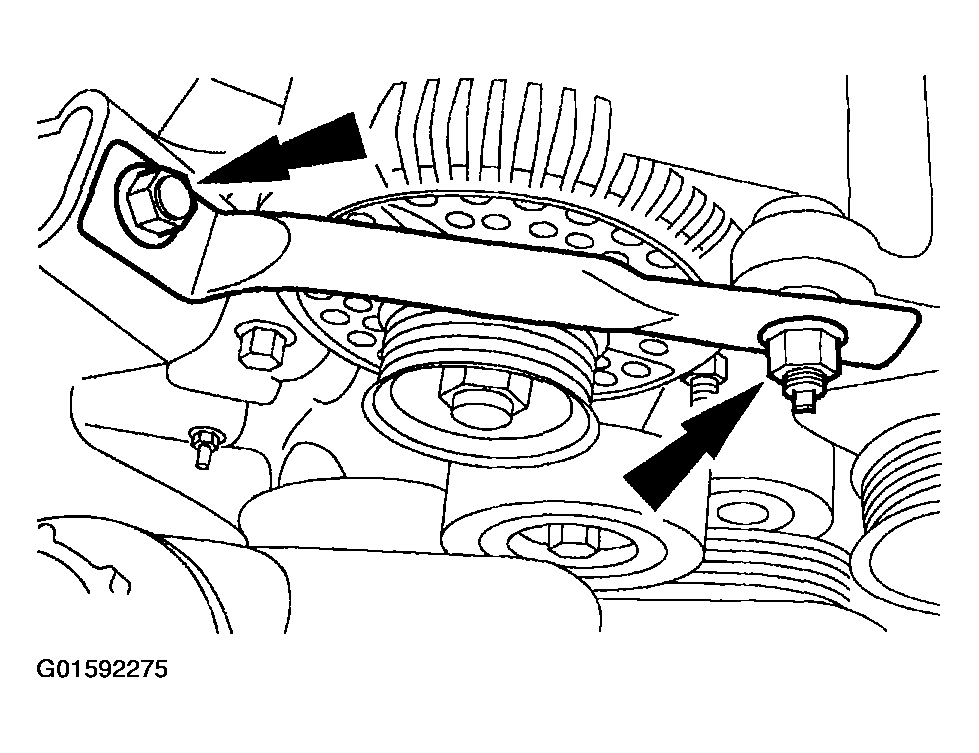

Fig 7: Removing Power Steering Pump And Bracket Assembly
Courtesy of FORD MOTOR CO.
Remove the eight cylinder head bolts.

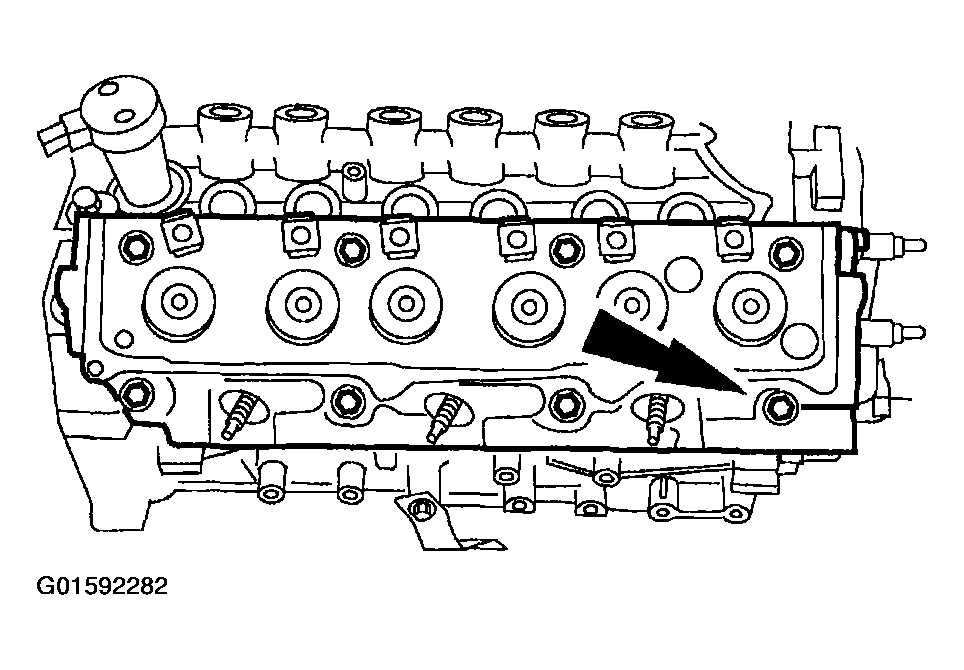

Fig 8: Removing Cylinder Head Bolts
Courtesy of FORD MOTOR CO.
Remove the cylinder heads.

Fig 9: Removing Cylinder Heads
Courtesy of FORD MOTOR CO.
Remove and discard the head gasket.

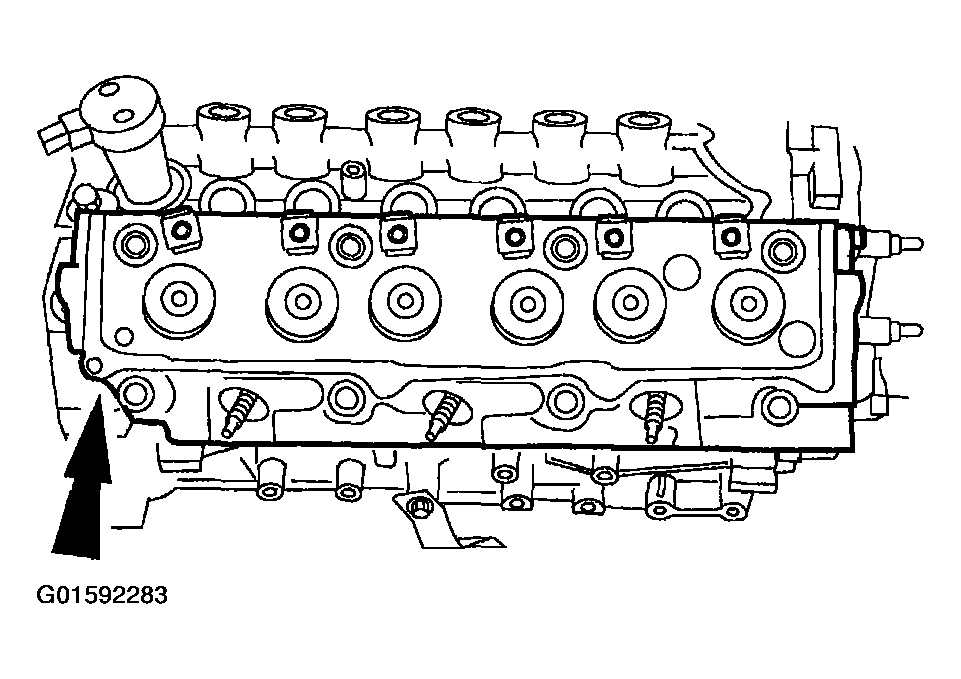

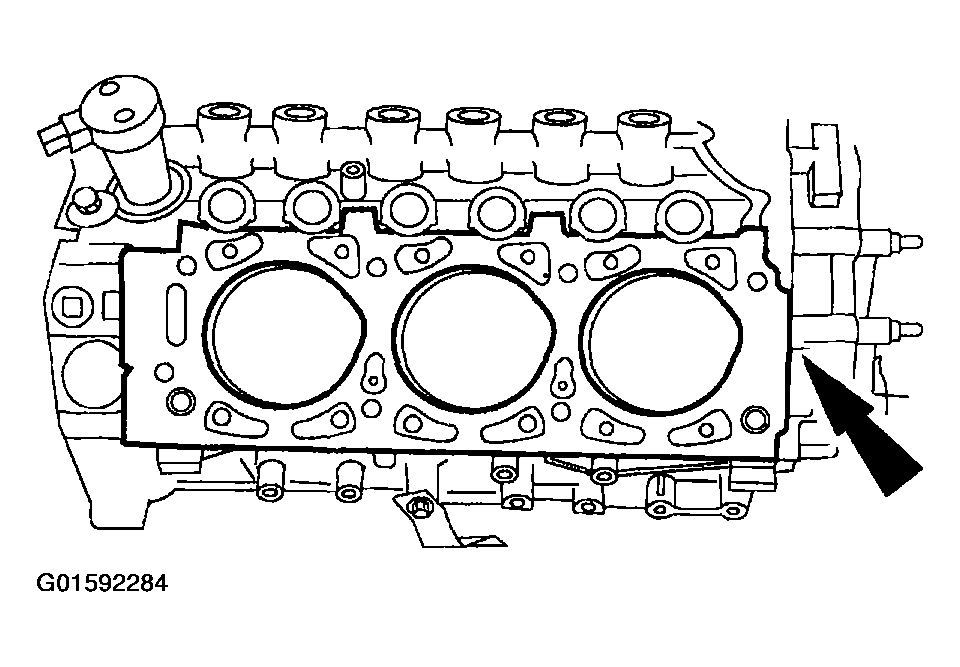

Fig 10: Removing Head Gasket
Courtesy of FORD MOTOR CO.
