Cylinder Head LH: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using metal surface cleaner, clean the cylinder head sealing surfaces.

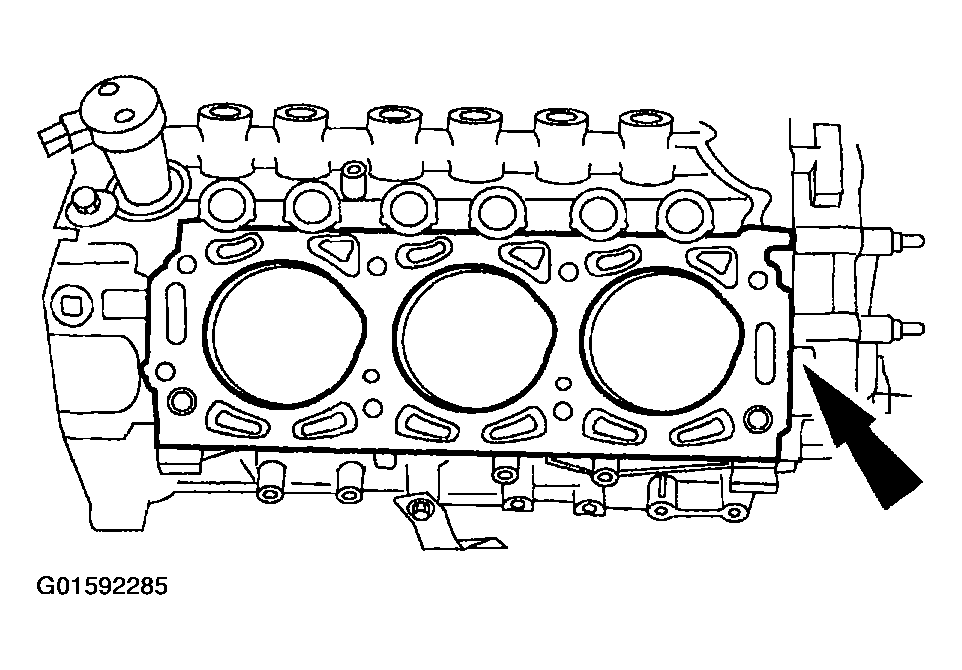

    Fig 1: Cleaning Cylinder Head Sealing Surfaces
    G01592285Courtesy of FORD MOTOR CO.
  2. Check the cylinder head and the cylinder block for flatness. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
    3. NOTE: The "V" notch in the cylinder head gasket faces the front of the engine.

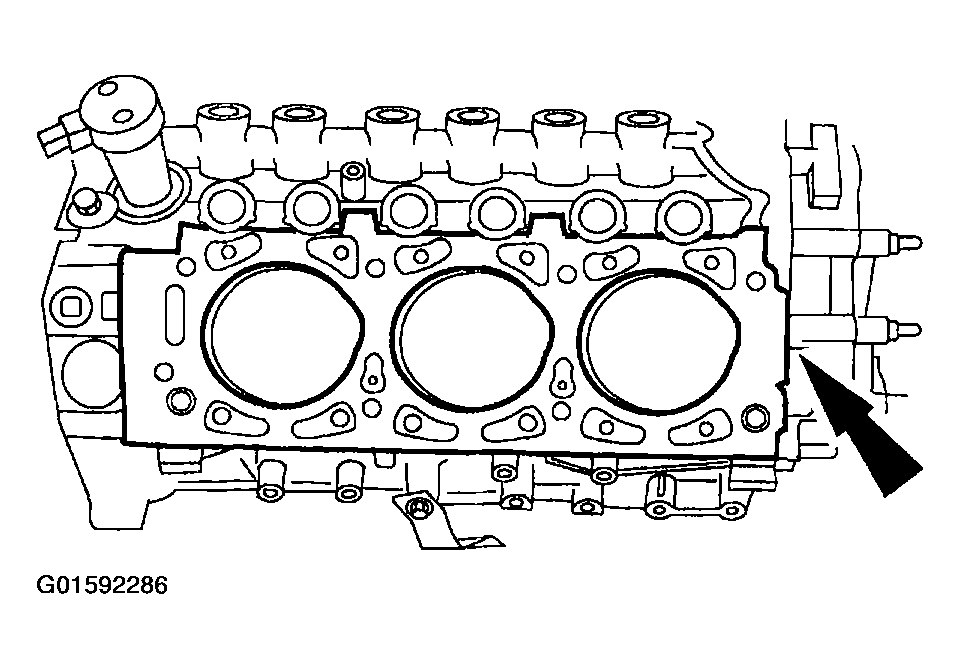

    Fig 2: Positioning Cylinder Head Gasket
    G01592286Courtesy of FORD MOTOR CO.
  3. Position a new cylinder head gasket.
  4. Position the cylinder head.
    Fig 3: Positioning Cylinder Head
    G01592287Courtesy of FORD MOTOR CO.
  5. Install the bolts. Tighten the bolts in five stages in the sequence shown.
    • Stage 1: Tighten to 50 Nm (37 lb-ft).
    • Stage 2: Loosen the bolts one full turn.
    • Stage 3: Tighten to 30 Nm (22 lb-ft).
    • Stage 4: Rotate an additional 90 degrees.
    • Stage 5: Rotate an additional 90 degrees.

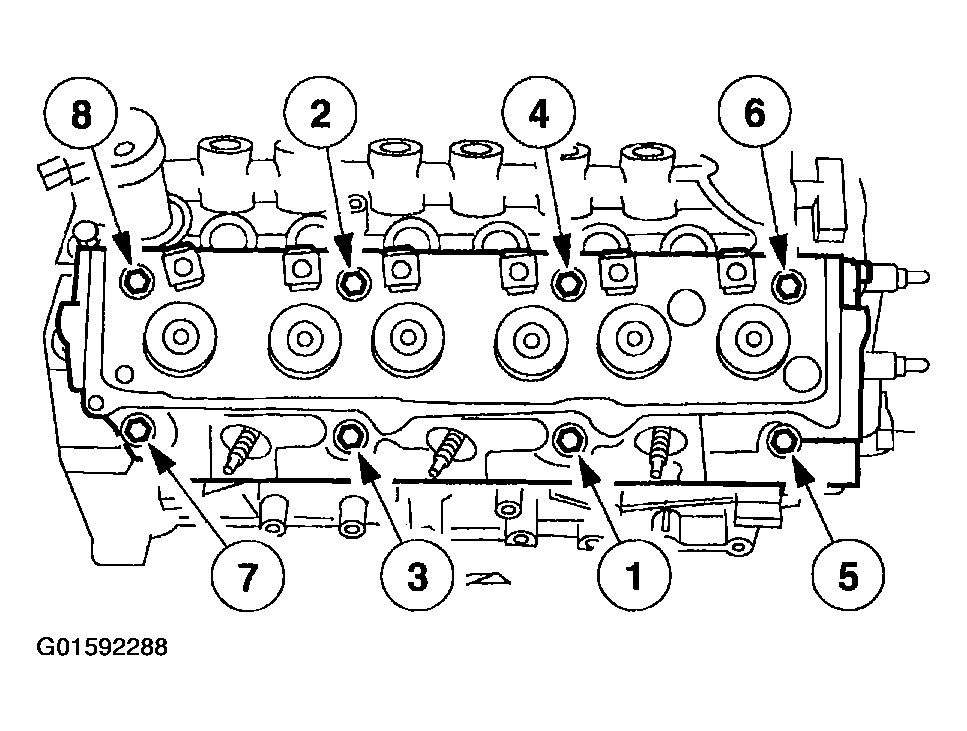

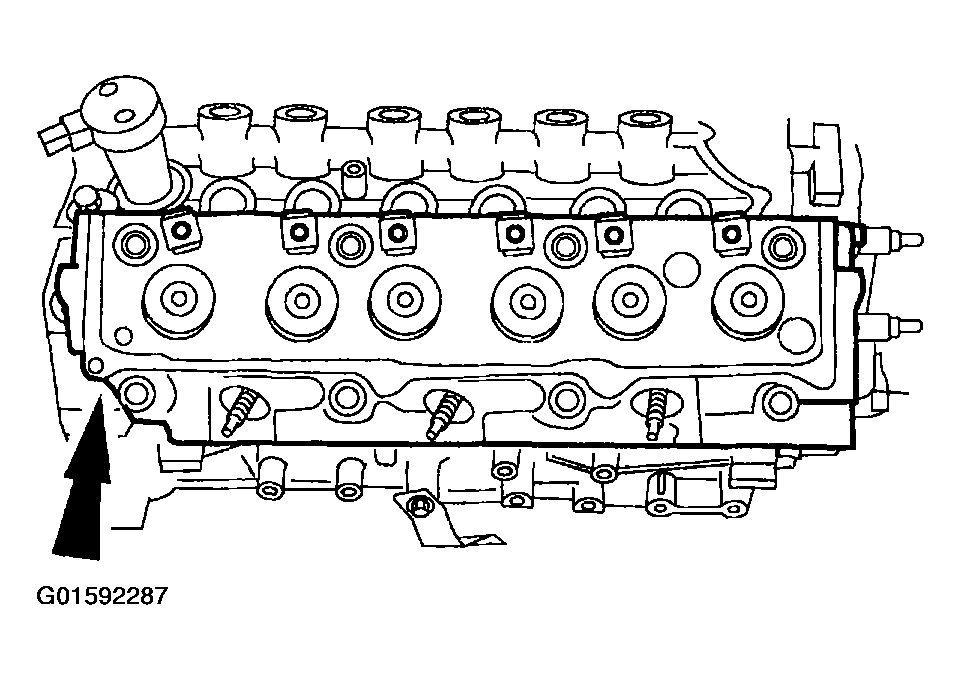

    Fig 4: Tightening Sequence Of Cylinder Head Bolts
    G01592288Courtesy of FORD MOTOR CO.
  6. Install the power steering pump and bracket assembly.
    • Install the bolt.
    • Install the two nuts.
    • Connect the power steering return hose.

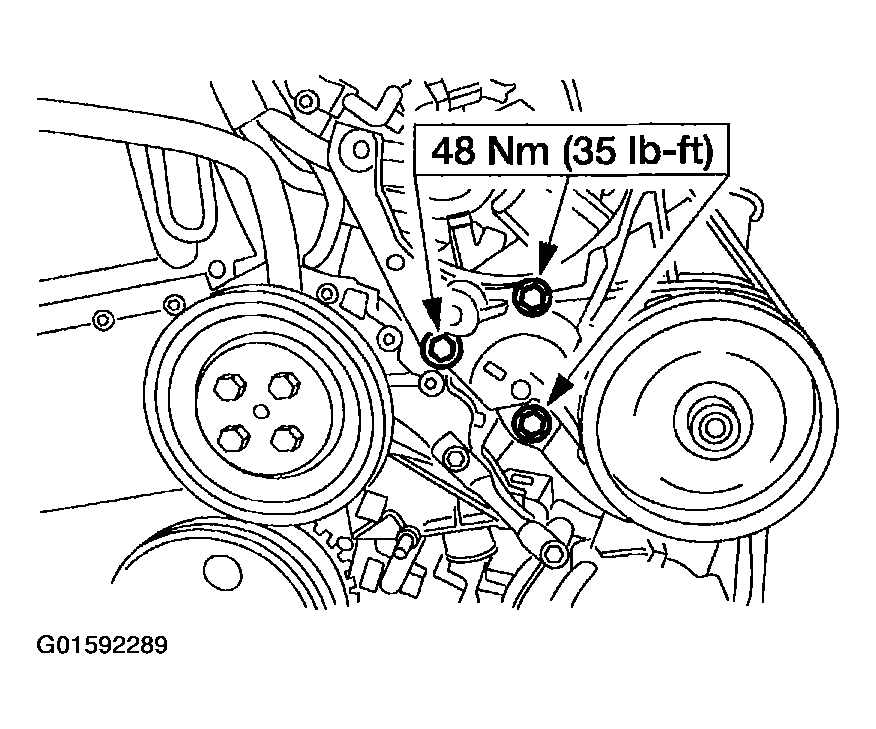

    Fig 5: Installing Power Steering Pump And Bracket Assembly
    G01592289Courtesy of FORD MOTOR CO.
  7. Install the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD LH .
  8. Install the spark plug wires.

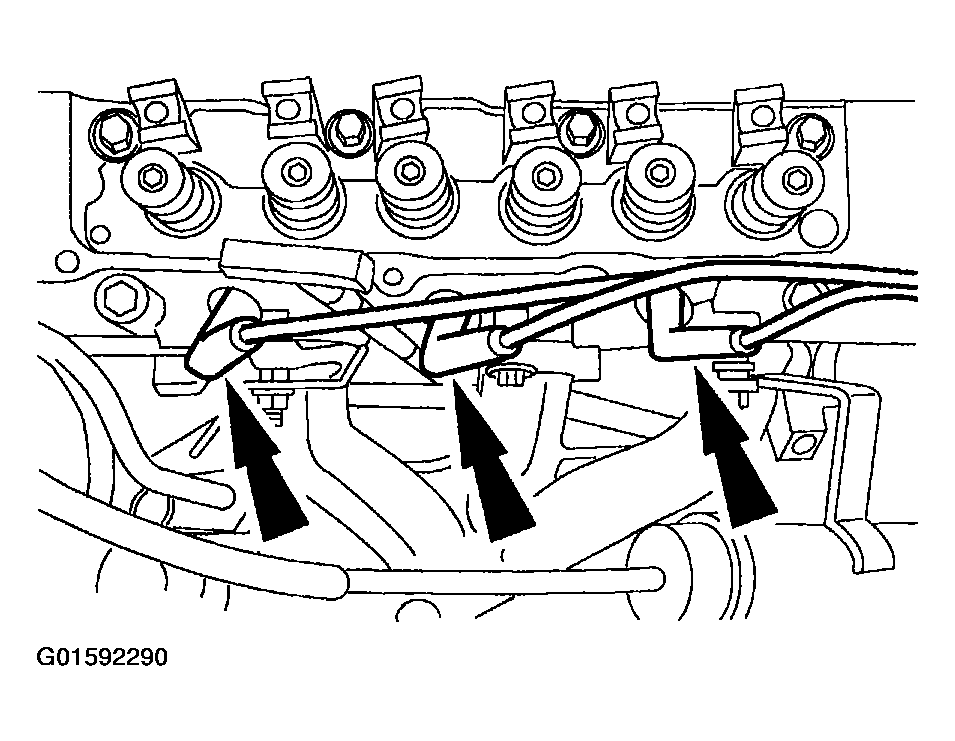

    Fig 6: Installing Spark Plug Wires
    G01592290Courtesy of FORD MOTOR CO.
  9. Install the drive belt tensioner and bolt.

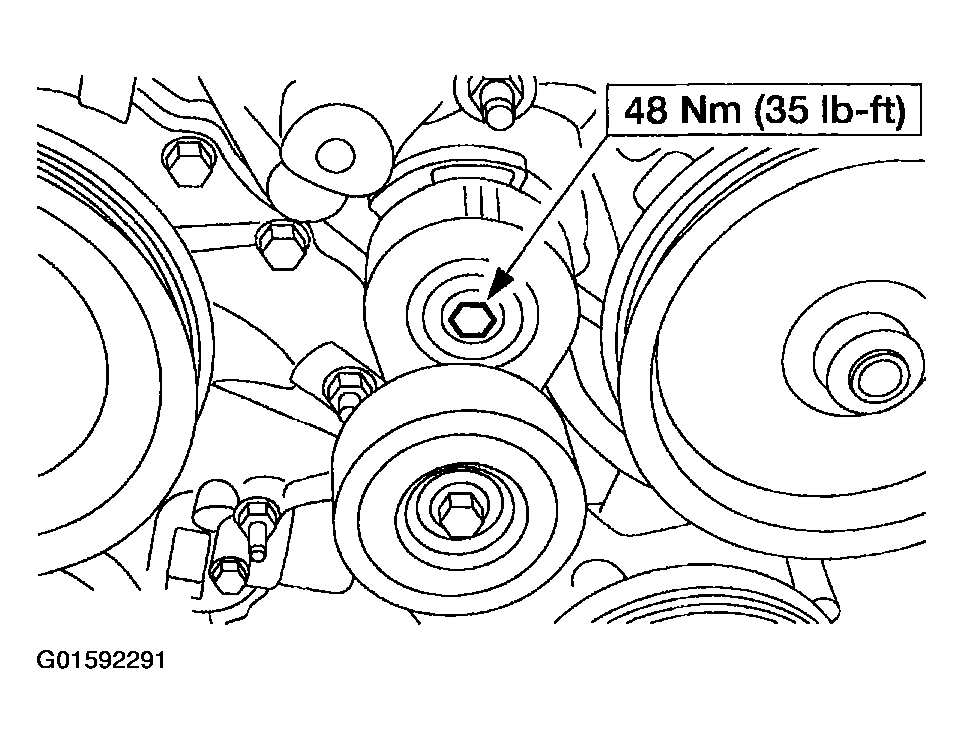

    Fig 7: Installing Drive Belt Tensioner And Bolt
    G01592291Courtesy of FORD MOTOR CO.
  10. Install the drive belt idler pulley and bolt.

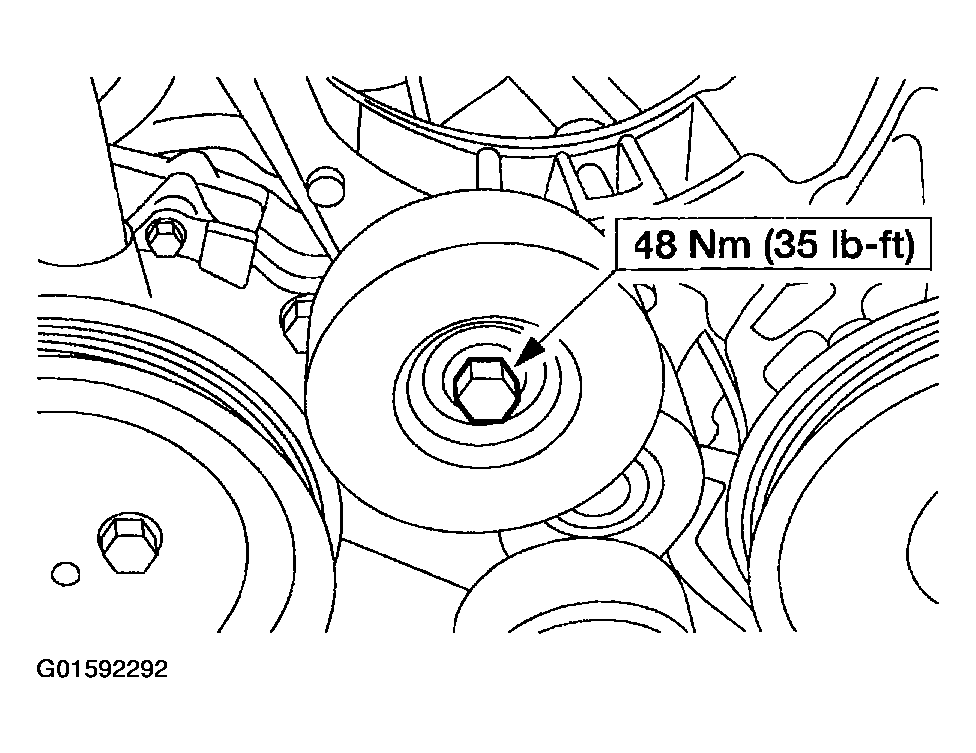

    Fig 8: Installing Drive Belt Idler Pulley And Bolt
    G01592292Courtesy of FORD MOTOR CO.
  11. Install the generator and the retainers.

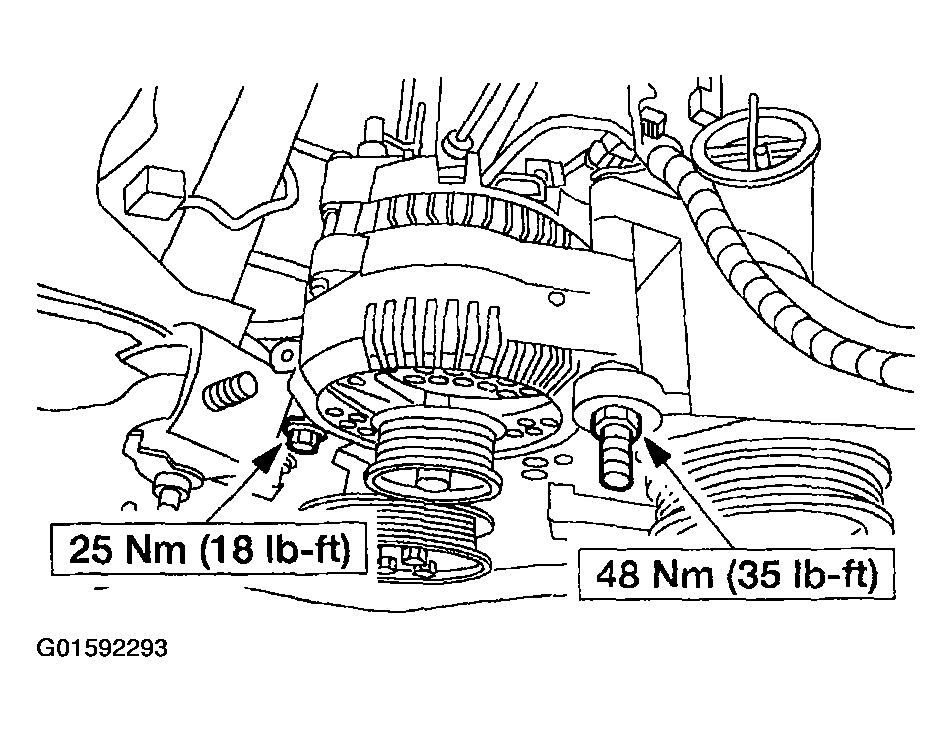

    Fig 9: Installing Generator And Retainers
    G01592293Courtesy of FORD MOTOR CO.
  12. Connect the generator electrical connections.

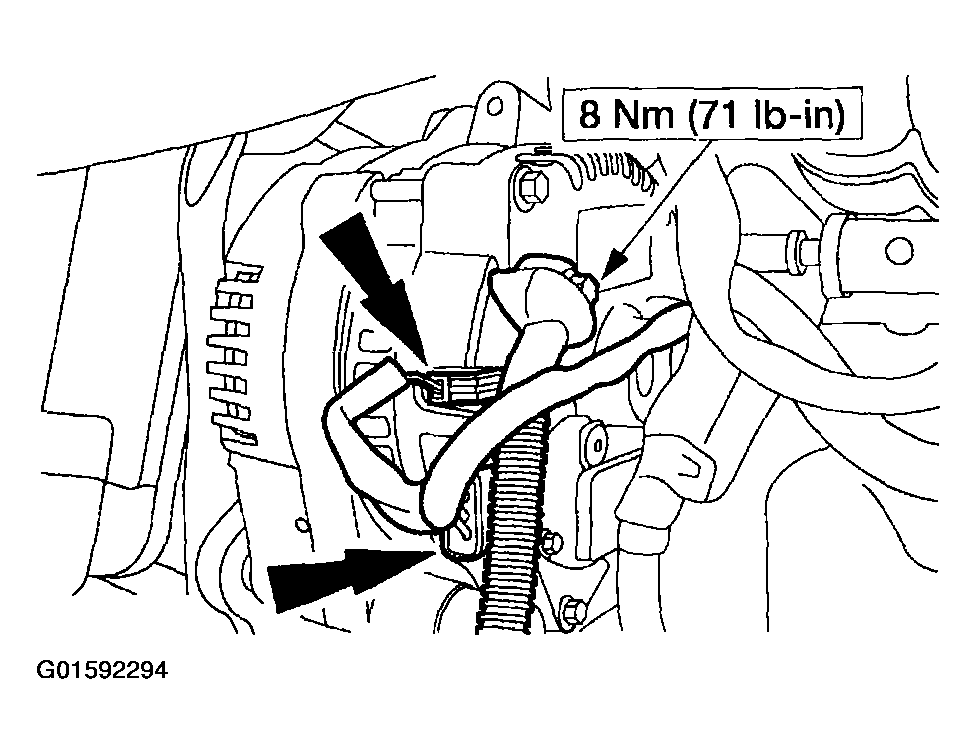

    Fig 10: Connecting Generator Electrical Connections
    G01592294Courtesy of FORD MOTOR CO.
  13. Install the engine anti-roll strut brace and the retainers.

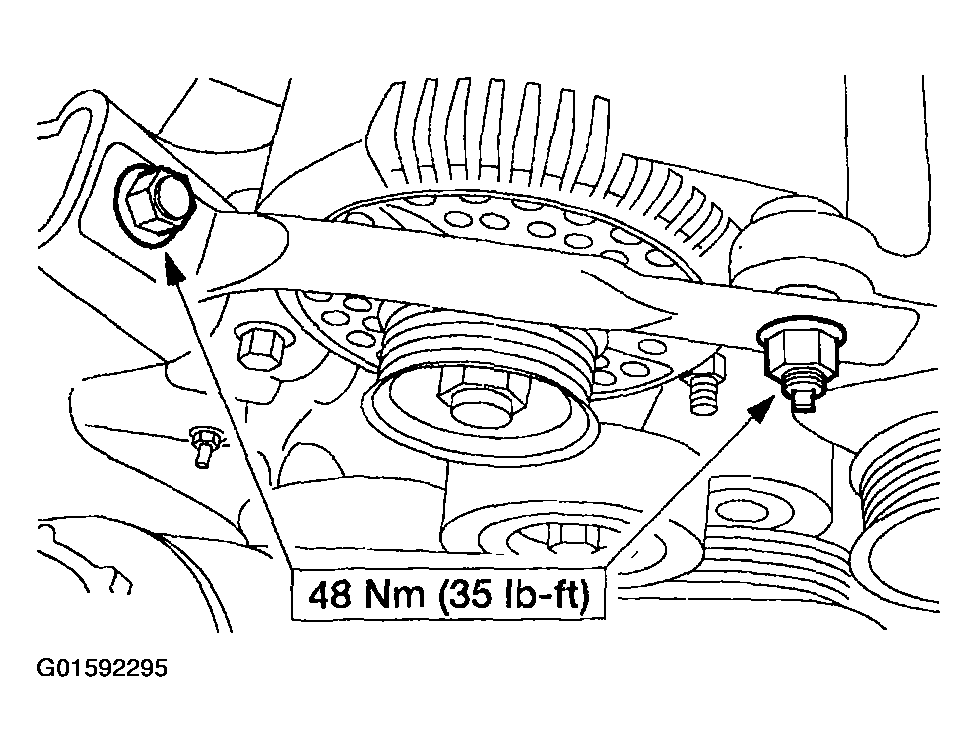

    Fig 11: Installing Engine Anti-Roll Strut Brace And Retainers
    G01592295Courtesy of FORD MOTOR CO.
  14. Install the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  15. Install the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
