Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the outer lips and the inner seal on the crankshaft rear seal with clean engine oil.
  2. Using the special tool, install the crankshaft rear seal. Alternate bolt tightening to correctly seat the crankshaft rear seal.

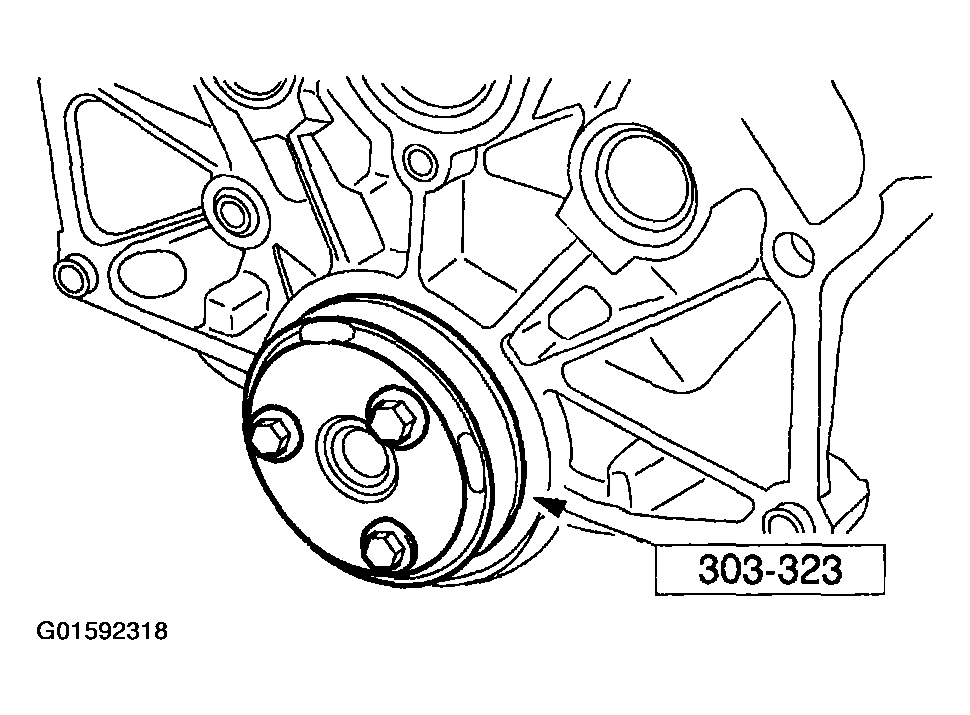

    Fig 1: Installing Crankshaft Rear Seal
    G01592318Courtesy of FORD MOTOR CO.
  3. Install the flexplate. For additional information, refer to FLEXPLATE .
